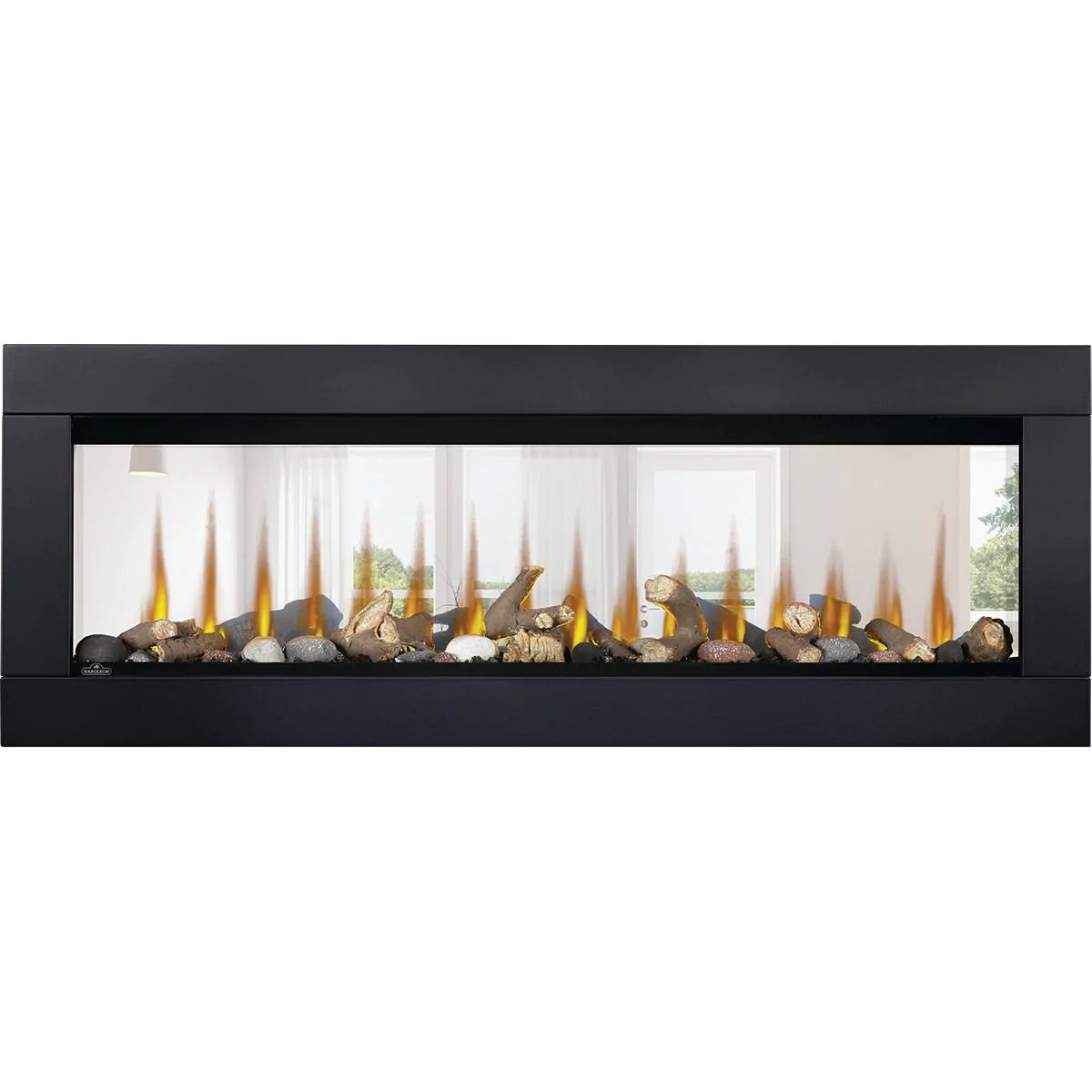

The CLEARion Elite See Through Electric Fireplace is the first ever truly see through electric fireplace. A CLEARion Elite Electric Fireplace is built-in and hardwired, creating a seamlessly relaxing environment. This unique fireplace can heat separate rooms at different rates, increasing the comfort of two spaces at the same time. It can be conveniently controlled with two remotes. The privacy mode allows you to change the transparency when solitude is desired.
Features
- Change the transparency of your fireplace and atmosphere of the room with the new privacy mode
- Dual zone heating offers control over the temperature of both rooms with the fireplace faces
- Heats up to a combined source of 10,000 BTUs and warms up to 800 sq. ft. of the area
- Can be plugged into a standard 120V outlet or hardwired to 120V or 240V systems

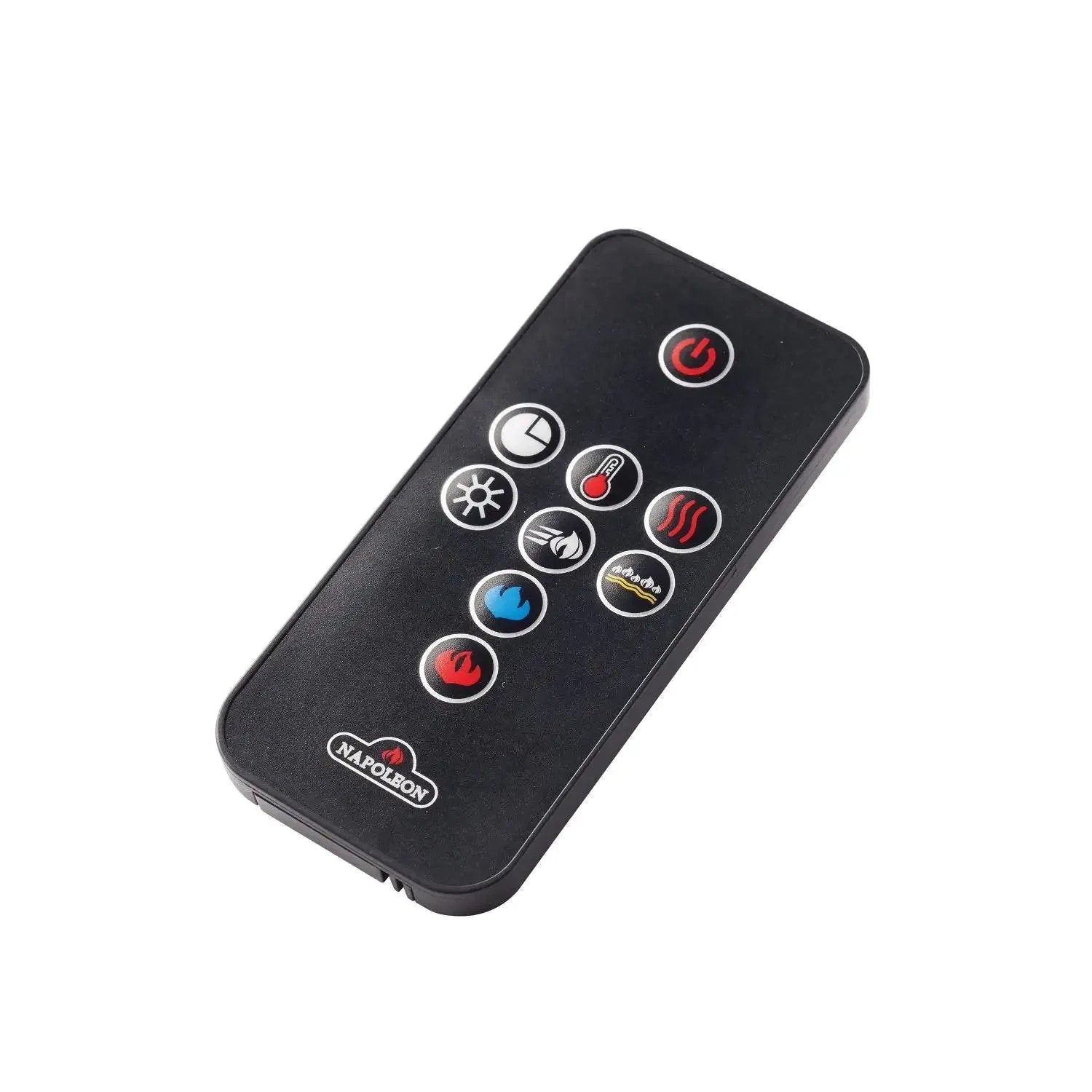

- Multi-function remote allows control of the heater, flame speed, flame color, ember color, and on/off timer

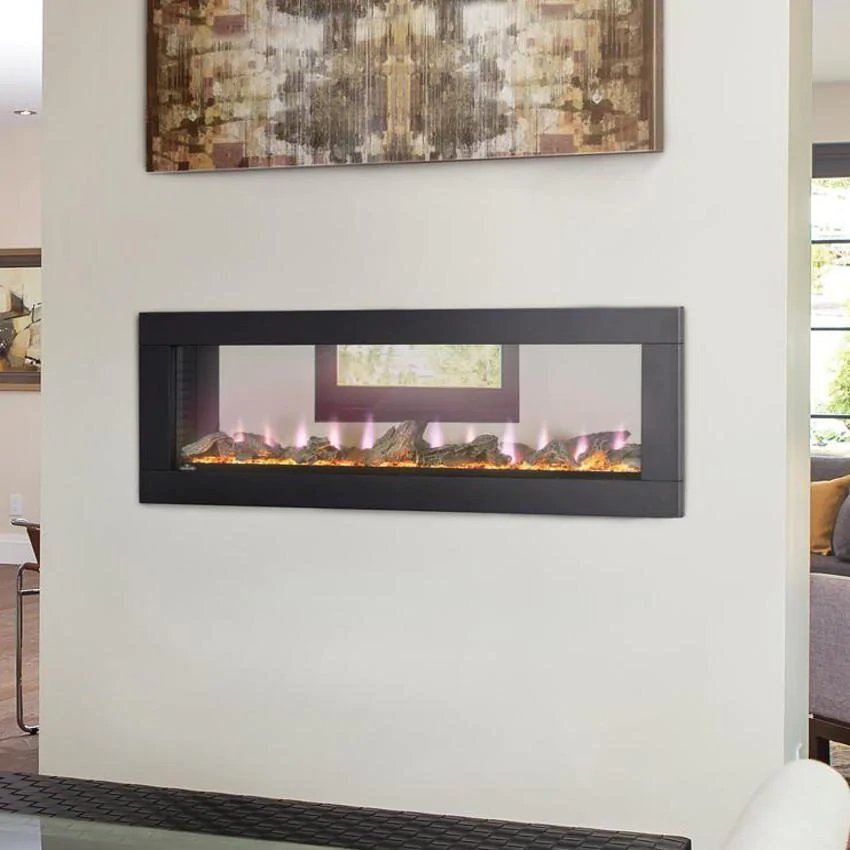

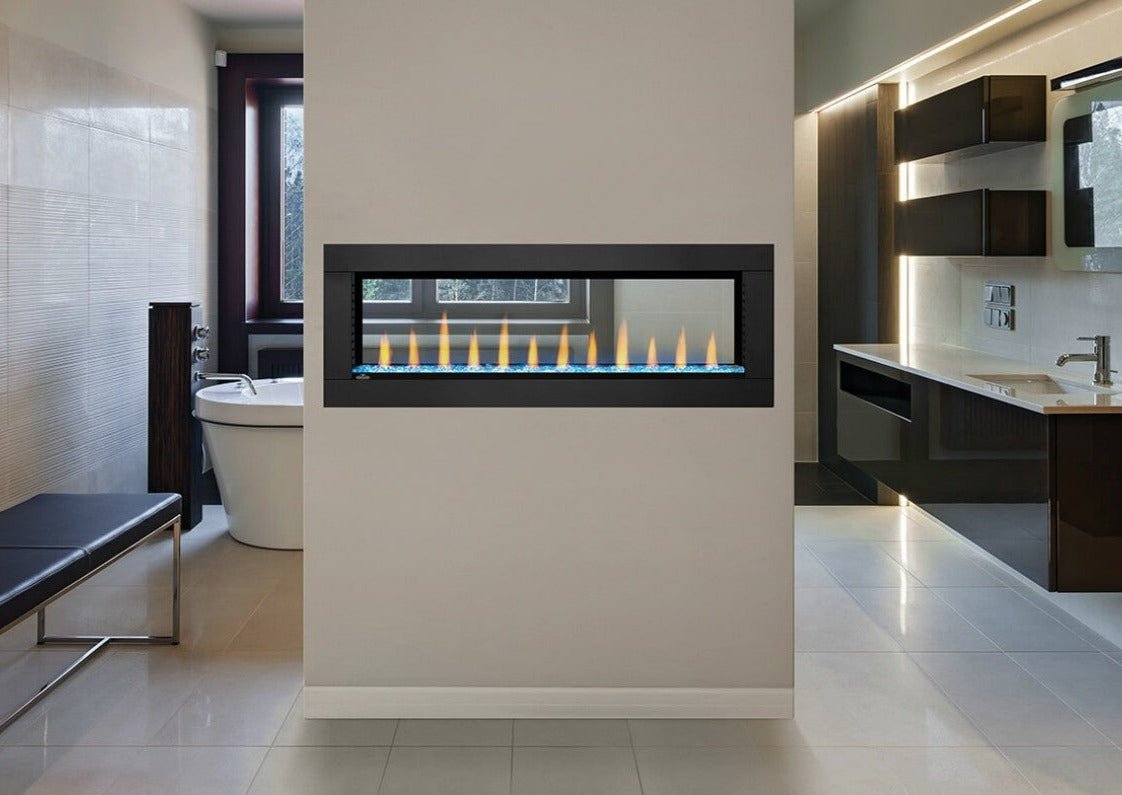

Make a bold and impressive statement in your home with the addition of this industry first truly see through electric fireplace. A new feature that comes with this CLEARion Elite model is the privacy mode, and it can be switched between transparent, semi-transparent and fully opaque. The CLEARion is ideal in applications where a fireplace is desired in two rooms at once, such as a family room looking in to the dining room, bedroom into the bathroom, or even from a great room into the foyer. The design choices and options are virtually limitless with this new breakthrough technology. The patented flames flicker and dance with the same motions of a gas flame, creating the illusion of real fire. The unit comes with two ember bed selections that can be swapped out as you like. For a more traditional look, use the resin cast South Beach log set with topaz glass embers, or for a more contemporary appeal, use the crystal glass media set. With the CLEARion, Napoleon also introduces electric fireplaces with dual zone heating. On the two faces of the fireplace, it offers two separate & distinct heaters. This allows the user to set a specific temperature for one room, and either have the opposite room completely off, or set at a different temperature. Rated to produce up to 10,000 BTUs (hard-wired), the fireplace can warm up to 800 Sq. Ft. A multi-function remote control is included with the unit, offering hand-held operation of the heater, flame speed, flame color, ember color, and on/off timer. The flame speed settings has five different speed options to choose from. The CLEARion features fifteen different ember bed color options; Orange, Red, Blue, Yellow, Green, Purple, Sky Blue, Purple/Red, White, Pink, Yellow/Green, Ice Blue, Orange/Red, Light Green, Magenta. There are three flame options: Blue, Orange, and Multi-Color. The CLEARion installs with relative ease and can either be simply plugged in or direct wired to 120V or 240V electrical systems. A hardwired 240V installation will operate at 3,000 watts/10,000 BTUs, and a plugged in or hardwired 120V installation will operate at 1,500 watts/5,000 BTUs. The unit is designed for simple installation into double 2 x 4 framing with an 8-inch thickness. Two trim kits are available in black and stainless steel(sold separately).
FEATURES & TECHNOLOGIES
-
Industry's first truly SEE THRU electric fireplace
-
Privacy glass feature allows user to instantaneously switch between transparent, semi-transparent and fully opaque when privacy is desired
-
Hardwire 120V or 240V
-
Viewing Area 43 5/8"w x 12"h
-
Up to 10,000 BTU's and 3,000 Watts
-
Warms up to 800 sq. ft.
-
Three flame color options; blue, orange and multi-color
-
Five different flame speed options
-

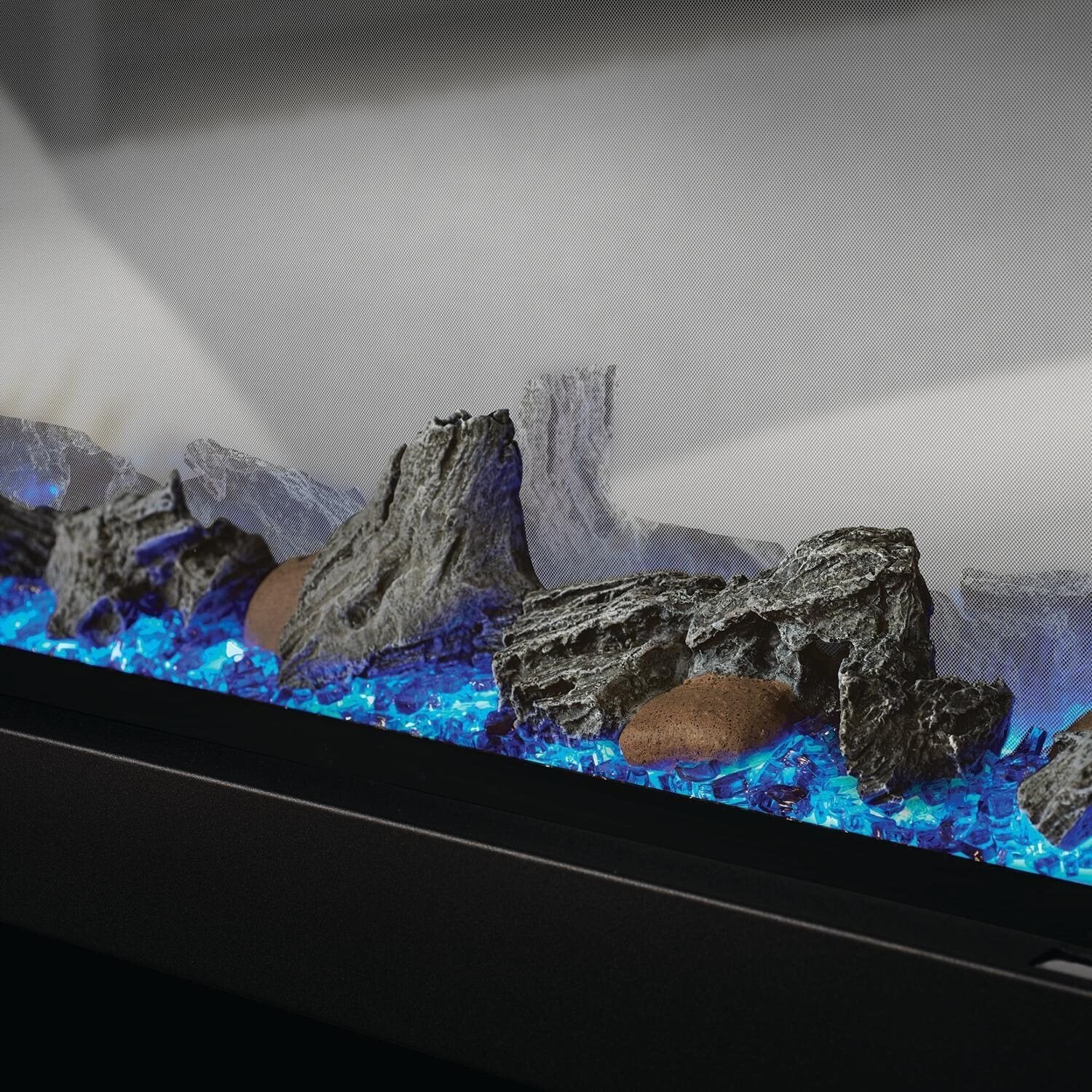

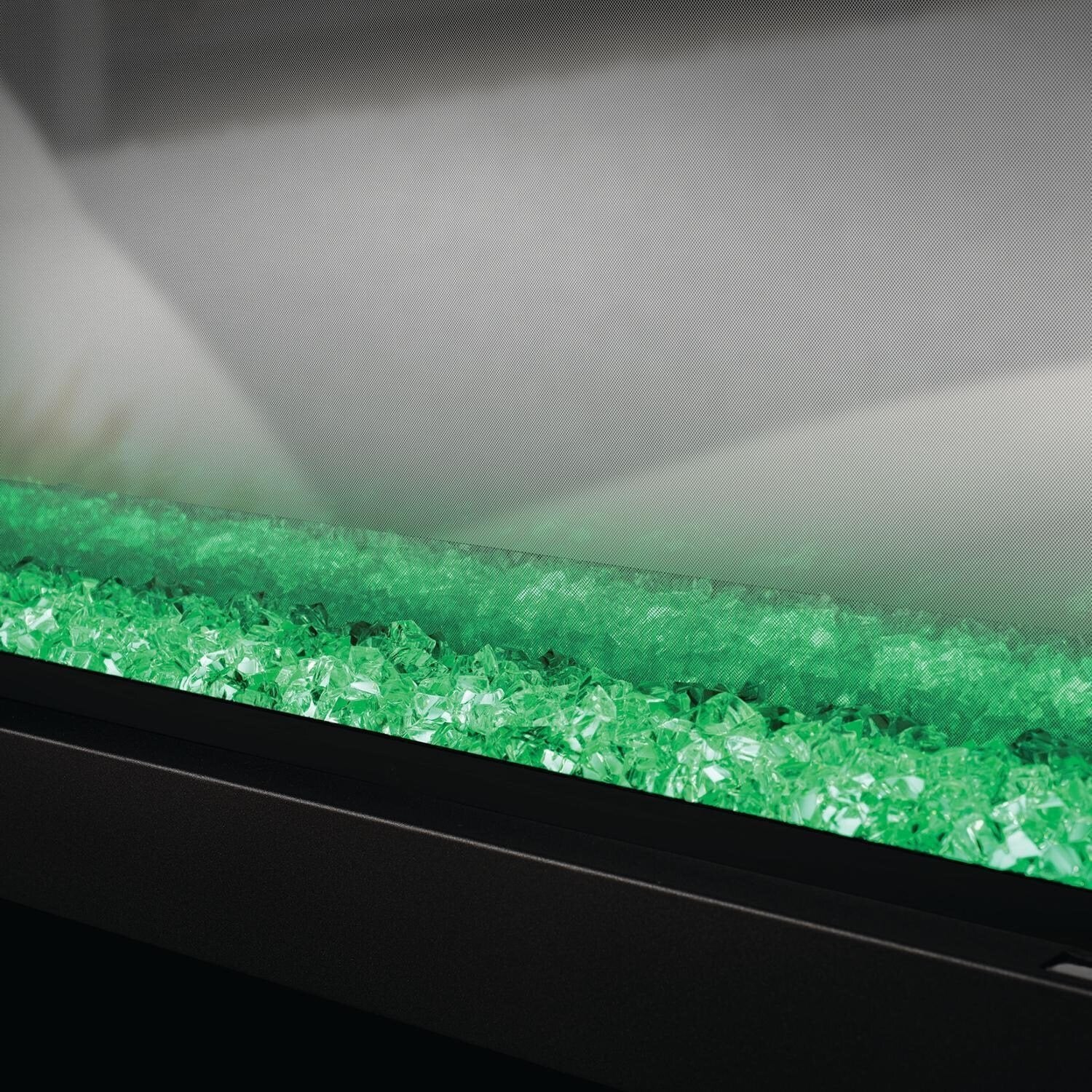

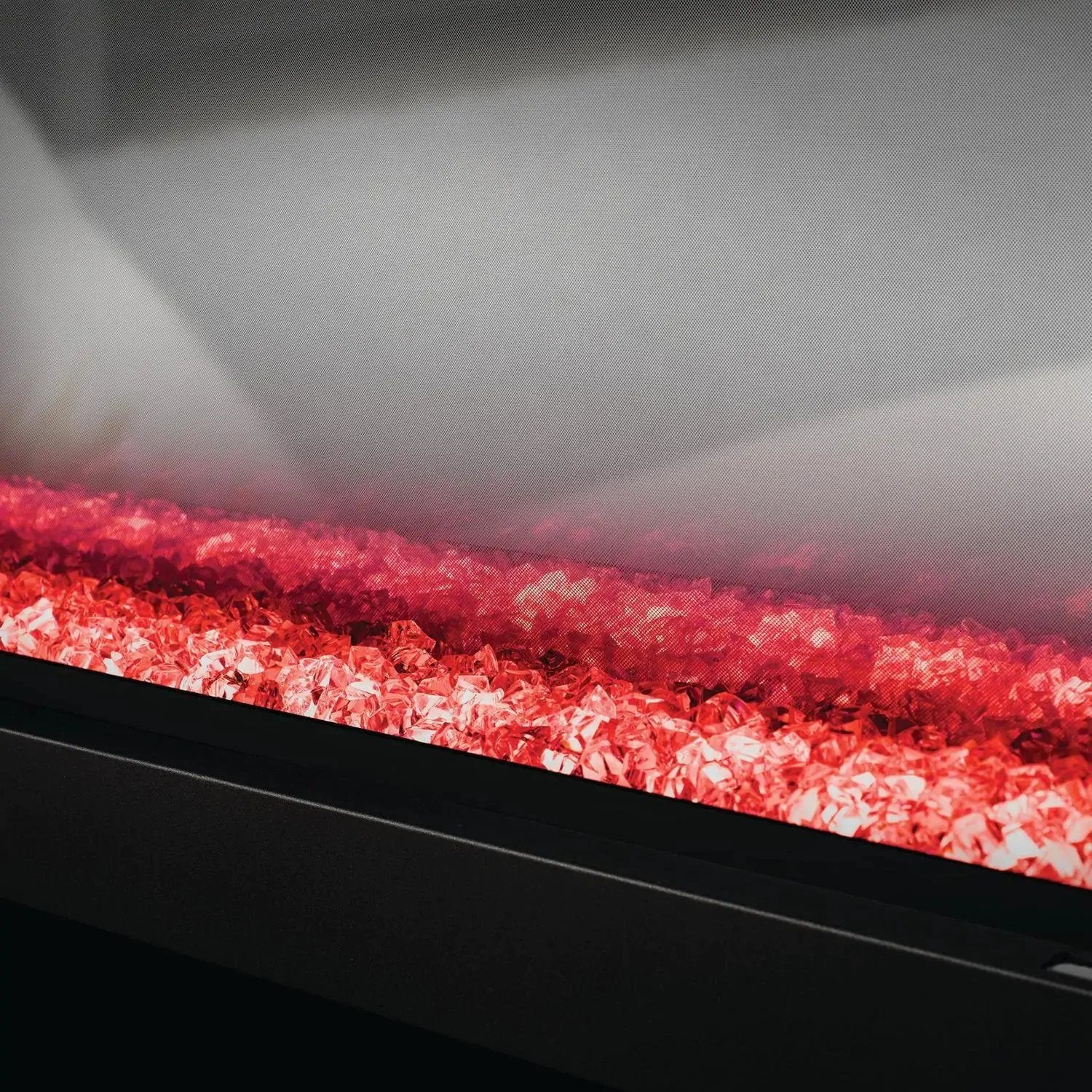

Fifteen different ember bed color options; Orange, Red, Blue, Yellow, Green, Purple, Sky Blue, Purple/Red, White, Pink, Yellow/Green, Ice Blue, Orange/Red, Light Green, Magenta plus an autocycle setting
-

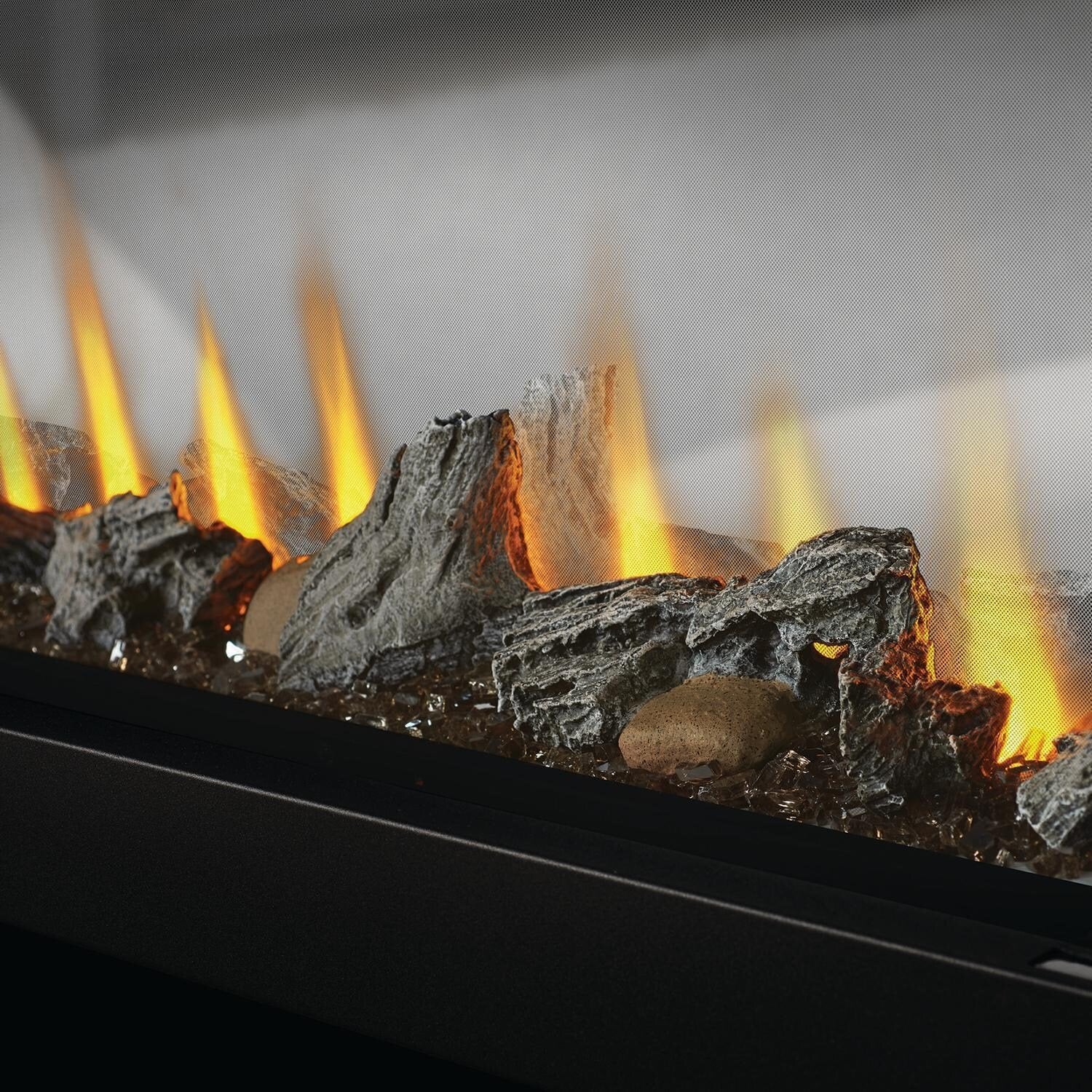

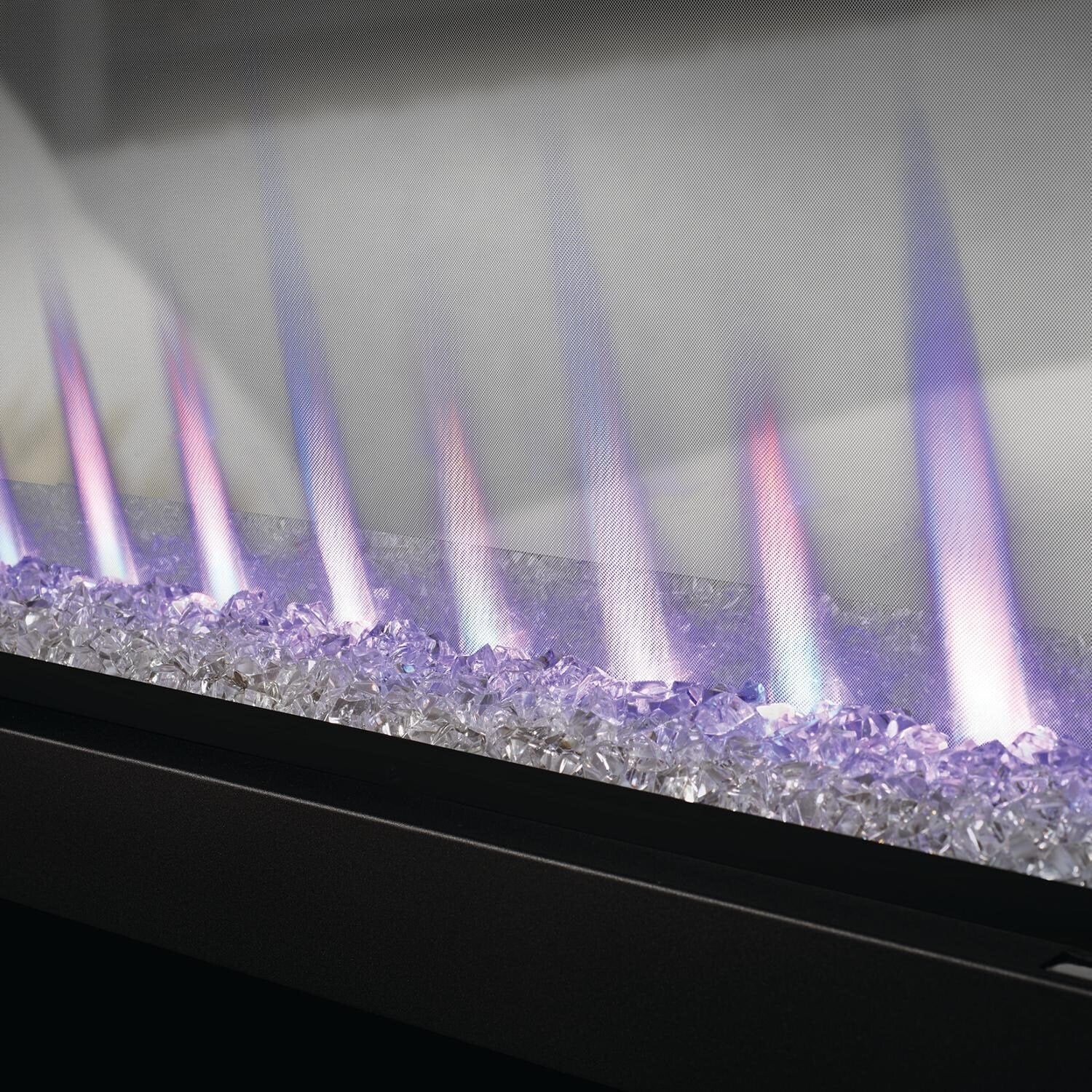

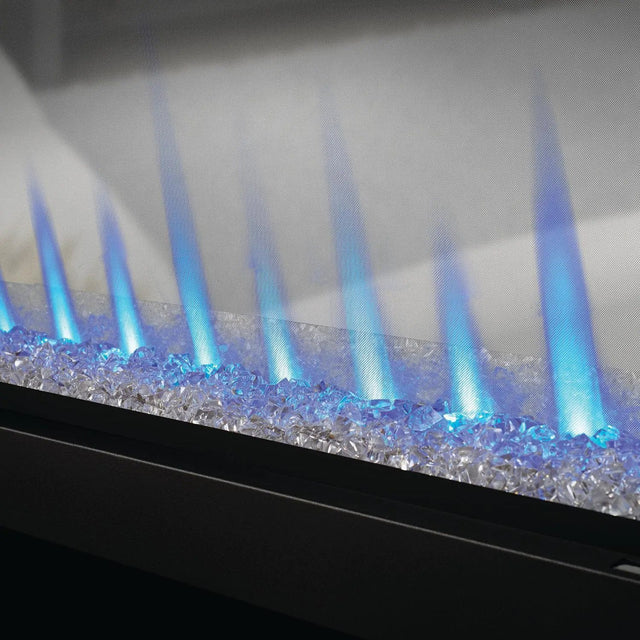

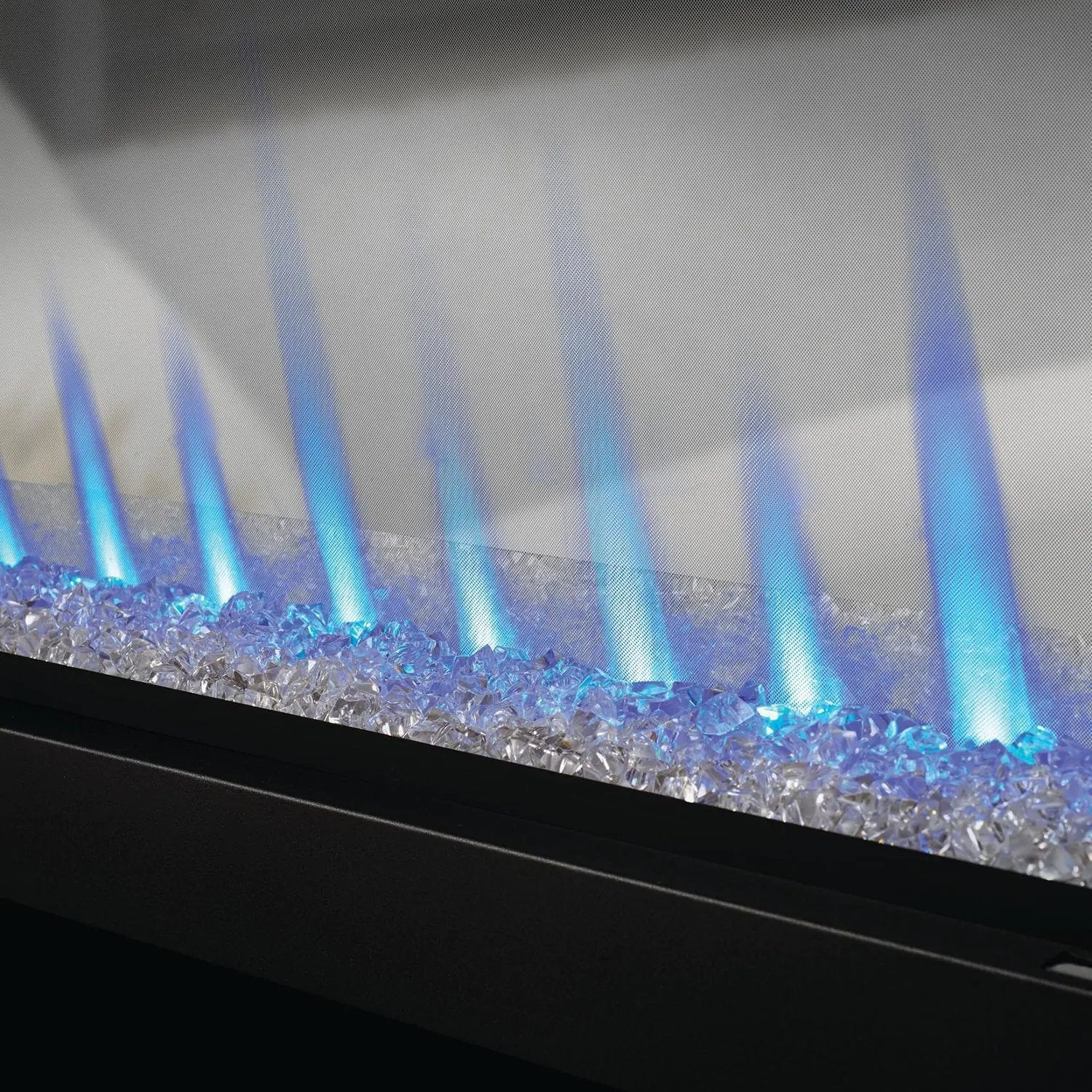

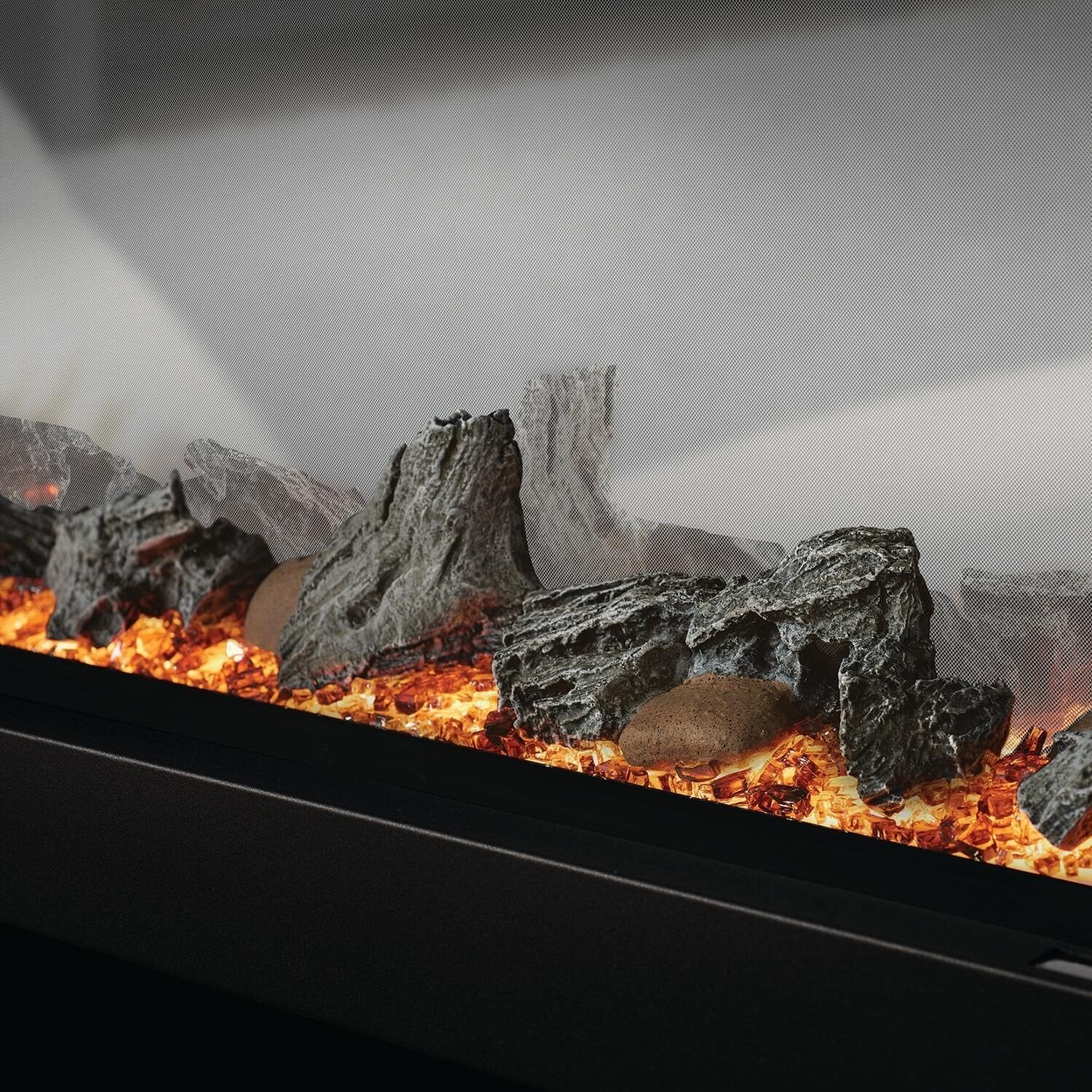

Log Set with Topaz Glass and Crystal Media included
-
Simple framing specifications (8" wall thickness)
-

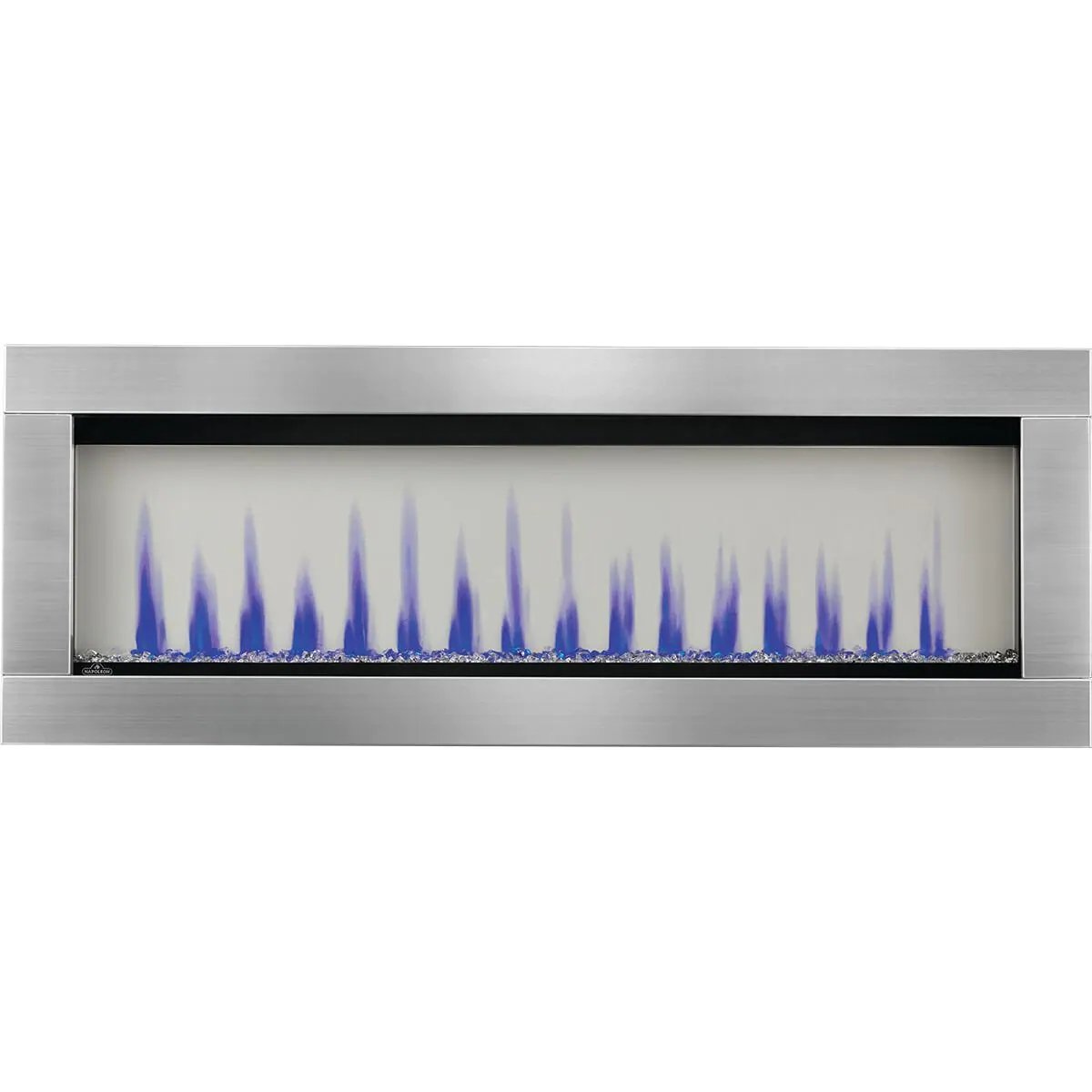

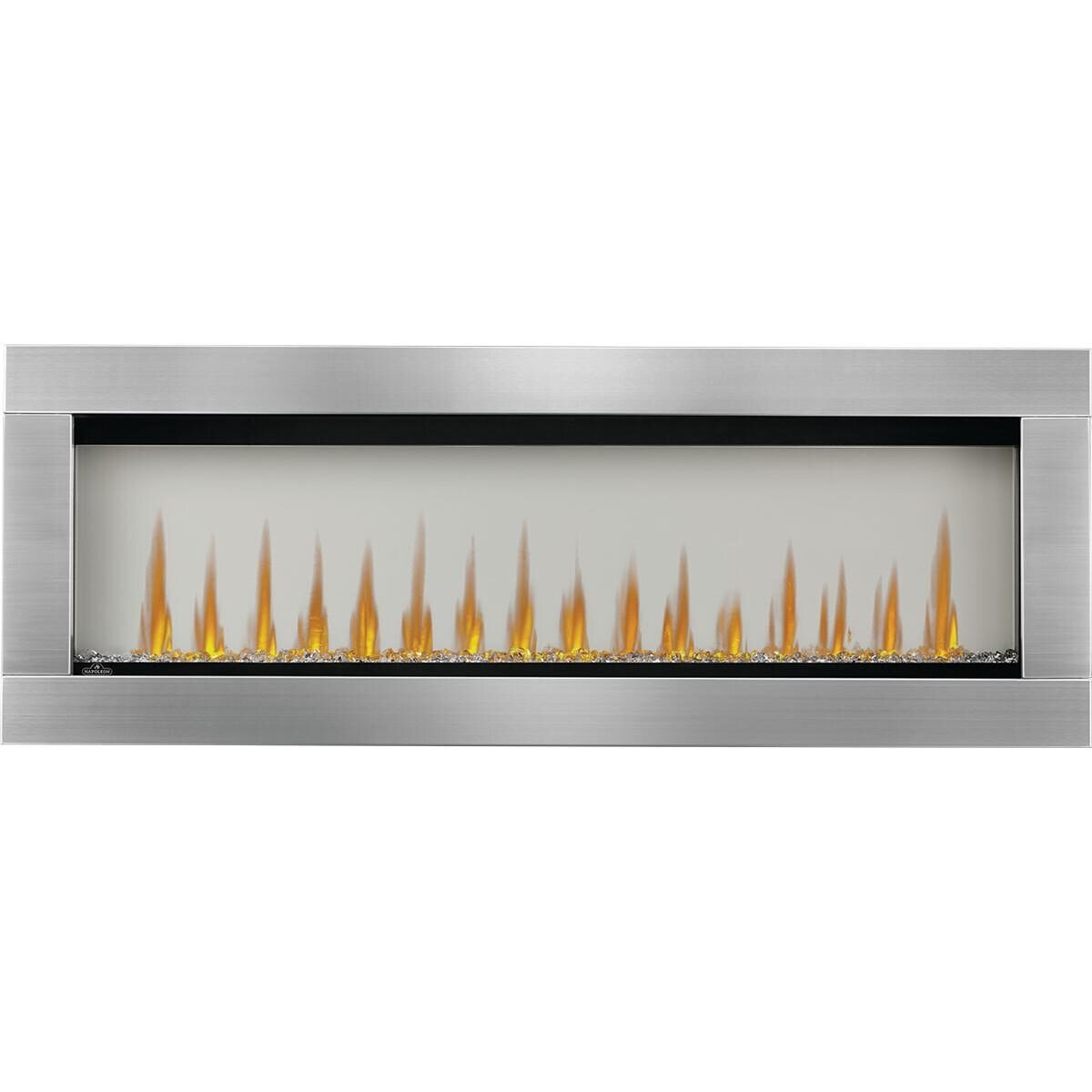

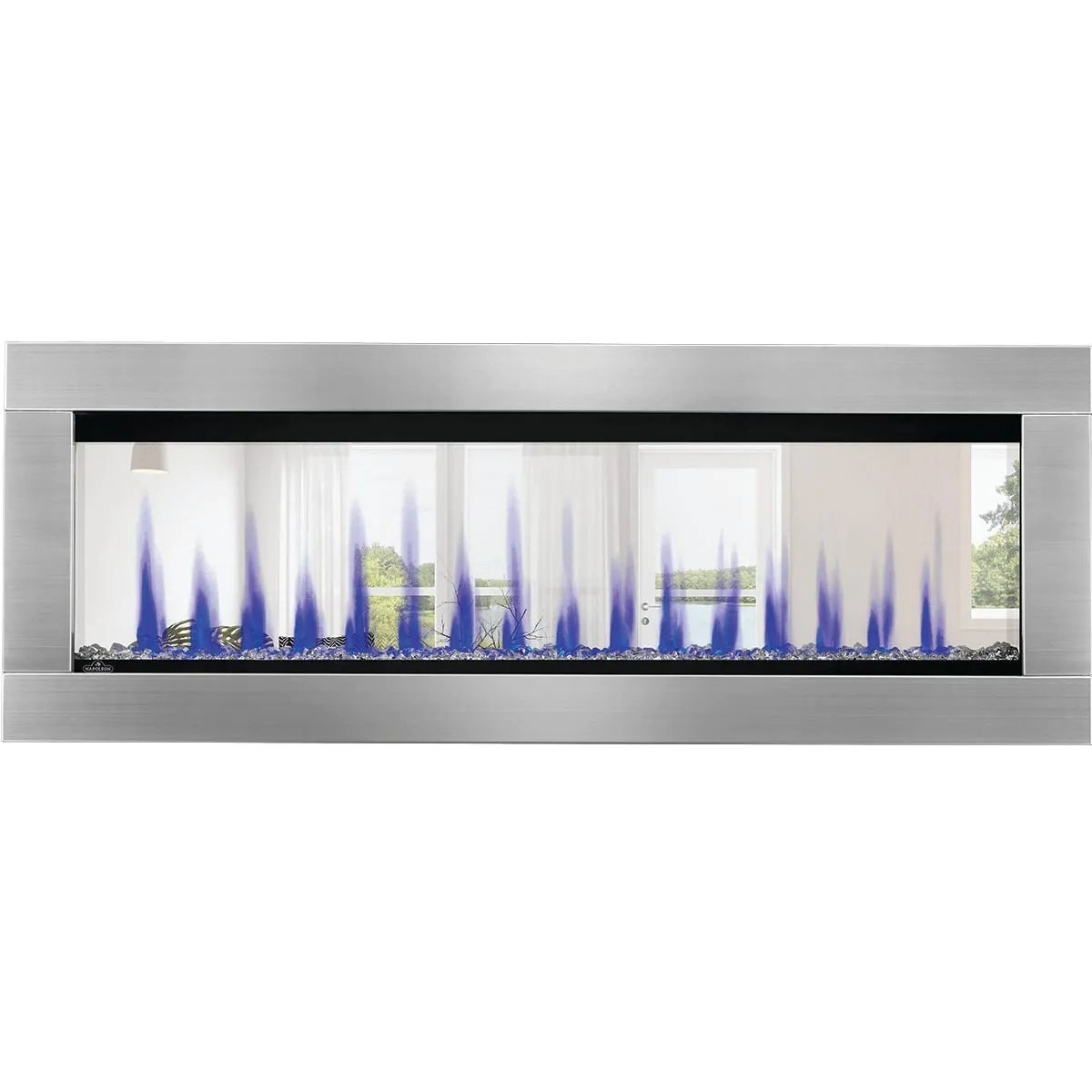

Optional surrounds available in black and stainless steel
-

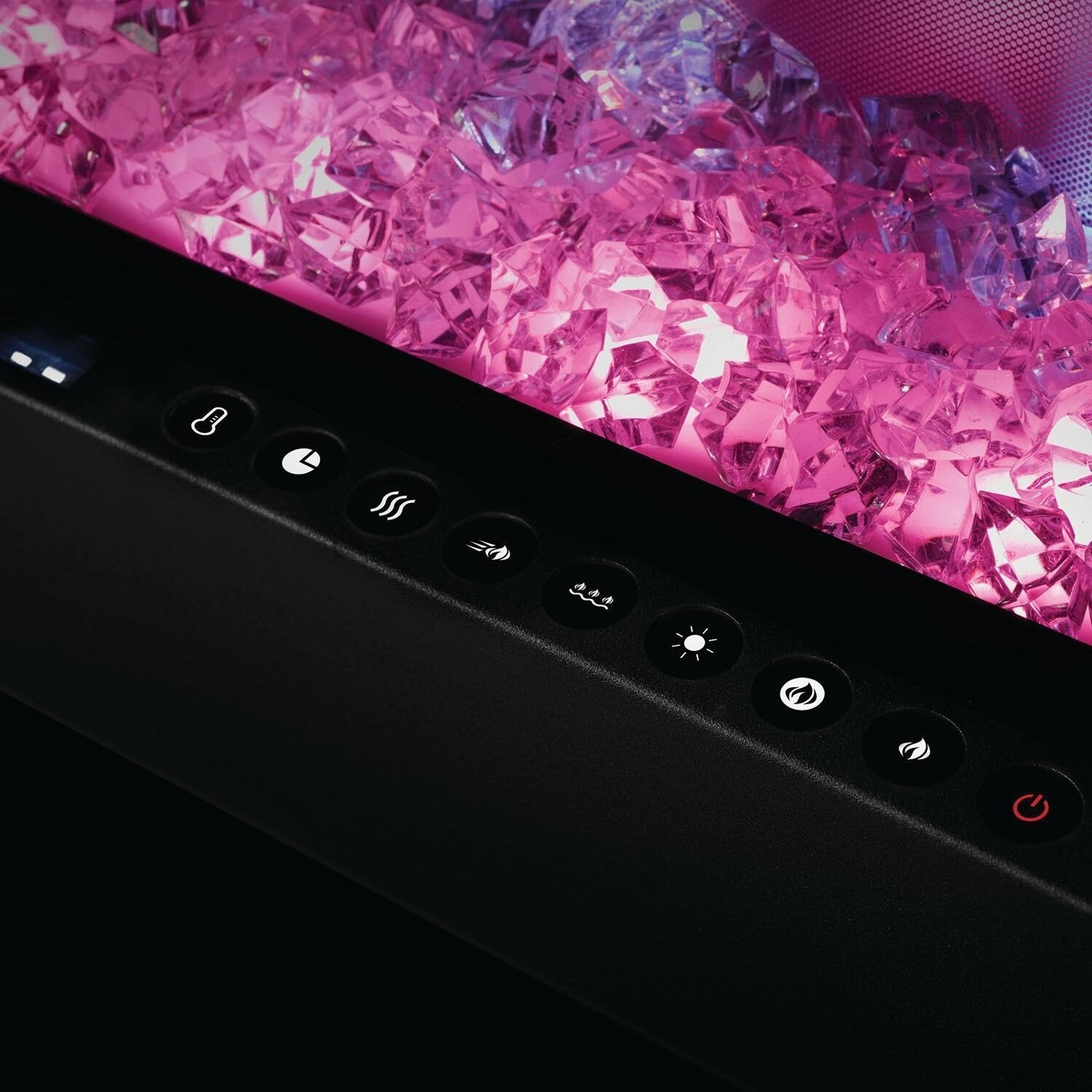

Full feature remote control
Specifications
Fireplace Type | Wall |
Fuel Type | Electric |
Installation Type | Built-In |
Firebox Width | 50" |
Collection | CLEARion |
BTU Range | 0 - 14,999 |
BTUs | 5000/10000 |
Heating Area | 800 Sq. Ft. |
Infrared | No |
Style | Contemporary |
Finish | Black |
Filler Type Included | Logs/Glass |
Backlight | Yes |
Bulb Type | LED |
Flame Style | Traditional |
Blower | With Blower |
Mobile Home Approved | Yes |
Adjustable Thermostat | Adjustable Thermostat |
Flame Color | Multi-Color |
Watts | 1500/3000 |
Volts | 120/240 |
Amps | 15 |
Wiring | Plug-In/Hardwired |
Location | Indoor |
Control | Multi-Function |
Surround Material | Metal |
Surround Width Range | 50 - 59" |
Surround Dimensions | 50" |

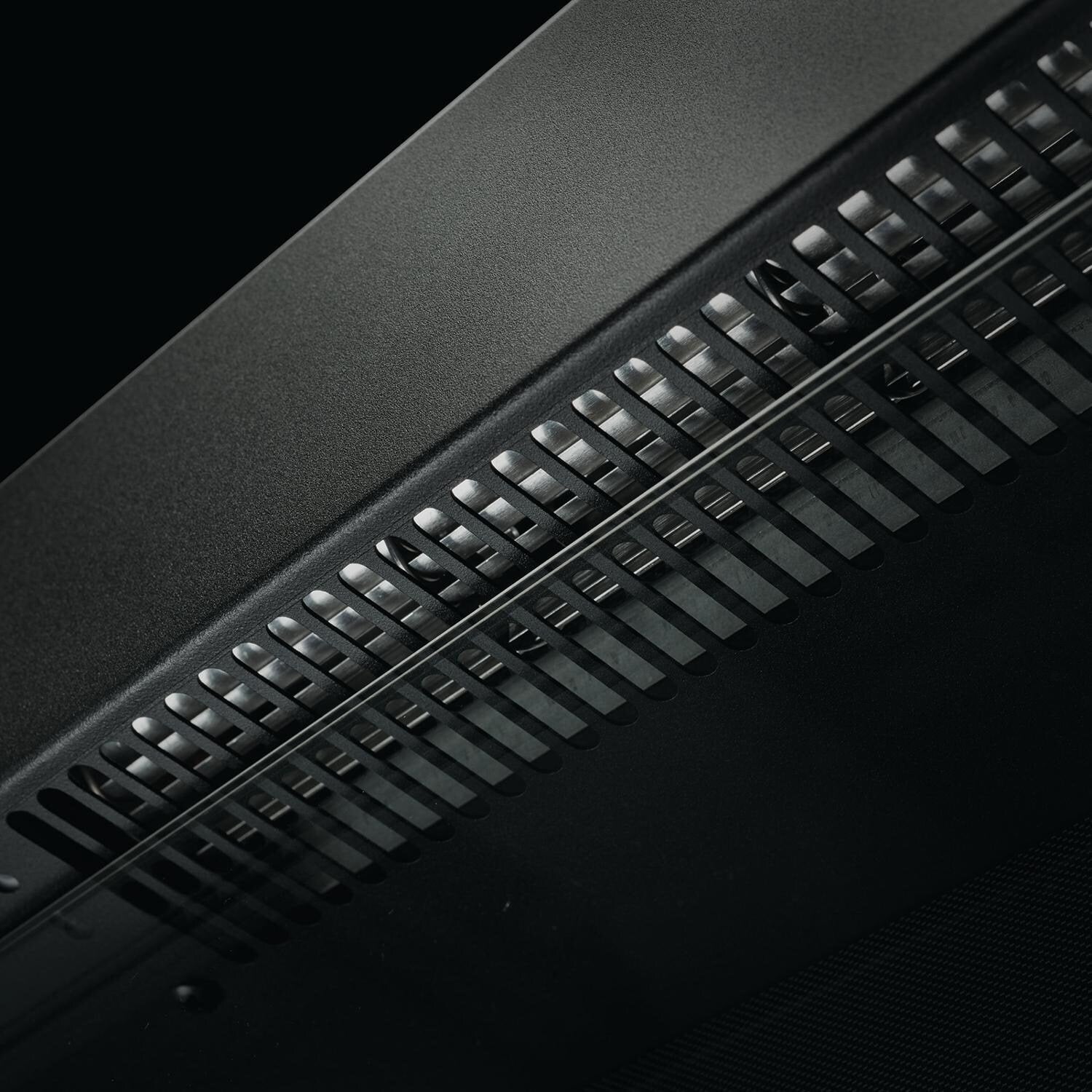

Heat Location | Top |
Vent Type | Ventless |
Framing Dimensions | 49" W X 17 15/16" H X 8" D |
Viewing Area | 43 5/8" W X 12" H |
Dimensions
Width | 50" |
Depth | 9.06" |
Height | 18.37" |
Weight | 98 lbs |
Warranty
Electrical components and wearable parts such as fan/heater, motors, switches, nylon bearing components and remote controls are covered and Napoleon will provide replacement parts free of charge during the first two (2) years of limited warranty. Light bulbs and fuses are NOT covered by the warranty.
Refer to manufacturers manual for full warranty details.
