Description
Description

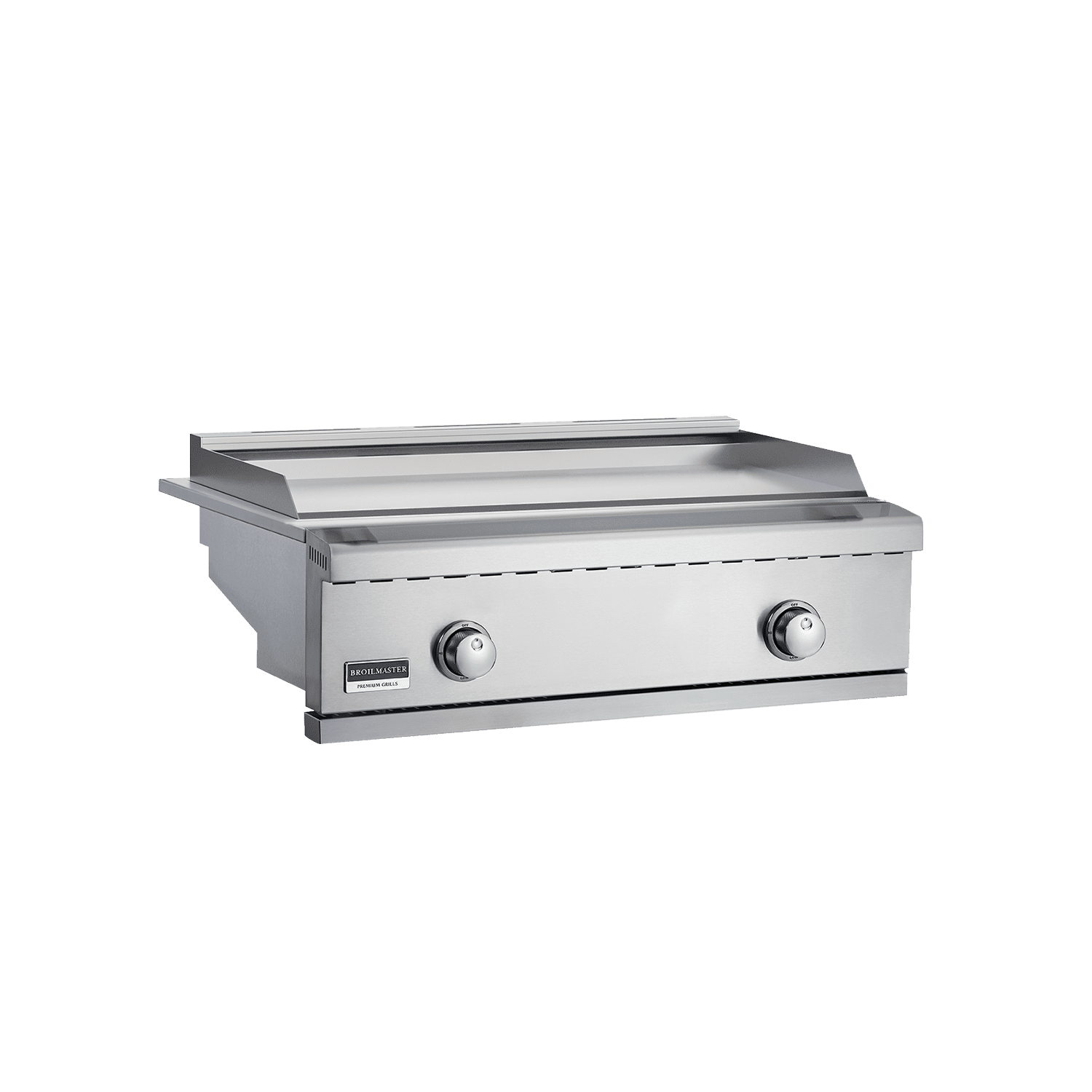

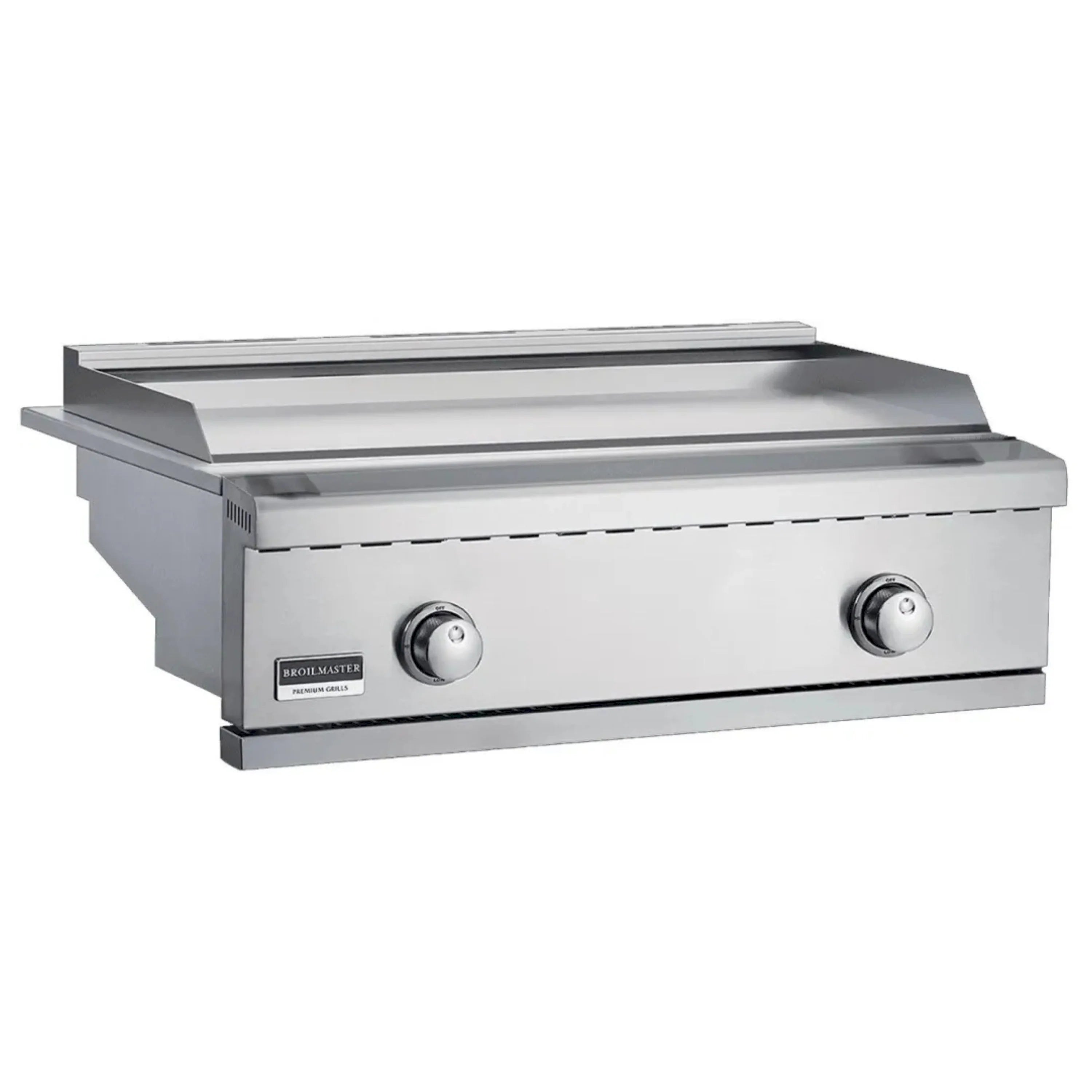

Broilmaster's 32-inch griddle head, built to drop into a masonry or non-combustible island. Two stainless U-burners put 36,000 BTU under 462 square inches of fully welded flat top — smash burgers, breakfast for a crowd, fajitas and fried rice, the things a grate cannot do.

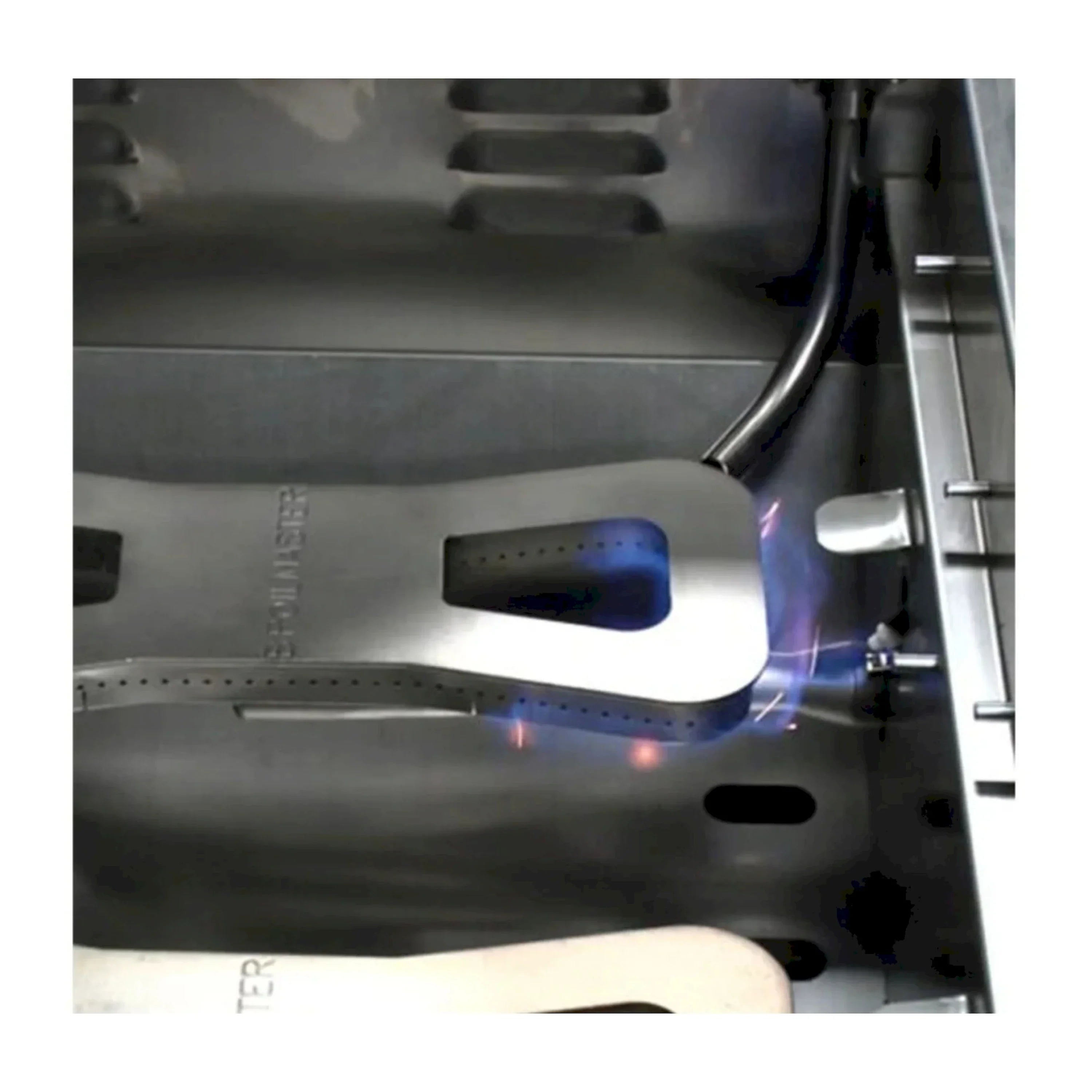

- Two 18,000 BTU stainless U-burners — 36,000 BTU under a fully welded flat top, with independent control so one half can run hot while the other holds.
- 462 square inches of welded flat top — a single continuous surface with a backsplash and a drip trough, not a plate laid over grates.
- Stainless lid — closes over the cooking surface to keep weather and debris off the seasoned steel.
- Flame Thrower ignition and control panel lights, standard.
- Slide-out drip tray — grease pulls straight out without dismantling anything.
- Ships with the opposite-gas conversion kit in the box.
Specifications
| Fuel | Natural Gas |
| Burners | Two stainless steel U-burners with venturi |
| Output | 18,000 BTU each / 36,000 BTU total |
| Cooking surface | 462 sq in, fully welded flat top with backsplash and drip trough |
| Construction | 304 stainless steel |
| Head dimensions | 32-7/16"W x 11-5/16"D x 8-9/16"H; front lip 21-11/16", back 24-21/32" |
| Cut-out dimensions | 8-1/2"H x 31"W x 20-1/2"D |
| Ignition | Flame Thrower |
| Lighting | Control panel lights |
| Model | BSB322GN-1 |
| Warranty | Limited lifetime rust-through on stainless; 5 yr / 1 yr on listed parts |
What's Included
- 32-inch griddle head, natural gas — BSB322GN
- Stainless lid, slide-out drip tray, control panel lights
- Opposite-gas conversion kit
Options On This Page
- Weather cover (BSACV34S, +$84) — black, sized for the griddle head alone.
- Propane conversion hose & regulator (B069756, +$27) — only if you run this unit from a 20 lb propane tank.
Installing into a combustible island? An insulated sleeve is required — ask us for BSASL32 ($459). It is not needed for masonry or metal-framed islands.
Documentation
Warranty
Broilmaster's B-Series stainless warranty runs a limited lifetime against rust-through on the stainless housing and cart, 5 years on listed internal components, and 1 year on valves, knobs, ignitors, hoses and fittings. Original purchaser only, non-transferable.
