Description

The Osburn 1700 Wood Insert from Osburn

Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device!

Inside and out, this insert is engineered from high-quality materials that put you at the center of a heating experience for many years: high-density bricks, a stainless steel heat shield added to the C-Cast firestop, a cast iron door, and a quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates, and faceplate trims.

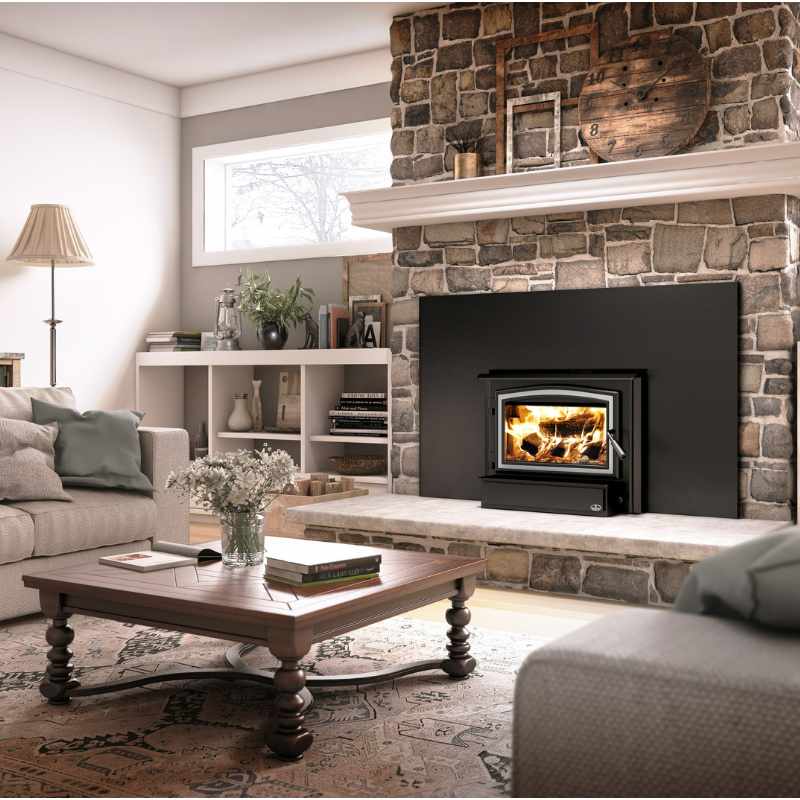

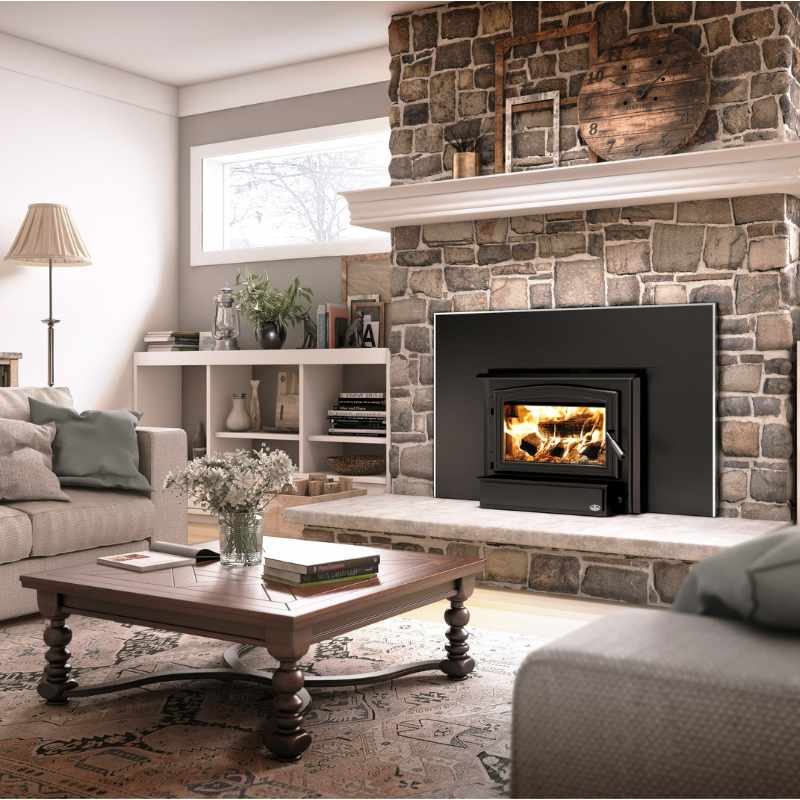

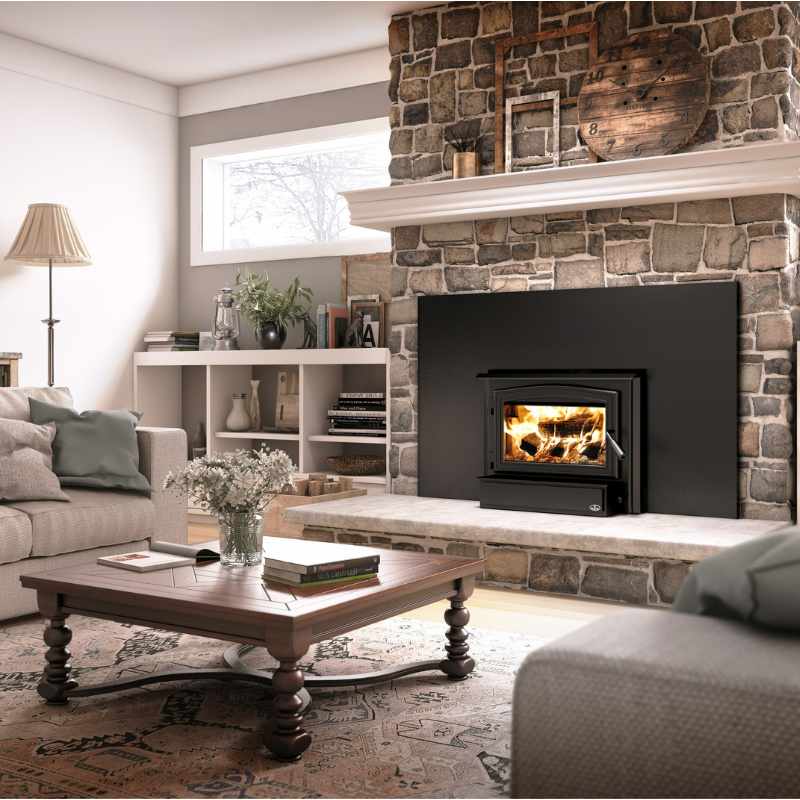

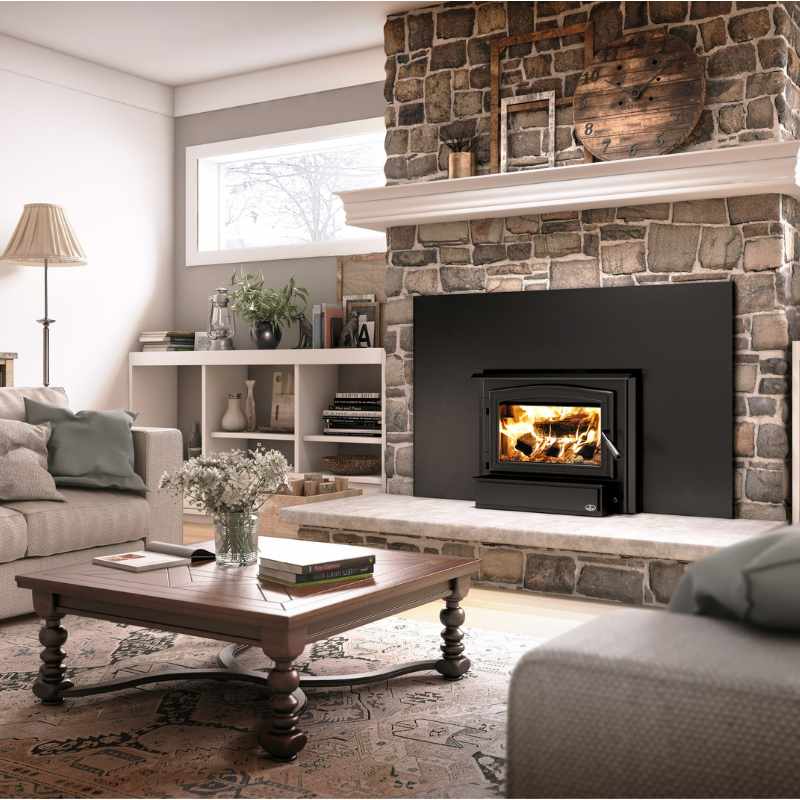

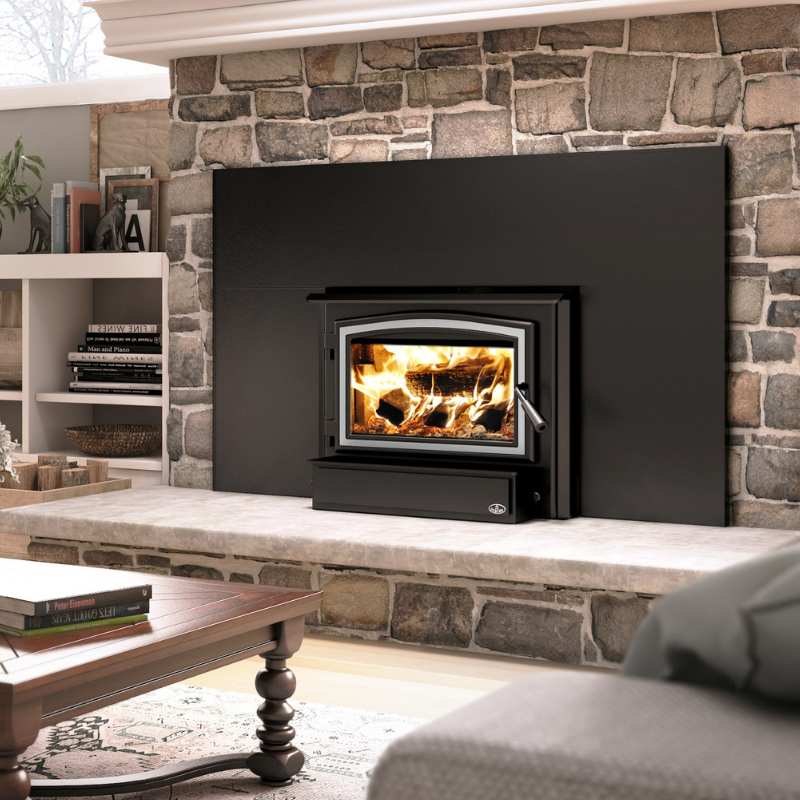

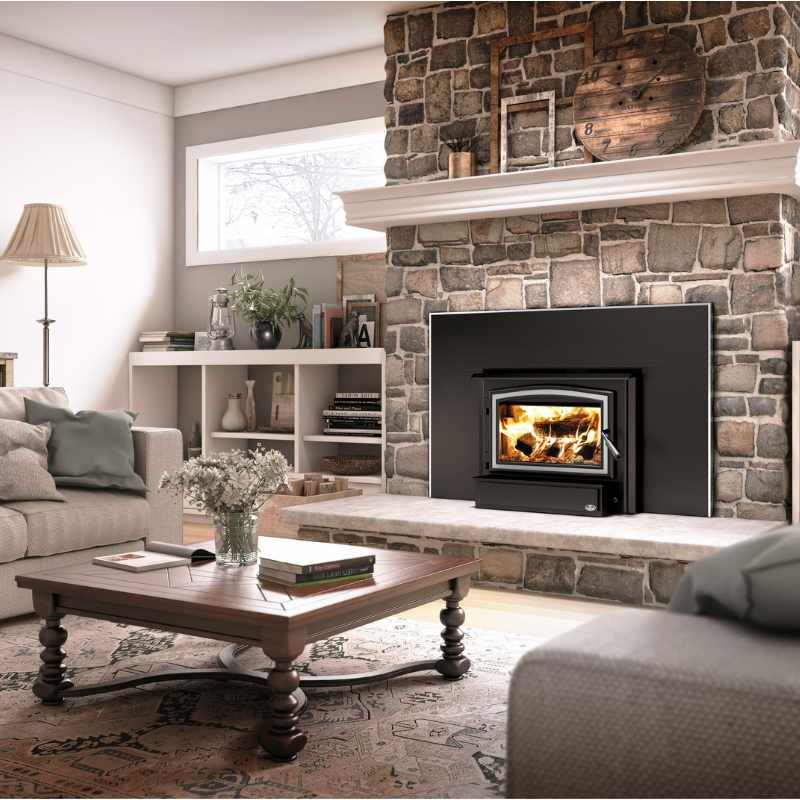

Osburn 1700 Wood Insert in family house on a brick heart



Osburn 1700 Wood Insert Performance

Fuel type Dry cordwood (16" recommended)
Recommended heating area-ft²  500 - 1,800
Overall firebox volume-ft³  1.86
EPA loading volume-ft³ 1.44
Maximum burn time : () 7 h
Maximum heat output-dry cordwood  65,000 BTU/h (19 kW)
Overall heat output rate <  9,800 BTU/h (2.87 kW) to 52,200 BTU/h (15.3 kW)
Average overall efficiency (dry cordwood)  68 % (HHV) 73 % (LHV)
Optimum overall efficiency  76 %
Optimum heat transfer efficiency  75 %
Average particulate emissions rate  2.4 g/h
Average CO  103 g/h



Osburn 1700 Wood Insert Specifications

Combustion technology Non-catalytic
High-efficiency certified appliance Yes, EPA 2020 approved
Maximum log length 18"
Log positioning Loading over width
Chimney diameter 6"
Flue outlet diameter 6"
Type of chimney Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet) 15'
Baffle type C-Cast or equivalent
Approved for a mobile home installation No
Shipping Weight 361 lb (164 kg)
Door type Single, glass with cast iron frame
Glass type Ceramic glass
Glass surface – dimensions (Width X Height) 15 3/4" x 9 3/8"
Glass air-wash system Yes
Premium quality blower included (CFM) 144
Overall dimension (Height) 21 1/4"
Overall dimension (Width) 27 1/8"
Overall dimension (Depth) 22 3/8"
Door opening – dimension (Height) 8 3/4"
Door opening - dimension (Width) 17 1/4''
Firebox – dimension (Height) 11 7/8"
Firebox – dimension (Width) 19 5/8"
Firebox – dimension (Depth) 13 1/2"
Firebox lined with refractory bricks for better heat distribution Yes
Stainless-steel secondary-air system improving gas combustion Yes
Adjustable threaded legs Yes
Steel thickness – body 3/16"
Steel thickness – top 5/16"
Fireplace opening – minimum (Height) 21 1/2"
Fireplace opening – minimum (Width) 27 1/2"
Fireplace opening – minimum (Depth) 12 7/8"
USA standard (emissions) EPA
Canadian Standard (emissions) CSA B415.1-10
USA standard (safety) UL 1482, UL 737
Canadian standard (safety) ULC S628
Tested and listed as per applicable standards By an accredited laboratory (CAN/USA)
Warranty Limited lifetime

Resources

Osburn 1700 Wood Insert | OB01705 Owner's Manual

INSTALLATION MANUALS:

DIMENSIONS: Osburn 1700 Wood Insert
