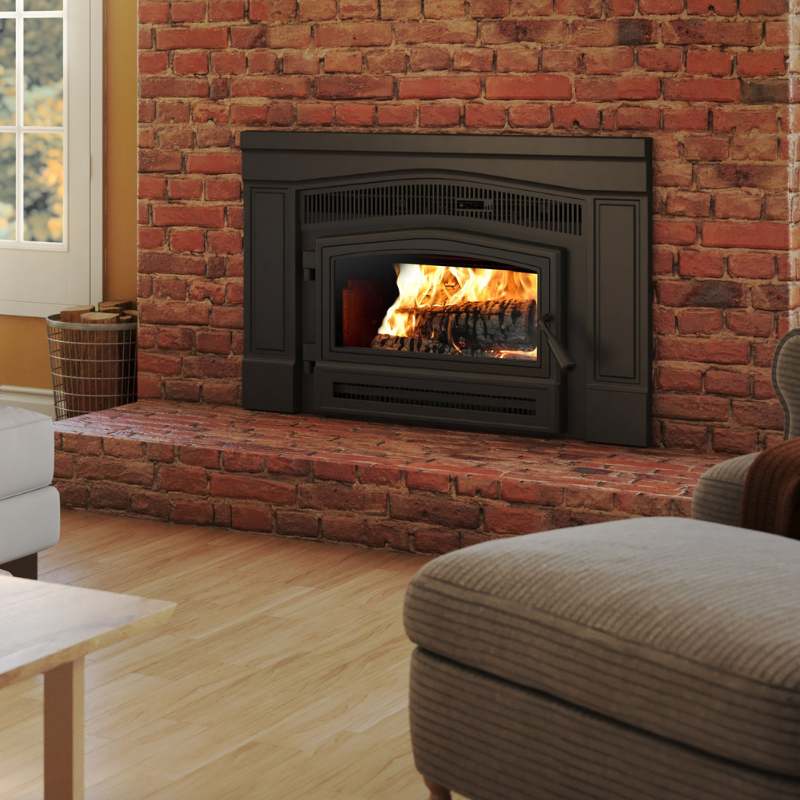

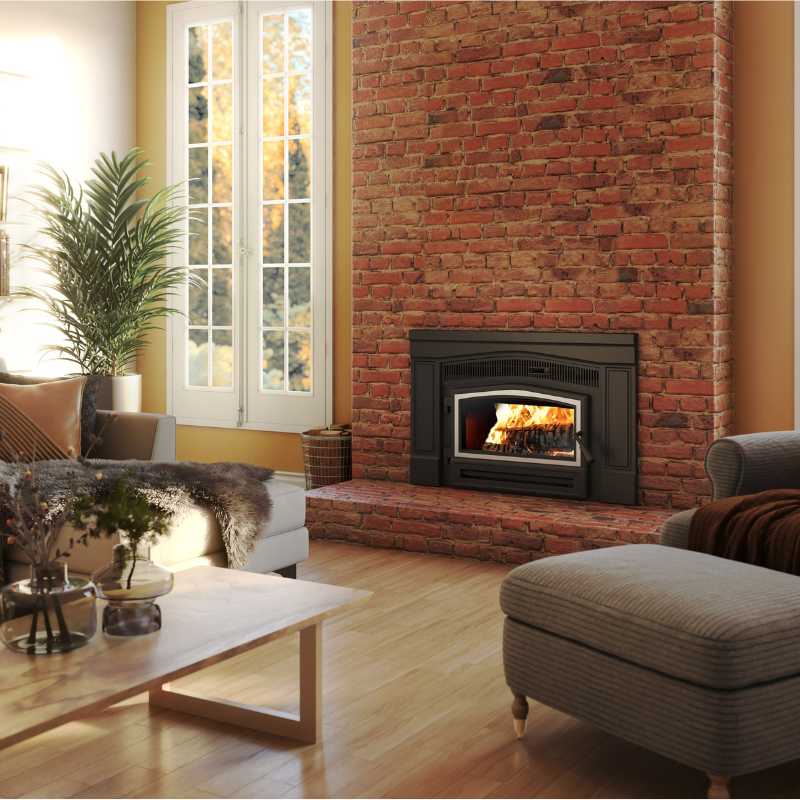

The Osburn Matrix 1900 Wood Insert from Osburn
Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door. Its discreet black wooden handle, air control with removable handle as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Its large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.
The Matrix 1900 is a compact unit that has a tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.
Osburn Matrix 1900 Wood Insert Performance
| Fuel type | Dry cordwood (16" recommended) | |
| Recommended heating area-ft² | 250 - 1,200 | |
| Overall firebox volume-ft³ | 1.1 | |
| EPA loading volume-ft³ | 1.03 | |
| Maximum burn time | 7 h | |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) | |
| Overall heat output rate < | 8,471 BTU/h (2.48 kW) to 31,700 BTU/h (9.29 kW) | |
| Average overall efficiency (dry cordwood) | 75 % (HHV) | 80 % (LHV) |
| Optimum overall efficiency | 82 % | |
| Optimum heat transfer efficiency | 78 % | |
| Average particulate emissions rate | 1.5 g/h | |
| Average CO | 34 g/h | |
Osburn Matrix 1900 Wood Insert Specifications
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 17" |
| Log positioning | Loading over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | Liner - ULC-S635, CAN/ULC-S640, UL1777 |
| Minimum chimney height (feet) | 12' |
| Baffle type | C-Cast or equivalent |
| Approved for a mobile home installation | No |
| Shipping Weight | 332 lb (151 kg) |
| Door type | Single, glass with cast iron frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 18" X 8 1/8" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 90 |
| Overall dimension (Height) | 23 7/8" |
| Overall dimension (Width) | 36" |
| Overall dimension (Depth) | 21" |
| Door opening – dimension (Height) | 7 7/8" |
| Door opening - dimension (Width) | 18 1/4" |
| Firebox – dimension (Height) | 8 7/8" |
| Firebox – dimension (Width) | 16 3/4" |
| Firebox – dimension (Depth) | 12 3/8" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| Steel thickness – body | 3/16" |
| Steel thickness – top | 3/16" |
| Fireplace opening – minimum (Height) | 19" |
| Fireplace opening – minimum (Width) | 25" |
| Fireplace opening – minimum (Depth) | 15 1/2" |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 1482, UL 737 |
| Canadian standard (safety) | ULC S628 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
Resources
INSTALLATION MANUALS:
- Osburn Matrix 1900 Wood Insert
- Osburn Matrix 1900 Wood Insert (Safety Notifications and General Information)
DIMENSIONS: Osburn Matrix 1900 Wood Insert
