Delta Heat Gas Grill Owners Manual
Delta Heat Cutout Dimensions
DHBQ38 Grill Specifications

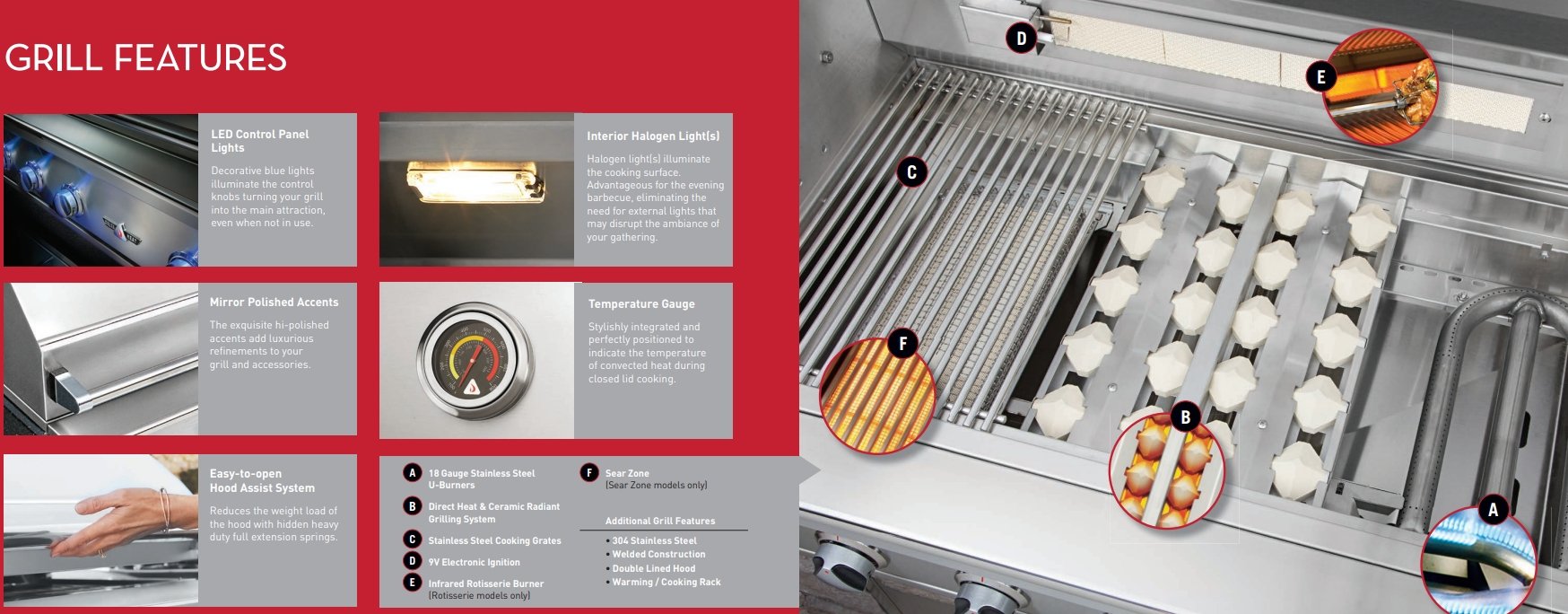

Features
- Delta Heat grills are made in the USA with 304 stainless steel offering quality construction and lasting durability
- Easy-to-open hood assist system

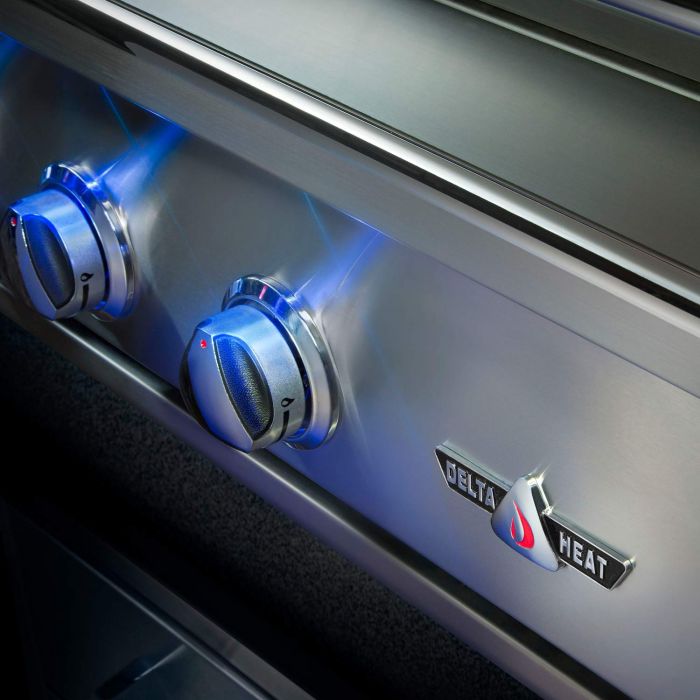

- Convenient LED control panel lights and interior Halogen lights are great for entertaining at night

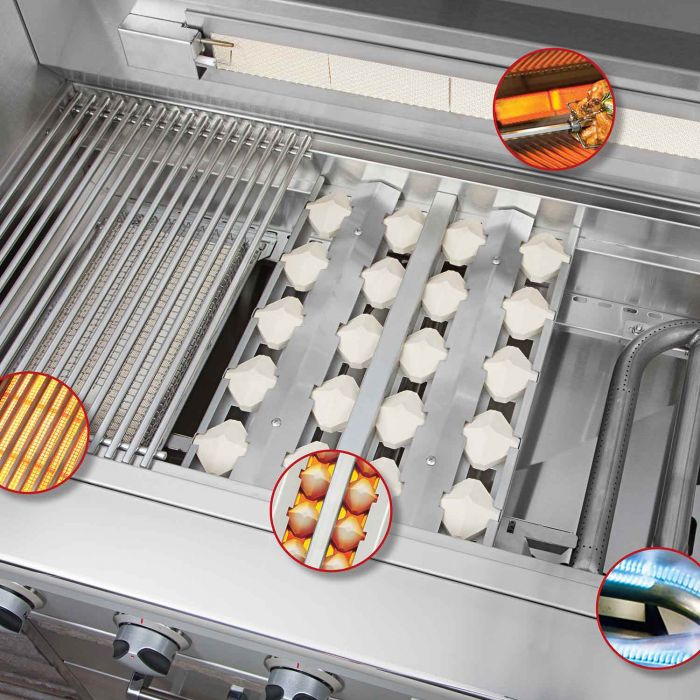

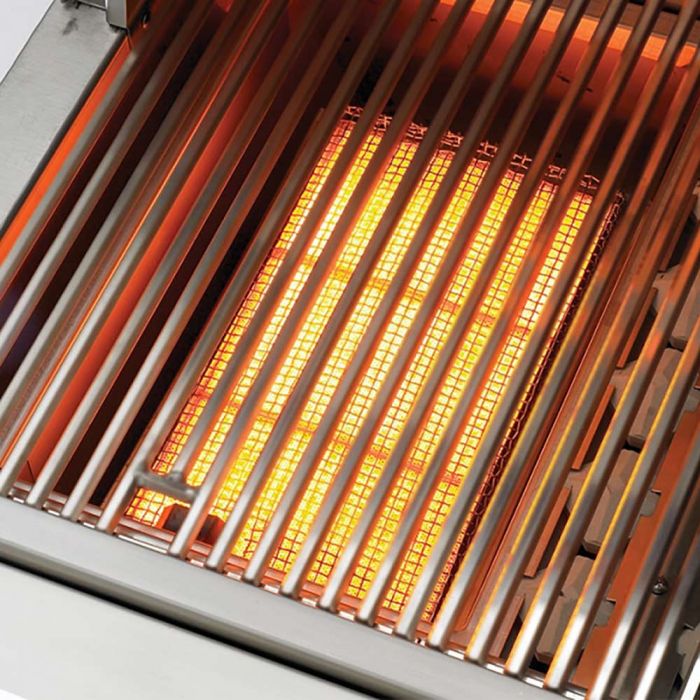

- Stainless steel grilling grates and Ceramic Briquettes facilitate even radiant heat distribution
- Welded construction eliminates gaps where grease and moisture can collect

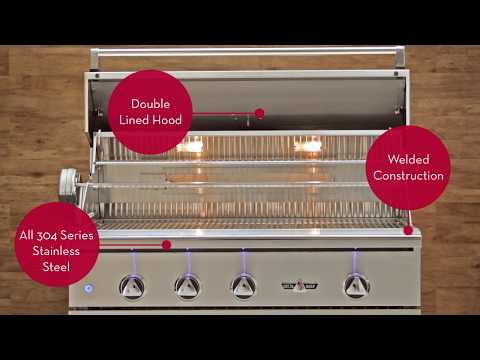

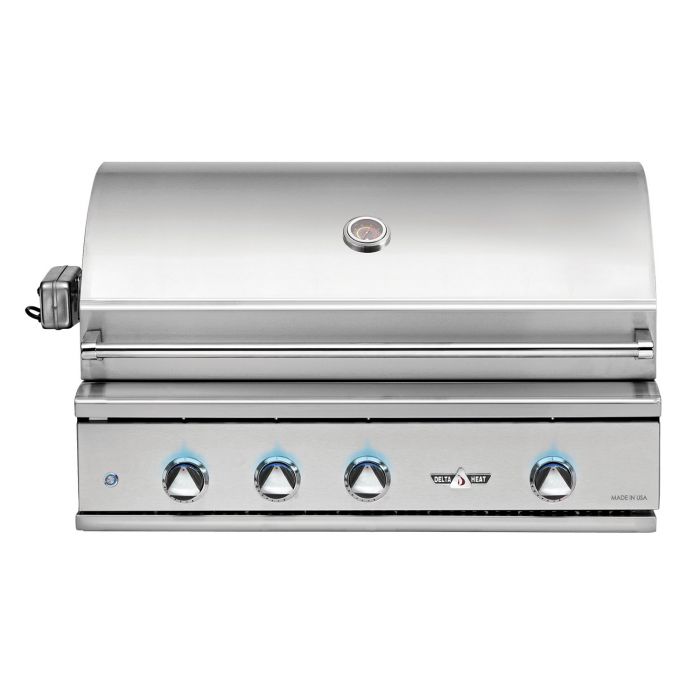

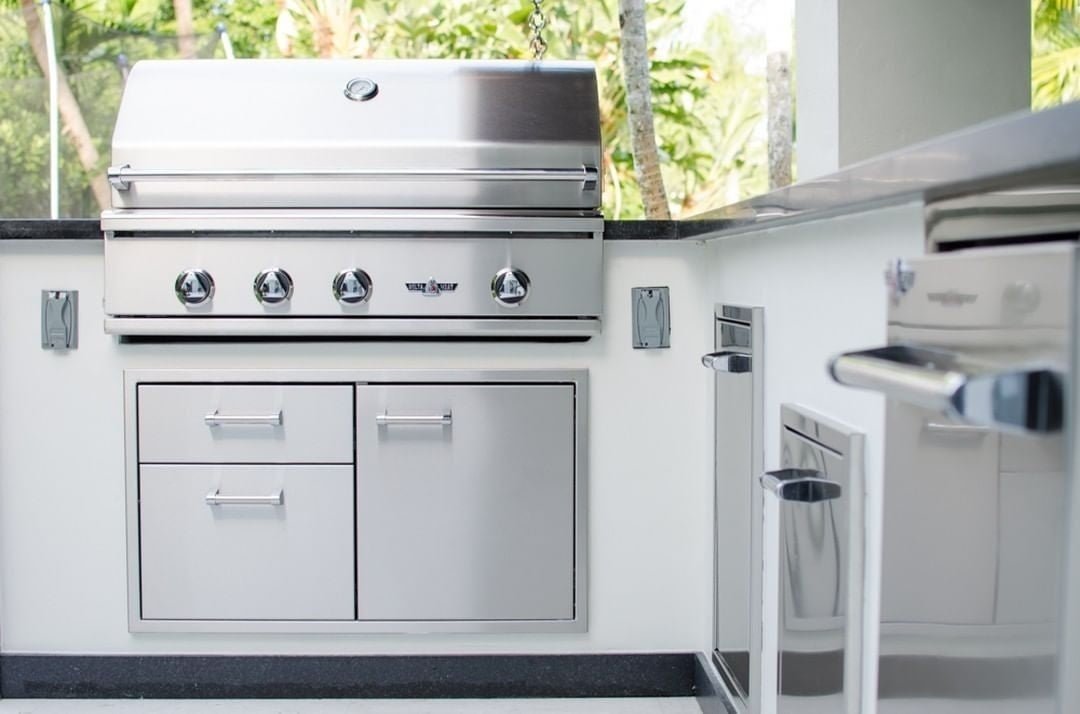

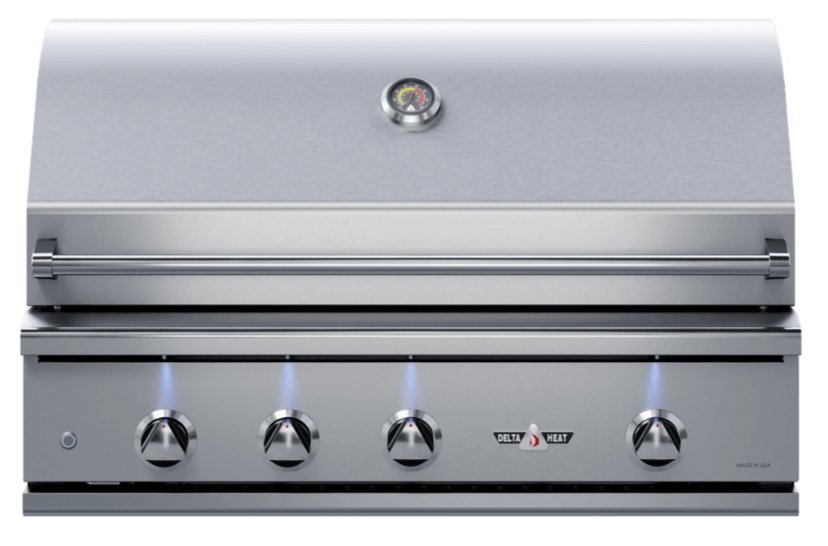

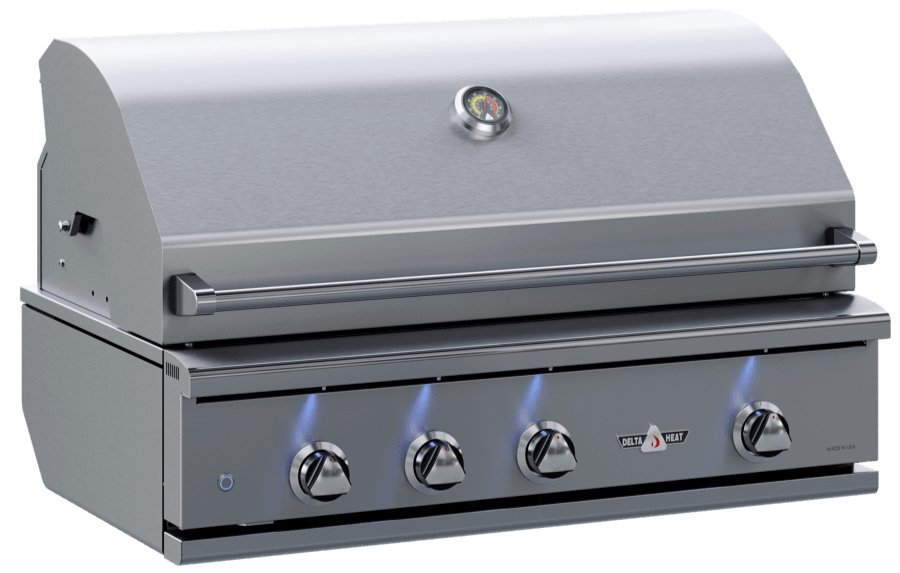

This Delta Heat gas grill brings exceptional quality and performance to any outdoor kitchen. Delta Heat gas grills feature 304 stainless steel with seamless welded construction, sleek high-polished accents, and double-lined hood for maximum strength, durability, and appeal to your entertaining experience. This 38-inch grill has three (3) 18 gauge stainless steel U-Burners, ceramic briquette flame tamers that distributes the radiant heat more evenly across the cooking surface, and stainless steel cooking grates. Decorative blue LED lights illuminate the control knobs turning your grill into the main attraction and the interior halogen lights illuminate the 625 square inches of main cooking surface for entertaining at night. The grill has 210 square inches of secondary cooking with the adjustable warming rack. Delta Heat products are designed and manufactured in the USA with pride.
Cutout Dimensions (in inches): 36.5 W x 19.75 D x 9.5 H.
Product Overview
- Lifetime Warranty
- Made in the U.S.A.
- Easy-to-open Hood Assist System
- Direct Heat & Ceramic Radiant Grilling System

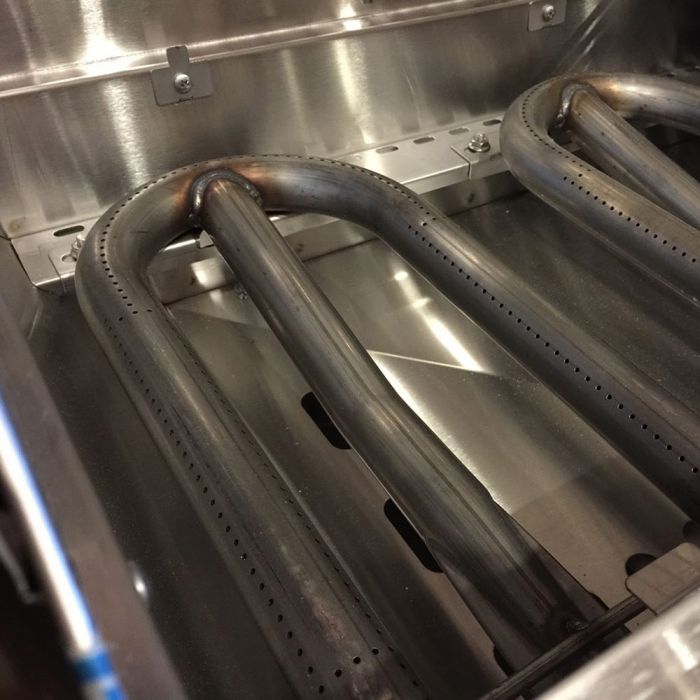

- Three 18 gauge stainless steel U-burners on R model
- LED Control Panel Lights

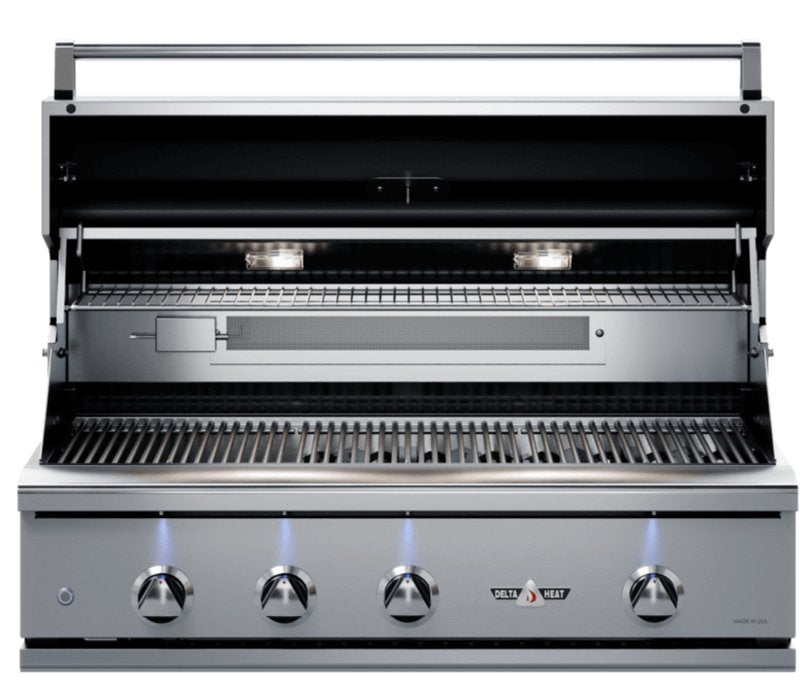

- Interior Halogen Lights
- 304 Stainless Steel
- Welded Construction & Mirror Polished Accents
- Double Lined Hood
Specifications
| Class | Premium |
| Fuel Type | Natural Gas or Propane |
| Configuration | Built-In |
| Exterior Material | Stainless Steel |
| Exterior Stainless Grade | 304 Stainless Steel |
| Primary Color | Stainless Steel |
| Number Of Main Burners | 3 Burners |
| Grilling Surface BTUs | 49500 |
| Infrared Main Burner | Not Available |
| Main Burner Material | Stainless Steel |
| Flame Tamer Material | Ceramic |
| Cooking Grate Material | Stainless Steel |
| Cooking Grid Dimensions | 36 X 17 1/2" |
| Main Grilling Area | 625 Sq. Inches |
| Secondary Grilling Area | 288 Sq. Inches |
| Burger Count | 28 |
| WiFi/Bluetooth Enabled | None |
| Rotisserie Burner BTUs | No Rear Burner |
| Rotisserie Kit | No |
| Heat Zone Separators | No |
| Ignition Type | Continuous Spark |
| Flash Tubes | No |
| Grill Lights | Internal / External |
| Spring Assisted Hood | Yes |

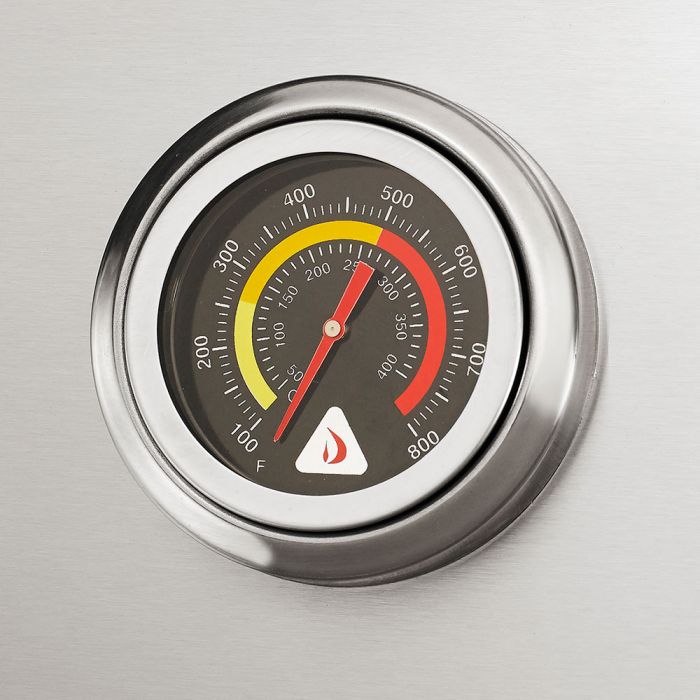

| Thermometer | Analog |
| Includes Smoker Box | No |
| Side Shelves | No |
| Made In USA | Yes |
| Commercial-Grade Multi-User | Yes |
| Size | Large (34 - 42") |
Dimensions
| Width | 38" |
| Depth | 24.5" |
| Height | 23.25" |
| Weight | 220 lbs |
| Cutout Width | 36 1/2" |
| Cutout Depth | 19 3/4" |
| Cutout Height | 9 1/2" |
