Due to different display screens, color may not arrive exactly as shown
Newest Model: Includes Front Glass & 120v Plug Kit
OWNER'S MANUAL

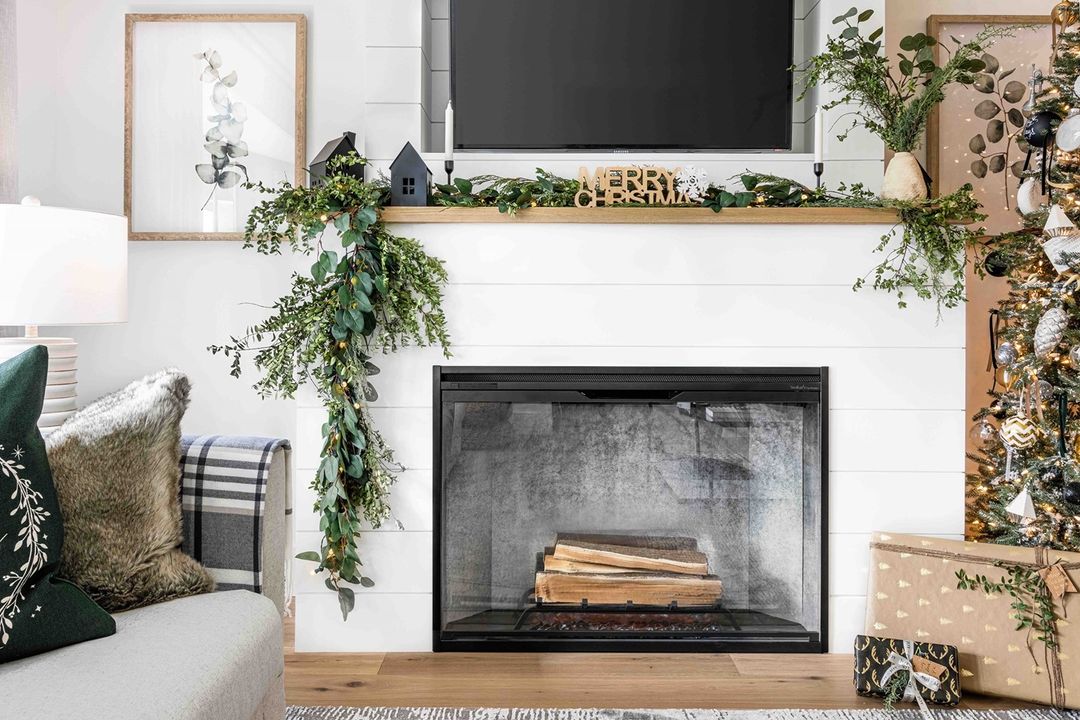

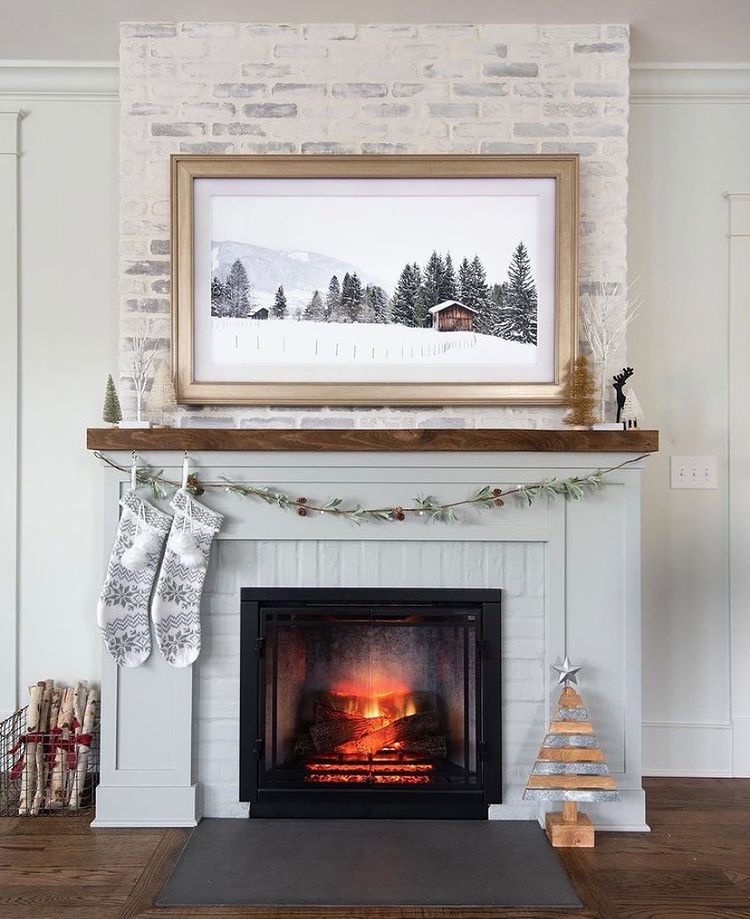

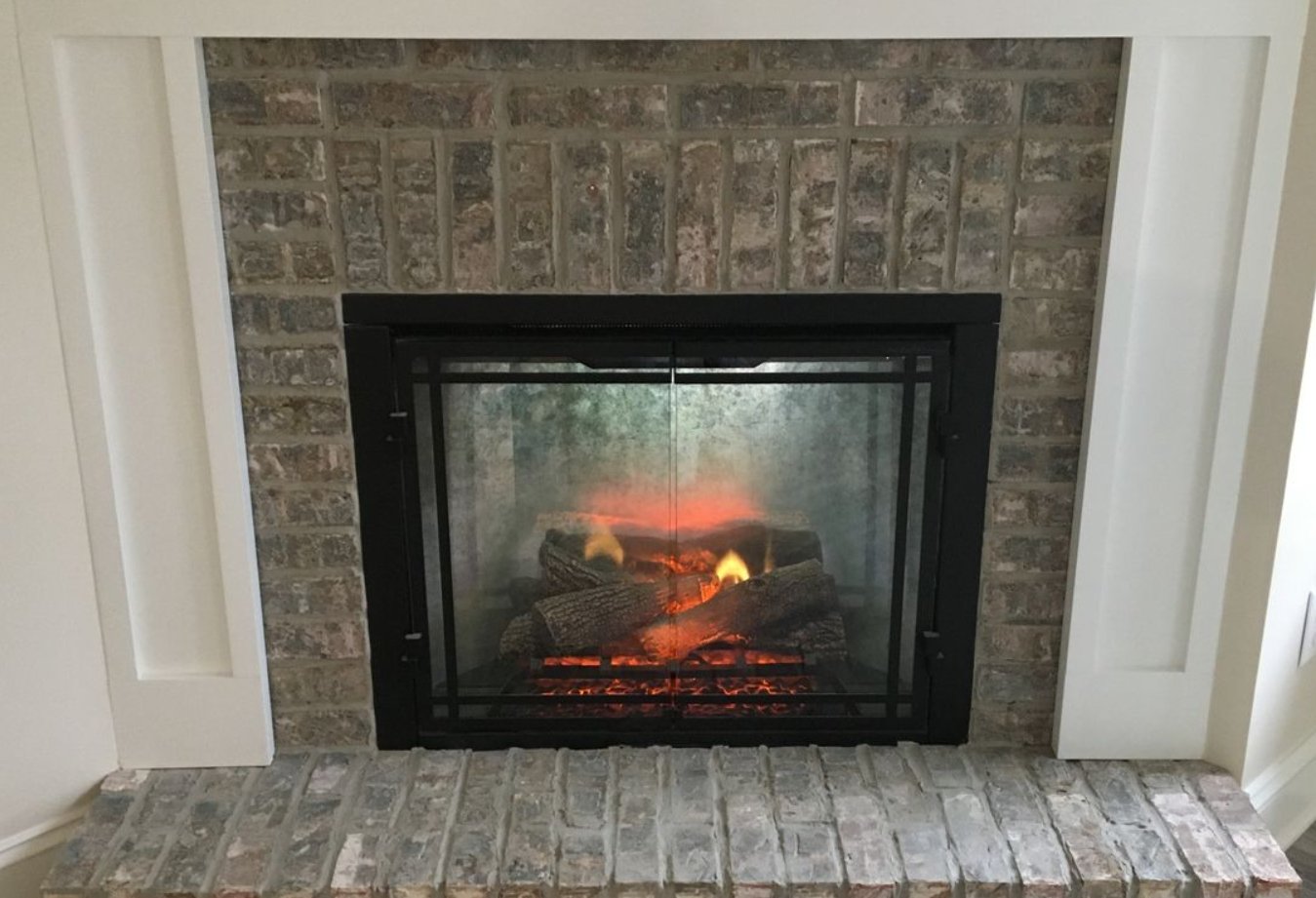

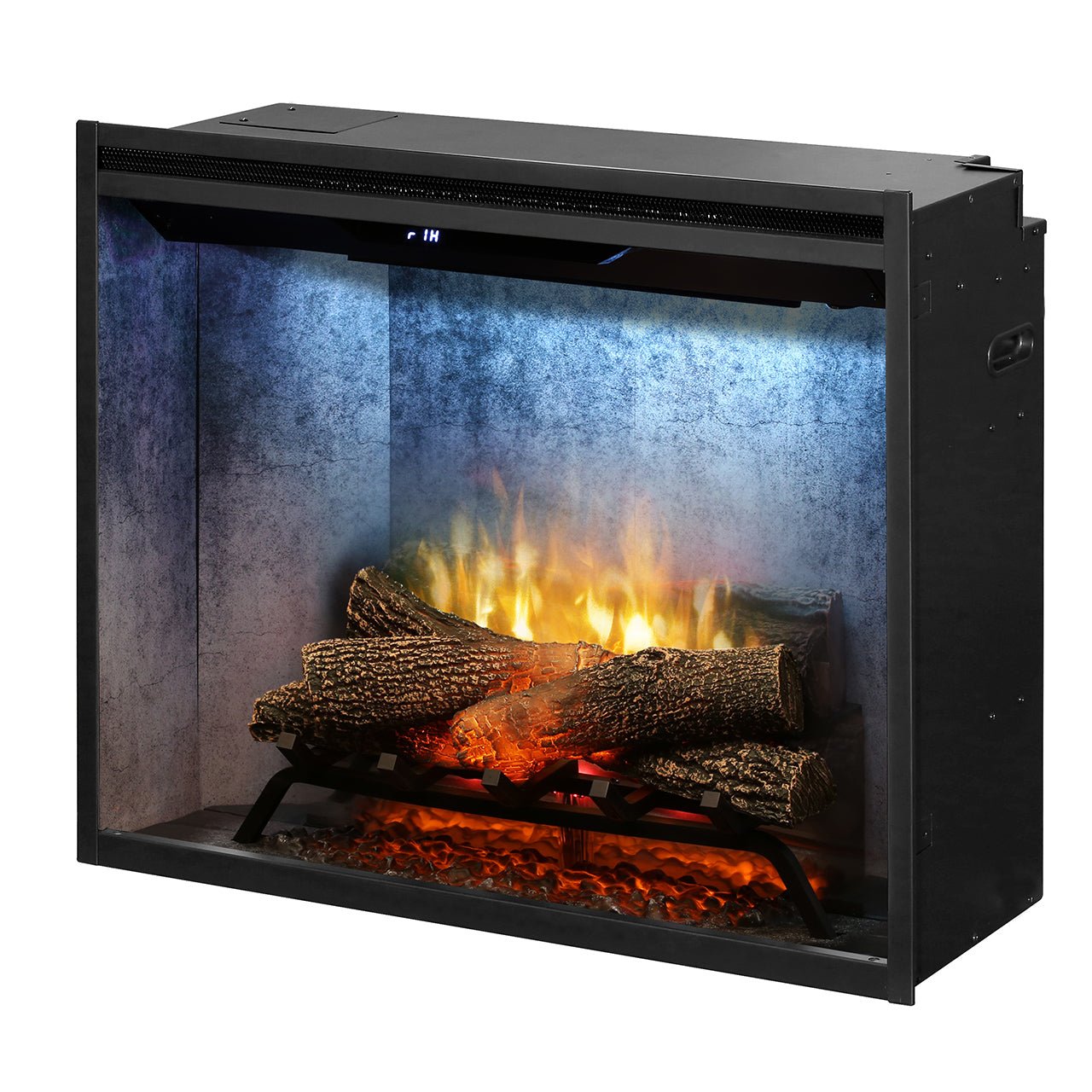

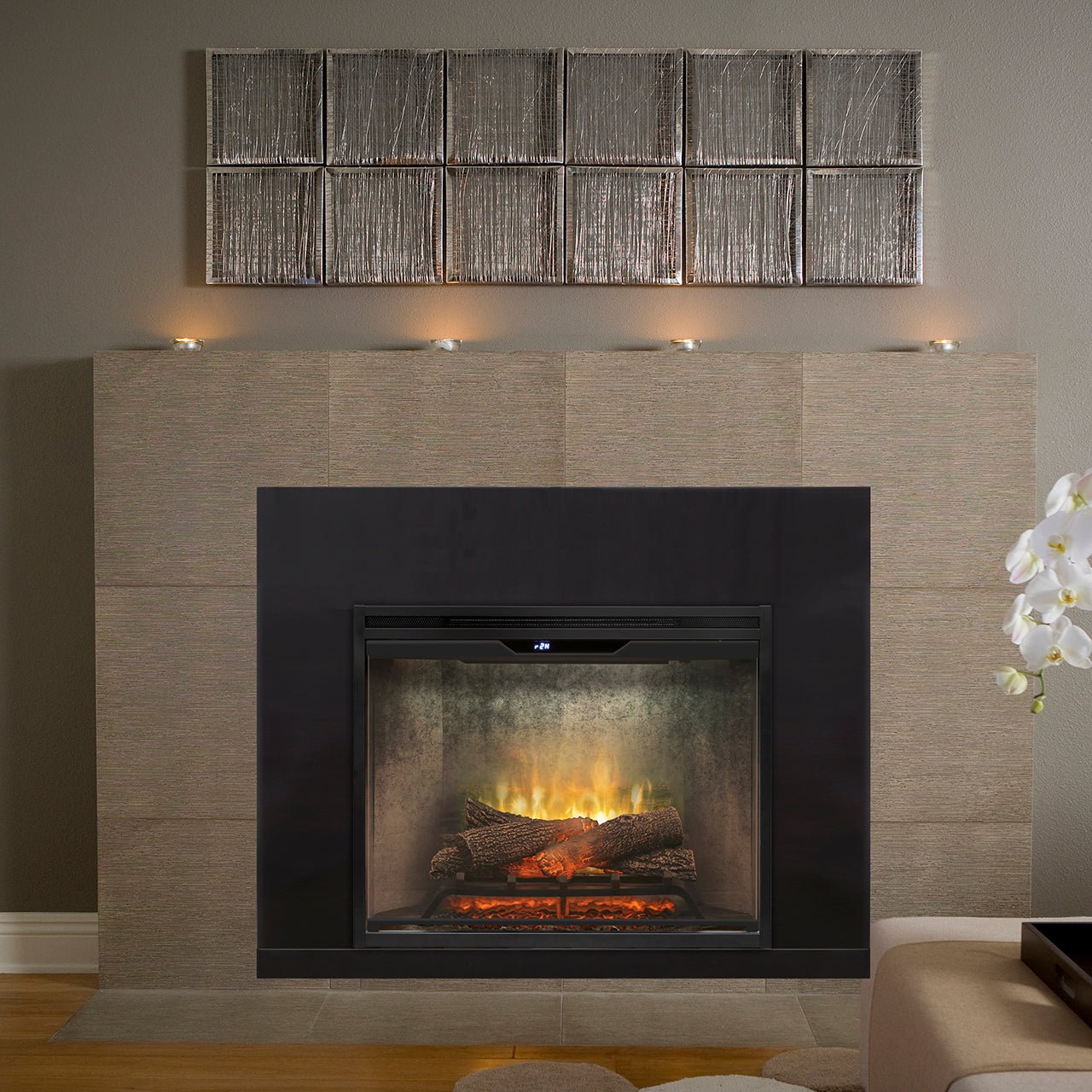

Dimplex Revillusion® 30" Built-In Firebox, Weathered Concrete
- For an authentic fireplace experience, the Revillusion produces flames that are larger, brighter and more random, appearing from within the logs.
- Fool even yourself with the Mirage Flame Panel that adds to the show. It is a partially frosted acrylic panel that shows only dazzling flames and no reflections.
- With patented Thruview technology, you are able to see clear through the flames to the back of the firebox for a more authentic experience.
- Set the mood with additional lighting for a firebox glow. You can choose from warm hues or even try out midnight mode.
Features
- Incredibly quick and easy installation, just frame, wire, and finish
- Stay warm with up to 8,800 BTUs of heat using the 240 volt wiring option
- Fit any situation with the included mood lighting, flame base color enhancement, brightness adjust, and flicker settings
- Enjoy your fireplace year-round with or without the heater

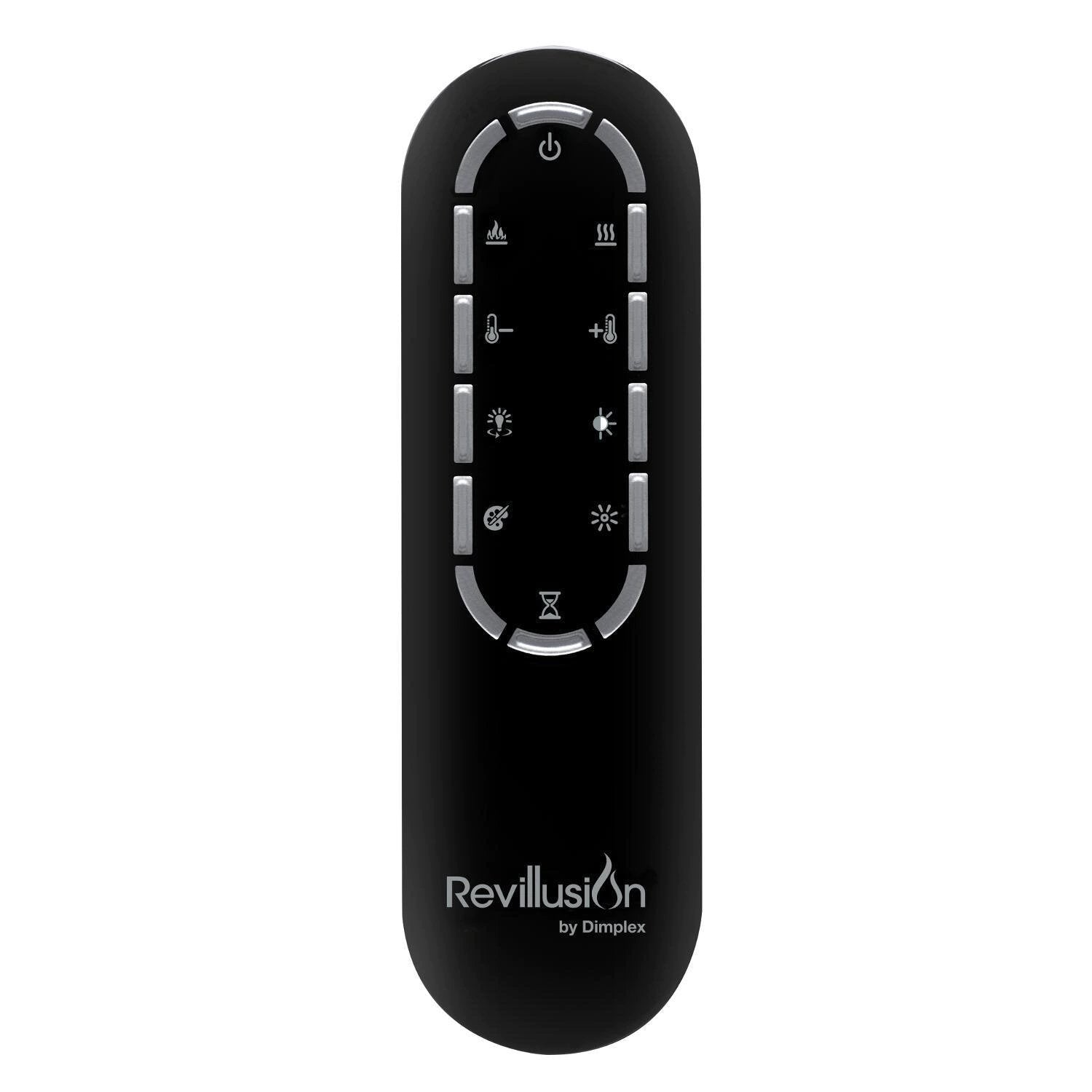

- Multi-function remote is included, allowing you to control all of the fireplace features from the comfort of your chair
The Dimplex Revillusion 30-Inch Built-In Electric Firebox truly captures the charm of a wood-burning fireplace with a clear view through the stunning lifelike flames, all the way back to the full weathered concrete interior. The Revillusion Series is changing the standard by creating a completely new way of looking at electric fireplaces. Revillusion Flame Technology creates larger, brighter, and more random flames that appear from within the logs. Partially frosted acrylic Mirage Flame Panel shows only dazzling flames and no reflections, unlike other electric fireboxes that use a mirror panel. A full bundle of hardwood cast, life-sized logs sit on top of a grate and have been tiered for even greater depth. Adjust the look of your firebox with the choice of a red or blue flame base color and the option of warm hue mood lighting, with an included midnight mode. The full concrete surround firebox uses 270-degree weathered concrete with natural soot markings, leading to a more authentic look day or night. Brightness and Flicker adjustment allows you to set the light level to suit the mood and turn on the flicker effect for enhanced firelight. The included ambient light sensor automatically adjusts the firebox lighting to suit the room at any time. Installation is quick and easy with no gas lines, venting, or safety screens. Just frame, wire, and finish. The Dimplex Revillusion 30-Inch Built-In Electric Firebox is designed to be direct-wired to a 120, 208, or 240 volt circuit for a truly seamless look. An optional 120 volt plug kit is available If you plan to use the fireplace as part of a primary heating plan, use the 240 volt supply option for up to 8,800 BTUs of heat. This electric firebox is the most sustainable fireplace option, having a low carbon footprint with no emissions, the fireplace is 100% efficient. Control all available fireplace features from the comfort of your chair with the included Mood Maker Remote. Enjoy a fireplace that looks like it was cut out straight from the pages of a magazine.
Specifications
Fireplace Type | Standard |
Fuel Type | Electric |
Installation Type | Built-In |
Firebox Width | 31" |
Collection | Revillusion |
BTU Range | 0 - 14,999 |
BTUs | 4400/6745/8794 |
Heating Area | 1,000 Sq. Ft. |
Infrared | No |
Finish | Brown |
Filler Type Included | Logs |
Backlight | Yes |
Flame Style | LED |
Blower | With Blower |
Mobile Home Approved | Yes |
Adjustable Thermostat | Adjustable Thermostat |
Flame Color | Orange |
Watts | 1300/1975/2575 |
Volts | 120/208/240 |
Amps | 10.8/9.5/10.7 |
Wiring | Plug-In/Hardwired |
Insert Type | Electric |
Location | Indoor |
Control | Multi-Function |
Surround Material | Weathered Concrete |
Surround Width Range | 30 - 39" |
Surround Dimensions | 31" |
Heat Location | Top |
Vent Type | Ventless |
Framing Dimensions | 30 5/8" W X 26 3/16" H X 12 1/2" D |
Viewing Area | 29 3/8" W X 22 3/4" H |
Dimensions
Width | 31.25" |
Depth | 12.125" |
Height | 26.625" |
Weight |
65 lbs |
Warranty
Dimplex products are warrantied to be free from manufacturing defects for a period of one (2) year from the date of purchase.
Refer to manufacturers manual for full warranty details.
