PRODUCT OVERVIEW

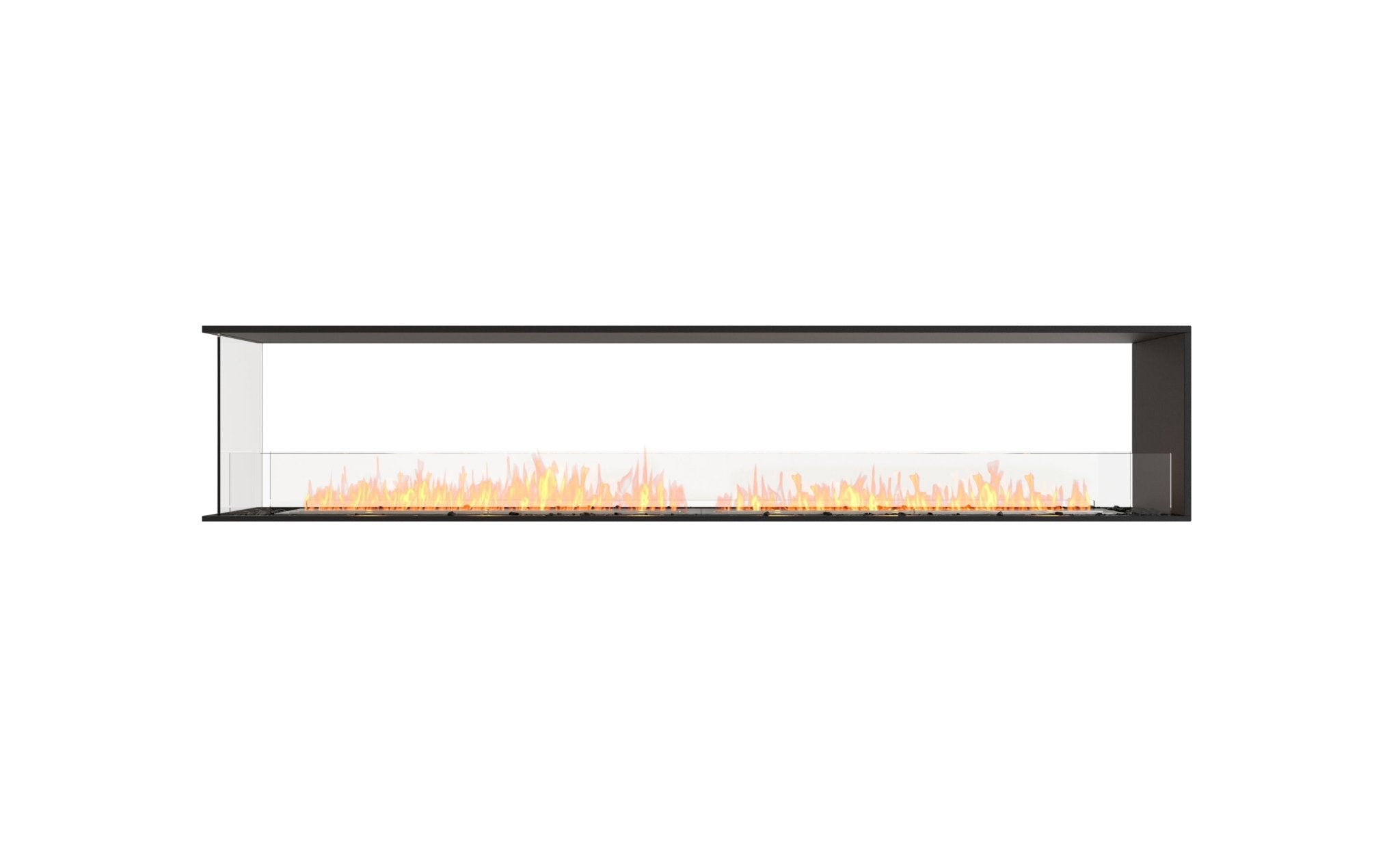

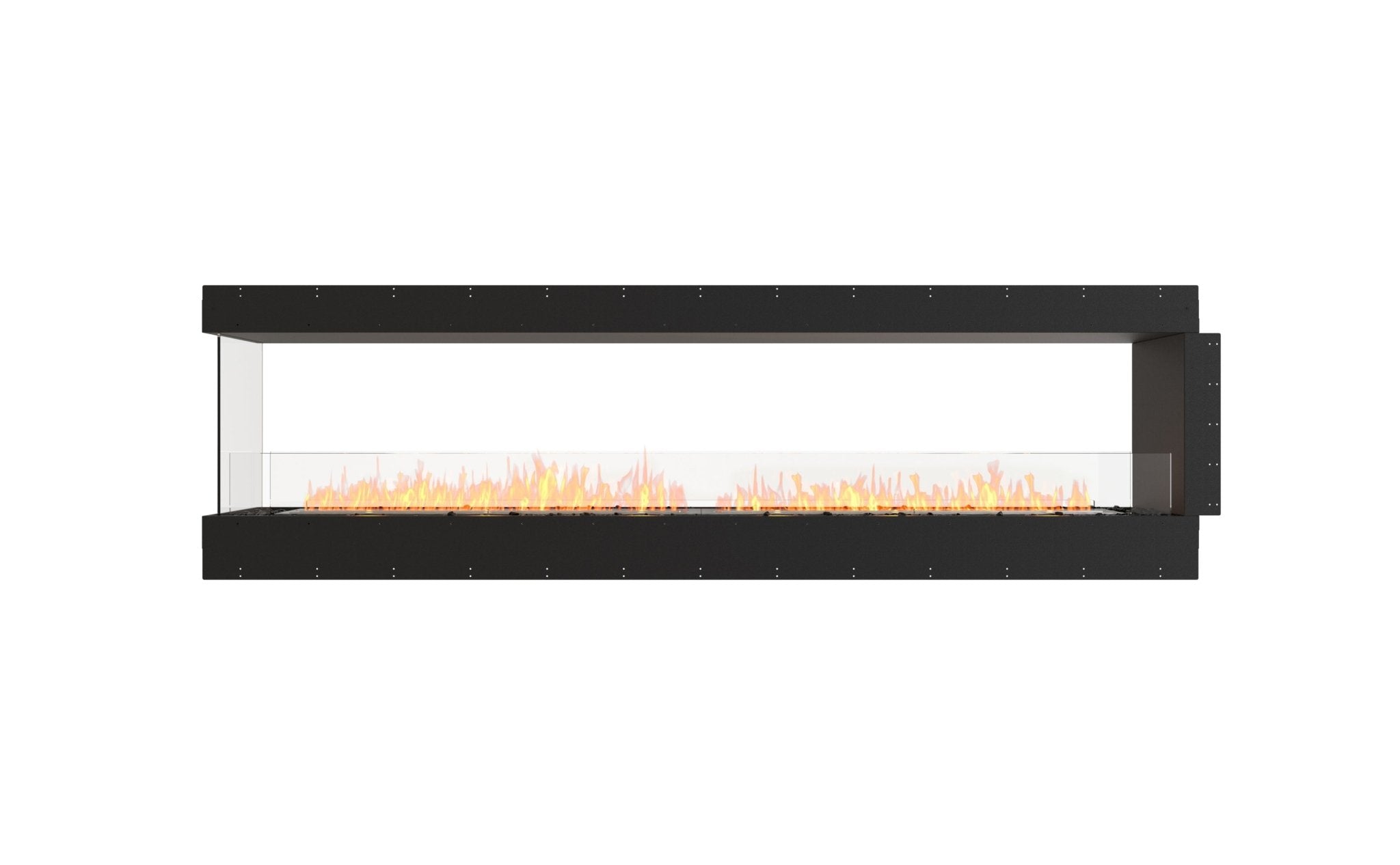

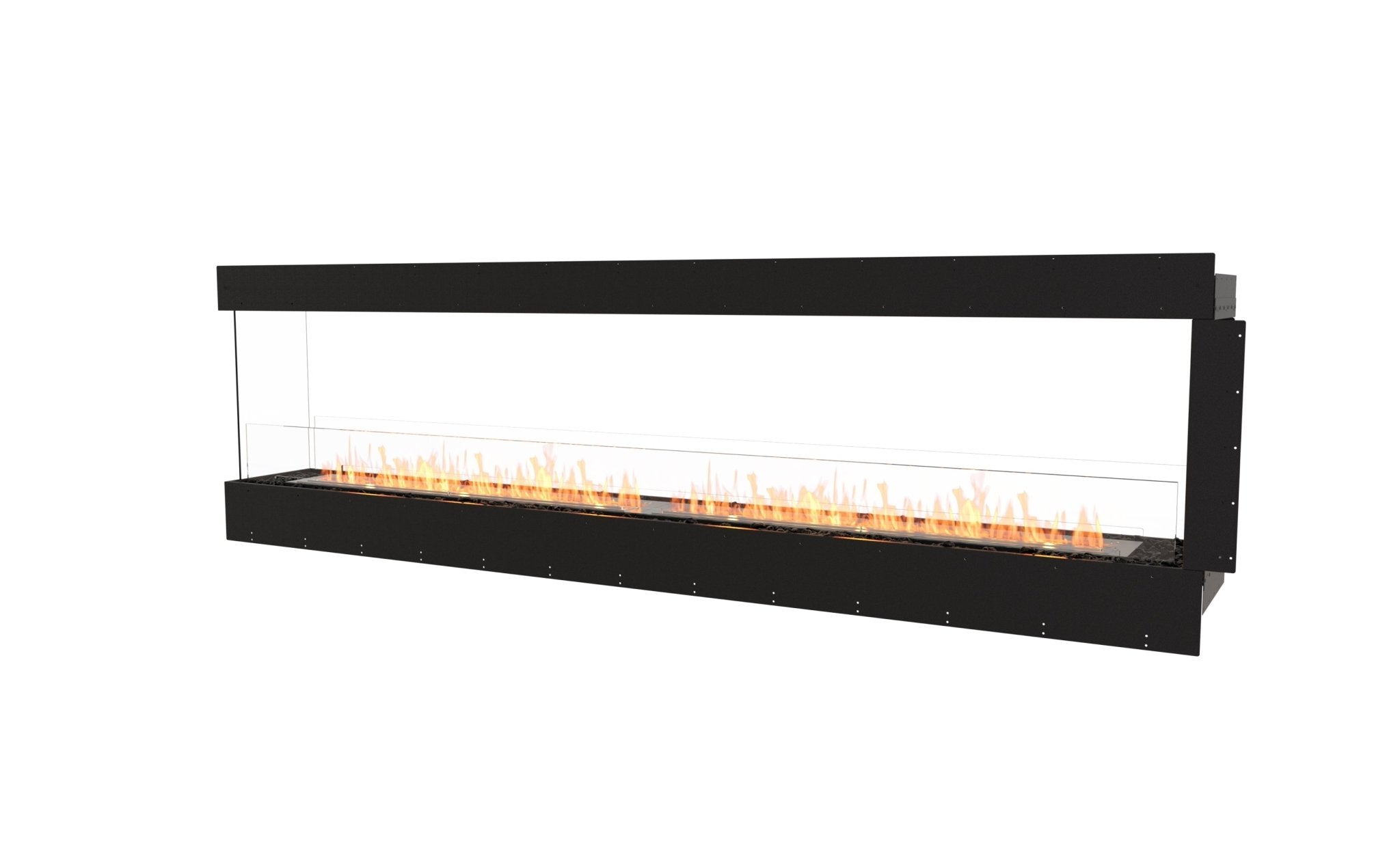

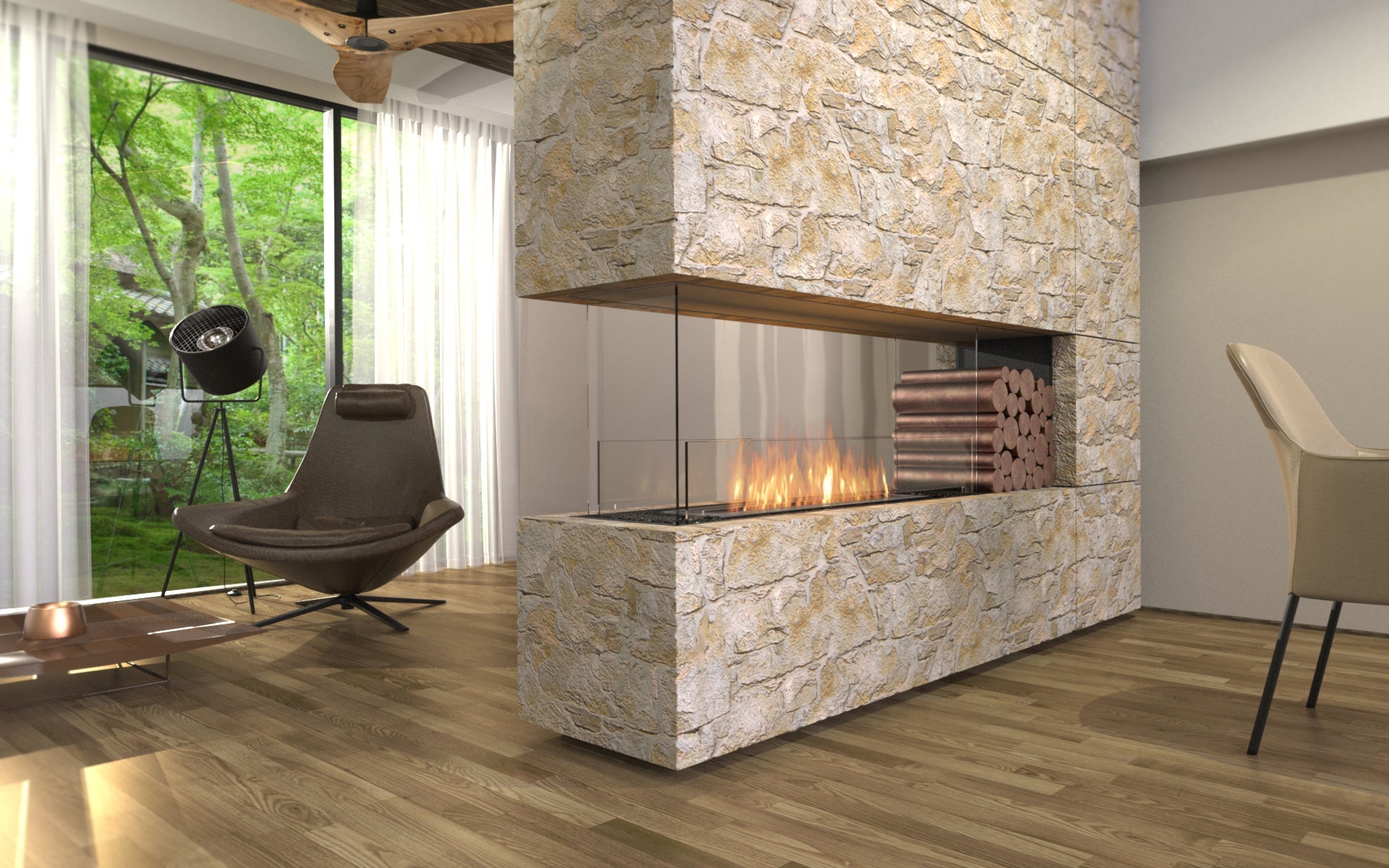

Designed as a room divider, the Peninsula Fireplace Insert features three open sides, enabling the mesmerizing flame to be viewed from any direction - the front, back and open side.
The three transparent sides create an eye-catching focal point and provide the perfect solution to heating multiple rooms, to integrating within commercial/hospitality spaces and dividing open floor plans.
The clean lines and 'all flame' configuration of the Flex 104PN means the entire viewing area is dedicated to the eye-catching flame, creating a harmonious blend of traditional style and contemporary design.
One of the longest flames available in the Flex Series is created by using 2 of our ever-popular XL1200 Burners. With an overall heating capacity of 1399ft2 this appliance is best suited to large open spaces - think hotel lobby, large open plan restaurants.
Each burner holds 2.6 gallons of fuel, and can deliver a stunning flame for up to 14 hours.
KEY FEATURES
APPLICATION
Indoor or outdoor multi-room application. With three open sides, view the flame from multiple vantage points.
COLORS
Available in black, firebox comes with stainless steel burners and decorative Black Glass Charcoal.
NO GAS OR ELECTRICITY
No gas, no electricity, no chimney, no venting or external vent cap. 4 fewer General Contractors.
CLEAN BURNING
All the fuel is housed within Flex’s self-contained burner so you don’t have to run a gas line or electric wires through your walls. And because e-NRG Bioethanol is clean-burning, you don’t need a flue or a chimney
ZERO CLEARANCE
Self-contained, zero clearance construction allows your Flex fireplace to be framed into wood or metal studs, providing installation freedom and flexibility for builders.
QUICK AND EASY ASSEMBLY
Requiring virtually no assembly, Flex Fireboxes are designed to be placed into the desired location, safely secured into position, and operated immediately.
RUST PROOF
Zinc sealed steel construction powder coated with super hi-temp black paint prevents rusting so all fireplaces can be used both indoors or outdoors.
LUXURIOUS FINISH
Available in a timeless black finish, Flex Fireboxes come with stainless steel burners and black glass charcoal.
WINDSCREEN
Included integrated windscreen sits flush behind the frame.
ACCESSORIES
- Fire Lighter
- Lighting Rod
- Jerry Can 1.25 Gal
- Bottle Adaptor
- Butane
- XL Baffles
- Black Glass Charcoal
- WEIGHT338lb [153kg]

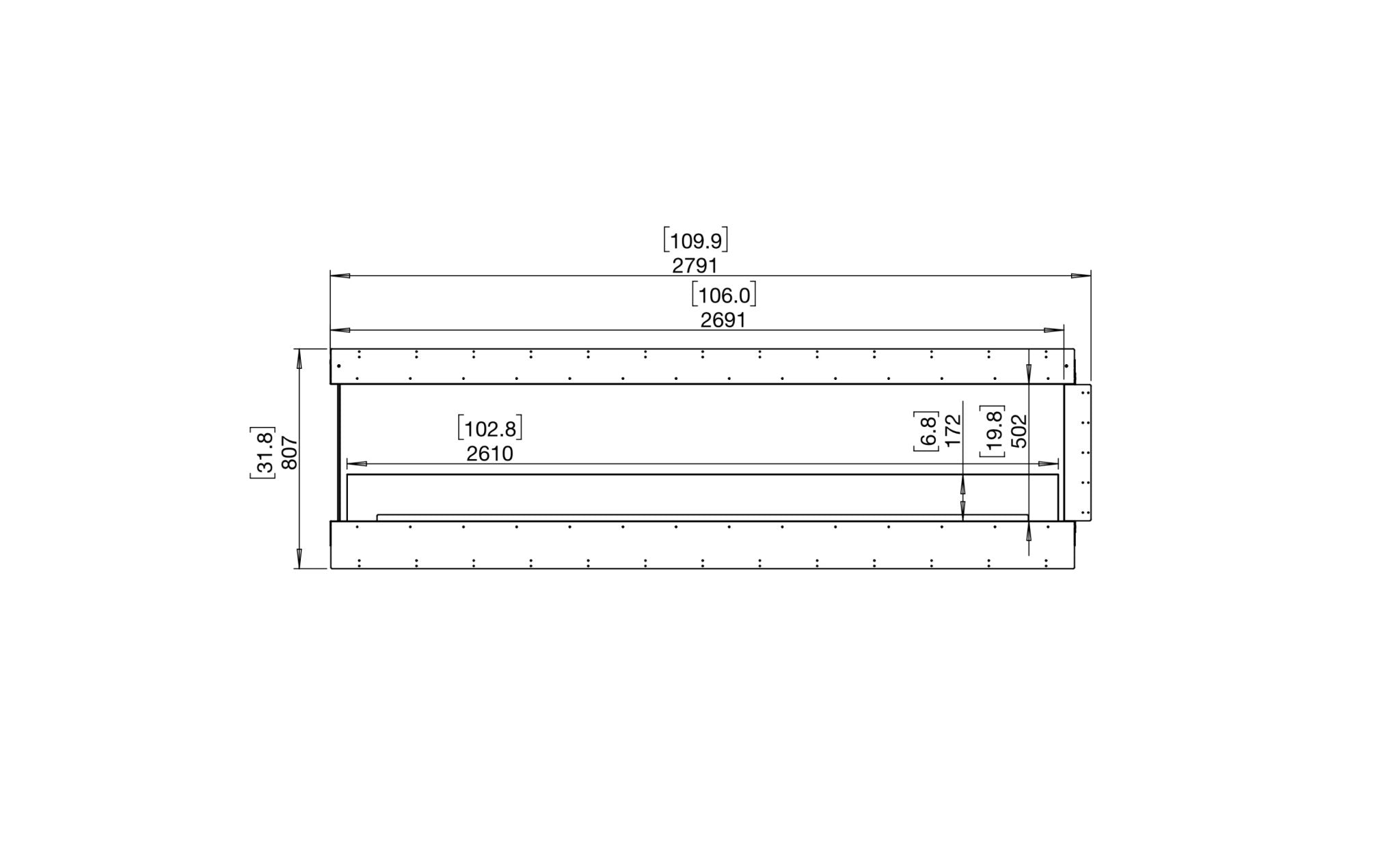

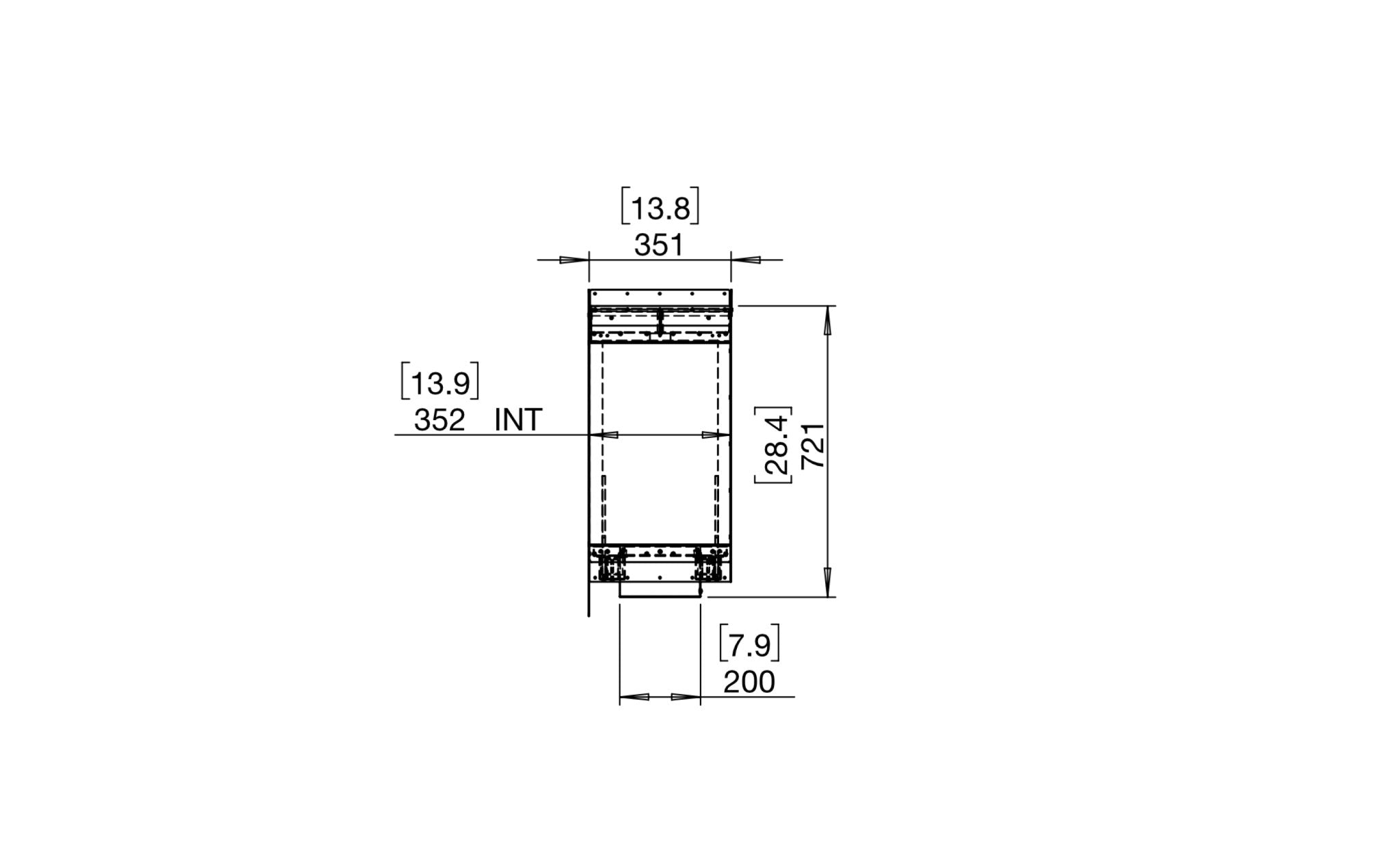

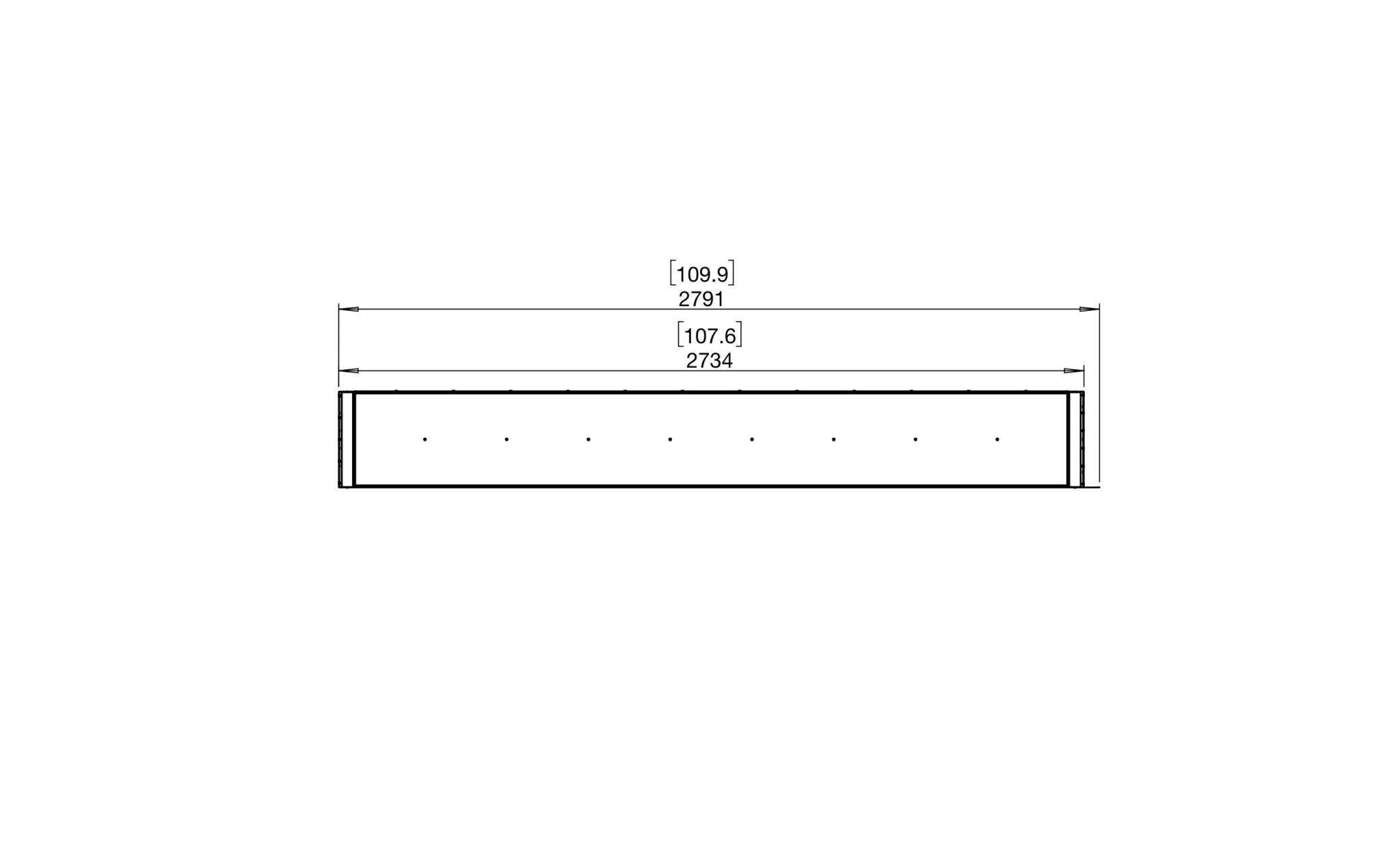

- MODEL DIMENSIONS in [mm]W 110 [2791]D 13.9 [354]H 31.8 [807]
- VIEWING AREA in [mm]W 106 [2691]D 13.9 [352]H 19.8 [502]
- MATERIALSMild Steel & Toughened Glass
WARRANTY INFORMATION
At EcoSmart Inc, we believe in supplying you with the best, most user friendly fireplace and providing you with the means to keep it that way. Many aspects of the EcoSmart Fire are hand-produced, hand-finished and use natural materials, which makes them subject to variations in finish and size.
All of our pieces will mature and age over the course of time, through natural processes associated with use and with heat and flame. These changes are an essential part of the dynamic of the piece. EcoSmart Inc reserves the right to make minor amendments without prior notice.
LENGTH OF WARRANTY
TWO YEAR
Warranty from date of purchase on stainless steel parts including raw, linished and powder coated.
ONE YEAR
Warranty from date of purchase on mild steel including powder coated and chrome plated, cement, glass, leather, fabric and MDF (painted or cement rendered).
ELECTRIC FIREPLACES
Electric models are covered by a 12 month warranty.
Chips and scratches are not covered by warranty. Natural variation in color, texture and porosity may occur with Concrete Composite products and are considered inherent and valued qualities of the material. Non-structural hairline cracks are possible and shall not be considered a manufacturing defect.
