Delta Heat  |  SKU: DHVH36

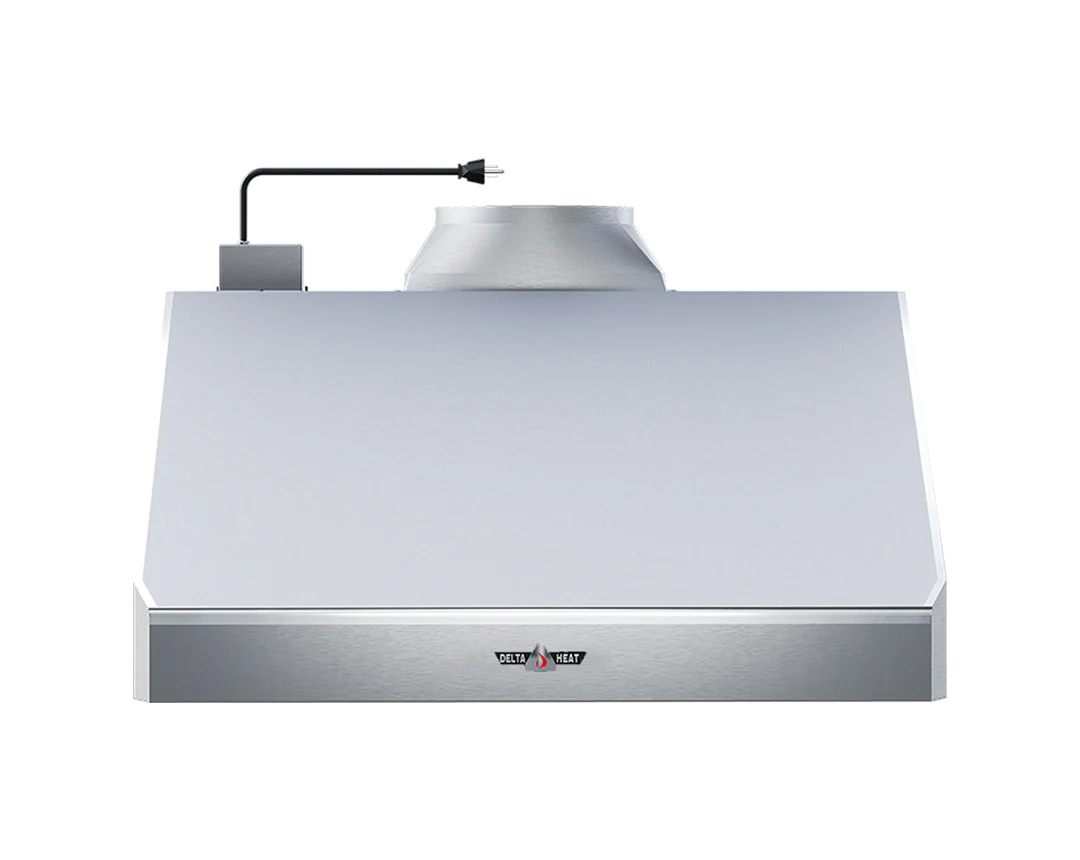

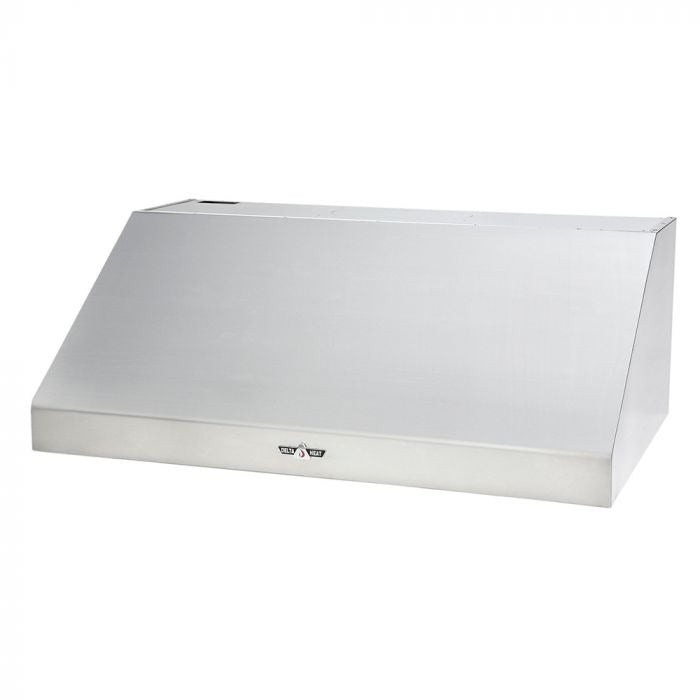

Delta Heat Vent Hood

$2,059.00 $2,394.19

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Delta Heat dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 36, 48 or 60 in wide (DHVH36, DHVH48, DHVH60); mounting and duct dimensions per the Delta Heat installation instructions

The Delta Heat Vent Hood (DHVH) is a wall-mount outdoor kitchen hood sized for 36, 48 and 60 in grill runs. It has a 3-speed rotary fan control, a separate light switch for two halogen lamps, and dishwasher-safe baffle filters with an integral grease collector. Delta Heat approves it for a covered outdoor patio or lanai when the roof extends well past the hood and the circuit is GFCI protected. Note that the blower motor is sold separately.

Key Specifications

Models DHVH36, DHVH48, DHVH60
Blower Not included: install only with Delta Heat integral blower TEVI-120I-C (blower motor assembly S16477, sold separately)
Fan Control 3-speed rotary switch, front left
Lights 2 halogen lamps, 40 W each, with their own rotary switch
Filters Dishwasher-safe baffle filters with grease collector: 3 (36 in), 4 (48 in), 5 (60 in)
Electrical 120V, 5.4 A, 60 Hz; pre-installed 3-prong cord; dedicated 15 A GFCI-protected circuit
Ducting Metal duct, 10 in diameter minimum, vented to the outdoors; top or rear exhaust knock-outs
Use Residential use only; suitable for damp locations on a GFCI circuit

Dimensions and Cutout

Widths 36, 48 or 60 in
Mounting Height Centered over the appliance, at least 36 in above the cooking surface
Mounting Surface At least 3/4 in thick; minimum four #10 wood screws; furring strips as needed
Covered Patio Roof Roof must cover the hood and extend at least 42 in beyond each side and 30 in beyond the hood front; wall-mount hoods need a solid rear wall
Capture Overhang Delta Heat recommends the hood extend 3 in, preferably 6 in, past each side of the cooking area

Features

  • Stainless steel outdoor hood for Delta Heat grills and power burners
  • 3-speed fan control for light to heavy cooking
  • Two 40 W halogen task lights
  • Dishwasher-safe baffle filters with integral grease collector
  • Top or rear exhaust
  • Pre-installed power cord for a GFCI outlet

What Is Included and What You Will Need

  • Included: vent hood with control panel, halogen lights, power cord and baffle filters (3, 4 or 5 by width)
  • Required: Delta Heat integral blower TEVI-120I-C (blower motor assembly S16477, sold separately), 10 in minimum metal ductwork to the outdoors with a wall or roof cap, transition, and a dedicated 15 A GFCI-protected 120V circuit
  • Recommended: vent hood backdraft damper S13166 (sold separately), especially in cold climates, with a non-metallic thermal break

Installation Notes

Delta Heat says the hood must be vented to the outside through metal ductwork no smaller than 10 in, mounted centered over the grill at least 36 in above the cooking surface, and plugged into a GFCI-protected dedicated 15 A circuit with no extension cord. Two installers are recommended. Outdoors it is approved only under a protective roof that extends at least 42 in past each side and 30 in past the front, and Delta Heat does not recommend it over solid fuel appliances such as charcoal grills. Follow the grill maker's clearances to combustibles as well. In New York City, ducting and electrical work need licensed trades and may need DOB filing. Book a free design consultation and we will help you size the hood, blower and duct run.

Documentation

Frequently Asked Questions

Is the blower included?

No. Delta Heat specifies the TEVI-120I-C integral blower (motor assembly S16477), sold separately; the hood must not be installed without it.

Can I install it under a pergola?

Only under a solid protective roof that covers the hood and extends at least 42 in past each side and 30 in past the front, per Delta Heat.

How high above the grill does it go?

Centered over the grill and at least 36 in above the cooking surface.

Can I use it over a charcoal grill or kamado?

Delta Heat does not recommend it over solid fuel fired appliances.

Related reading: Do you need a vent hood over an outdoor grill? and Outdoor kitchen planning guide.

Warranty

Delta Heat warrants the vent hood for two years against defects in materials and workmanship under normal residential use (part repaired or replaced; owner pays labor, shipping and handling), with a one-year full warranty on the hood and all components serviced by an authorized Delta Heat representative. A 90-day warranty applies to residential-plus uses such as inns and private clubs; commercial use is excluded. Return the registration card within 30 days to activate coverage.
