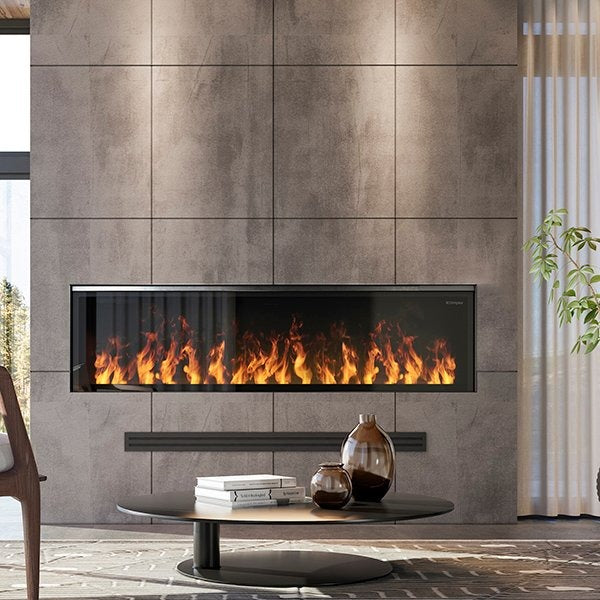

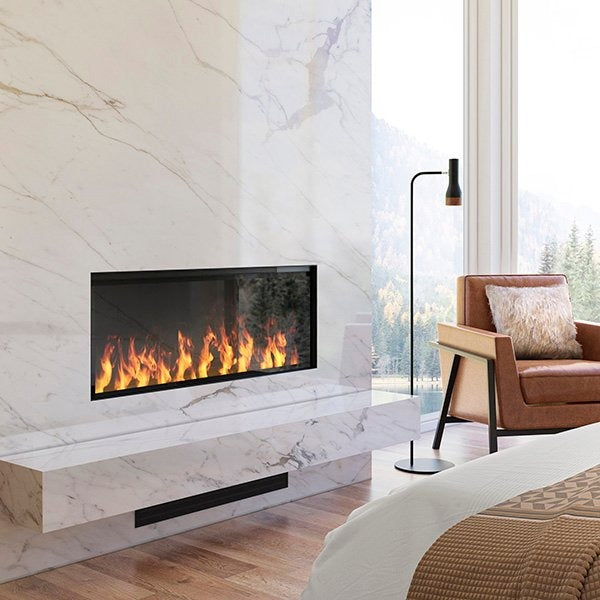

Dimplex 46" Linear OptiMyst Electric Water Vapor Fireplace - OLF46-AM

Overall Dimensions: 47-1/2" W x 11-7/8" D x 31-1/2" H

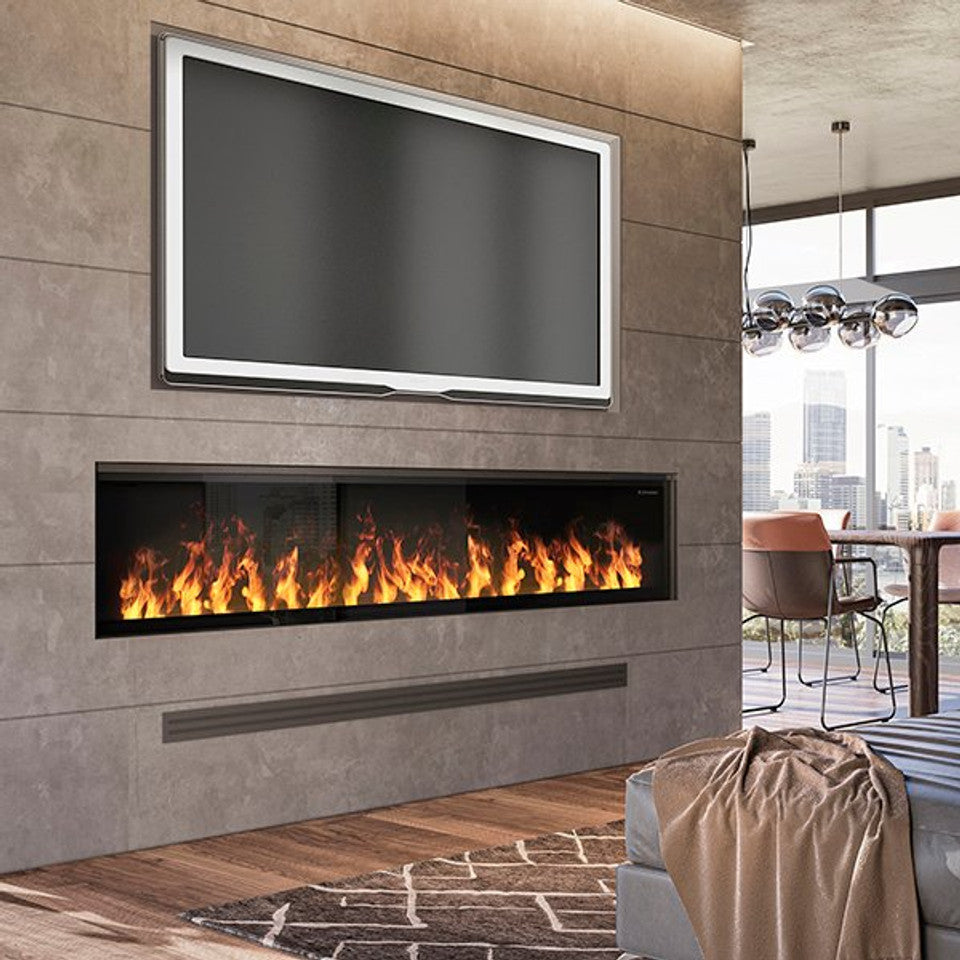

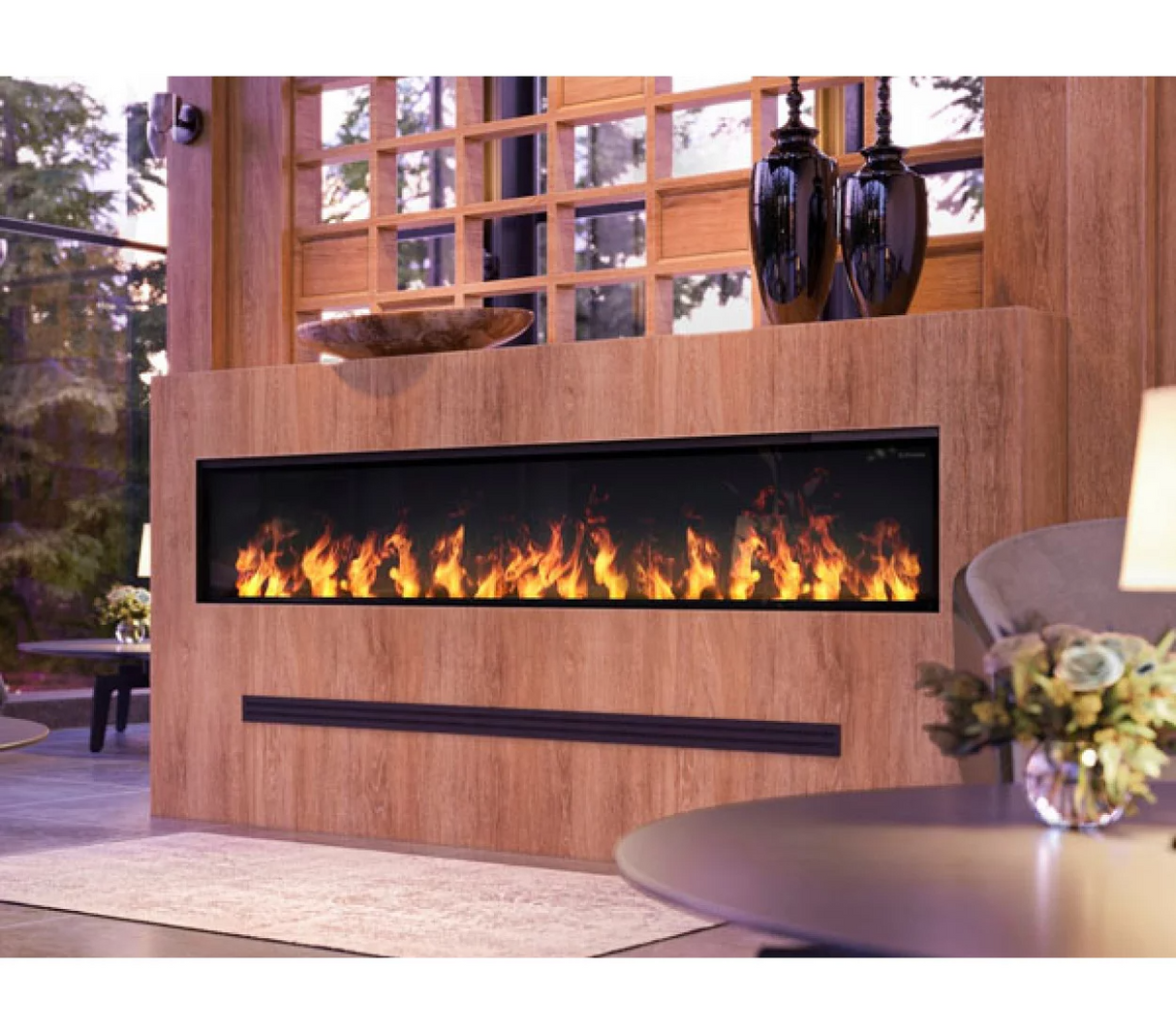

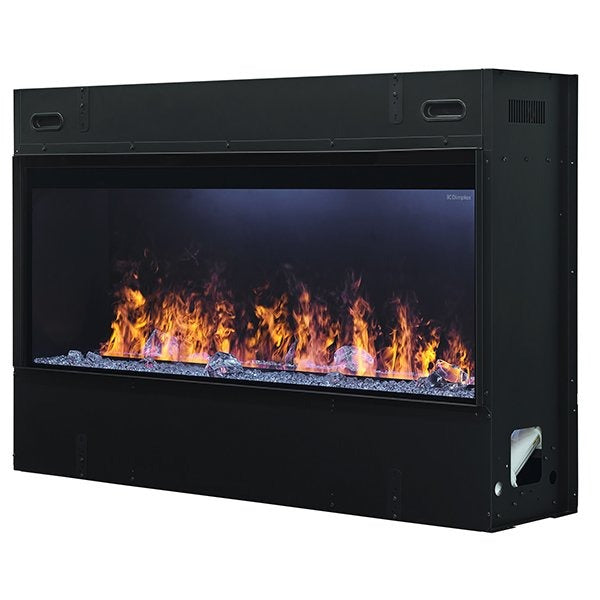

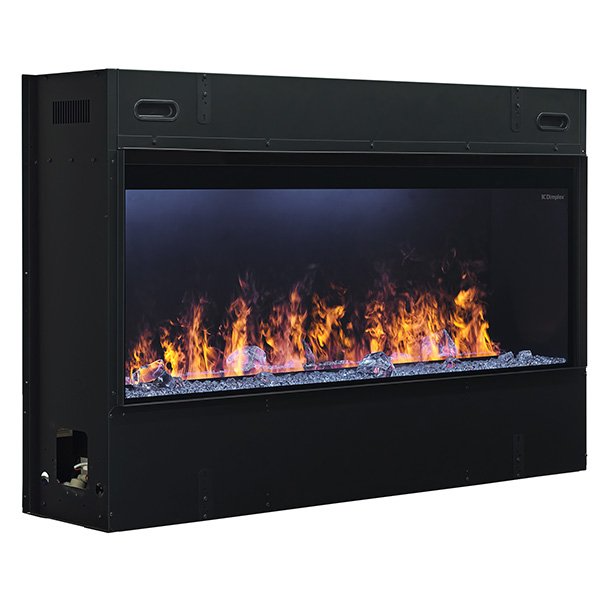

The Dimplex Optimyst Linear 46 (OLF46-AM) is a built-in water vapor fireplace that makes flame and smoke out of ultrasonic mist and LED light, so the glass stays cool and nothing burns. It is the right choice for a bedroom wall, a media wall under a television, or any NYC apartment where gas venting is not an option. What you are paying for is the most convincing flame in the electric category, a plumbed water feed so you never refill a tank, and a concealed heater that can run on 120V or 240V.

Key Specifications

Dimensions and Cutout

Features

• Patented 3D vapor flame with real rising smoke effect; glass and surfaces stay cool to the touch

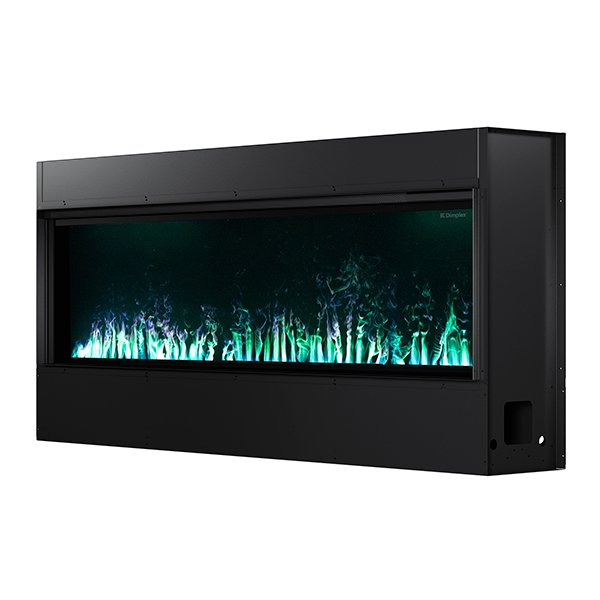

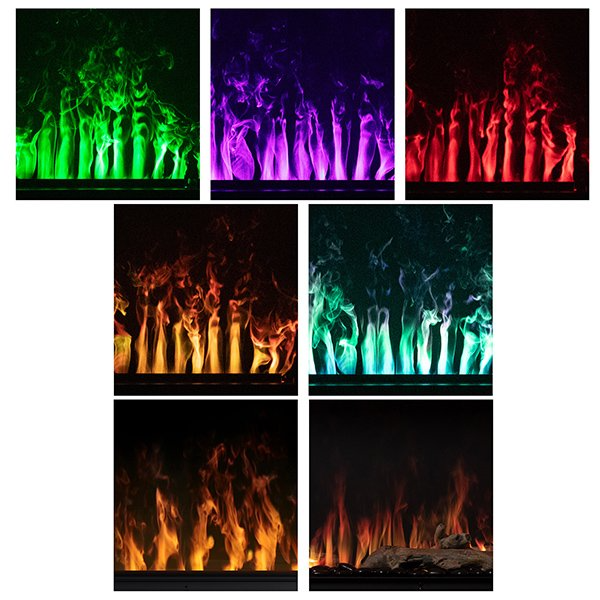

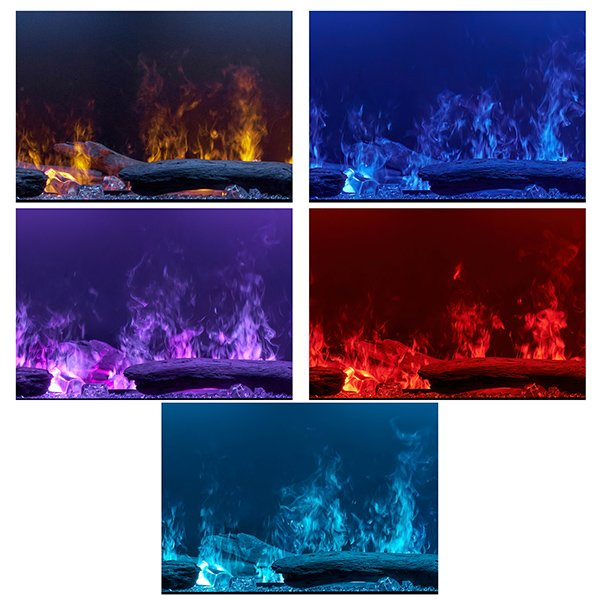

• Multicolor LED flame lighting with adjustable flame height, brightness and crackle volume
• Flame Connect app control from your phone, plus a Sight and Sound remote
• Concealed Comfort$aver heater with Eco mode and 20-minute Boost; heat can be left off for year-round ambiance
• Direct-wire at 120V or 240V; optional OLFPLUG kit for 120V plug-in installations
• Continuous plumbed water feed with overflow sensor shutoff, so there is no reservoir to refill

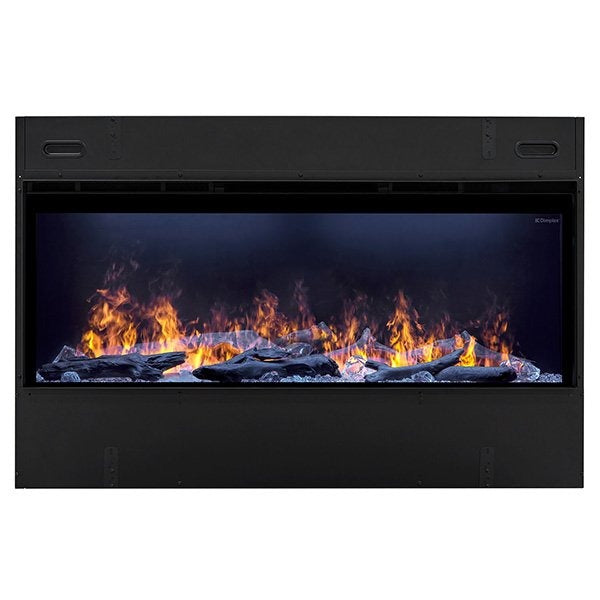

• Includes acrylic ice crystals and driftwood media; compatible with Dimplex ember bed and log accessories
• Zero emissions, no gas line, no chimney or vent run

What Is Included and What You Will Need

• Included: Optimyst Linear firebox, front glass, acrylic crystals and driftwood media, flame baffles, remote with batteries, bubble level, mounting screws, suction cups, spare transducers, installation manual
• Required: a dedicated 15A circuit at 120V or 240V, run by a licensed electrician
• Required: a cold water line with 1/4" OD tubing and an accessible shutoff; choose the With Plumb Kit option above (CDFIPLUMB-KIT, for copper piping) if you need the Dimplex fitting kit
• Required: a framed opening with an 80 sq in fresh air inlet to the underside of the unit
• Optional: 120V Plug Kit (OLFPLUG) and Air Intake Grille (RMGW), both selectable above
• Optional media: Dimplex ember bed media, TMBGL tumbled glass and faux wood log sets
• Optional: Opti-Myst refillable container (Dimplex part 9601350100RP) for occasional use without a plumbed line; one fill gives up to about 6 hours of flame

Installation Notes

This is a permanent built-in unit for new construction or an existing wall. It needs its own 15A circuit (hardwire is standard; the plug kit is for 120V only and must not be used with an extension cord), a plumbed cold water line that is flushed before connection and primed before first use, and an unobstructed fresh air inlet under the unit. Dimplex states normal tap water is acceptable; in hard water areas use a softener and expect more frequent cleaning, and do not feed the unit with unfiltered well water. The unit is not watertight: keep it away from tubs and showers and use a GFCI circuit in bathrooms. Because it is electric and makes no combustion byproducts, it needs no flue or vent, which makes it a practical way to put a linear flame in a New York City apartment or townhouse; confirm electrical and plumbing work with your building. Our installers handle the framing, electrical and plumbing coordination; book a design consultation and we will size the opening with your contractor.

Warranty

Dimplex 2-year limited warranty with in-home parts and service for the original purchaser (travel charges may apply beyond 30 miles from a service provider). The CDFIPLUMB-KIT carries a 1-year warranty.

Documentation

• Spec Sheet
• Installation Manual
• Dimplex Installation and User Guide (Optimyst Linear)
• Dimplex 3-Part Specification (Optimyst Linear 46)

Frequently Asked Questions

Does the Optimyst Linear 46 have to be plumbed?

Dimplex designs it for a continuous cold water connection with 1/4" tubing. A refillable container is available for occasional use, but Dimplex does not recommend it for frequent operation and the front glass and media tray must be removed to refill it.

Can I run the flame without heat in summer?

Yes. The heater is independent of the flame. Flame-only draws about 520 W, and the heater can be switched off from the remote or the app.

Can it go under a TV?

Yes, with the heater positioned per the manual and the TV manufacturer's heat clearance respected. Because the flame is cool mist, the television sees far less heat than it would above a gas unit. Mount the fireplace so its bottom edge is 5" to 50" off the floor.

Is 120V or 240V better?

Both run the flame identically. 240V gives 1,920 W of heat versus 1,220 W at 120V. If you only want ambiance, 120V with the plug kit is the simplest install.
