Description
Description
Overall Dimensions: 74-1/4 in W x 5-7/8 in D x 15-5/8 in H

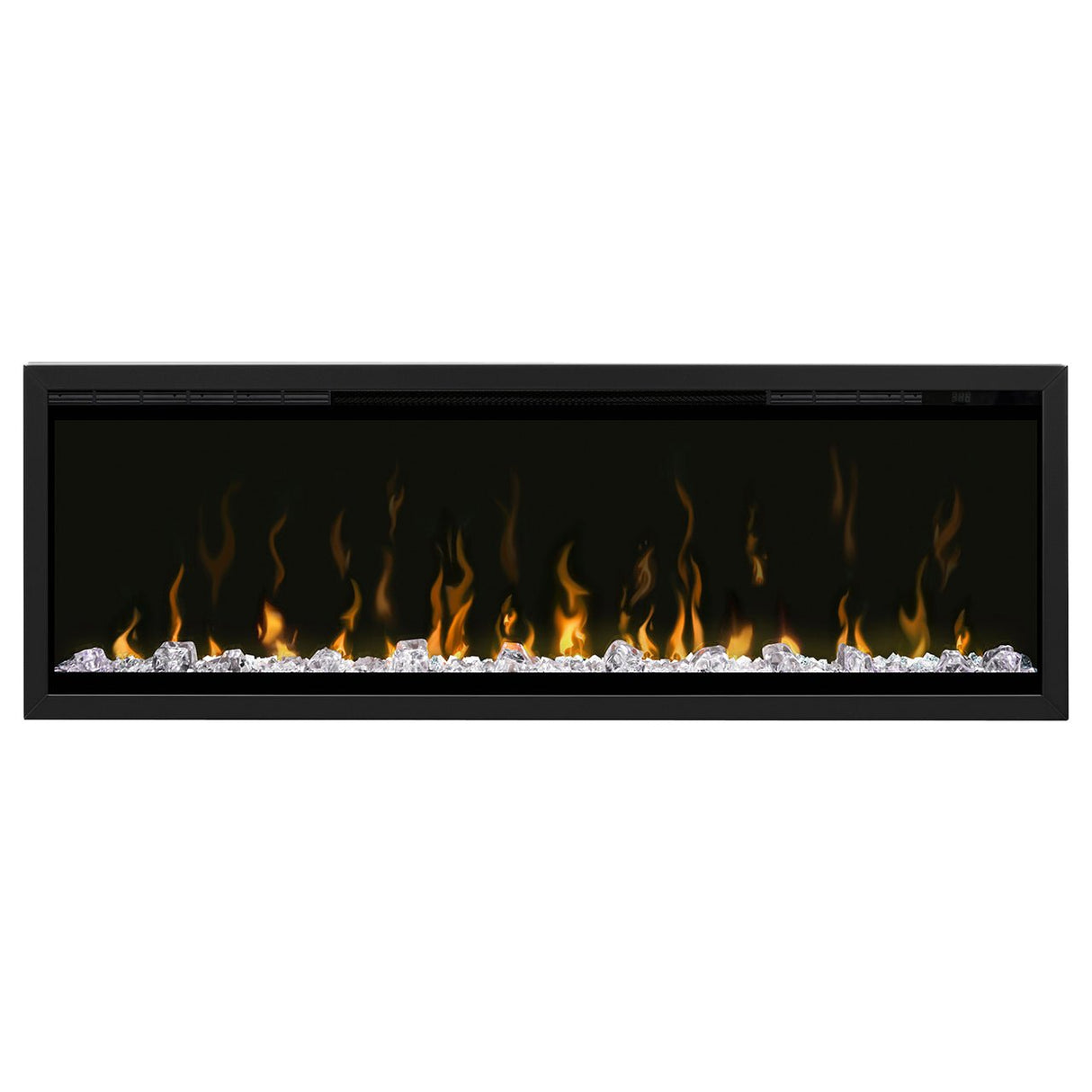

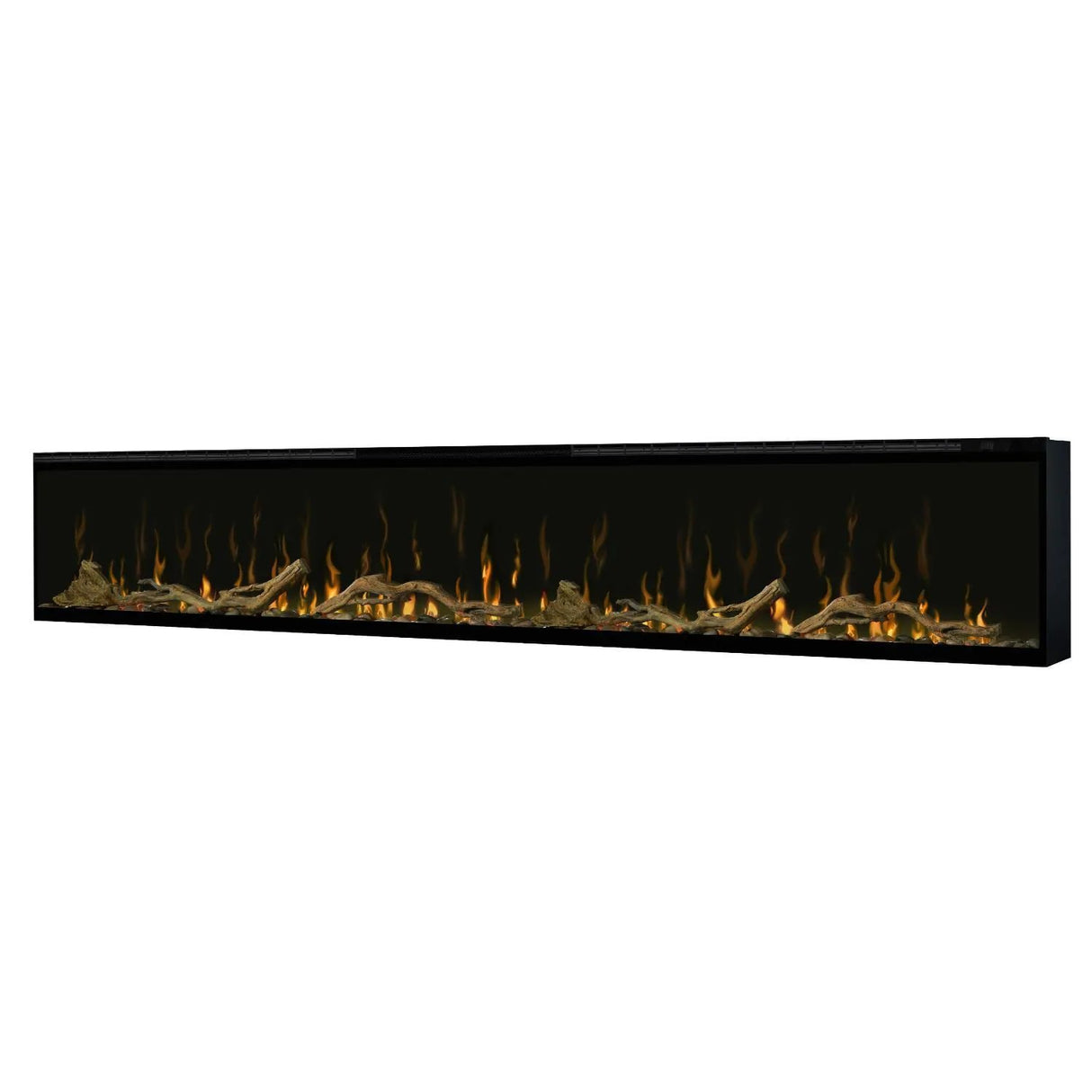

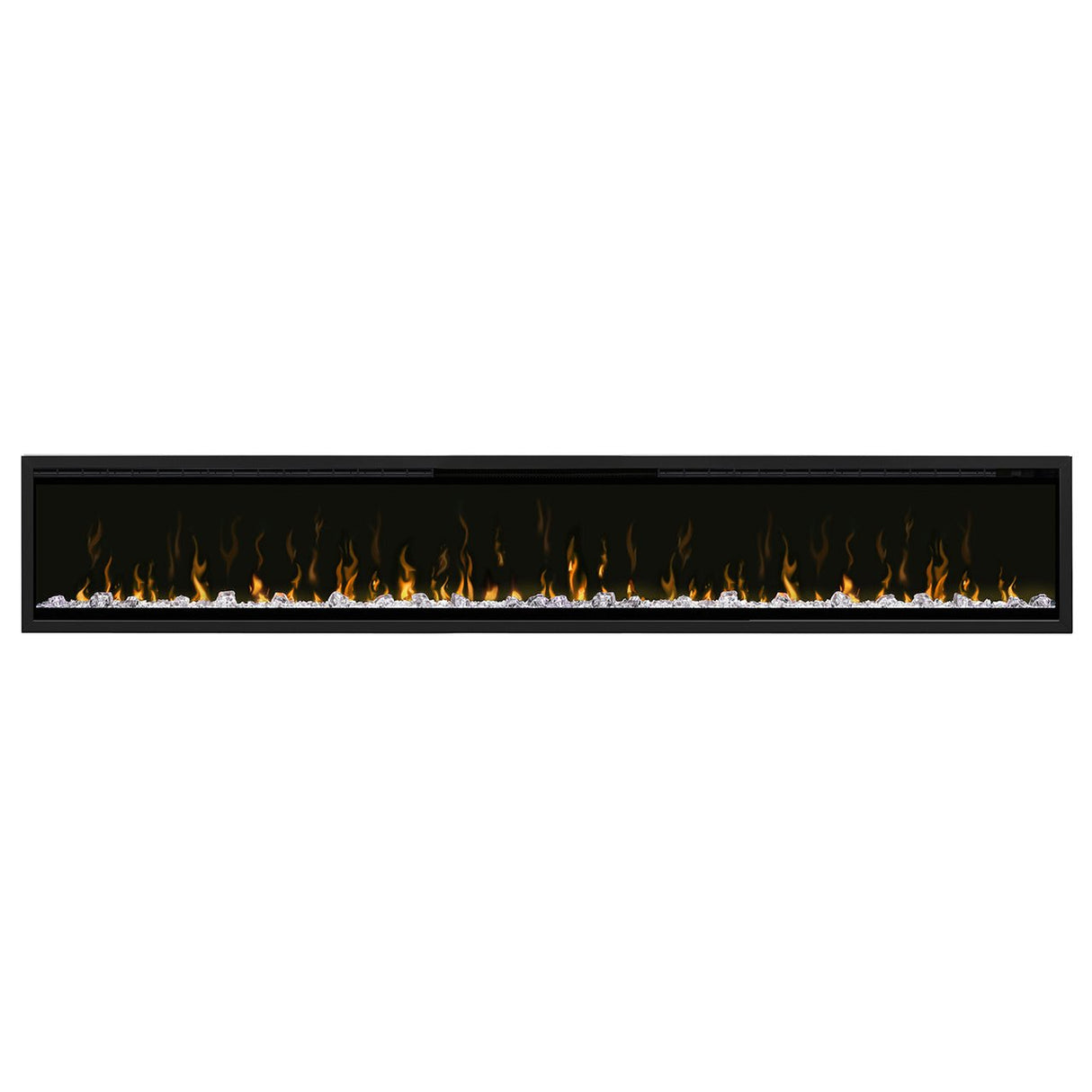

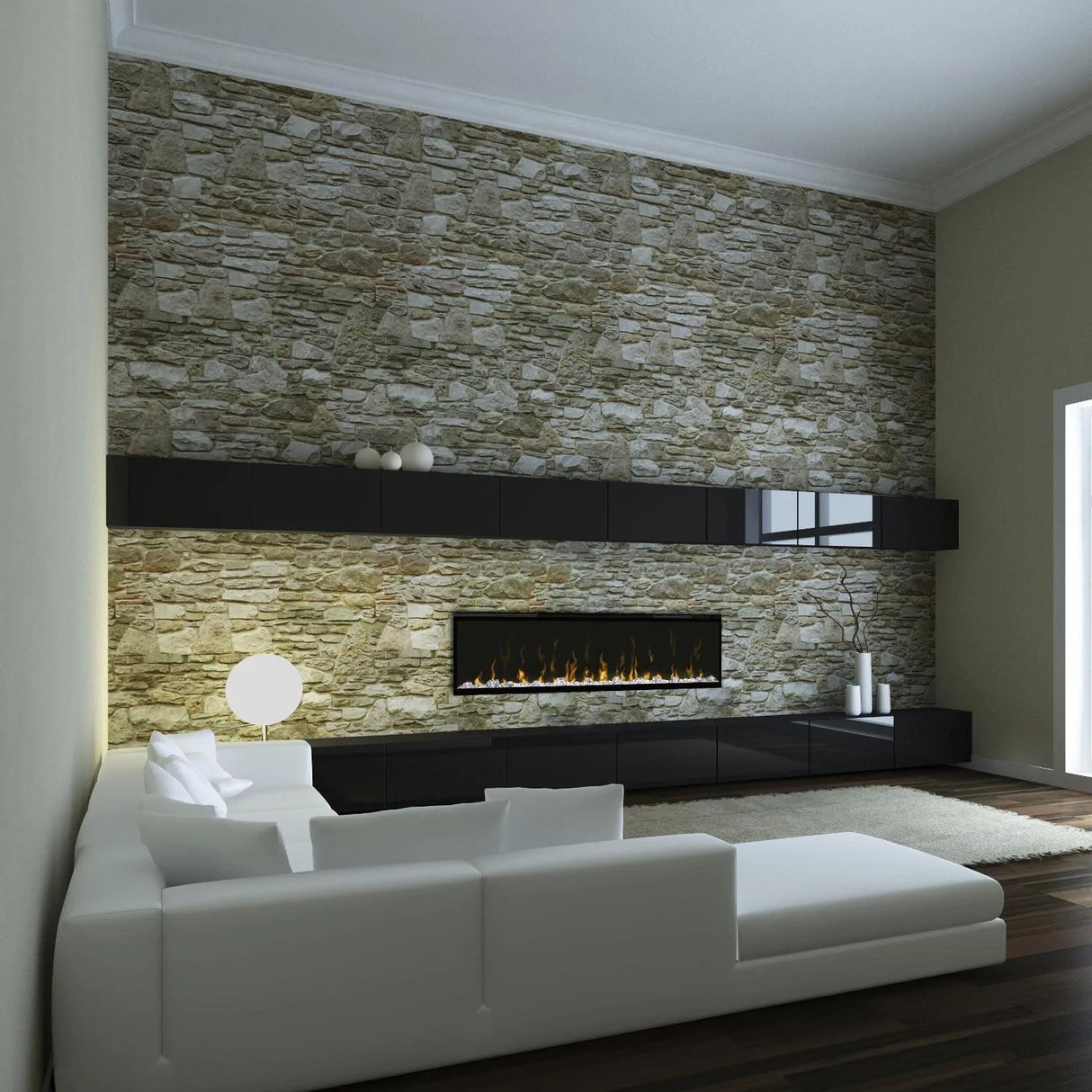

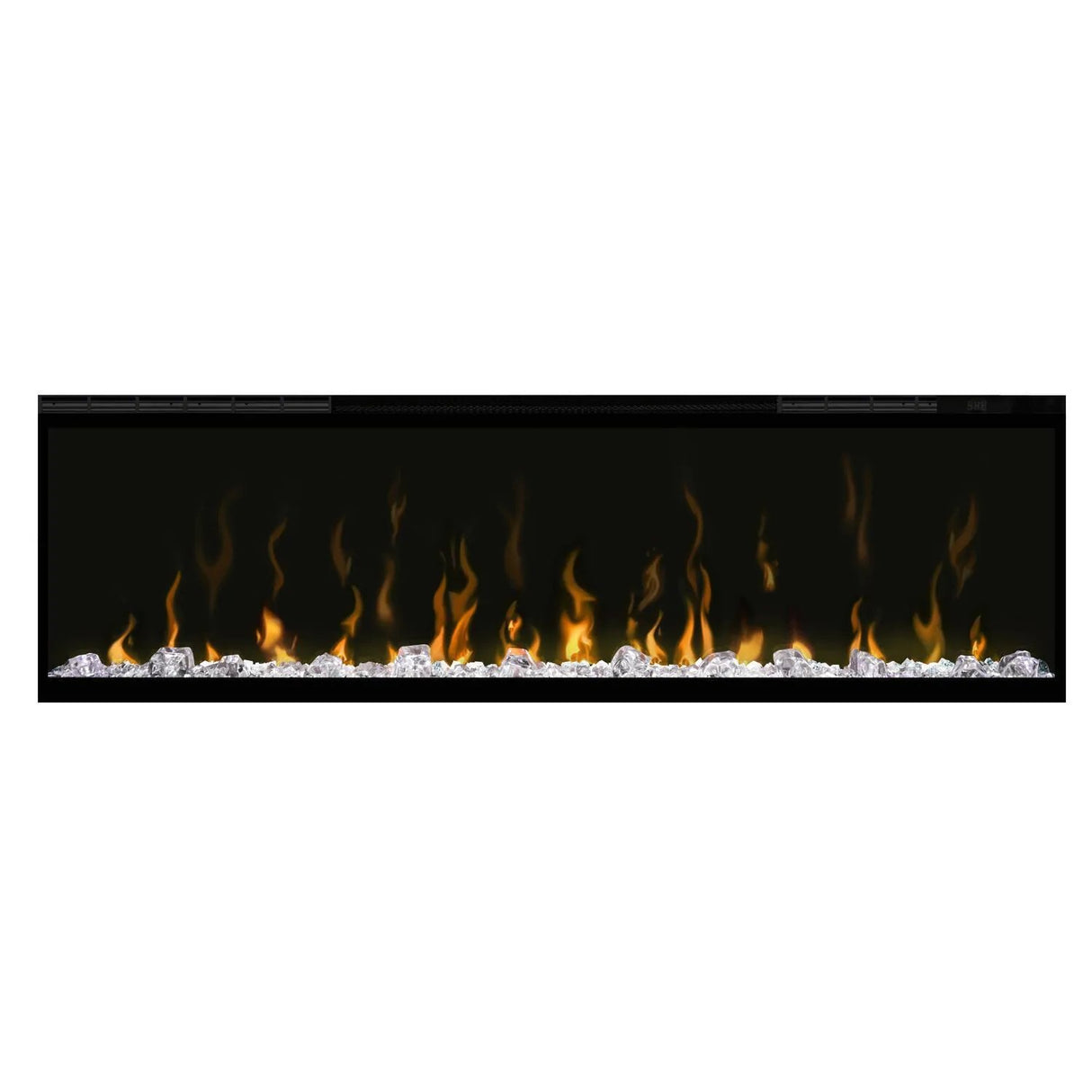

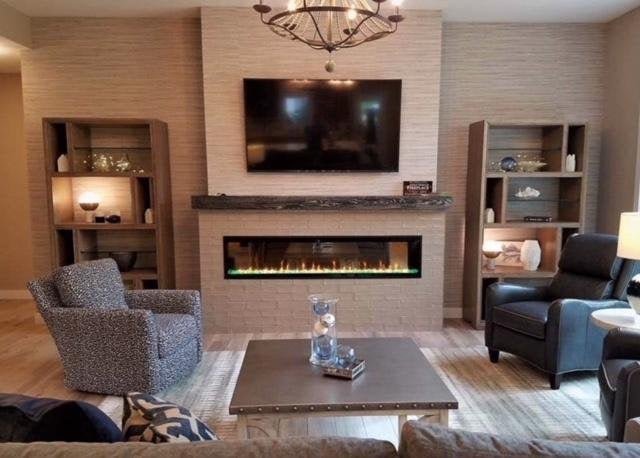

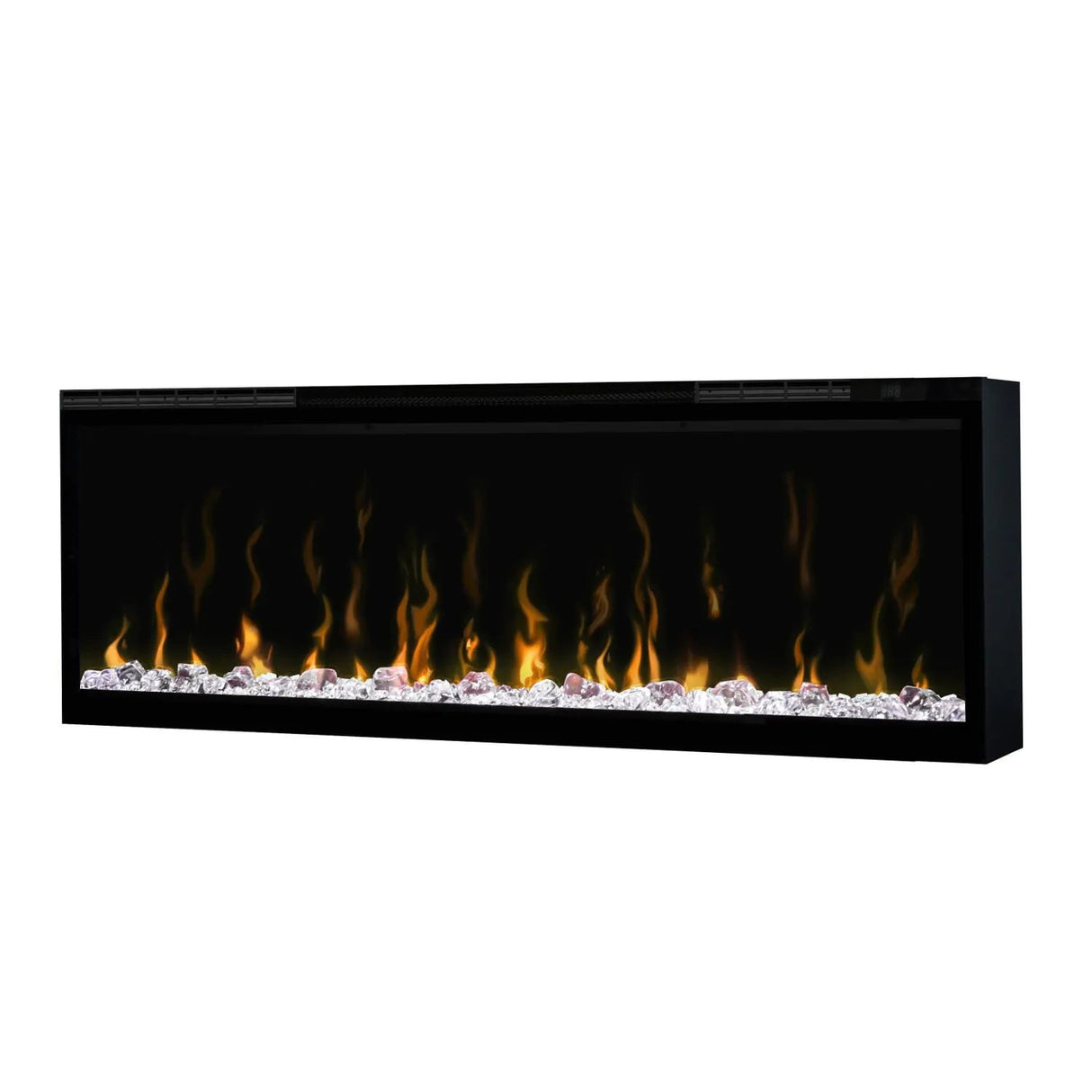

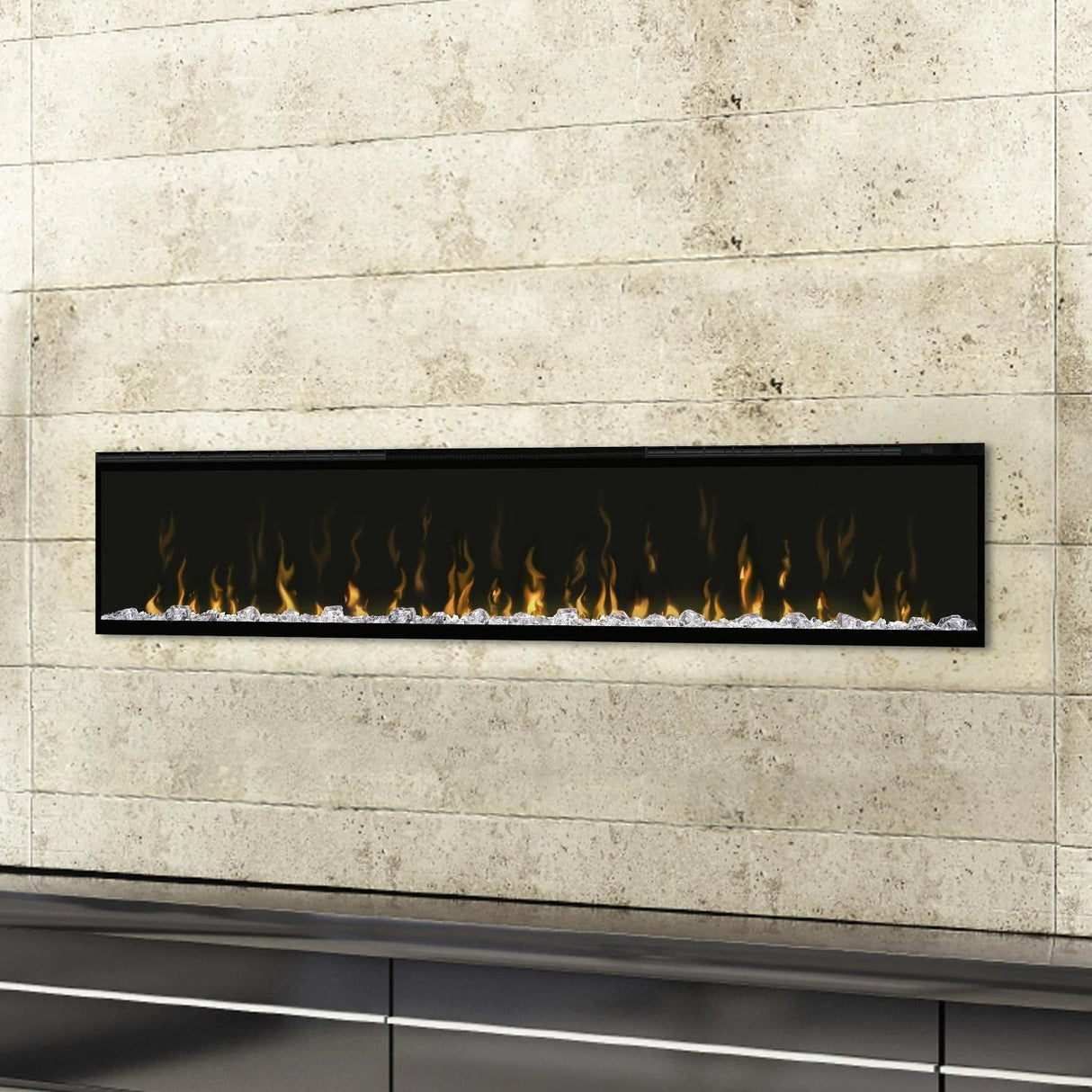

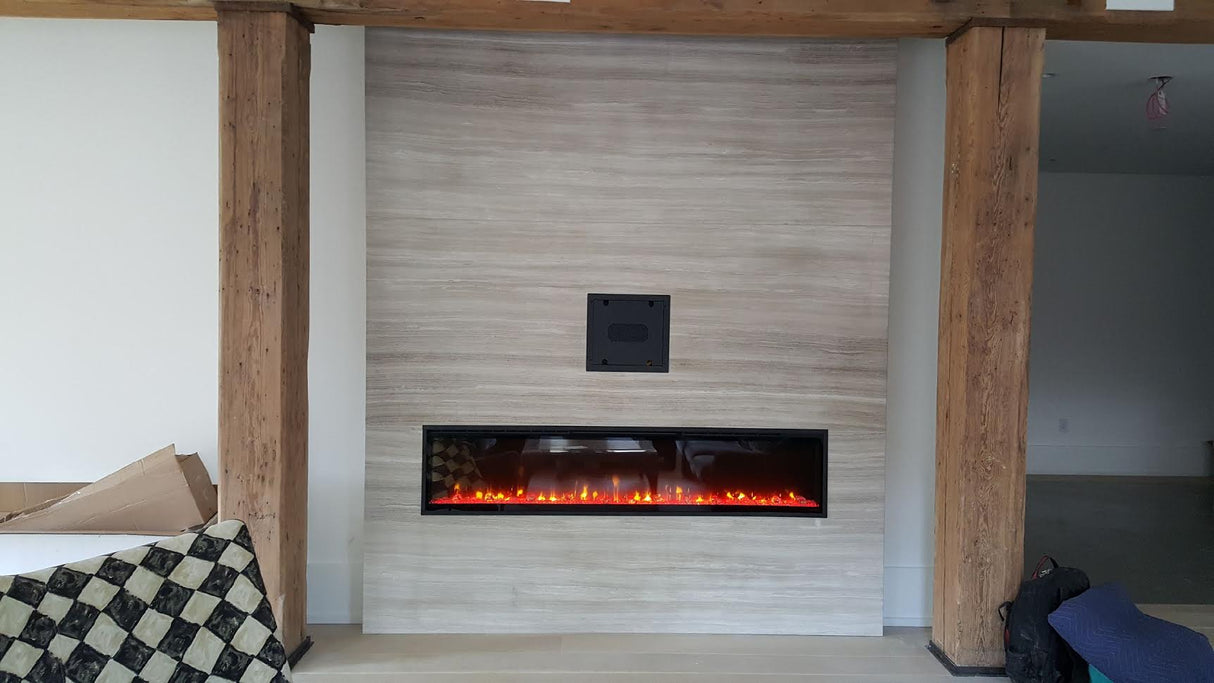

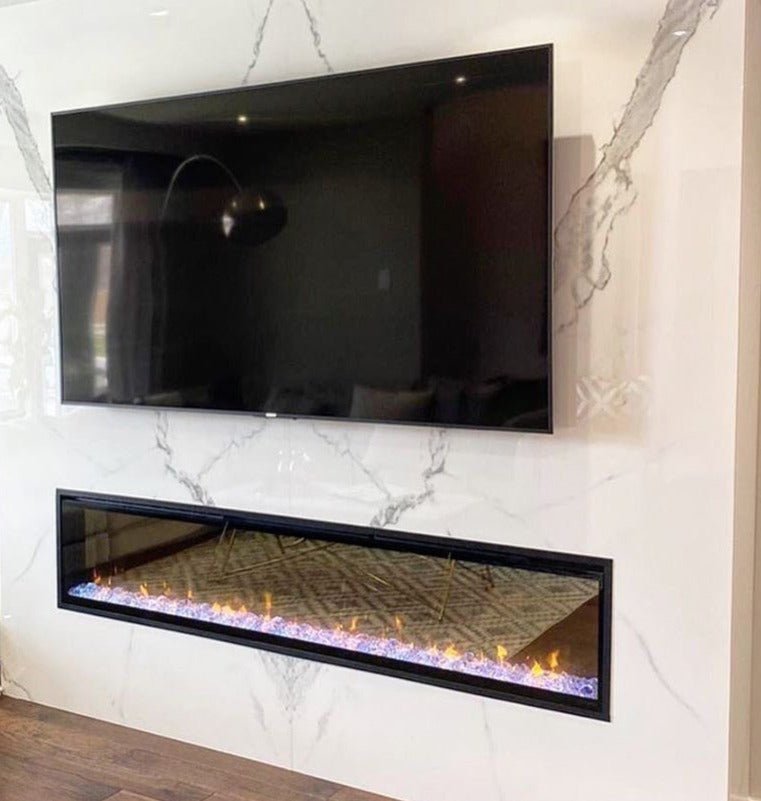

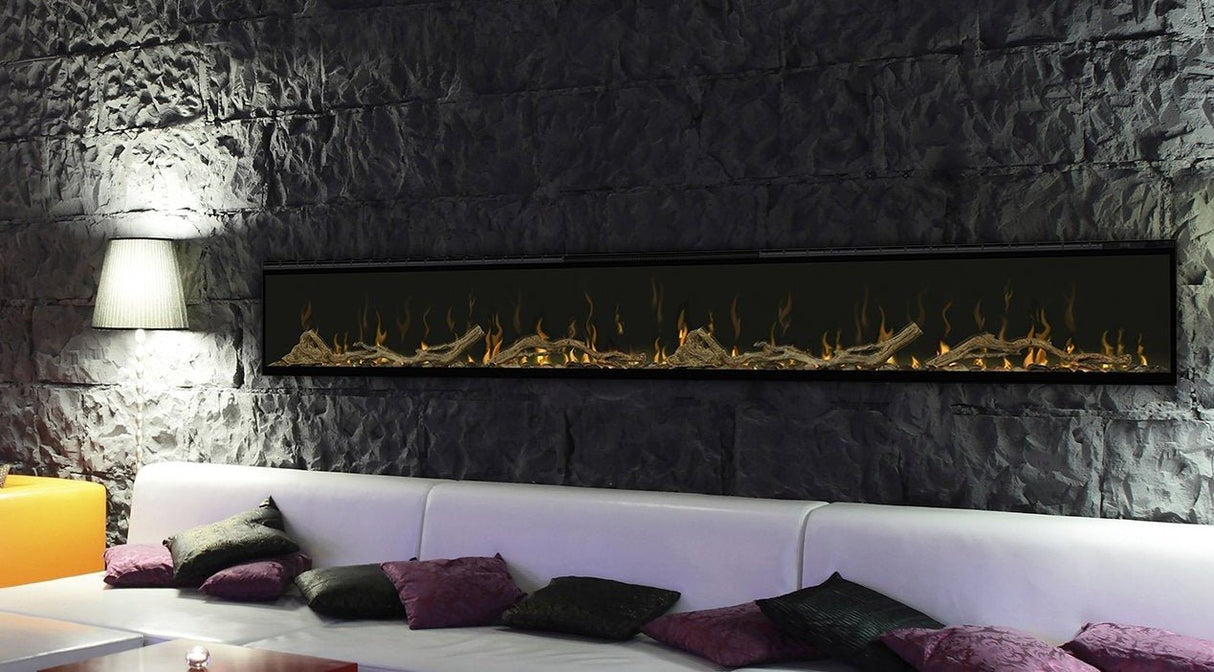

The Dimplex IgniteXL 74 (XLF74) is a 74-inch built-in linear electric fireplace with edge-to-edge glass and a panoramic Multi-Fire XD flame in a unit under 6 inches deep. It suits condos, high-rises and media walls where there is no gas line or chimney, and Dimplex certifies the IgniteXL line for covered outdoor use. The Comfort$aver heater can be run with the flames or turned off.
Key Specifications
| Model | XLF74 (UPC 781052098756) |
|---|---|
| Fuel / power | Electric, 120V (3-wire) or 240V (4-wire) |
| Heater | Comfort$aver ceramic heater: 1,500 W and 5,118 BTU at 120V; 2,500 W and 8,530 BTU at 240V; up to 1,000 sq ft |
| Amps | 12.5 A at 120V and 10.4 A at 240V (per current listing) |
| Flame | Multi-Fire XD with adjustable media accent colors and a custom color-cycling mode |
| Controls | Built-in touch controls with display, Mood-maker remote, Heat Boost |
| Venting | None required |
| Certification | UL 2021, 4th Ed. (file E71416) |
| Weight | 104.7 lb per Dimplex spec sheet |

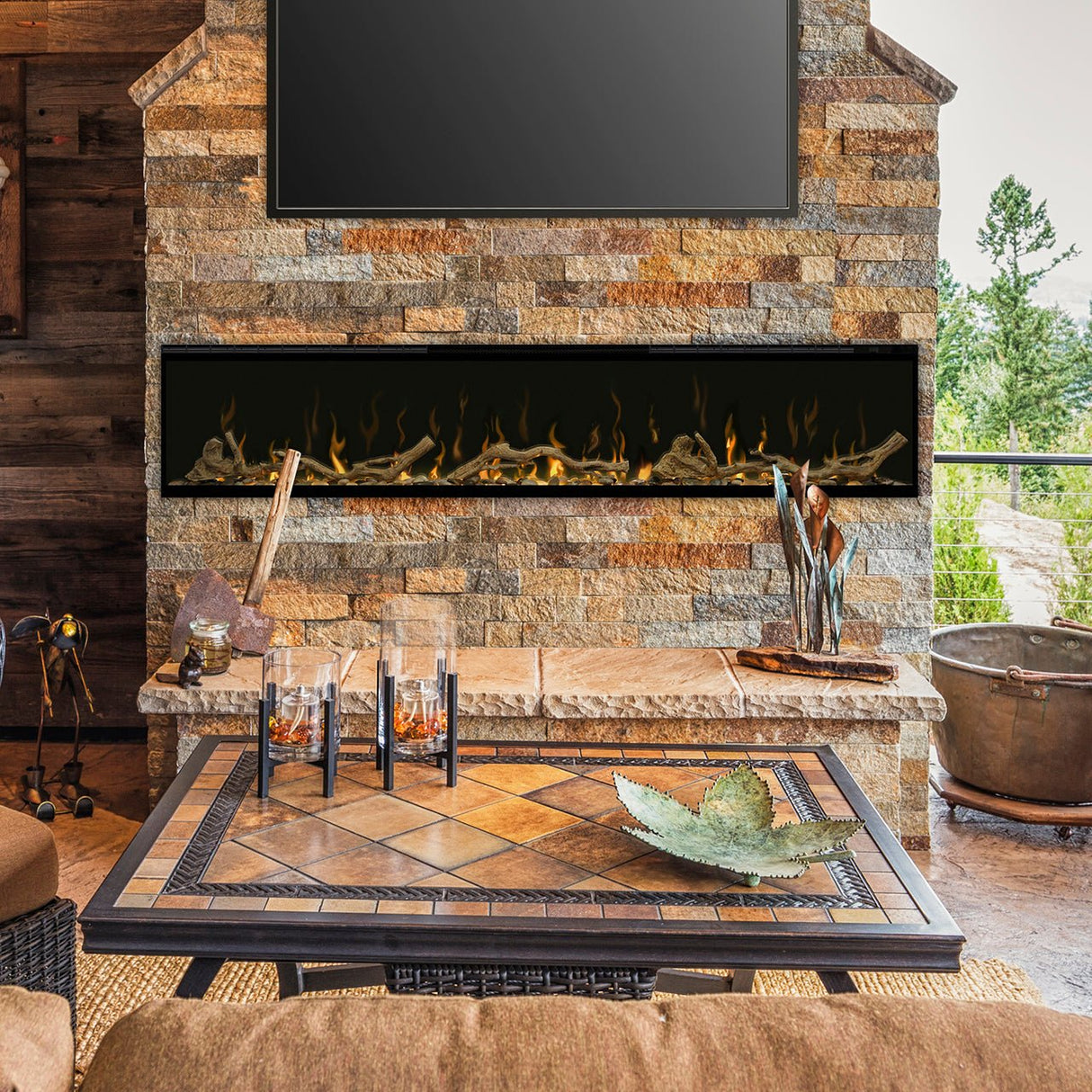

| Location | Indoor, or covered outdoor under an overhang |

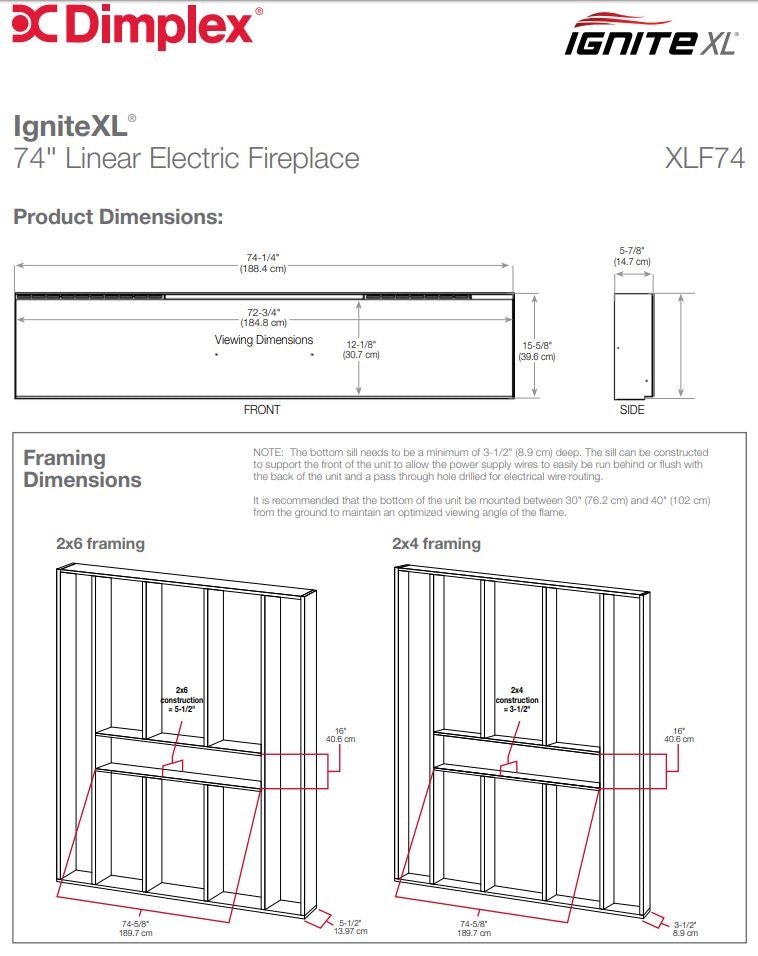

Dimensions and Cutout
| Overall (W x D x H) | 74-1/4 in x 5-7/8 in x 15-5/8 in |
|---|---|
| Viewing area | 72-3/4 in W x 12-1/8 in H |
| Framing opening | 74-5/8 in W; 5-1/2 in deep for a 2x6 wall or 3-1/2 in for a 2x4 wall with the trim kit |
| Mounting height | Bottom at least 5 in above the floor; 30 in to 40 in recommended on the spec sheet |
| Ceiling clearance | Top of the unit at least 24 in below the ceiling per the current guide |
| Furniture and drapery | At least 3 ft in front of the fireplace |
Features
- Edge-to-edge glass gives a panoramic view of the flames from any angle
- Multi-Fire XD flame with adjustable media accent colors
- Comfort$aver ceramic heating system that adjusts fan speed and wattage to the room
- Heat Boost for quick warm-up, and flame-only operation all year
- Diamond-like acrylic ember bed chunks
- Multi-function Mood-maker remote included
What Is Included and What You Will Need
- Included: firebox, front and mirrored glass, acrylic crystals, remote, power cord for 120V, suction cup, screws, bubble level and wire connectors (per the Dimplex guide)
- Required: a dedicated, properly fused 15 A circuit; a 4-wire supply for 240V; a framed opening

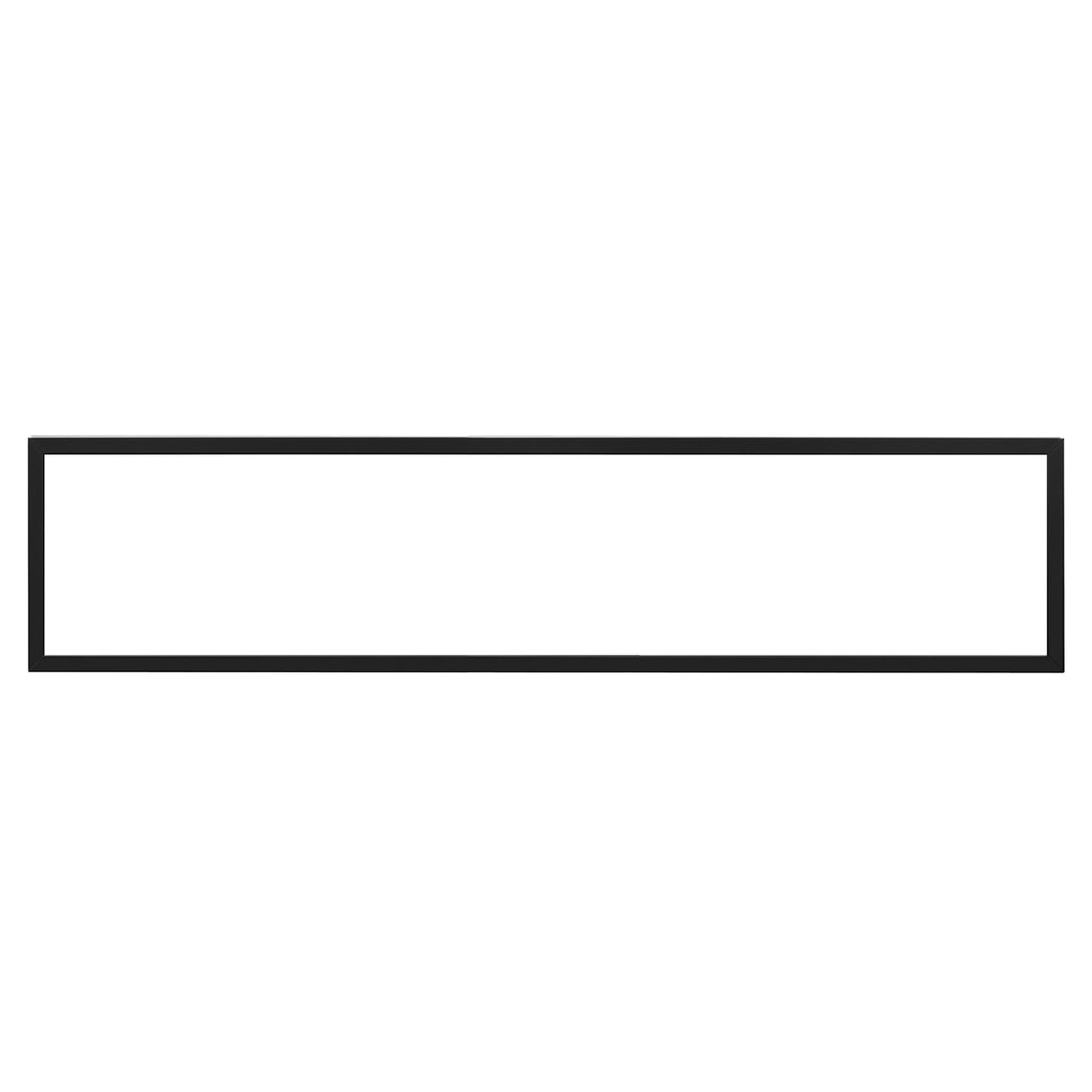

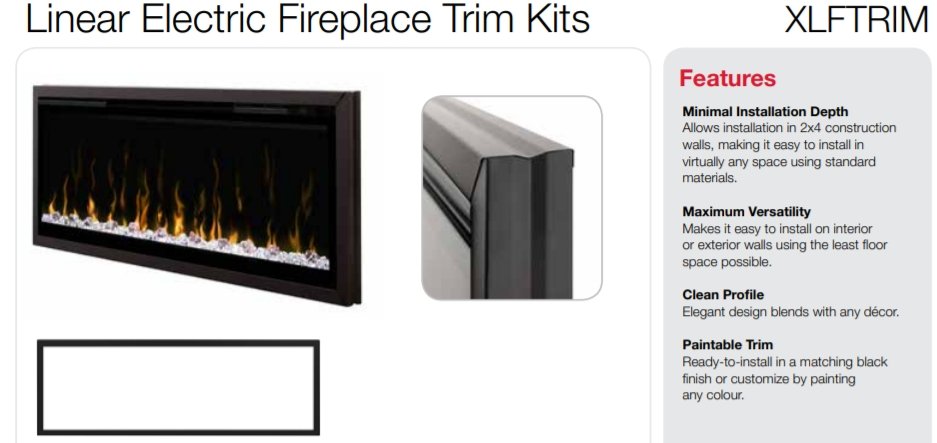

- Optional: XLFTRIM74 trim kit for 2x4 walls, LF74DWS-KIT driftwood and river rock kit and thin split logs, selectable on this listing
- Optional media and logs: Dimplex ember bed media, TMBGL tumbled glass and Dimplex faux wood log sets
Installation Notes

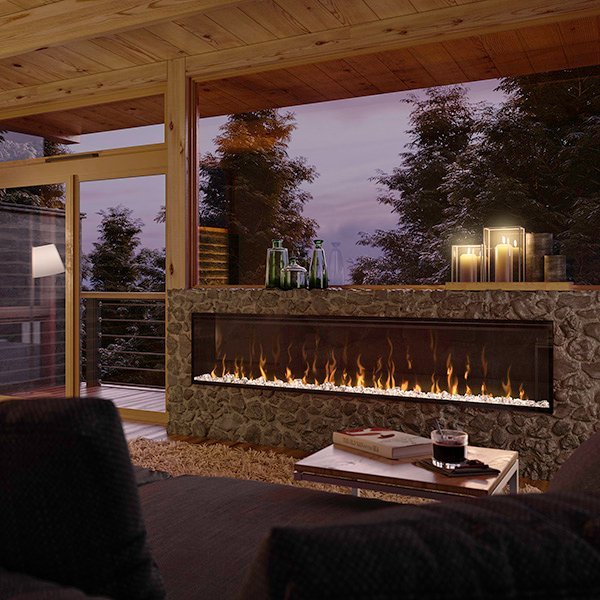

Frame the opening at 74-5/8 in W, with the bottom sill at least 3-1/2 in deep. The power cord is for 120V installations only and extension cords must not be used. For covered outdoor use Dimplex requires a location sheltered by an overhang with height no more than 3 times its projection, and recommends a ground-fault protected circuit. This is an electric unit with no gas line, vent or chimney, which makes it a practical choice for New York City apartments, condos and townhouses where gas or vented fireplaces are not an option. Hardwiring or any new circuit should be done by a licensed electrician to local code. Book a free design consultation and we will help you plan the layout, utilities and installation.
Warranty
Dimplex provides a 5-year limited warranty for indoor installations and a 1-year limited warranty for outdoor installations, with parts and in-home service for the original purchaser. The XLFTRIM74 trim kit carries a 1-year warranty.
Documentation
- Owner's Manual
- Spec Sheet
- Dimplex current IgniteXL Installation and User's Guide (outdoor-rated revision)
Frequently Asked Questions
Can the XLF74 be used outdoors?
Yes, on a covered patio or terrace. Dimplex requires an overhang shelter with overhang height no more than 3 times its projection to keep warranty coverage.
Can it go in a 2x4 wall?
Yes. It recesses fully in a 2x6 wall, and the optional XLFTRIM74 trim kit is recommended for 2x4 framing.
Does it heat a room?
It has a 1,500 W heater at 120V or 2,500 W at 240V, and Dimplex says it warms up to 1,000 sq ft. You can also run the flames with no heat.
Is the plug cord included?
The Dimplex guide lists a power cord in the package contents for 120V installs. Use hardwiring for 240V.
