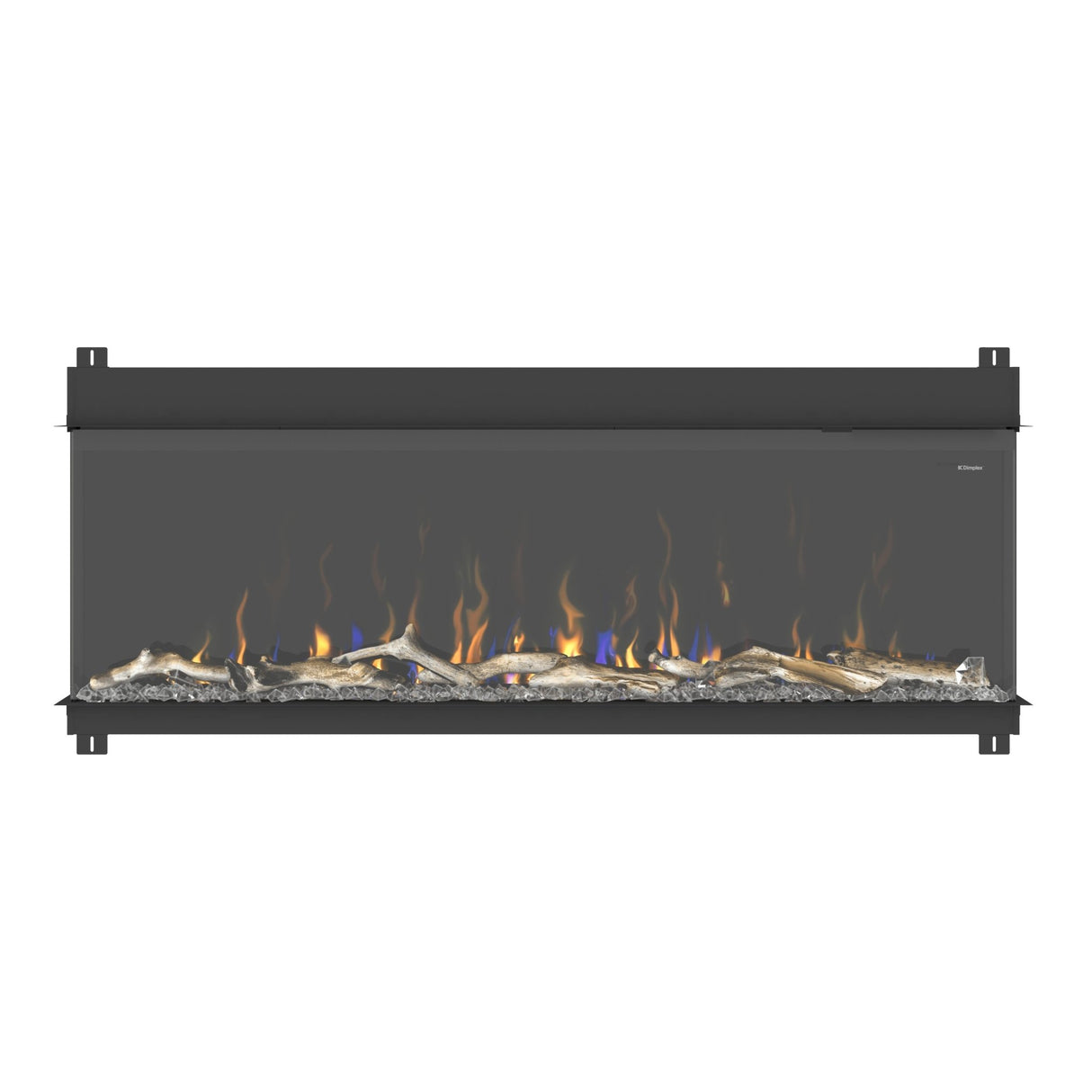

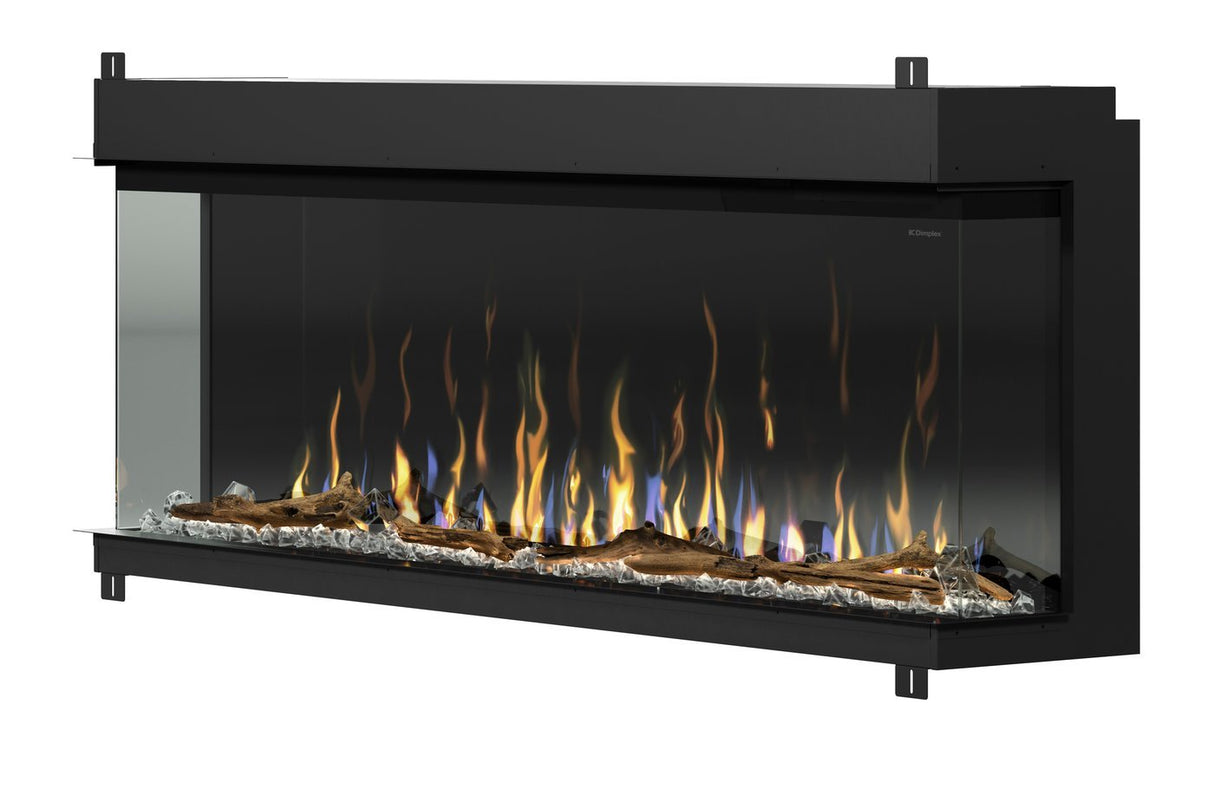

Dimplex IgniteXL Bold 60-Inch Linear Indoor/Outdoor Electric Fireplace - XLF6017-XD
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Dimplex IgniteXL Bold 60-Inch Linear Indoor/Outdoor Electric Fireplace - XLF6017-XD - Hardwire (designed to be direct-wired to 120V/240V) / None / None is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Dimplex IgniteXL Bold 60-Inch Linear Indoor/Outdoor Electric Fireplace - XLF6017-XD - Hardwire (designed to be direct-wired to 120V/240V) / None / None is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 63-1/8" W x 12-1/8" D x 23-7/8" H
The Dimplex IgniteXL Bold 60 is a 60-inch built-in linear electric fireplace with a multi-layered flame that creates real depth and a 16-inch-tall viewing area. It installs front-facing, as a left or right corner unit, or as a bay, and Dimplex offers a linking bracket to join several units into one long feature. It suits owners who want a statement fireplace without a vent or gas line, indoors or under a covered outdoor roof.
Key Specifications
| Model | XLF6017-XD |
| Fuel / Power | Electric, 120V or 240V |
| 120V Rating | 1,500 W, 5,000 BTU, 12.5 A (BTU as printed on the Dimplex sheet) |
| 240V Rating | 2,500 W, 8,530 BTU, 10.4 A |
| Heating System | Concealed Comfort$aver ceramic heater, warms up to 1,000 sq. ft. |
| Flame Effect | Multi-Fire XD, multi-layered color with five presets |
| Viewing Area | 61-1/2" W x 16-1/4" H x 5-1/2" D |
| Venting | None required |
| Listing | UL (File E71416 per Dimplex manual) |
| Weight | 146.82 lb (per current listing) |
Dimensions and Cutout
| Overall Width | 63-1/8" (160.4 cm) |
| Overall Height | 23-7/8" (60.7 cm) |
| Overall Depth | 12-1/8" (30.5 cm) |
| Framing Opening | 62-1/4" W x 24-1/4" H x 11-5/8" D minimum |

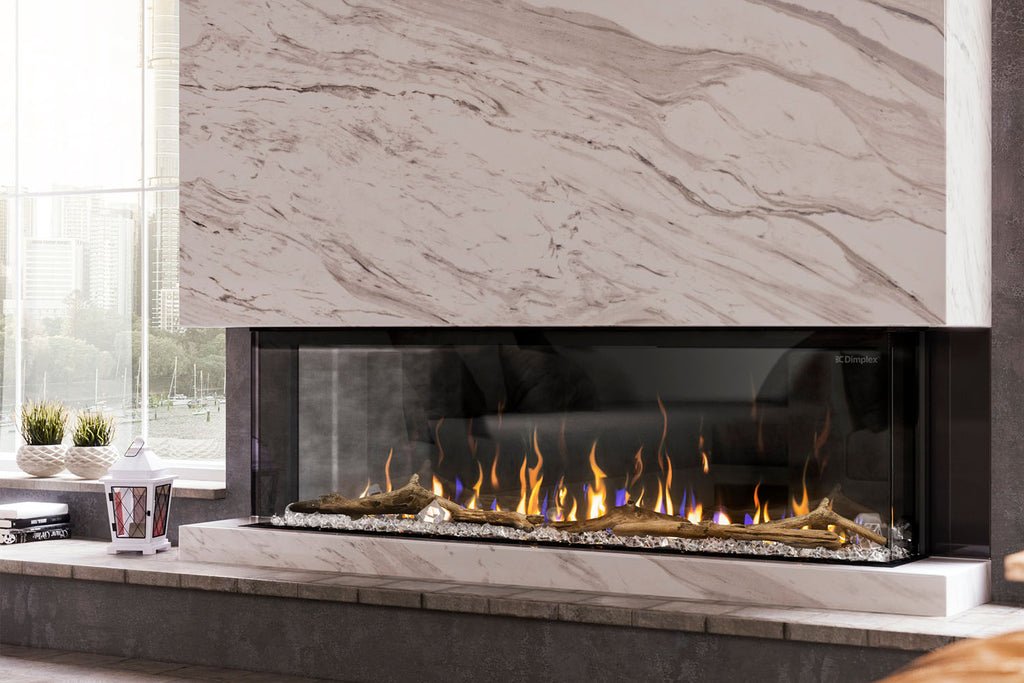

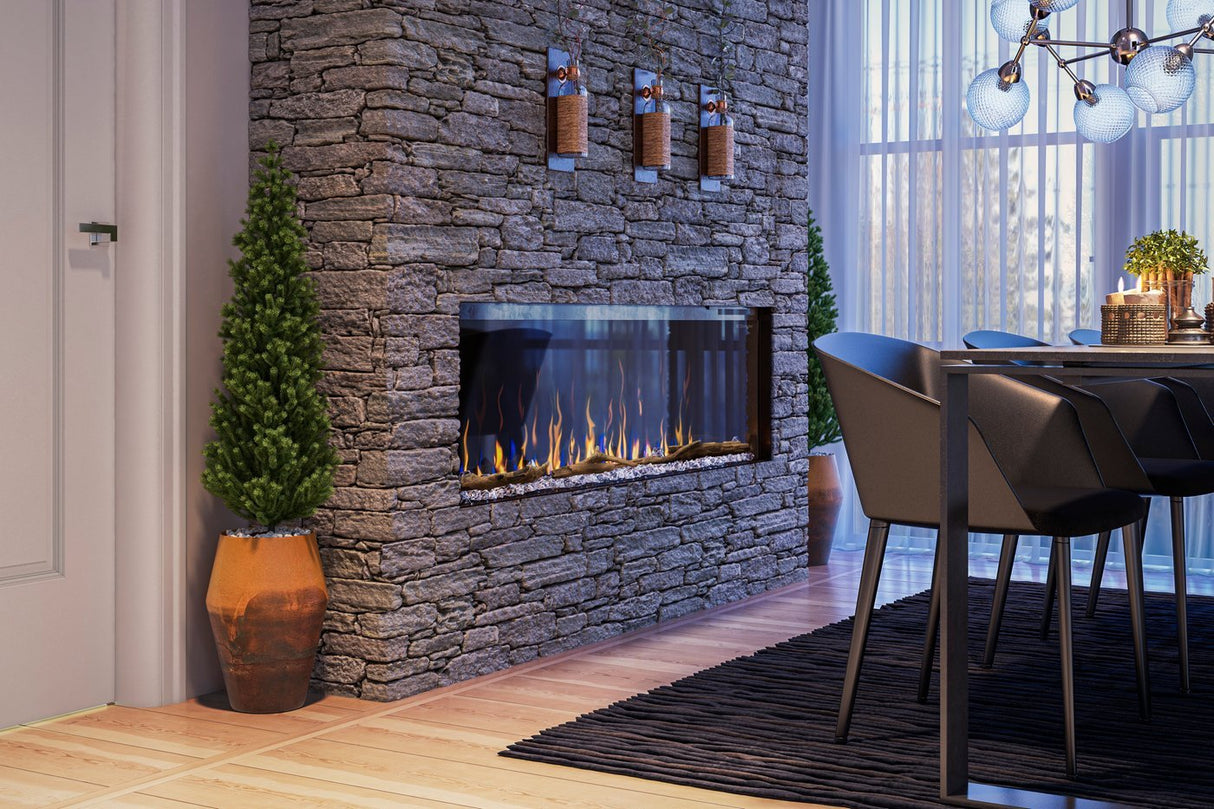

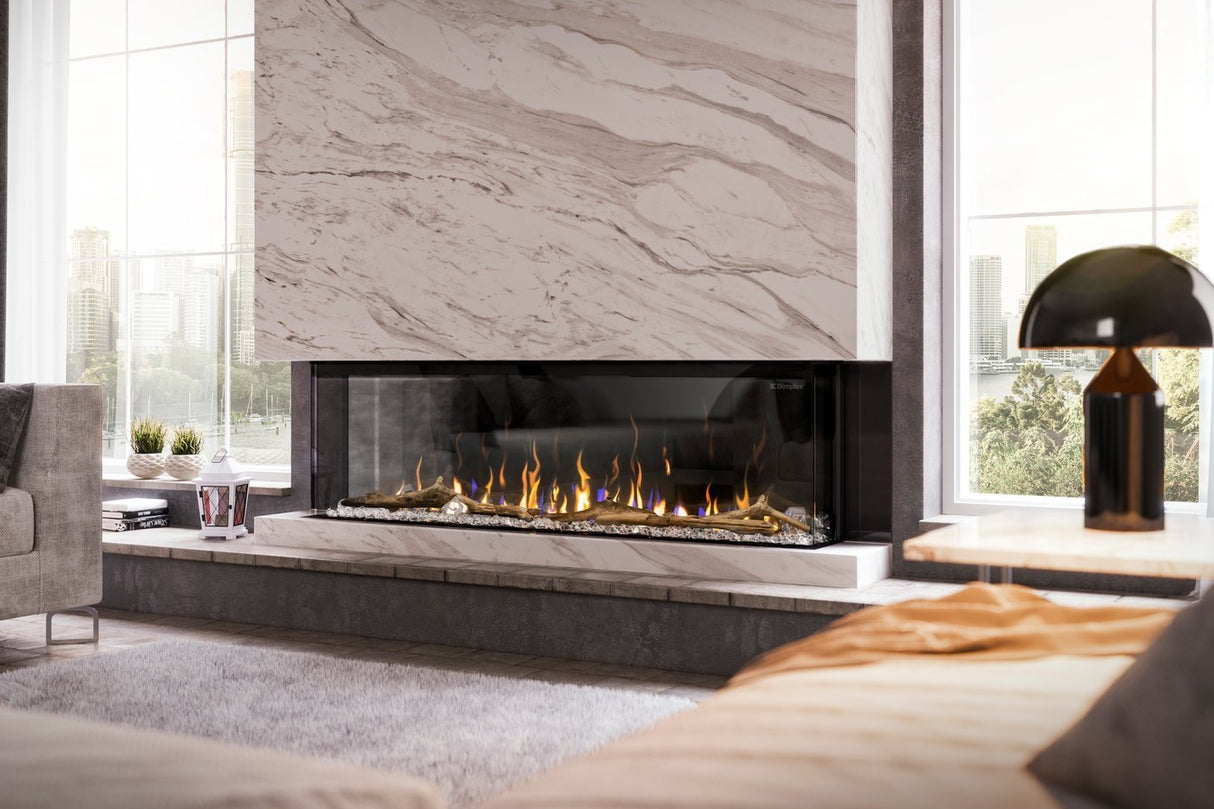

| Installation Types | Front, left corner, right corner and bay; framing is the same for each |
| Mounting Height | Bottom of the unit 20" to 40" above the floor for the best flame view |
| Ceiling Clearance | 24" minimum above the top of the unit per the Dimplex manual |
Features
- Multi-Fire XD flame with color settings you can run independently or combine in five presets
- Media accent color and top light with preset colors and a Prism mode
- Modern media bed with small and large acrylic crystals and natural-looking driftwood
- Eco and Heat Boost modes, plus air circulation mode and an 8-hour timer
- Ambient light sensor that adjusts firebox light to the room
- Hidden touch controls, Mood-maker remote and smart self-diagnostics
- Heater can be turned off for flame-only use in warm months
What Is Included and What You Will Need
- Included: firebox, front, mirrored and side glass, open and closed side trims, acrylic crystals and driftwood pieces, remote control, suction cup and mounting hardware with bubble level
- Required: a dedicated, properly fused 15 A circuit at 120V or 240V, wired at the top right back corner of the firebox
- Optional: the XLFXDPLUG plug kit (120V only) and XLFXDLINK linking bracket are Dimplex accessories sold separately
- Media options on this page include driftwood, river rock and black rock sets; the faux wood split log set is also sold separately
Installation Notes
No vent or gas line is required. Frame the opening at 62-1/4" W x 24-1/4" H with at least 11-5/8" of depth, route power to the top right back corner, and keep the framing from bearing on the unit because it is not load-bearing. Do not use an extension cord, and have a licensed electrician handle new circuits. For outdoor use Dimplex requires a location sheltered by an overhang. For help planning framing, power or a multi-unit layout, book a consultation with our design team.
Documentation
Frequently Asked Questions
Can I install it in a corner or bay?
Yes. Remove the side panels to suit a front, left corner, right corner or bay installation, and the framing dimensions stay the same.
Can I link more than one unit?
Dimplex offers the XLFXDLINK bracket for modular installations, so several units can form one longer fireplace.
Is it rated for outdoor use?
Yes, for covered areas. The Dimplex manual requires an overhang shelter and a height-to-projection ratio of 3 or less to keep warranty coverage.
Does it need a plug or hardwiring?
It is designed to be hardwired to 120V or 240V. A 120V plug kit is available separately from Dimplex.
Related reading: Electric Fireplace Buying Guide and Do Electric Fireplaces Heat a Room?
Warranty
Dimplex provides a 5-year limited warranty for indoor installations, including parts and in-home service, and a 1-year limited warranty for outdoor installations. Trims and accessory packages are excluded.
