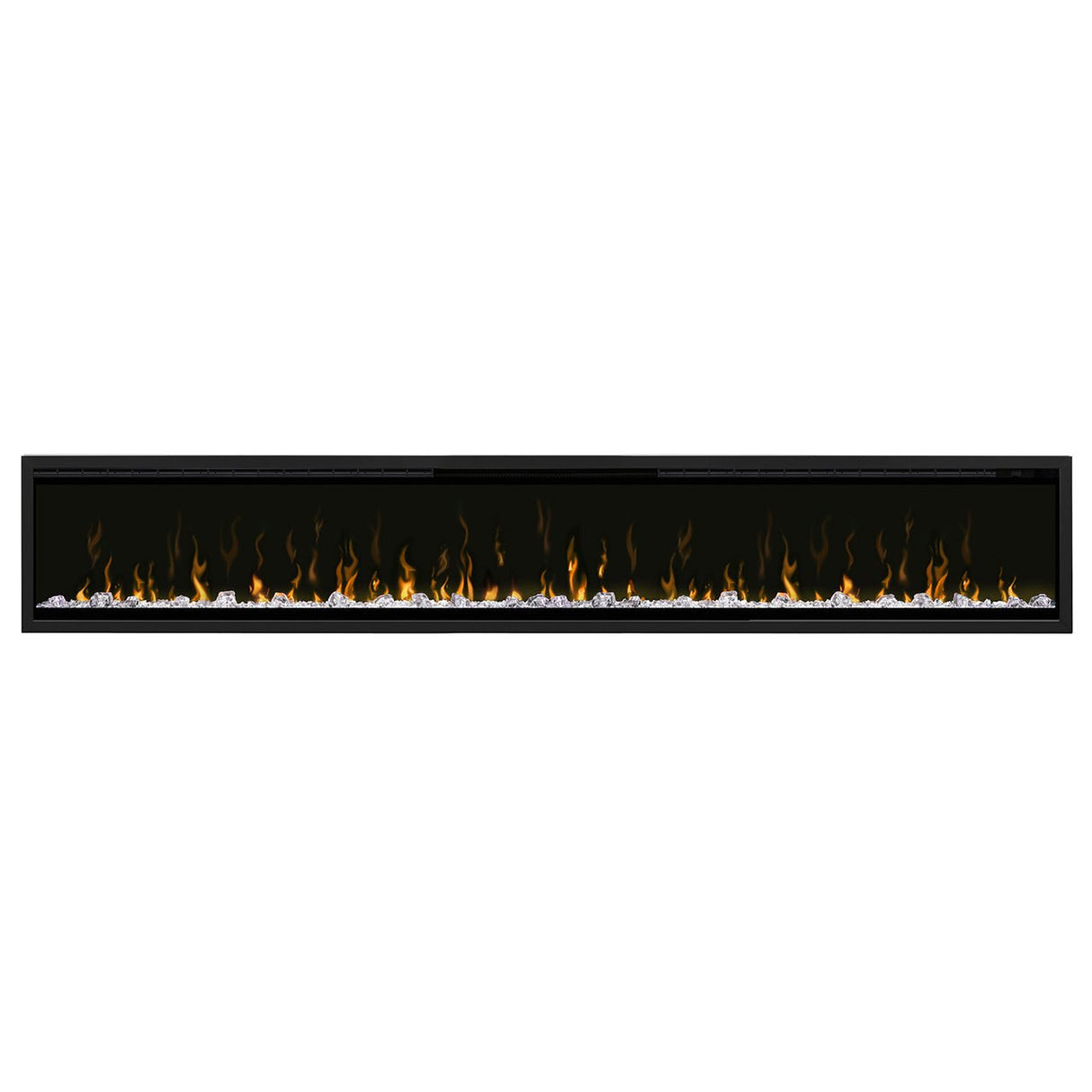

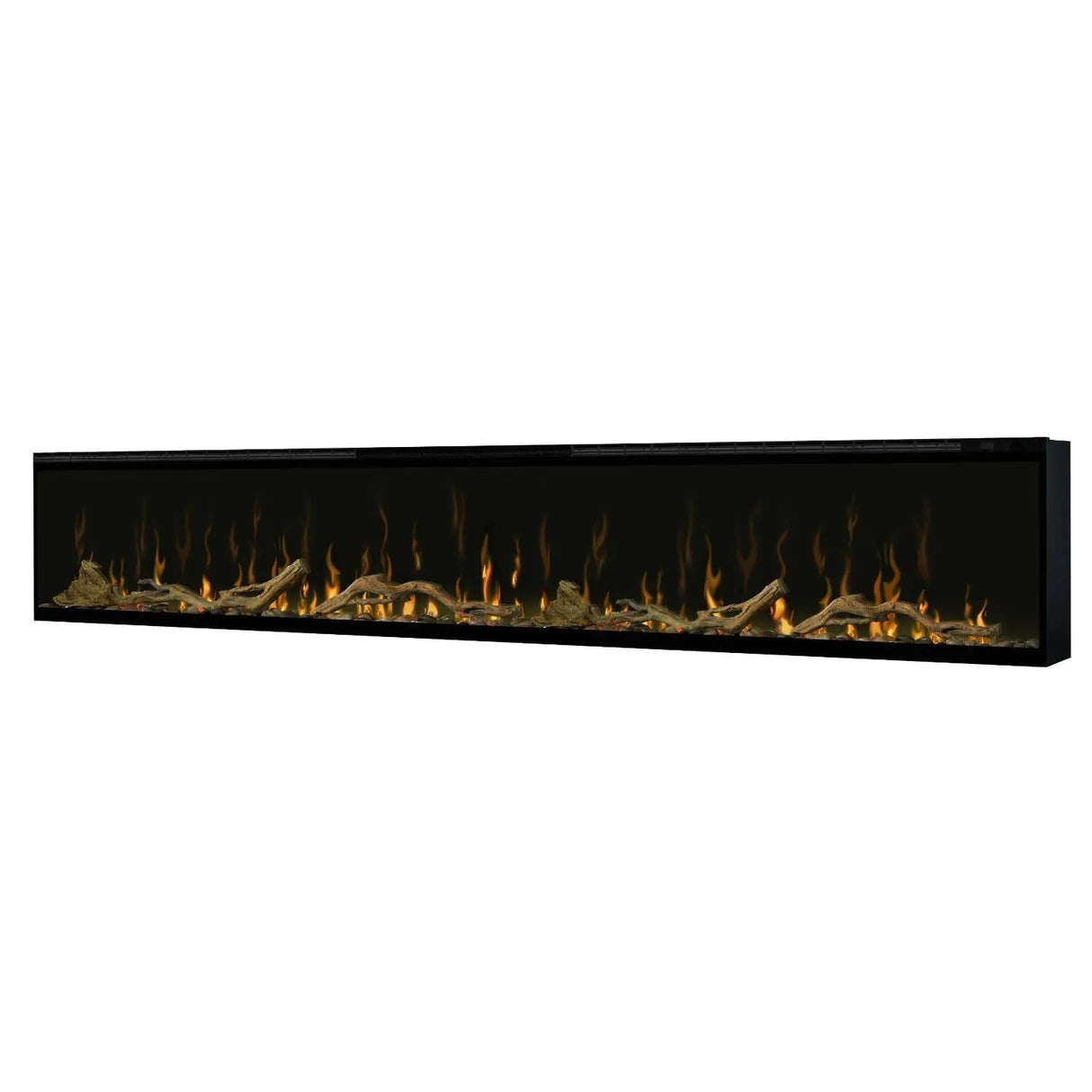

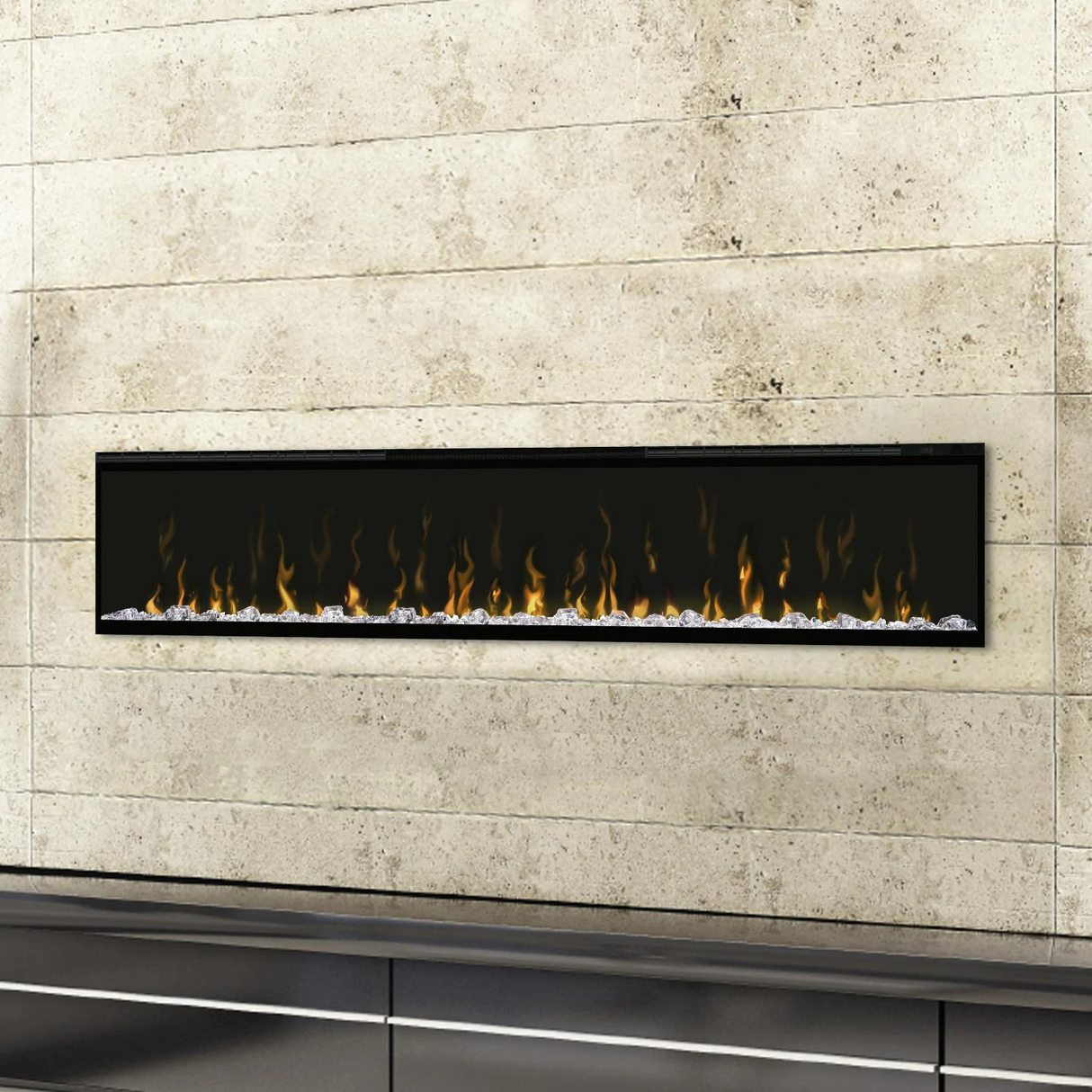

Dimplex IgniteXL 100-Inch Linear Indoor/Outdoor Built-In Electric Fireplace - XLF100

Overall Dimensions: 100-1/4" W x 5-7/8" D x 15-5/8" H

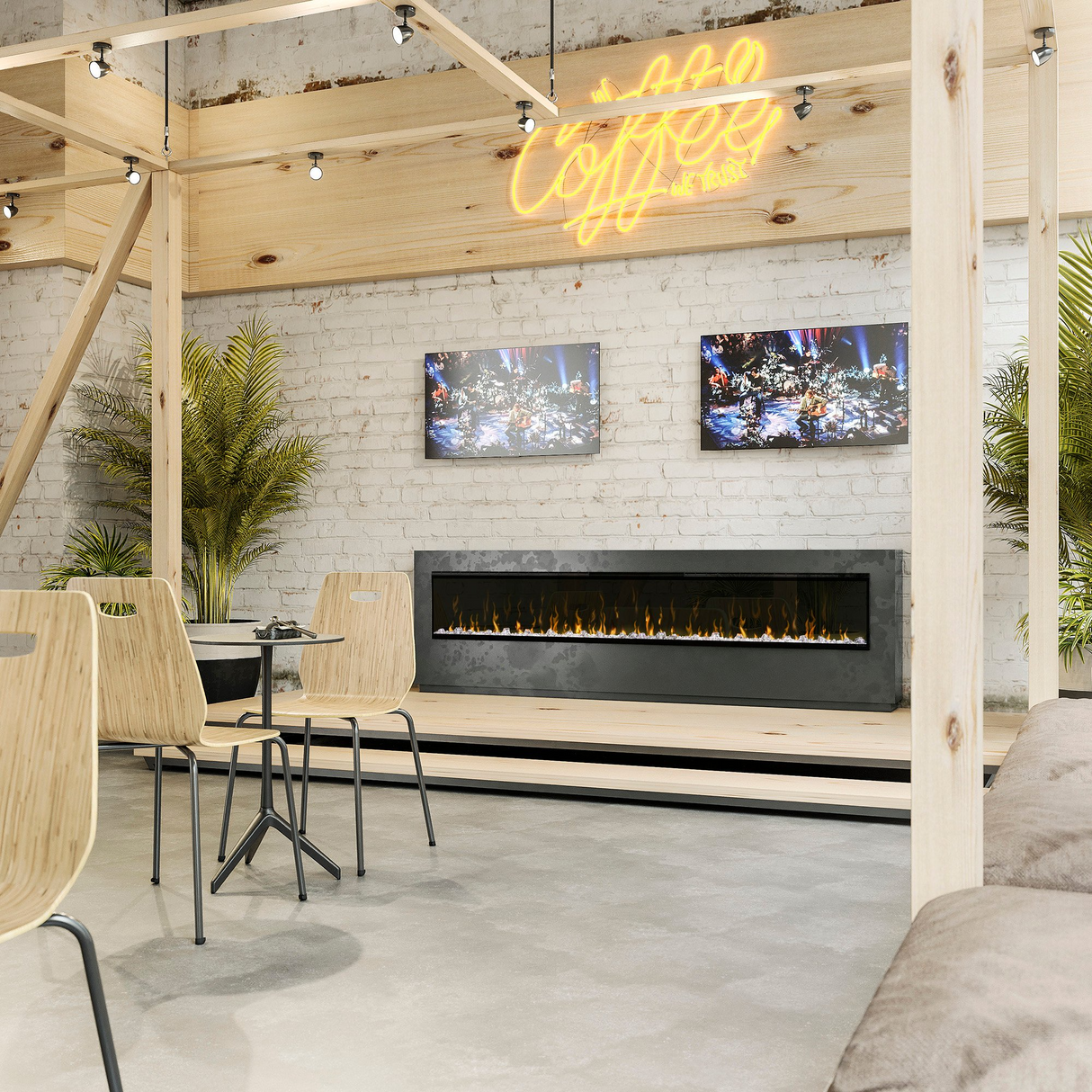

The Dimplex IgniteXL 100 is a 100-inch built-in linear electric fireplace that gives you a panoramic flame over 8 feet wide in a unit only 5-7/8 inches deep. It suits condos, high-rises and any wall without a gas line or chimney, and Dimplex certifies the IgniteXL line for covered outdoor use too. The Multi-Fire XD flame, media accent colors and Comfort$aver ceramic heater make it a feature wall and a supplemental heat source in one.

Key Specifications

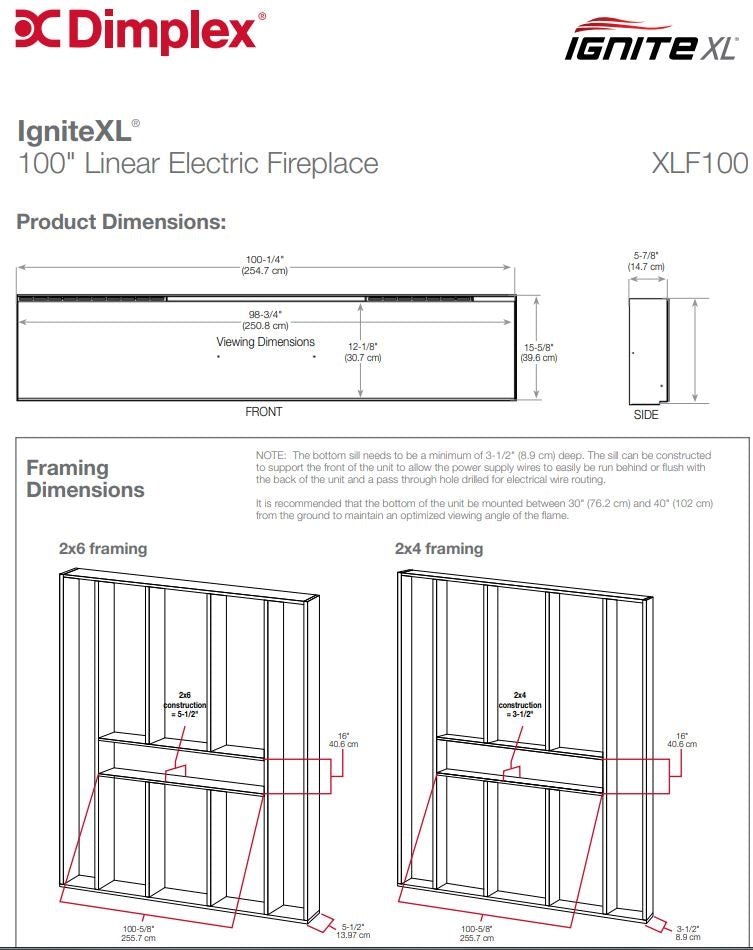

Dimensions and Cutout

Features

• Multi-Fire XD flame with a clean front face and minimal trim, so the flames are the focal point
• Media accent colors with color themes and a custom mode that freezes on the hue you choose
• Comfort$aver ceramic heating system, which Dimplex states uses 11% less energy
• Hidden built-in touch controls plus a Mood-maker remote
• Edgeless design installs without trim against stone, brick and other solid finishes; trim for drywall and tile is included
• Cool-touch glass, and the flames run with or without heat

What Is Included and What You Will Need

• Included: fireplace with installed trim, front and mirrored glass, acrylic ember crystals, Mood-maker remote, 120V plug-in cord, mounting screws, bubble level and wire connectors
• Required: a dedicated, properly fused 15 A circuit at 120V or 240V; for 240V the unit is hardwired by a licensed electrician

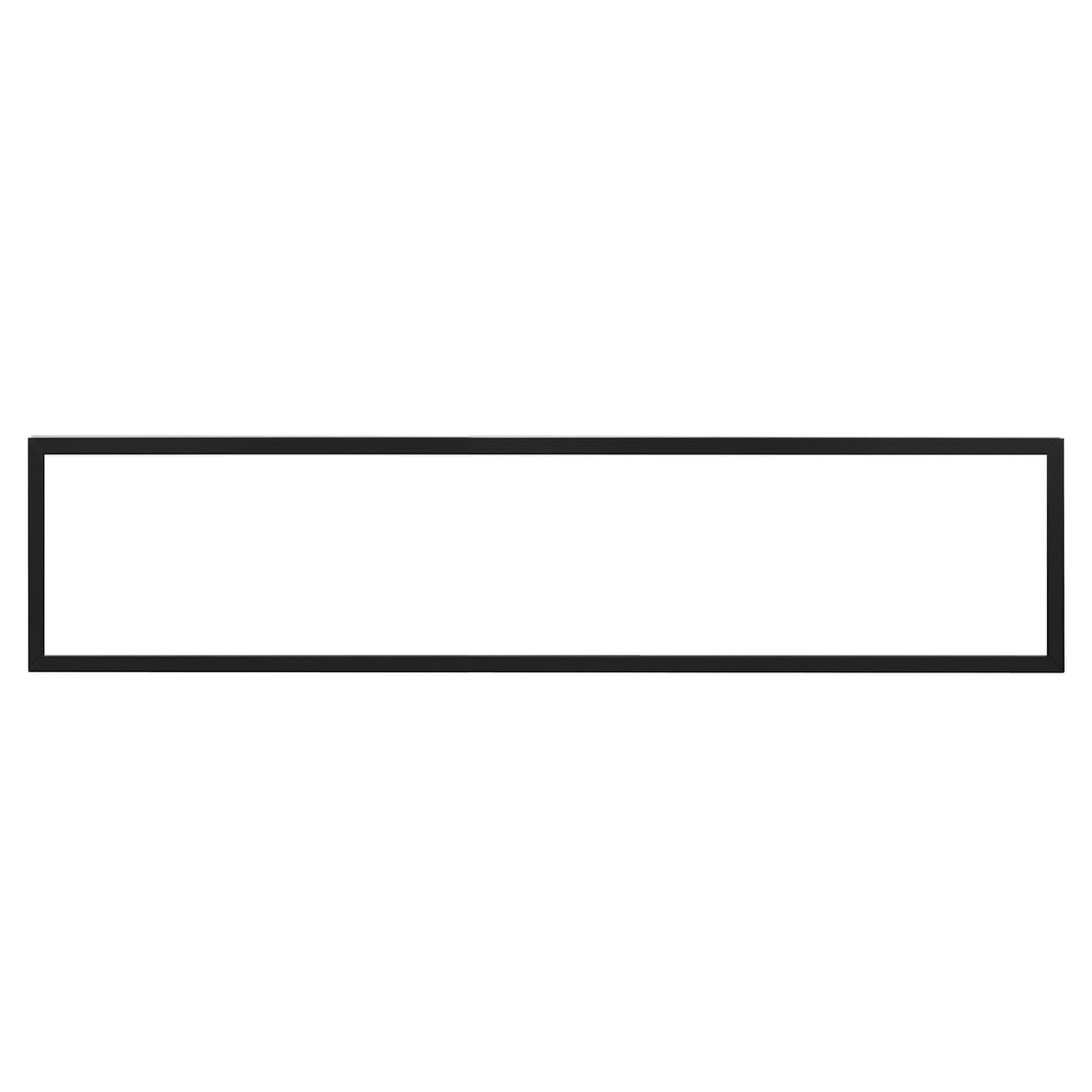

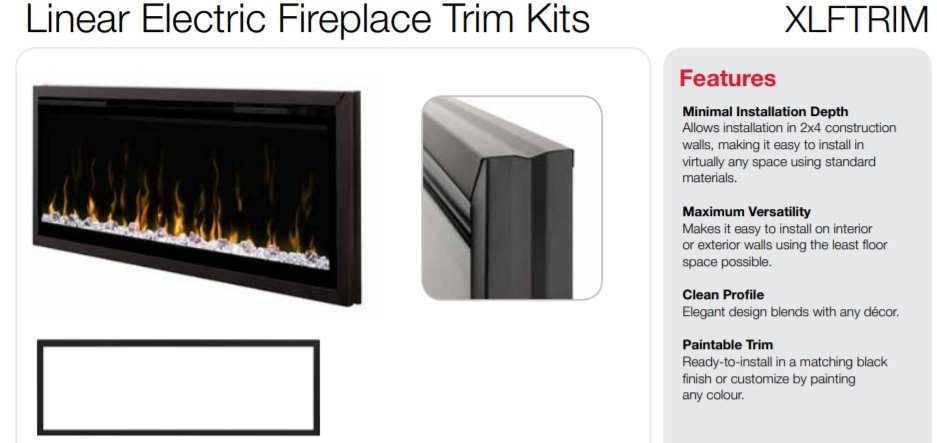

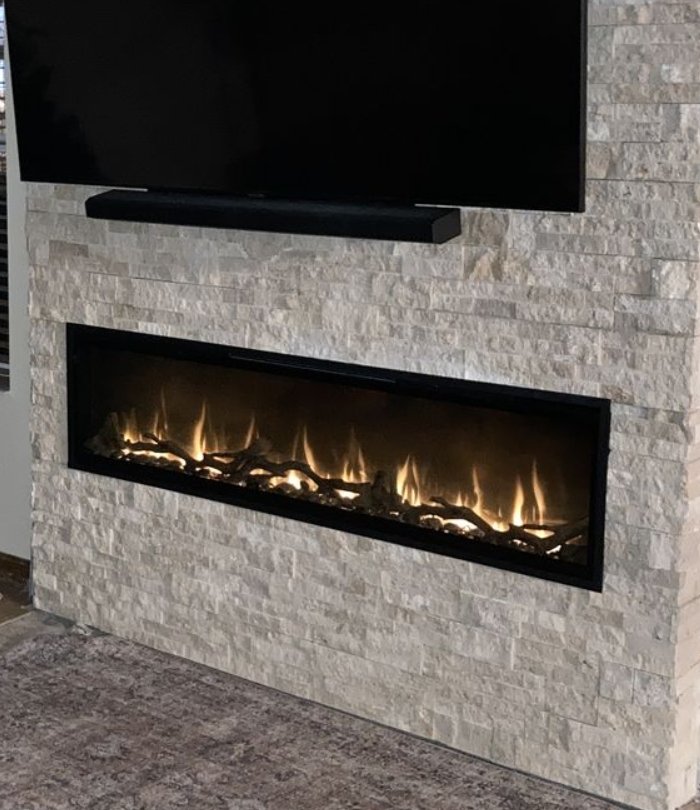

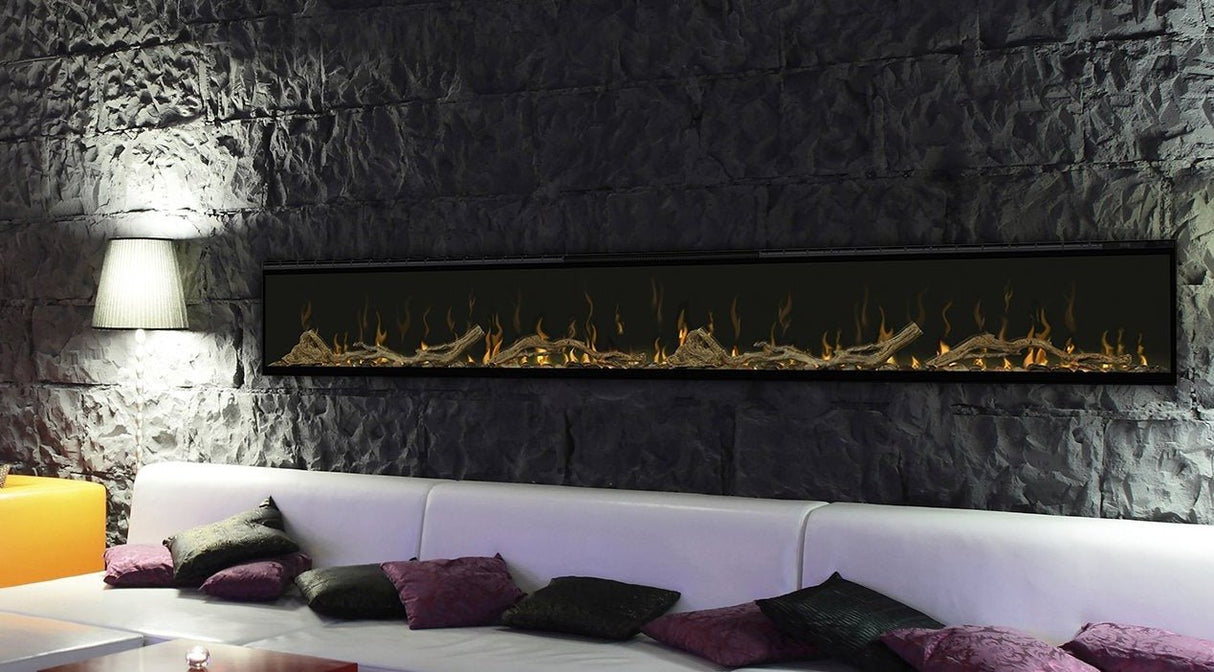

• Optional add-ons on this page: XLFTRIM100 trim kit for 2x4 walls and the LF100DWS-KIT driftwood and river rock package
• Optional media: ember bed media, tumbled glass ember bed and faux wood split log set

Installation Notes

No vent, chimney or gas line is needed. Wire it to 120V or 240V, or use the supplied plug-in cord at 120V, and do not use an extension cord. Frame the opening at 100-5/8" W x 16" H, keep the top at least 24 inches from the ceiling per the current manual, mount the bottom 30 to 40 inches above the floor for the best flame viewing angle, and have a licensed electrician handle any new circuit. For outdoor use Dimplex requires a sheltered location under an overhang and recommends a ground-fault protected circuit. If you want help with framing, electrical or placement, book a consultation with our design team.

Documentation

• Owner's Manual
• Spec Sheet
• Dimplex current IgniteXL Installation and User's Guide (outdoor-rated revision)

Frequently Asked Questions

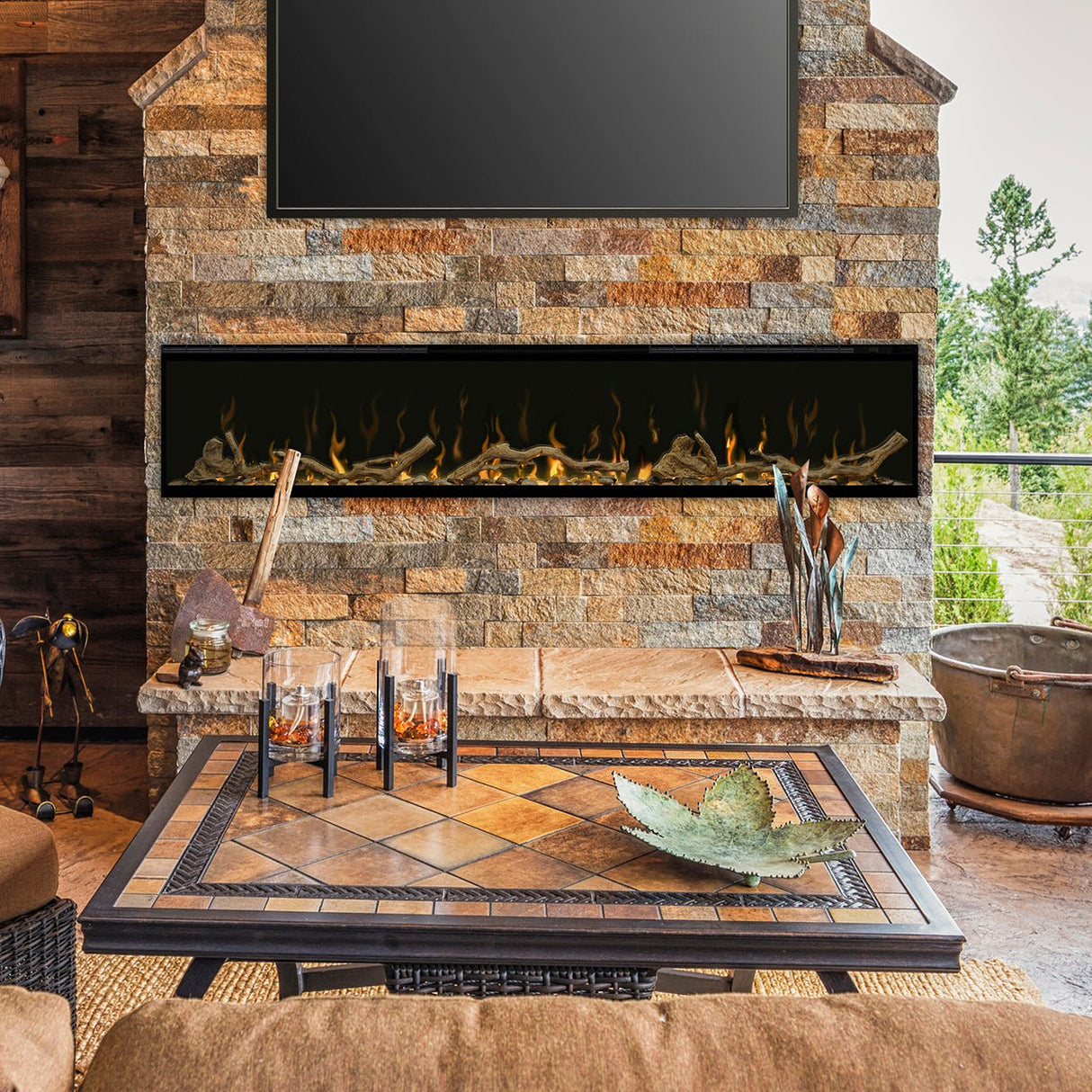

Can the XLF100 be used outdoors?

Yes, on a covered patio or terrace. Dimplex requires a location sheltered by an overhang, with the overhang height no more than 3 times its projection to keep warranty coverage.

Can it go in a 2x4 wall?

Yes. The unit recesses fully in a 2x6 wall, and the optional XLFTRIM100 trim kit allows installation in 2x4 wall construction.

Does it heat a room?

It has a Comfort$aver ceramic heater rated 1,500 W at 120V or 2,500 W at 240V, and Dimplex says it warms up to 1,000 sq. ft. You can also run the flames with no heat.

Related reading: Electric Fireplace Buying Guide and Do Electric Fireplaces Heat a Room?

Warranty

Dimplex backs the IgniteXL with a 5-year limited warranty for indoor installations, including parts and in-home service, and a 1-year limited warranty for outdoor installations. The trim kit carries a 1-year warranty.
