Description

Overall Dimensions: 23.5 x 23.3 x 5.5 in (W x D x H), per the Dometic manual

The Dometic DrawBar5C is a compressor-cooled wine drawer that holds five bottles in a 5.5 in tall drawer built into kitchen cabinetry, with a factory glass front with handle. It chills wine to one of five preset serving temperatures from 41 to 63 F and lights the bottles with a soft LED when the drawer opens, a compact way to keep a few bottles at serving temperature in a kitchen island or bar without giving up a full-height cabinet.

Features

  • Holds 5 bottles of any length up to 3.8 in (96 mm) in diameter, including Champagne
  • Factory clear glass front with handle
  • Compressor cooling to as much as 17 C (31 F) below ambient
  • Five preset temperatures: 41, 46, 52, 57 and 63 F (Dometic manual)
  • Humidity tray and interior LED light
  • Installs in a cabinet or niche 22 to 23 in wide
  • UL certified, R600a refrigerant

Key Specifications

Model / SKU Dometic DrawBar5C, 9620000536
Type Built-in wine cooling drawer, compressor
Front Clear glass panel with handle
Capacity 5 bottles; 15 L total volume; 22.05 lb max load
Temperature presets 41, 46, 52, 57 and 63 F
Electrical 110 to 120 V, 60 Hz, 84 W rated input
Noise 45 dB(A)
Refrigerant R600a, 10 g
Weight 39.46 lb (Dometic manual)
Use Indoor, in enclosed buildings (Dometic manual)

Dimensions and Cutout

Drawer (W x D x H) 23.5 x 23.3 x 5.5 in
Installation space 22 to 23 in wide, at least 21.7 in deep and 5.6 in high (Dometic figures)
Ventilation prep Two 2.4 x 7 in cutouts in the left and right rear corners of the shelf, with the supplied baffle sponges between the fan and cabinet back (manual)

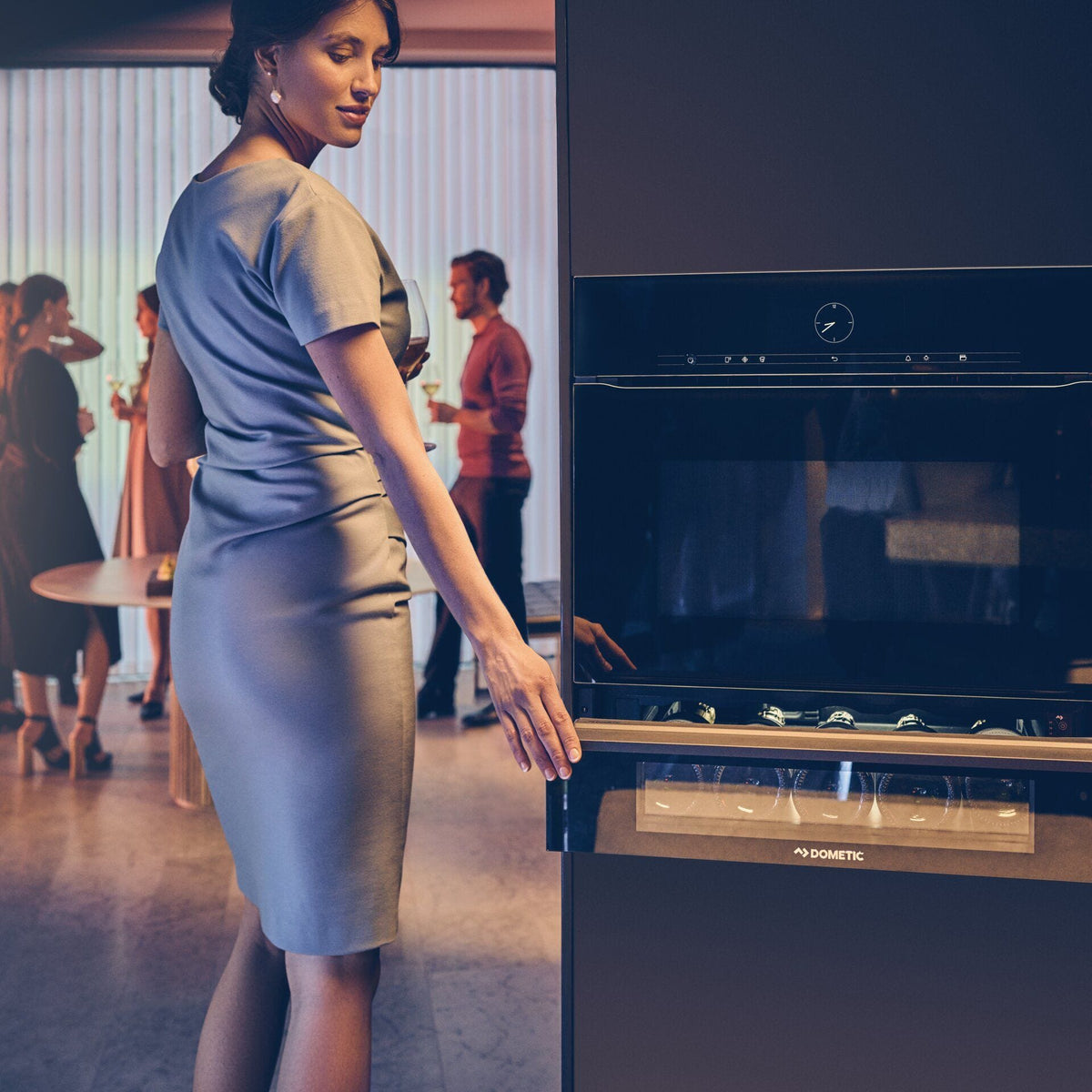

Dometic DrawBar 5C wine drawer installed in a kitchen

Dometic DrawBar 5C touch control panel with temperature presets

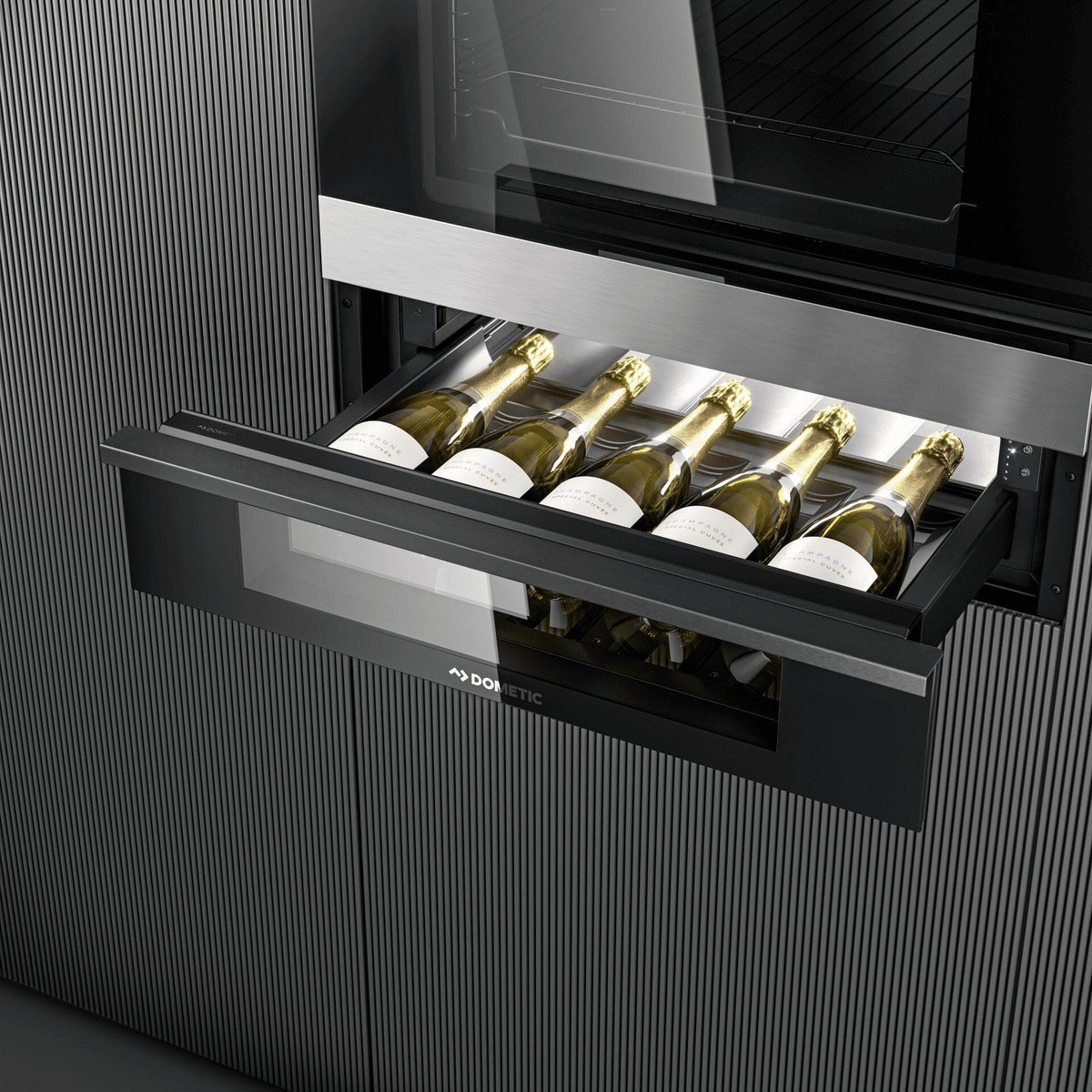

Dometic DrawBar 5C drawer open with five wine bottles

Dometic DrawBar 5C humidity tray being filled

Wine bottles resting in the Dometic DrawBar 5C

What Is Included and What You Will Need

  • Dometic DrawBar5C wine drawer with glass front and handle
  • Mounting plates, spacers, screws and baffle sponges; 2 manuals
  • You will need: a cabinet or niche to the installation dimensions, a grounded 110 to 120 V outlet within reach of the supply cord

Installation Notes

Prepare the cabinet with the two rear-corner ventilation cutouts and fit the baffle sponges, attach the mounting plates with the supplied spacers, plug in the cord, then secure the housing to the cabinet walls and set the drawer back on its rails. Dometic recommends a location with an ambient temperature of 80 F or less so the drawer can reach its lowest setting.

The DrawBar is designed for use inside enclosed buildings, so it is not an outdoor kitchen appliance.

Planning a bar or kitchen island? Book a design consultation.

Documentation

Frequently Asked Questions

Can it be installed outdoors?

No. Dometic designs the DrawBar for operation in enclosed buildings.

What size cabinet opening does it need?

An installation space 22 to 23 in wide, at least 21.7 in deep and 5.6 in high.

Which temperatures can I choose?

Five presets: 41, 46, 52, 57 and 63 F.

Is a front panel included?

Yes. The 5C ships with a glass front and handle.

Related reading: Outdoor refrigerator and ice maker buying guide.

Warranty

Dometic warrants the DrawBar to the original purchaser in the continental United States and Canada under its MoBar, DrawBar and Wine Coolers limited warranty: one year parts, labor and freight; parts only in year two; and three years on the sealed system (parts, labor and freight in year one, parts only in years two and three). Use beyond normal residential use, such as catering or bed and breakfast settings, is covered for 60 days. The product must be installed per Dometic instructions and the dated purchase receipt is required. See the warranty document for full terms.
