Fire Garden  |  SKU: 94900460

Fire Garden 96" Linear Gas Firepit Burner

$5,916.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Fire Garden dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Overall Dimensions: 96" L x 12" W x 10-1/4" H (burner pan; 97-1/2" x 13-1/2" flange)

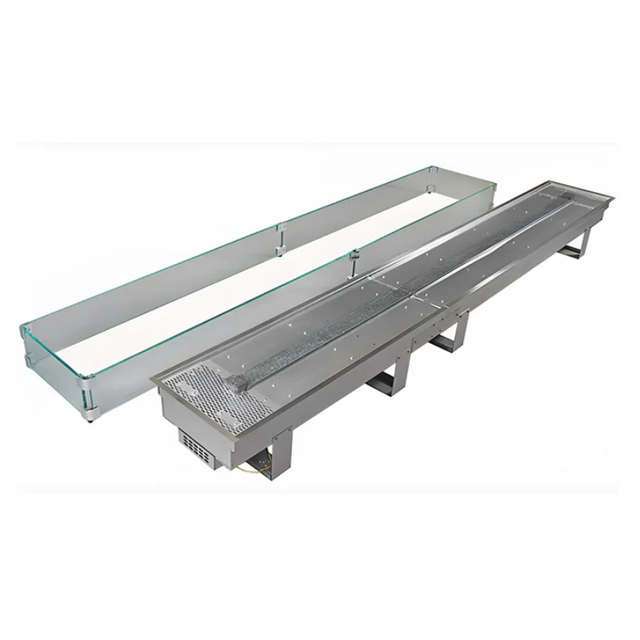

The Fire Garden 96 inch Linear Fire Pit Burner is a drop-in gas burner system for building an eight foot custom fire pit or fire table in stone, block or concrete. At 185,000 BTU it delivers a long, tall flame line that reads from across a large patio, and it comes with its own glass wind guard, switch and key valve, so the mason only has to build a non-combustible enclosure to the manual's framing size. Fire Garden is made by Travis Industries.

Key Specifications

Model Fire Garden 96" Linear Fire Pit Burner, SKU 94900460
Fuel Natural gas (factory) or propane with included LP conversion kit
Input 185,000 BTU/h (NG or LP)
Ignition 24VAC electronic ignition, wall switch operated
Electrical 24 VAC, 60 Hz, 1.6 A via 24V transformer (sold separately)
Gas pressure NG 7" WC manifold, 6" to 7" WC inlet; LP 11" WC manifold, 10" to 11" WC inlet
Construction Stainless steel burner pan with 3/4" flange; 3/8" tempered glass wind guard
Venting None (outdoor appliance); enclosure must be ventilated
Certification ANSI Z21.97-2017 / CSA 2.41-2017, CSA 2.17-2017 (Omni-Test Laboratories)
Weight 80 lbs

Dimensions and Cutout

Burner pan 96" L x 12" W x 10-1/4" H
Top flange 97-1/2" x 13-1/2"
Glass wind guard 99-1/2" x 15-5/8" footprint, 6-1/2" tall glass
Minimum framing opening 96-1/4" x 12-1/4", 10-7/8" minimum depth, non-combustible framing required
Landscape block opening Standard install 96-1/4" x 12-1/4"; recessed install 97-3/4" x 13-3/4"
Clearances 24" minimum on all sides to combustibles; 75" from top of burner to any ceiling
Enclosure ventilation At least 2 vents on opposite sides, each 9 sq in free area minimum, within 24" of the burner and low on the enclosure

Features

  • 185,000 BTU across a 96 inch burner for a continuous eight foot flame line.
  • Stainless steel burner and pan built for year-round outdoor installation.
  • 3/8 inch tempered glass wind guard (four side panels and two ends) with chrome hardware to keep the flame steady.
  • Switch operated electronic ignition with an automatic gas shut-off valve.
  • Ships in two halves for easier handling and assembles on site.
  • Standard or recessed installation in framed or landscape block enclosures.
  • Self-draining design; use crushed glass or tumbled stone media, with removable media trays for service.

What Is Included and What You Will Need

  • Included: 34 inch 1 inch gas flex line and adapter, glass wind guard with brackets (4 sides and 2 ends), LP conversion kit, wall switch and cover, gas key valve with chrome flange and 3 inch and 18 inch keys, (2) enclosure vents.
  • Required: 24V Multiple Appliance Transformer, Fire Garden SKU 94800830. Fire Garden states the single appliance transformer (94800833) is not compatible with the 96 inch burner.
  • Required: burner media. Fire Garden calls for 35 lbs of crushed glass (4 boxes) or 80 lbs small plus 40 lbs large tumbled stone; options are selectable above. Do not use lava rock or other porous media.
  • You will need: switched 110V GFCI protected circuit to the transformer, low voltage and line voltage wiring, gas piping, a weatherproof box if the switch is mounted outdoors, and a non-combustible enclosure with finish surface wide enough to seat the wind guard.

Installation Notes

For outdoor installation on a fixed gas line, by a qualified installer. The burner must sit level on a surface that can carry its weight, inside non-combustible framing sized per the manual, and the enclosure must have at least two vents on opposite sides drawing outdoor air. Keep 24 inches clear of combustibles on every side and at least 75 inches from the top of the burner to any ceiling, away from overhanging trees and foot traffic. In New York City, gas piping must be installed by a licensed plumber and fire features on terraces and rooftops may need additional review. We build custom fire pits in NYC and Long Island; book a design consultation to plan the enclosure, gas run and finish.

Documentation

Frequently Asked Questions

What size enclosure do I build for the 96 inch burner?

Frame a non-combustible opening of at least 96-1/4" x 12-1/4" with 10-7/8" minimum depth, or 97-3/4" x 13-3/4" for a recessed landscape block install. The top surface must be wide enough to seat the 99-1/2" x 15-5/8" wind guard.

Which transformer works with this burner?

Only the 24V Multiple Appliance Transformer (94800830). Fire Garden lists the single appliance transformer (94800833) as not compatible with the 72, 96 and 120 inch burners.

How much media do I need?

Four 10 lb boxes of crushed glass, or eight boxes of small and two boxes of large tumbled stone.

Can I put it under a pergola or roof?

Only if there are at least 75 inches from the top of the burner to the ceiling and the space meets the manual's outdoor area definition.

Related reading: Gas Fire Pit Buying Guide and Outdoor Kitchen Planning Guide.

Warranty

Backed by the Travis Industries Limited 7 Year Warranty for residential installations: 7 years on the burner assembly and 2 years on the gas control and electrical assemblies. Finish and media are covered for 90 days only and exclude normal weathering, discoloration or corrosion. Register at traviswarranty.com; a qualified gas technician must install the unit.
