EcoSmart Fire Linear 50 Fire Pit Kit
EcoSmart Fire Linear 50 Fire Pit Kit - Bioethanol - Stainless Steel is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 47.1 in L x 17 in W x 12.1 in H
The EcoSmart Fire Linear 50 is a linear fire pit kit built around an XL900 burner and black glass charcoal, for a long, clean flame set into a non-combustible surface. It runs on e-NRG bioethanol with no gas line or wiring, and a gas LP/NG version is offered for outdoor installs. It suits a patio table, hearth or terrace feature where you want design freedom and a built-in look.
Key Specifications
| Model | Linear 50 fire pit kit (ESF.FPK.L.50 bioethanol stainless; ESF.FPK.L.50.B bioethanol black; ESF.FPK.L.50.G gas LP/NG) |
|---|---|
| Fuel | e-NRG bioethanol, or LP/NG on the gas variant |
| Ethanol burner | One XL900, 9 L (2.4 gal) tank, 8 to 13 hour burn |
| Ethanol heat output | 15,000 BTU/h (4.4 kW); decorative use, not a primary heat source |
| Gas version | LP/NG, outdoor use only; gas burner output and pressure are not published in the sources checked, so confirm before ordering |
| Materials | Mild steel and toughened glass |
| Media | Black glass charcoal included |
| Application | Indoor and outdoor on ethanol; indoor use needs the Indoor Safety Tray and minimum room size of 3,884 cu ft per burner |
| Certifications | UL 1370 (USA), EN 16647, ACCC |
| Weight | 41.3 kg (91.05 lb) |

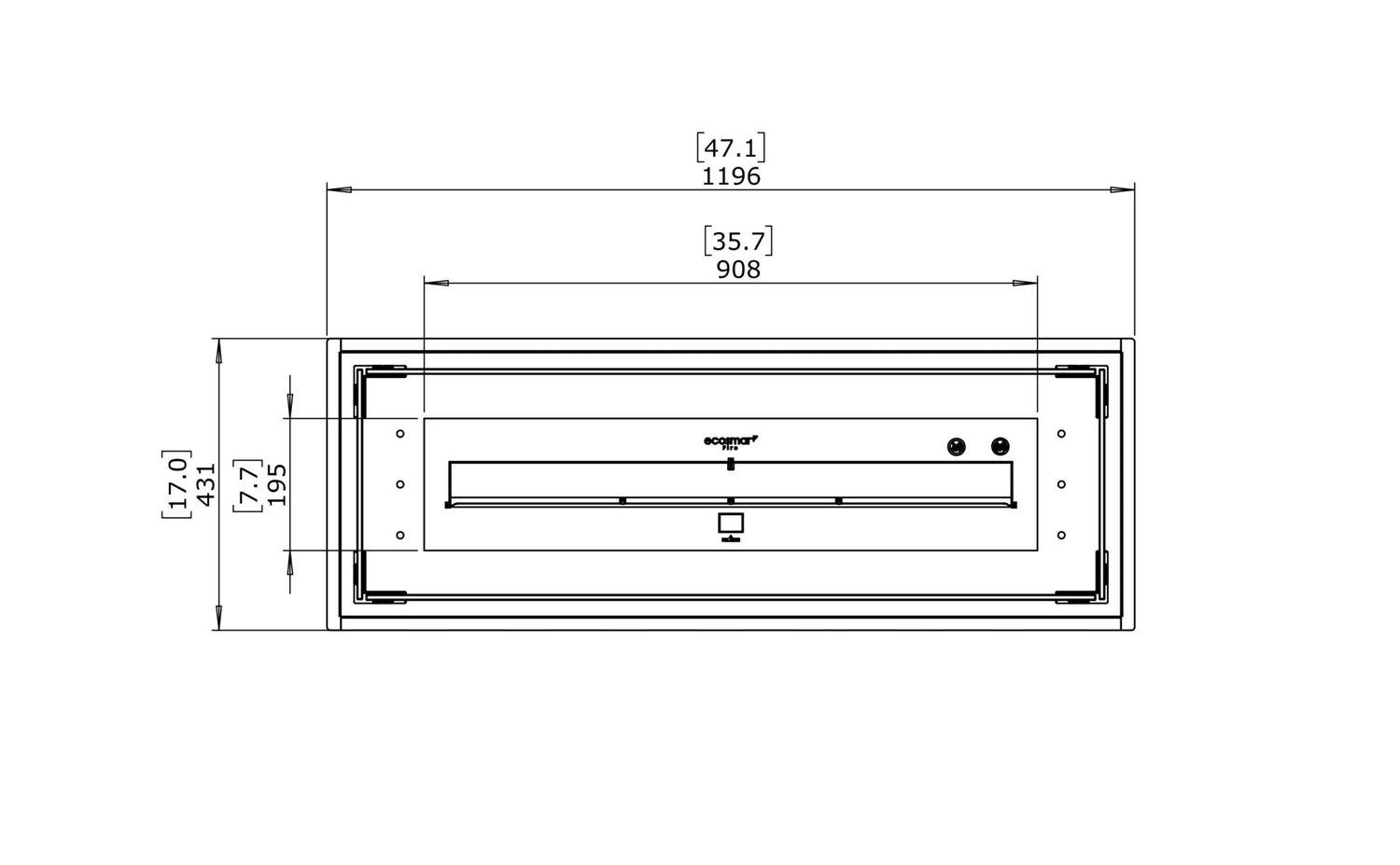

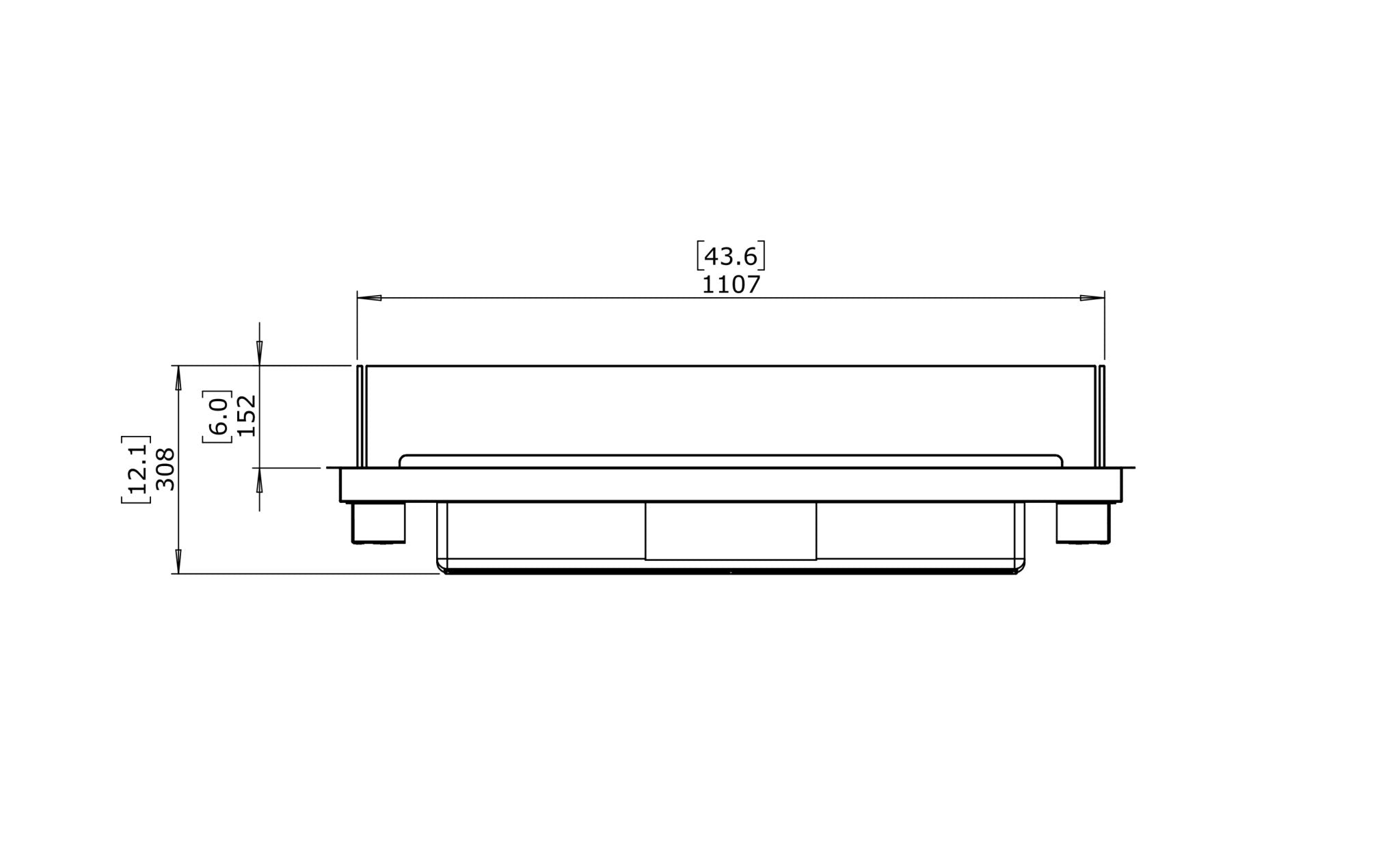

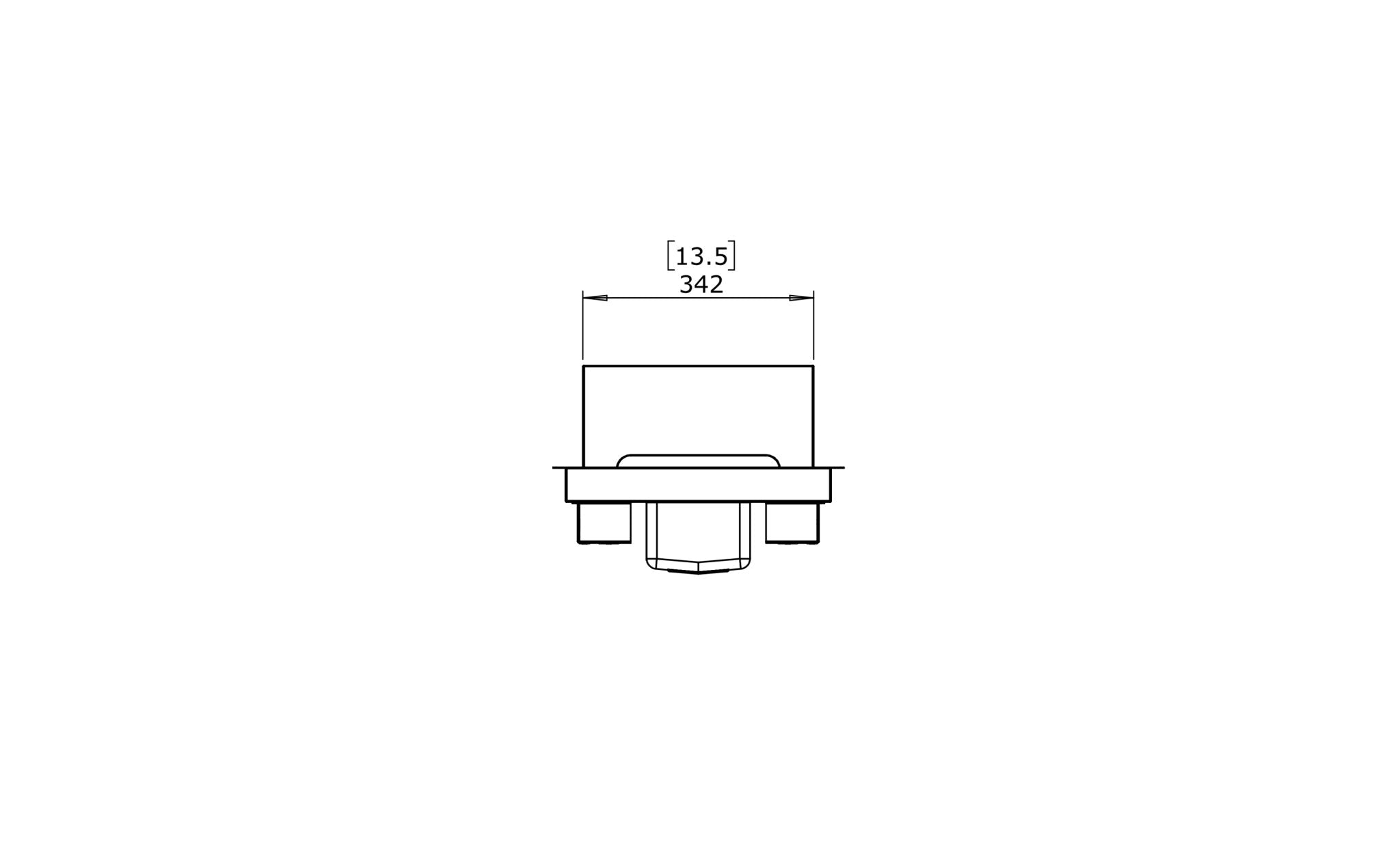

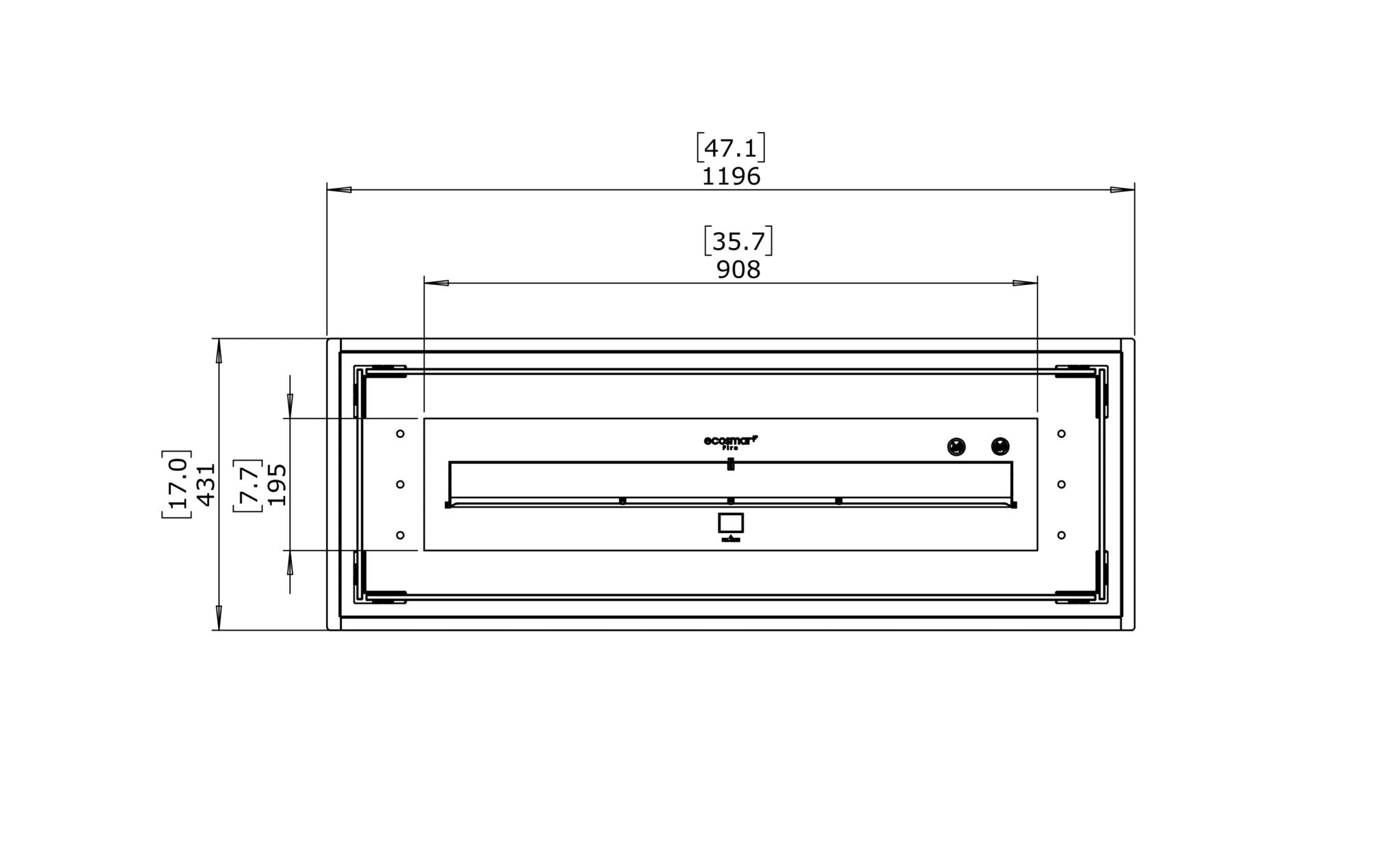

Dimensions and Cutout
| Overall (L x W x H) | 47.1 in x 17 in x 12.1 in |
|---|---|
| Cutout (L x W x D) | 1,167 mm x 402 mm x 167 mm (45.9 in x 15.8 in x 6.6 in) |
| Minimum room size | 3,884 cu ft (110 cu m) per XL900 burner |
| Clearance to combustibles | 23.6 in (600 mm) minimum to sides and rear without a firebox; 59.1 in (1,500 mm) overhead indoors, 78.7 in (2,000 mm) outdoors |
| Flame to curtains and flammables | At least 59.1 in (1,500 mm) |
Features
- Clean, elongated flame over black glass charcoal
- Self-contained ethanol kit with no gas line or electrical hookup
- Installs into non-combustible stone, concrete, brick or tile
- Fire screen (L1080) and tempered glass for a contemporary look
- Gas LP/NG variant available for outdoor installs
- Certified to UL 1370, EN 16647 and the ACCC mandate
What Is Included and What You Will Need
- Included: kit with XL900 burner, XL baffles, black glass charcoal and fire screen; ethanol versions add a lighting rod, fire lighter, 5 L jerry can and bottle adaptor
- Optional from EcoSmart: L50 cover plate and XL900 burner cover
- Required for ethanol: e-NRG bioethanol fuel and a non-combustible, level installation surface
- Required for indoor ethanol use: the Indoor Safety Tray (EcoSmart does not allow indoor operation without it)
Installation Notes
Bioethanol burns without a flue, but fire codes and building rules still apply, so confirm that an ethanol appliance is acceptable in your building or co-op before ordering. Build the cutout to the dimensions above and verify the appliance against them before you start. Use only e-NRG bioethanol in the ethanol versions, let the burner cool at least 60 minutes before refueling, and do not operate the unit without its glass windscreen. The LP and NG version is for outdoor use only. In New York City natural gas lines are run by a licensed master plumber under permit, and propane cylinders are restricted in many buildings. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Can I use it indoors?
The ethanol version is rated for indoor and outdoor use, but indoors it needs the Indoor Safety Tray and at least 3,884 cu ft of room volume per burner. The gas version is outdoor only.
What cutout do I need?
EcoSmart's installation manual lists a cutout of 1,167 mm x 402 mm x 167 mm (45.9 in x 15.8 in x 6.6 in).
How long does a tank burn?
The 9 L tank burns about 8 to 13 hours at maximum.
Does it need a gas line?
Not on the ethanol versions. The LP/NG version needs a licensed professional, and in NYC a licensed master plumber under permit.
Related reading: Gas fire pit and fire table buying guide and Ethanol Fireplace buying guide.
Warranty
Per the EcoSmart operations manual, stainless steel parts, including black ceramic coated parts, carry a 2-year warranty from the date of purchase, and mild steel and other listed materials carry 1 year. Chips and scratches are not covered, and installations in heavy snow areas need the Winter Bag to keep coverage. Our current listing states 12 months, so confirm the terms that apply to your order.
