Description

Overall Dimensions: 36-1/8" W x 23-1/8" D x 25-1/8" H (per current listing)

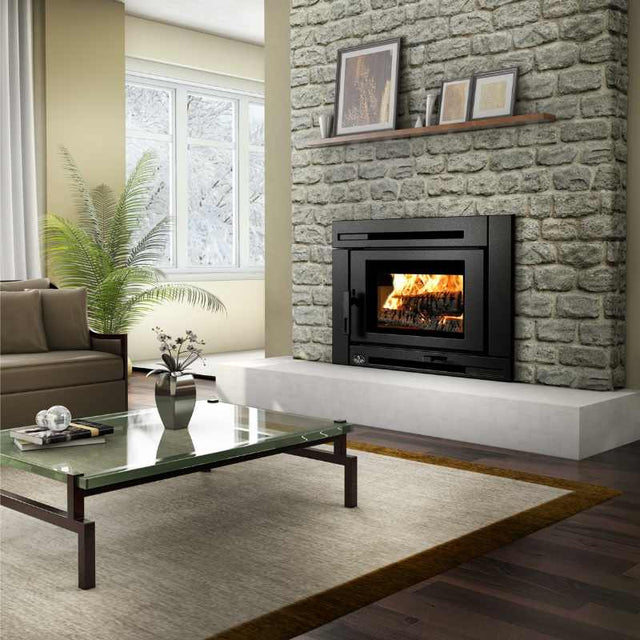

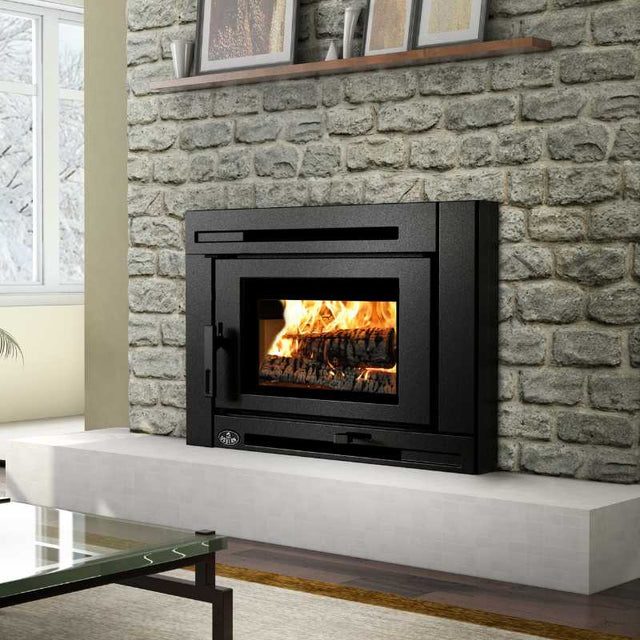

The Osburn Matrix is an EPA certified wood-burning insert with a cast iron framed glass door and a wide, sleek face. It has a 2.4 cubic foot firebox, an included blower and a steel faceplate already installed, and it is meant for a masonry fireplace that needs a real heat source. Optional backing kits close the gap between the insert and a larger opening.

Key Specifications

Model OB02028 (Osburn Matrix)
Fuel Dry cordwood, 16 inch recommended, 20 inch maximum log length
Maximum Heat Output 75,000 BTU/h; typical range 14,200 to 44,500 BTU/h
Heating Area 500 to 2,100 sq ft
Firebox Volume 2.4 cu ft overall; 1.95 cu ft EPA loading volume
Efficiency 72% HHV / 77% LHV average overall; 79% optimum overall
Emissions 2.3 g/h average particulate; 69 g/h average CO
Maximum Burn Time 8 hours
Door and Glass Single door, ceramic glass with air-wash, cast iron frame, 19-5/8" x 11-7/8" glass surface
Blower Included, tangential, 115 V, 60 Hz, 30 W, up to 90 CFM, with heat sensor and auto/off/manual switch
Certification EPA, non-catalytic, CSA B415.1-10; UL 1482, UL 737
Shipping Weight 491 lb per current listing

Dimensions and Cutout

Overall (per listing) 36-1/8" W x 23-1/8" D x 25-1/8" H
Minimum Fireplace Opening (listing, manual J/K/L) 28-7/8" W x 23-3/8" H x 19-5/8" D (add at least 4" to the width if you use a fresh air intake)
Maximum Surround Thickness 5"
Door Opening 17-1/2" W x 8-3/4" H
Firebox 21" W x 16-3/4" D x 11-7/8" H
Liner Continuous 6" liner from the insert to the top of the chimney, UL 1777 or CAN/ULC-S635 or S640; 12 ft minimum chimney height and 15 ft minimum total system height
Floor Protection (US, manual) Non-combustible, 16" in front and 8" at the sides; a hearth 5" or less above the floor needs R-value 1.00 or more, extending 23" in front
Mantel (manual) Combustible shelf up to 12" deep, at least 27" above the insert

Features

  • Cast iron door frame with a large ceramic glass view and air-wash
  • Blower included with automatic heat-sensor control
  • Steel body 3/16" thick with a 5/16" top, refractory brick lined
  • Stainless steel secondary air system and C-Cast baffle for cleaner combustion

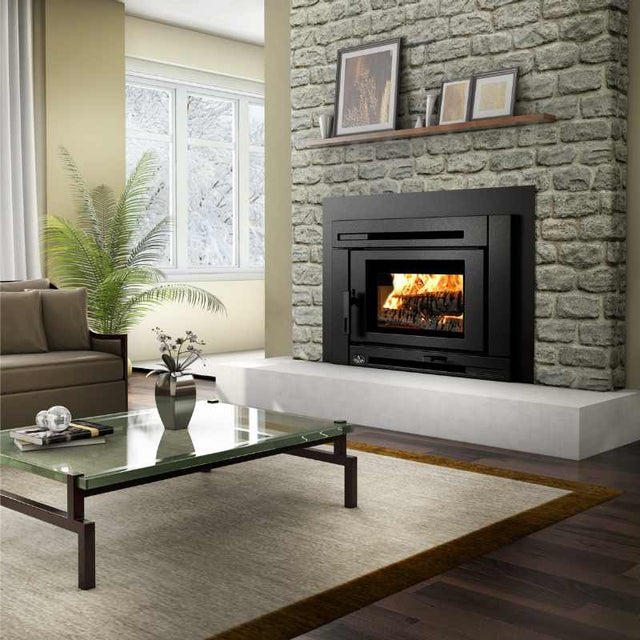

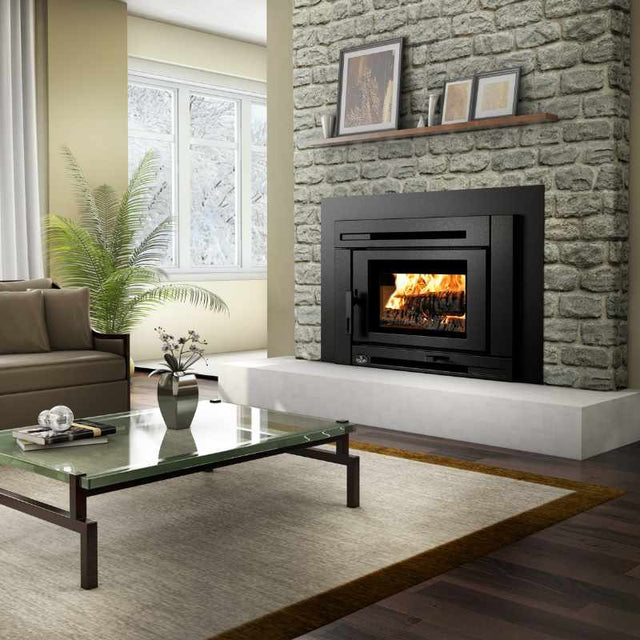

  • Faceplate backing kits in 3-sided and 4-sided sizes for 44 inch and 50 inch openings

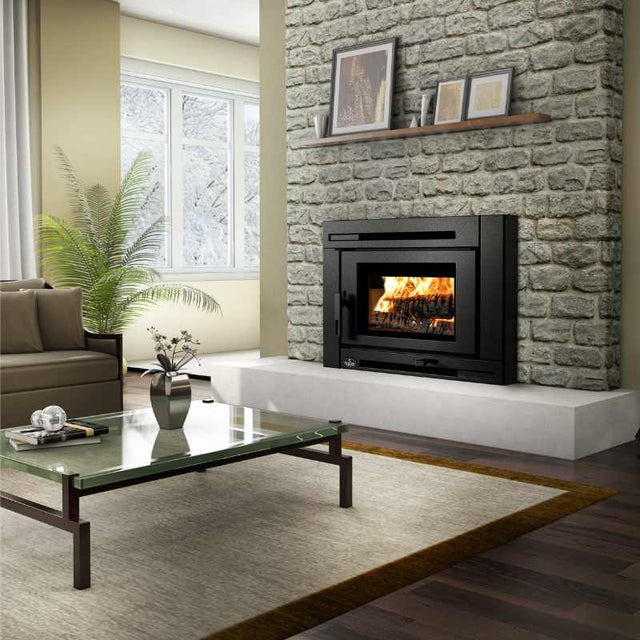

  • Optional projection kit, 2 inch or 4 inch, to bring the insert forward
  • Not approved for mobile home installation
  • Osburn Limited Lifetime Warranty

What Is Included and What You Will Need

  • Included per the installation manual: insert with a steel faceplate installed, blower, air control wooden handle and glass door assembly.
  • Required: a continuous 6 inch liner to the top of the chimney. The listing offers 25 ft and 35 ft kits as an option, or your installer can supply one.
  • Optional: faceplate backing kits (AC01322 and AC01332), projection kit AC01323, fresh air intake kit AC01298, rigid fire screen AC01315, log retainers, liner offset adapter and liner fastening system. The backing and projection kits are selectable on this listing.

Installation Notes

The manual requires a qualified installer, a code-compliant liner and non-combustible floor protection in front of the insert. Wood burning in New York City is regulated: Local Law 38 of 2015 limits new solid fuel fireplaces and the Air Pollution Control Code governs what can be burned, so confirm the rules for your address before you order. Book a consultation and we will measure the opening and review local requirements with you.

Documentation

Frequently Asked Questions

What fireplace opening does the Matrix need?

The listing gives a minimum opening of 28-7/8 inches wide, 23-3/8 inches high and 19-5/8 inches deep, with a maximum surround thickness of 5 inches. Add at least 4 inches to the width if you use a fresh air intake. Confirm against the manual before ordering.

Does it come with a blower and faceplate?

The blower, rated up to 90 CFM, is included, and the insert ships with a steel faceplate installed. Backing kits for larger openings are optional.

Does it need a liner?

Yes. The manual calls for a continuous 6 inch liner from the insert to the top of the chimney, with a 12 ft minimum chimney height and at least 15 ft total system height.

What is the projection kit for?

The optional projection kit AC01323 brings the insert forward by 2 inches or 4 inches, and it is selectable on this listing.

Related reading: Are Wood-Burning Fireplaces Legal in NYC? and How to Measure a Fireplace Opening.

Warranty

Osburn's Limited Lifetime Warranty covers combustion chamber welds and the cast iron door frame for life (5 years labor), ceramic glass and plating for life (parts only), surrounds, heat shields, baffle and secondary air tubes for 7 years (parts only), the blower and electronics for 2 years parts and 1 year labor, and paint, gaskets, insulation and refractory bricks for 1 year. It is void if the unit burns anything other than cordwood. See the manual for full terms.
