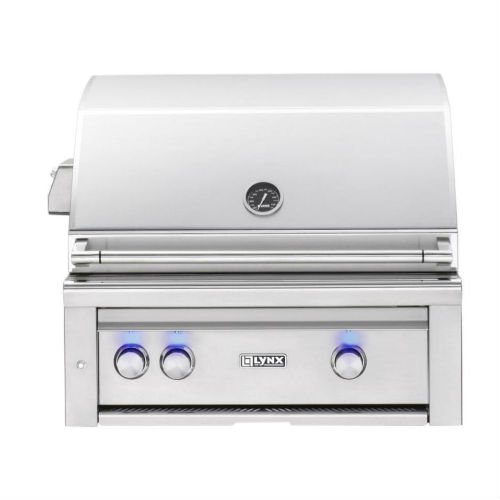

Lynx | Professional 30" Built-In Gas Grill & Rotisserie

Overall Dimensions: 30" W x 27.88" D x 25" H

The Lynx Professional L30R-3 is a 30-inch built-in grill with two cast ceramic burners under ceramic radiant briquettes, the classic Lynx setup for even, steady heat edge to edge across a 600 square inch grate. A dual-position rotisserie with its own rear infrared burner adds slow roasting. It is the straightforward choice for an owner who grills a bit of everything and wants Lynx Professional construction in a compact island, available for natural gas or propane.

Key Specifications

Dimensions and Cutout

Features

• Two cast ceramic burners with independent control for two cooking zones
• Ceramic radiant briquettes spread heat evenly across the grate

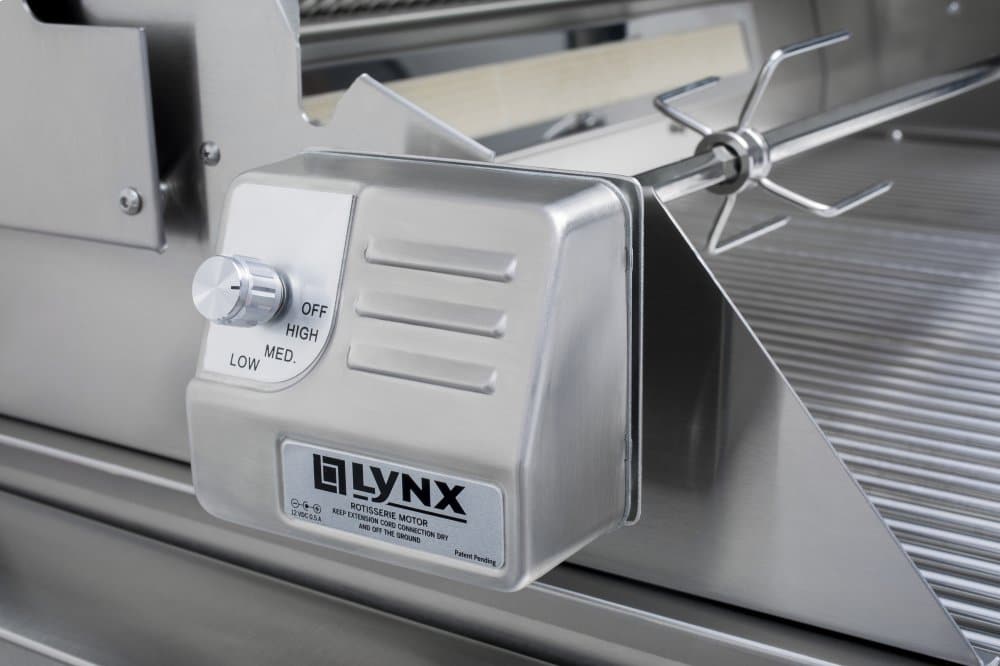

• Dual-position internal rotisserie with a heavy-duty three-speed motor and rear infrared burner
• Smoker box included
• Hot Surface Ignition lights the burners quickly and reliably

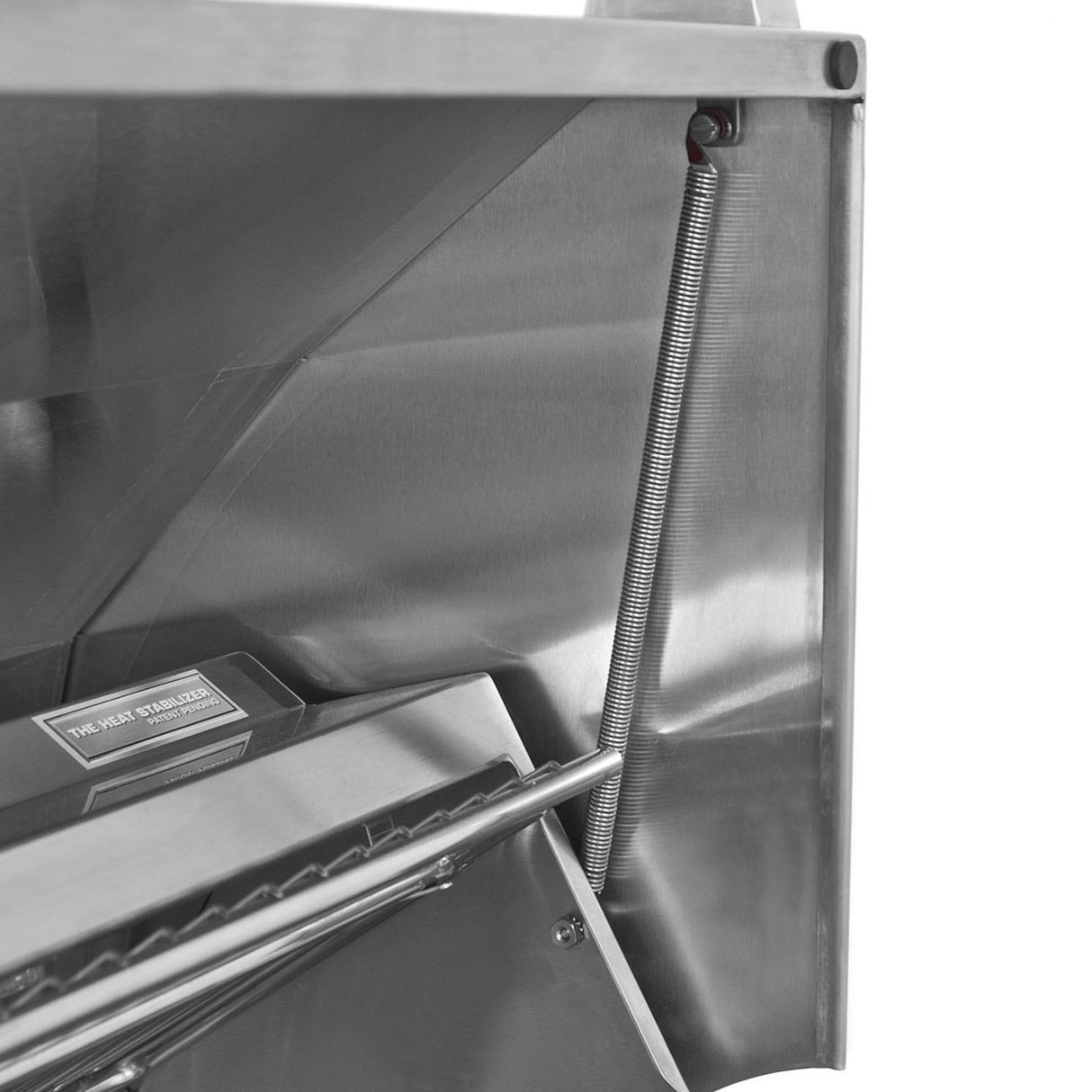

• Lynx Hood Assist and a fluid-rotation handle make the hood easy to raise

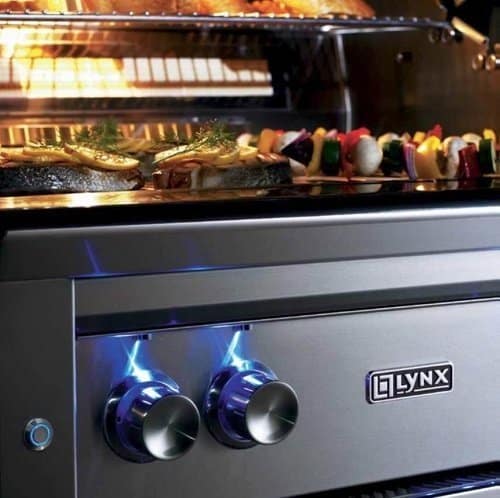

• Halogen surface light and blue-lit knobs for cooking after dark
• Heat-stabilizing design and hood-mounted temperature gauge
• Seamless welded construction with no gaps where grease can collect
• Offered in stainless or eight Lynx color finishes

What Is Included and What You Will Need

• Included: L30R-3 grill head with internal rotisserie system and smoker box
• Required for wood-framed or other combustible islands: Lynx LIJ30 Insulated Jacket
• Required: gas supply sized for the total BTU load, never smaller than 3/4 in. inside diameter, with an accessible shut-off valve
• Required: outdoor 120V/15A GFCI outlet beside the grill
• Optional: Lynx CC30 30 in. cover (also offered as a selection on this page)
• Optional: Lynx Rotisserie Basket RB8
• Fuel change: Lynx PRONGK1 / PROLPK1 conversion kit, installed by a qualified technician

Installation Notes

The L30R-3 drops into a non-combustible island; a combustible enclosure needs the LIJ30 insulated jacket, supported by a ledge on each side or a full deck. Lynx calls for 12 in. of clearance from the sides and 6-1/4 in. from the back to combustible construction above the countertop, and 3 in. behind the grill so the hood can open. Do not install under unprotected overhead combustible construction; under a covered roof the cooking area needs an exhaust hood. Inlet pressure is 7 in. w.c. maximum and 4 in. w.c. minimum on natural gas, 14 in. maximum and 11 in. minimum on propane. In New York City, rooftop and terrace gas grills are regulated by the FDNY and the Department of Buildings, gas piping must be run by a licensed master plumber, and propane cylinder use is heavily restricted. To plan the island and utilities, book a design consultation with our team.

Documentation

• Spec Sheet
• Installation Manual
• L30R-3 Product Spec Sheet 2025 (Lynx)
• Pro Models Care & Use Manual, current (Lynx)
• 30 in. Built-In Dimensions (Lynx)
• Lynx Professional Warranty

Frequently Asked Questions

Ceramic burners or Trident infrared: which should I choose?

Ceramic burners under briquettes give even, forgiving heat for everyday grilling. If searing is the priority, the L30TR swaps one ceramic burner for a Trident infrared burner, and the L30ATR uses two.

Can it go into a wood-framed island?

Yes, with the Lynx LIJ30 insulated jacket. Lynx requires the jacket for any combustible enclosure, and the cutout must be sized for the jacket.

Is the rotisserie included?

Yes. The dual-position rotisserie, three-speed motor and rear infrared burner are built in. The RB8 basket is an optional add-on.

Does it need electricity?

Yes. Hot Surface Ignition, the lights and the rotisserie motor run from an outdoor 120V/15A GFCI outlet next to the grill.

Related reading: Built-In Gas Grill Buying Guide and Hestan vs Lynx Grills.

Warranty

Current Lynx Professional warranty (lynxgrills.com): one-year full warranty on the complete product, including parts and authorized labor pre-approved by Lynx; 90-day cosmetic warranty through the selling dealer; five-year limited warranty, parts only after year one, on the rotisserie infrared burner, firebox, drip tray, manifolds, gas valves, rotisserie motor, ignitor, warming racks, spit rods and briquette tray; lifetime limited warranty, parts only for the original purchaser, on the ceramic main burners and stainless components such as the grates, canopy, hood, control panel and bullnose against rust-through that affects structural integrity. Multi-user settings such as clubs and condominium common areas get a 90-day Residential Plus warranty; restaurants and other commercial use are excluded.
