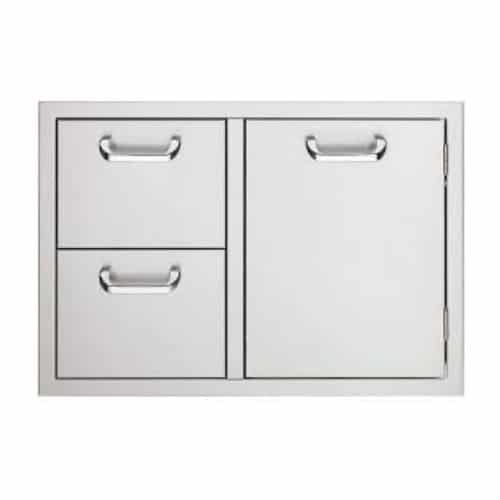

Lynx | Sedona 30" Access Door & Double Drawer Combo
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Lynx | Sedona 30" Access Door & Double Drawer Combo is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Local Delivery
Free & Flat Rate Local Delivery
- Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 days
- $49.95 Flat-Rate Local Shipping on orders under $999
- Setup & Assembly available for most items at checkout
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 877-692-3765
Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Lynx | Sedona 30" Access Door & Double Drawer Combo is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 30-3/8 in W x 21-1/8 in H x 21-5/8 in D overall, per the Lynx LSA530 drawing
The Sedona by Lynx LSA530 combines a single access door with two drawers in one 30 in stainless unit for an outdoor kitchen island. The drawers open 20-3/8 in on glides and the door opens to a 14-1/4 in wide storage bay.
Features
- Two drawers and one access door in a single 30 in unit
- Drawers open 20-3/8 in on full extension glides
- Barrel hinged door with a 14-1/4 in wide opening
- Stainless steel construction and hardware
- Matches the Sedona by Lynx grill and storage line
Key Specifications
| Model / SKU | Sedona by Lynx LSA530 |
| Type | Door and double drawer combination |
| Material | Stainless steel |
| Body | 28 in W x 18-3/4 in H x 19 in D behind the face |
Dimensions and Cutout
| Overall | 30-3/8 in W x 21-1/8 in H x 21-5/8 in D |
| Island cutout | 28-1/4 in W x 19 in H x 20 in D |
| Opening margins | 3-1/2 in minimum above, 1-1/2 in minimum below |
| Door swing | 15-1/8 in clearance radius |
What Is Included and What You Will Need
- Sedona by Lynx LSA530 door and drawer unit
- You will need: an island opening framed to 28-1/4 x 19 x 20 in
Installation Notes
Frame a level island opening of 28-1/4 in W x 19 in H x 20 in D, keeping at least 3-1/2 in of solid island above the cutout and 1-1/2 in below it, and confirm the opening before the countertop goes on. The unit slides into the opening and fastens through its face frame. Leave about 15-1/8 in of swing clearance in front of the door. For New York City terraces and rooftops, confirm the island weight and any board or building rules before you order.
Planning an outdoor kitchen? Book a design consultation.
Documentation
Frequently Asked Questions
What cutout does it need?
28-1/4 in wide x 19 in high x 20 in deep.
How far do the drawers open?
About 20-3/8 in.
Which side is the door?
The Lynx drawing shows the drawers on the left and the door on the right.
Related reading: Outdoor kitchen planning guide, Stainless vs aluminum outdoor kitchen cabinetry.
Warranty
Lynx warrants the stainless steel housing against defects in material and workmanship under normal domestic use for the lifetime of the original purchaser, and all other components for one (1) year from the original date of purchase, with defective parts repaired or replaced at no cost to the original purchaser, per the Lynx warranty summary. Residential use only; see the Lynx warranty for full terms.
