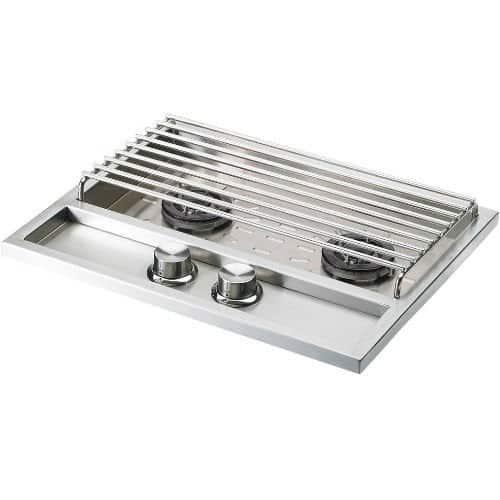

Lynx | Sedona Built-In Double Side Burner
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Lynx | Sedona Built-In Double Side Burner - Natural Gas is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
Free & Flat Rate Local Delivery
Free & Flat Rate Local Delivery
- Our team & trucks deliver locally within 60 miles of our showroom. (NYC Tri-State including all of Suffolk County)
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 days
- $49.95 Flat-Rate Local Shipping on orders under $999
- Setup & Assembly available for most items at checkout
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 877-692-3765
Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Lynx | Sedona Built-In Double Side Burner - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 22 in W x 17 in D, 3-5/16 in below the counter trim plus a 3/4 in cover, per the Lynx LSB502 drawing
The Sedona by Lynx LSB502 is a built-in double side burner with two 12,500 BTU/hr stainless burners, offered here for natural gas (LSB502-NG) or propane (LSB502-LP). It drops into a non-combustible island beside a Sedona grill and draws its ignition and lighting power from the grill.
Features
- Two 12,500 BTU/hr burners, 25,000 BTU/hr total
- Sealed burners and basin with heavy-duty welded construction
- Electronic ignition with 9 V battery backup
- Lighting and ignition powered through a 6 ft harness from a Lynx grill, or a LASK switch kit
- Natural gas or propane versions; conversion requires a Lynx kit
Key Specifications
| Model / SKU | Sedona by Lynx LSB502-NG (natural gas) or LSB502-LP (propane) |
| Burners | 2 x 12,500 BTU/hr |
| Ignition | Electronic, 9 V battery backup |
| Power | Outdoor 120 VAC 15 A GFI outlet adjacent; powered through a Lynx grill or LASK kit |
| Installation | Built-in, non-combustible enclosure only |
Dimensions and Cutout
| Overall | 22 in W x 17 in D; 3-5/16 in below the trim; body 20-5/8 x 15-1/2 in |
| Island cutout | 21 in W x 16 in D x 4 in deep, with a 3 in gas access cutout |
| Clearance to combustibles | 12 in at the sides and back below the counter, 18 in above; no unprotected overhead combustibles |
What Is Included and What You Will Need
- Sedona by Lynx LSB502 double side burner with cover and 6 ft grill connection harness
- You will need: a non-combustible island cut to 21 x 16 x 4 in, a regulated gas supply with a shutoff valve for the fuel you choose, a 120 V GFI outlet, and a Lynx grill or LASK switch kit
Installation Notes
Lynx built-in accessories must go into a vented, non-combustible enclosure; the burner hangs from its counter trim and needs no deck below. Keep 12 in to combustible construction at the sides and back below the counter and 18 in above it, and never install under unprotected overhead combustibles. A pressure regulator is required on the gas supply, and all work must meet the National Fuel Gas Code and National Electrical Code. In New York City, gas appliances are connected under the NYC Fuel Gas Code by a licensed master plumber, and FDNY rules restrict propane on many terraces and rooftops, so confirm the fuel your building allows.
Planning an outdoor kitchen? Book a design consultation.
Documentation
- Sedona by Lynx Side Burners Care and Use / Installation Manual (LSB501, LSB502)
- Sedona by Lynx LSB502 Double Side Burner Dimensions and Island Cutout
Frequently Asked Questions
How much heat?
Two 12,500 BTU/hr burners, 25,000 BTU/hr total.
Which fuel?
Choose LSB502-NG for natural gas or LSB502-LP for propane.
What cutout does it need?
21 in wide x 16 in deep x 4 in, in a non-combustible island.
Related reading: Side burner, power burner and griddle guide, Outdoor kitchen planning guide.
Warranty
Sedona by Lynx limited warranty, per the Sedona side burner manual: the stainless steel body and cooking grates are covered for the lifetime of the original purchaser (surface corrosion, scratches and discoloration excluded), manifolds and gas valves for five (5) years, and all other components for two (2) years, with Lynx replacing or repairing defective parts at no cost, including authorized service labor, for the first year. Residential use only; commercial and multi-family common area installs are excluded.
