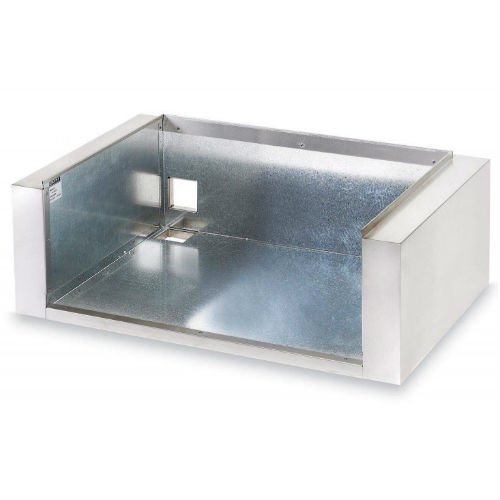

The Sedona by Lynx LIJ700 is the insulated jacket for the 42 in Sedona built-in grill (L700). Lynx requires the jacket when the grill goes into an island built from combustible materials: the stainless liner drops into the framed opening and the grill hangs inside it on the liner lip.
Features
- Insulated stainless liner for the Sedona by Lynx 42 in built-in grill
- Required for installs in combustible islands
- Liner supports the grill with no extra fasteners
- Gas and electrical entries through 4 in square openings at the rear or bottom
- Included 1 in screws replace three side screws on each side of the grill
Key Specifications
| Model / SKU | Sedona by Lynx LIJ700 |
| Fits | Sedona by Lynx 42 in built-in grill (L700) |
| Material | Stainless steel, insulated |
Dimensions and Cutout
| Island cutout | 48 in W x 23-1/4 in D x 11-5/8 in H (Lynx table A, C, F), on a full solid base |
| Service openings | 4 in square holes for gas and electrical, left and right, rear or bottom access |
What Is Included and What You Will Need
- Sedona by Lynx LIJ700 insulated jacket and 1 in replacement screws, per the Lynx instructions
- You will need: a level island frame on a full solid base cut to 48 x 23-1/4 x 11-5/8 in, and the Sedona 42 in built-in grill
Installation Notes
Build a level frame on a full solid base that can carry the jacket, grill and finish materials, then cut the 4 in square gas and electrical openings. No part of the combustible enclosure may stand above the liner top or in front of its face; shim the liner if needed. Set the grill on the liner lip, then replace the three screws on each side of the grill with the supplied 1 in screws, one at a time. Never install the transformer or run a quick disconnect hose between the grill and the jacket. In New York City, gas appliances are connected under the NYC Fuel Gas Code by a licensed master plumber, and FDNY rules restrict propane on many terraces and rooftops, so confirm the fuel your building allows.
Planning an outdoor kitchen? Book a design consultation.
Documentation
Frequently Asked Questions
Do I need the jacket?
Yes, if the island is built with combustible materials.
What cutout does it need?
48 in wide x 23-1/4 in deep x 11-5/8 in, on a solid base.
Which grill does it fit?
The Sedona by Lynx 42 in built-in grill (L700).
Related reading: Outdoor kitchen planning guide, Built-in gas grill buying guide.
Warranty
Lynx accessories are covered under the Lynx limited warranty. The Lynx installation document for this part does not state a separate term, so ask us for the current Lynx terms before you order.
