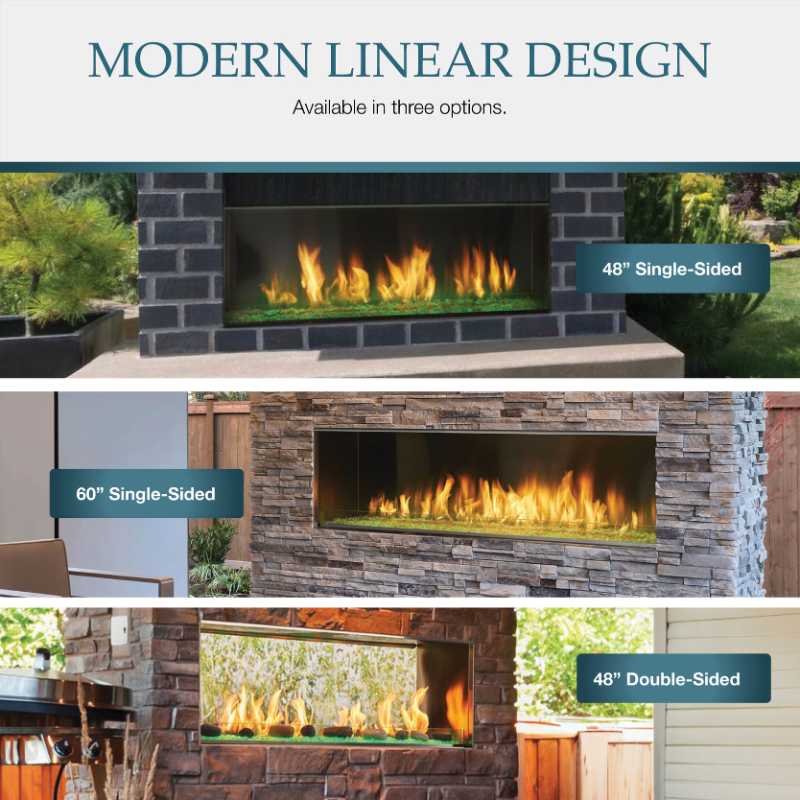

Explore other Majestic Lanai see-through outdoor gas fireplace sizes: 48 inch (current size) | 60 inch
Overall Dimensions: 52-1/8 in. W x 39-1/2 in. H x 13 in. D

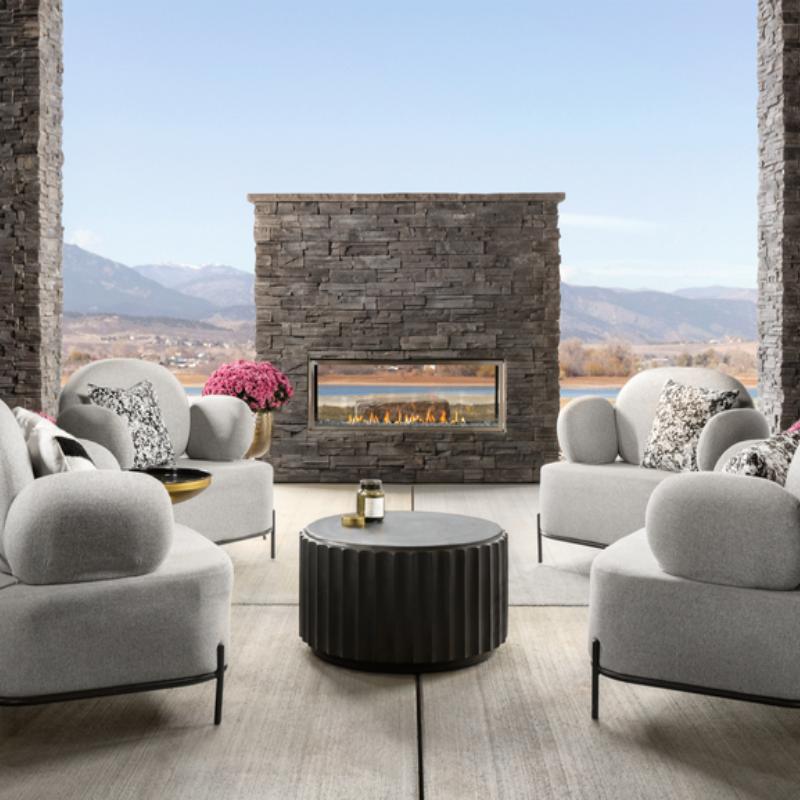

The Majestic Lanai 48 See-Through (ODLANAIGST-48) is an outdoor vent-free linear gas fireplace that is open on both faces, so a single 48-inch ribbon of flame serves two outdoor rooms at once: a covered dining area and a pool deck, or a lounge and an outdoor kitchen. The stainless steel interior reflects the flame and the colored crushed glass bed, multicolor LED strips keep it glowing after dark, and there is no chimney or vent to build.
Key Specifications
| Model | ODLANAIGST-48 (natural gas; propane with LPK-ODLANAIG48 conversion, as selected) |
| Type | Outdoor vent-free linear gas fireplace, see-through (outdoor use only) |
| Max input | 55,000 BTU/h natural gas; 55,000 BTU/h propane |
| Viewing area | 47-7/8 in. x 17 in. on each side |

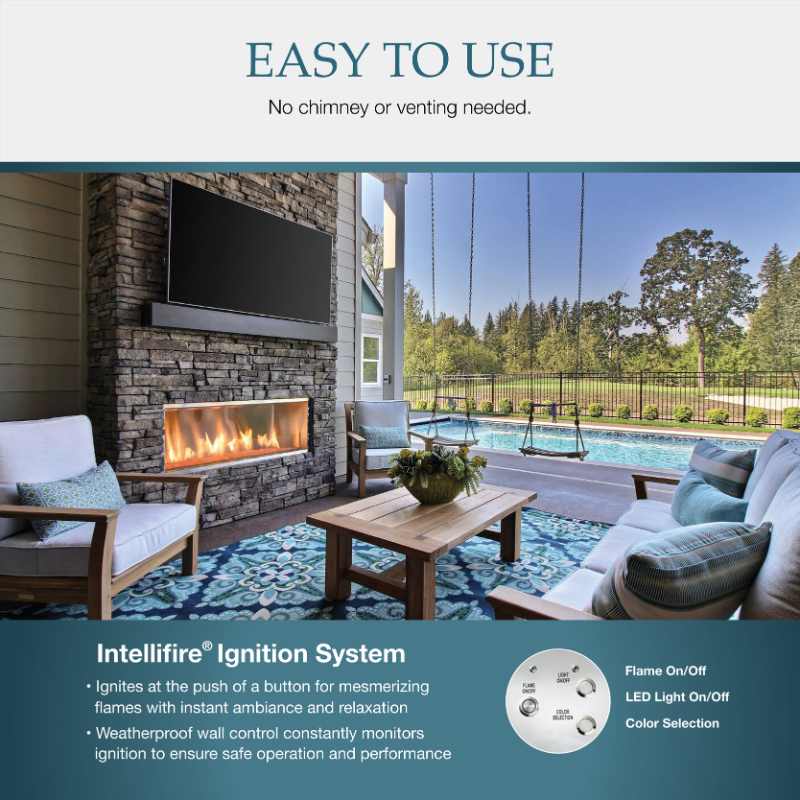

| Ignition | IntelliFire control valve (3V) with weatherproof wall switch control |
| Lighting | Two outdoor-rated 12V LED light strips, multicolor, run from the wall control |
| Construction | Stainless steel interior and rust-resistant stainless construction |

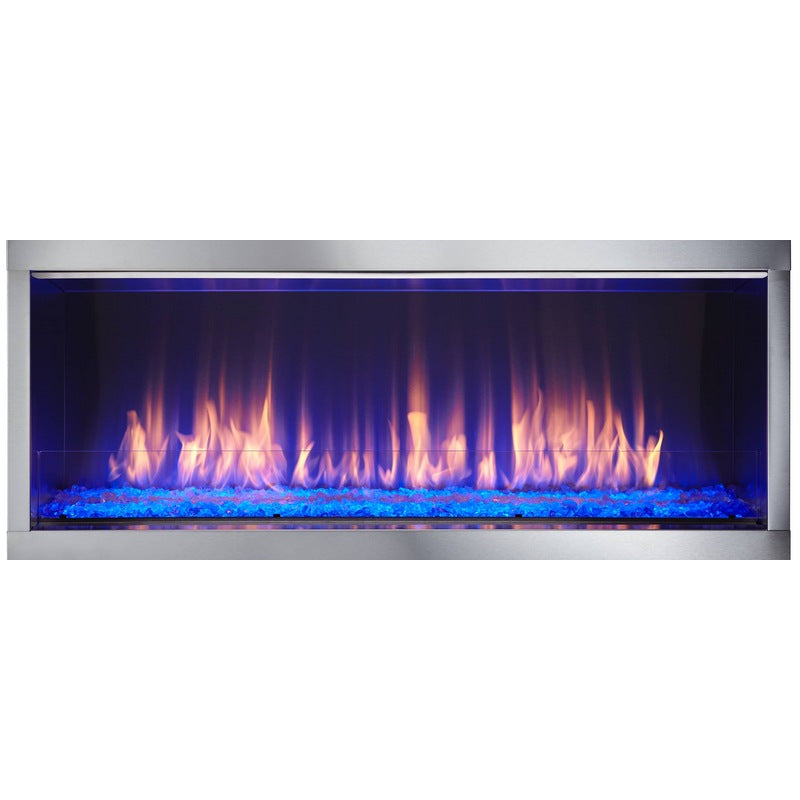

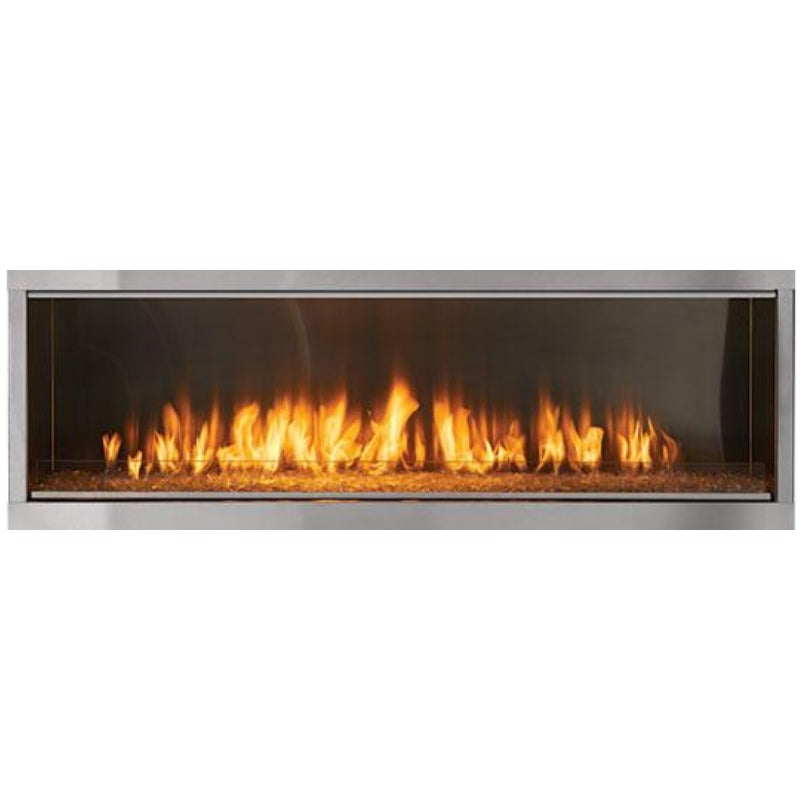

| Media | Crushed glass (required); Crystal standard, or Scarlet, Ebony, Cobalt or Amber |
| Electrical | 110 to 120 VAC, 60 Hz, less than 12 amps, GFCI-protected unswitched circuit |
| Gas pressure | NG 5.0 in. w.c. min inlet / 3.5 in. manifold; LP 11 in. w.c. min inlet / 10 in. manifold |
| Certification | UL listed to ANSI Z21.97-2017 / CSA 2.41-2017, outdoor decorative gas appliance |
| Weight | 210 lb |

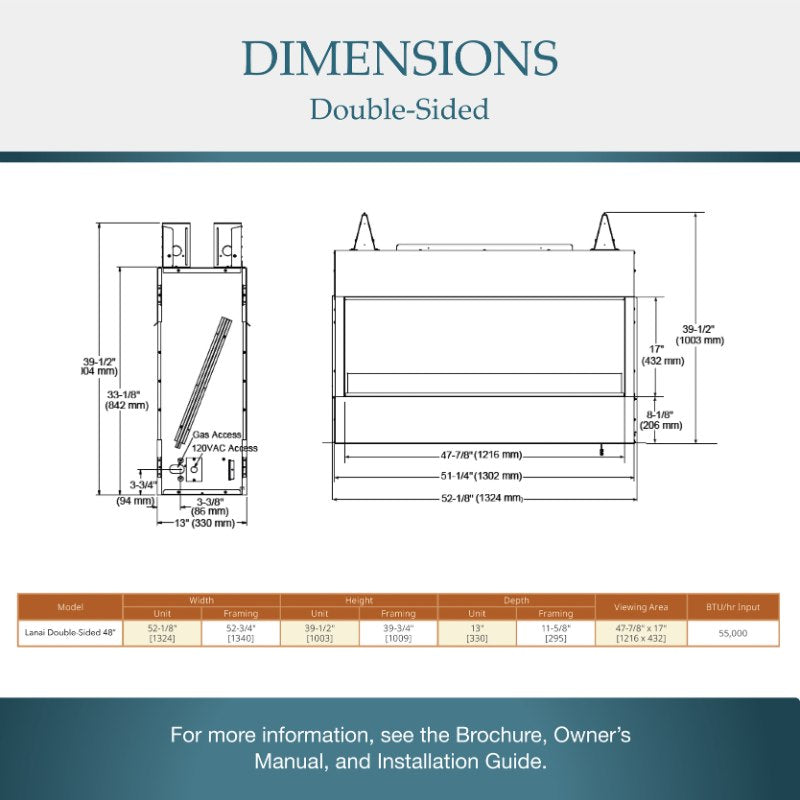

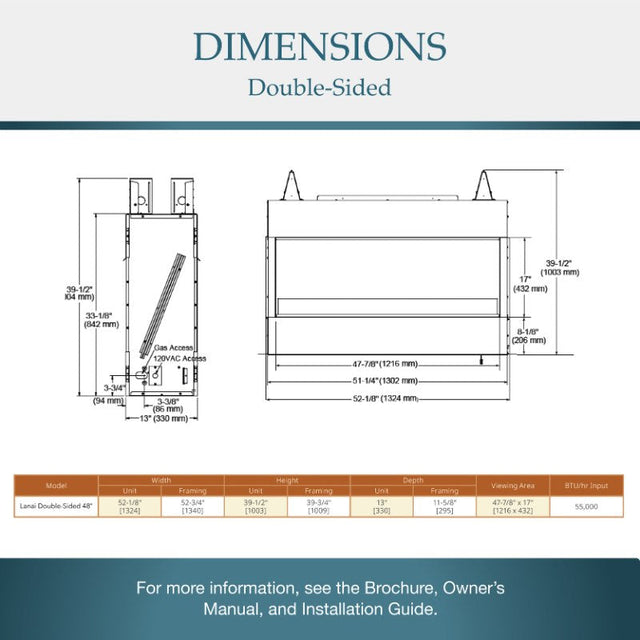

Dimensions and Cutout
| Appliance (W x H x D) | 52-1/8 in. x 39-1/2 in. x 13 in. (front and back faces are both 52-1/8 in. wide) |
| Framing (W x H x D) | 52-1/8 in. x 39-3/4 in. x 11-5/8 in. |
| Ceiling or overhang | 39 in. minimum, measured from the top of the firebox opening |
| Mantel or combustible object above | 36 in. minimum |
| Side walls | Combustible side wall 18 in. to 24 in. depending on configuration; noncombustible 0 in. to 6 in. (see architect guide) |
| Windows and doors | 12 in. to non-vinyl window or door; 24 in. to vinyl |
| Venting | Vent-free; no chimney, flue or termination |

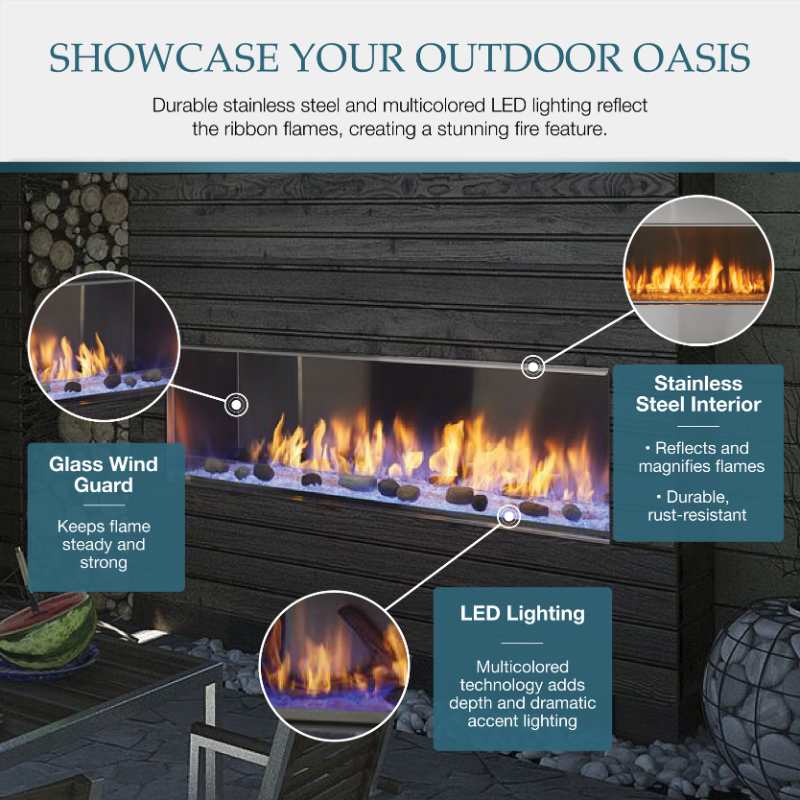

Features
- 48 in. linear flame visible from both sides of the wall
- Outdoor vent-free design certified to ANSI Z21.97, so no chimney or flue is needed
- 55,000 BTU on natural gas or propane
- Multicolor LED lighting under the glass bed
- Stainless steel interior reflects and magnifies the flame
- IntelliFire ignition monitors ignition for safe operation
- Weatherproof wall control runs the fire and changes the LED colors
- Glass wind guard keeps the flame pattern steady

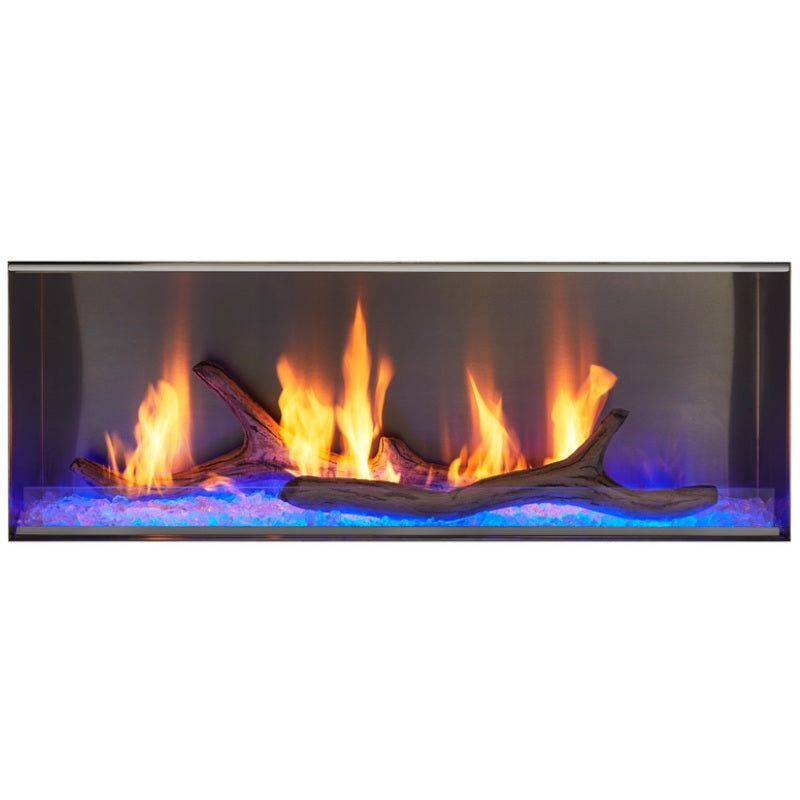

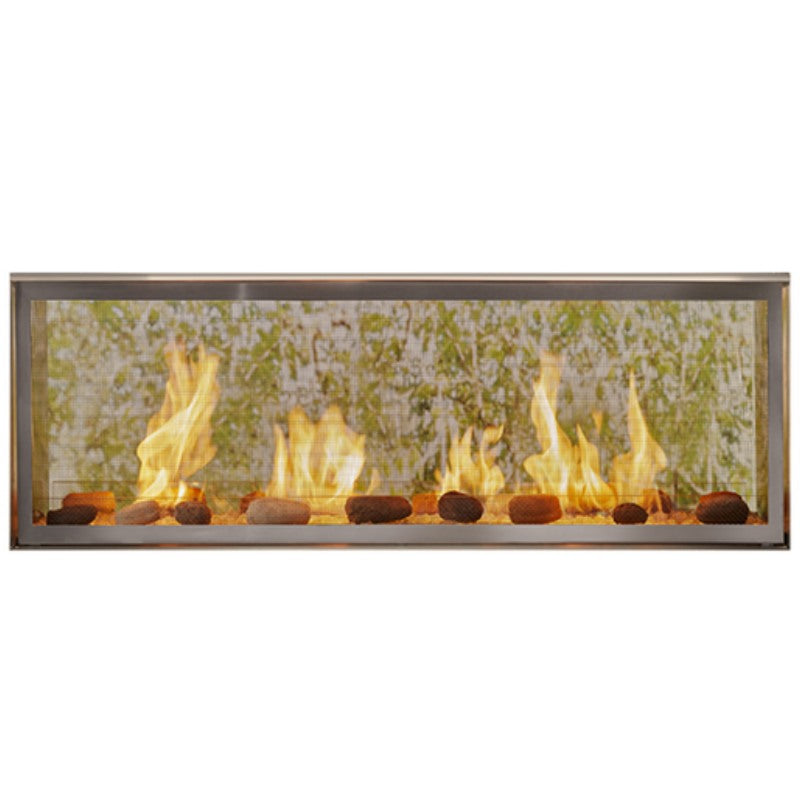

- Optional driftwood log set and stone kit (selectable above)
What Is Included and What You Will Need
- Included: fireplace with burner, IntelliFire control valve, two LED light strips, glass wind guard, weatherproof wall control with 15 ft of wire and junction box, 1/2 in. T-handle shut-off valve and gas flex connector, 8 in. cement board for minimum-height installations
- Required: crushed glass media, chosen in the Glass Media option above (Crystal is standard)
- Required for propane: LP conversion kit LPK-ODLANAIG48 (selected automatically with the Propane option)
- Required: framing and noncombustible finish built to the framing dimensions, a gas supply sized for 55,000 BTU with an accessible manual shut-off within 6 ft, and a GFCI-protected 120 VAC circuit
- Optional: driftwood log set (CDLS), stone kit, drain pan (ODLANAIG-48DP)
Installation Notes
This is an outdoor vent-free appliance listed to ANSI Z21.97 for outdoor decorative gas appliances; it must never be installed indoors, in a garage or in any enclosed area. Majestic defines an outdoor space as no more enclosed than walls with no roof, a roof with no more than two side walls, or a roof with three walls and at least 30% of the perimeter permanently open. Keep at least 39 in. to the ceiling and 36 in. to any combustible object above, flash the perimeter with metal flashing and high-temperature sealant, and plan drainage under the unit (a drain pan is available). Power must come from an unswitched, GFCI-protected circuit with the junction box on the right side of the unit. Installation should be done by a qualified, factory-trained or NFI-certified gas technician. For New York City addresses, outdoor gas fireplaces and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, so the approval path for this vent-free unit must be confirmed before you buy. We review that, along with Long Island, Westchester and New Jersey sites, during a design consultation.
Documentation
Frequently Asked Questions
Can the Lanai 48 be installed in New York City?
It is certified for outdoor use only, and any NYC installation of an outdoor gas fireplace must clear the NYC Fuel Gas Code and Department of Buildings process. Confirm the approval path for your property with us and a licensed master plumber before ordering.
Is the glass media included?
The fireplace needs crushed glass to operate. Crystal is the standard choice in the options above; Scarlet, Ebony, Cobalt and Amber are upgrades.

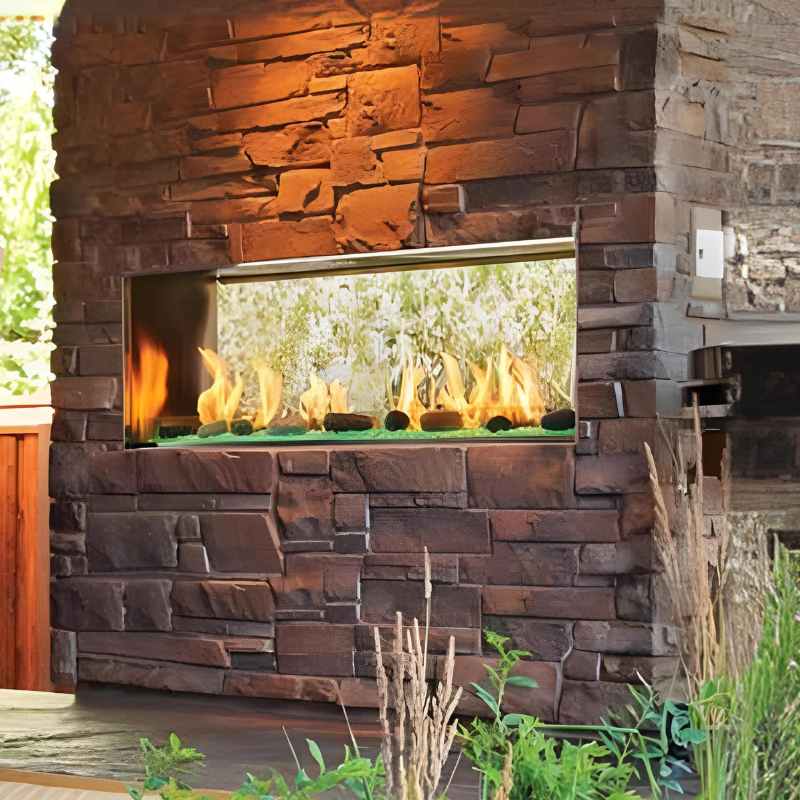

Can I install it under a covered patio?
Yes, if the space still meets Majestic's outdoor definition: a roof with no more than two side walls, or three walls with at least 30% of the perimeter permanently open, and at least 39 in. from the top of the firebox opening to the ceiling.
Does it need a dedicated electrical circuit?
It needs an unswitched 110 to 120 VAC circuit protected by a GFCI breaker; the unit draws less than 12 amps for the ignition and LED lights.
Related reading: Outdoor Fireplace Buying Guide and Vent-Free vs. Direct Vent Gas Fireplaces.
Warranty
Per the Lanai owner's manual, Outdoor Lifestyles by Hearth & Home Technologies provides a Limited Lifetime Warranty on the product body, metal firebox and heat exchanger from the date of installation. Gas and electrical components, gaskets, glass and media (thermal breakage), optional accessories and labor for warranty service are covered for one year from installation. Coverage requires purchase through an authorized HHT dealer and applies at the original installation site.
