Napoleon Knightsbridge Direct Vent Cast Iron Gas Stove | GDS60
Napoleon Knightsbridge Direct Vent Cast Iron Gas Stove | GDS60 - None (Top Vent Installation) / None / None is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 27" W x 19-1/2" D x 30-1/2" H
The Napoleon Knightsbridge GDS60 is the largest stove in Napoleon's cast iron series, a sealed direct vent gas stove that heats a larger room without drawing air from the house. It vents through the top or the rear with 4 inch / 7 inch pipe, so it can sit against a wall or tie into a chase, and it is a good fit for homes where a freestanding stove is the practical alternative to building a fireplace.
Key Specifications
| Model | GDS60-1NSB (GDS60, natural gas) |
| Fuel | Natural gas; propane model GDS60-1P also listed in the manual |
| Maximum Input | NG 35,000 BTU/h; LP 31,500 BTU/h (top vent) |
| Maximum Output | NG 27,300 BTU/h; LP 24,570 BTU/h |
| Rear Vent Input | 21,000 BTU/h (orifice change required for a rear exit with no vertical run) |
| Venting | Direct vent, top or rear exit, 4 inch exhaust / 7 inch intake |
| Ignition and Control | Electronic ignition with 100% SAFE GUARD gas control and battery back-up |
| Electrical | 115 V, 60 Hz, under 12 amps per rating plate; battery housing takes 4 AA batteries (not supplied) |

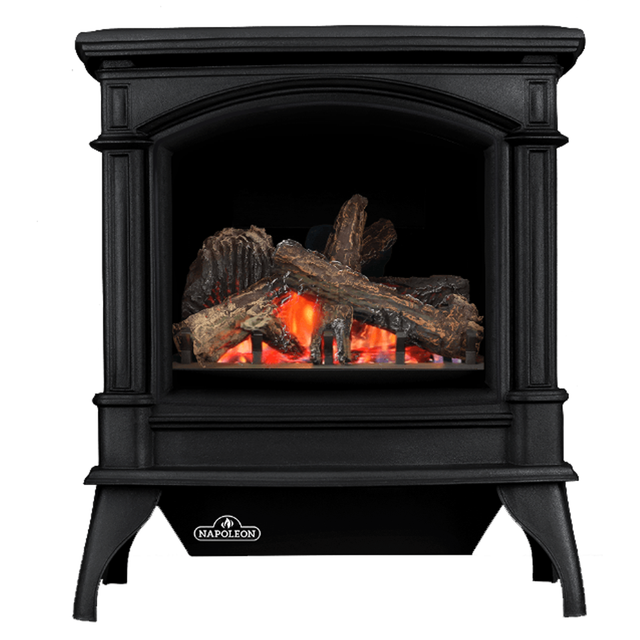

| Finish | Metallic Black cast iron |
| Certifications | CSA 2.22 and ANSI Z21.50 |

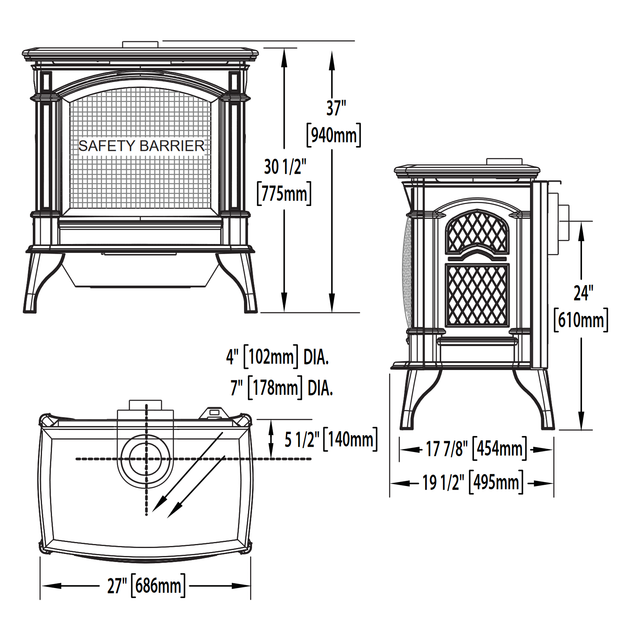

Dimensions and Cutout
| Overall (spec sheet) | 27" W x 19-1/2" D x 30-1/2" H |
| Vent Pipe Sizes | 4" exhaust / 7" intake (3" co-linear masonry chimney liner) |
| Maximum Vent Lengths (manual) | Up to 20 ft horizontal and 40 ft vertical; each 90 degree elbow after the first adds 2.7 ft to the offset total |
| Ceiling Clearance | 20" minimum from the top of the stove to the ceiling |
| Floor Protection | Combustible flooring other than wood needs a metal or wood panel covering the full width and depth |
Features
- Full cast iron body in Metallic Black
- Heat-radiating ceramic glass with a safety barrier screen
- Top or rear 4 inch / 7 inch direct vent configuration
- 100% SAFE GUARD gas control with battery back-up for a power failure
- Flame and heat adjustment
- Optional blower kit GS-64KT to move warm air farther into the room
- Optional F45 on/off or F60 thermostatic digital remote

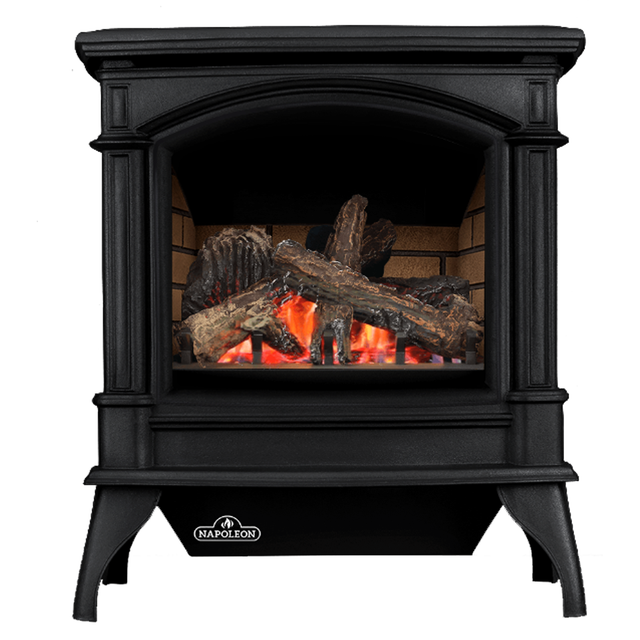

- Optional sandstone brick panels GDS819KT and leg-leveling kit GDSLL-KT
What Is Included and What You Will Need
- Included per the current listing: stove with log set and burner assembly, standard safety screen, firestop and a 12 inch stainless steel gas flex connector with shut-off.
- Required and sold separately: a Napoleon direct vent terminal kit. The manual lists wall terminal kits GD-222, GD-222R, ST47U and GD-175, roof kits GD-110, GD-111 and GD-112, a periscope kit GD-201 and flex vent kits GD-220 and GD-330. The right kit depends on whether you exit through a wall or the roof.
- Required for a rear exit: the rear-vent trivet GS831K, offered as a selectable option on this listing.
- Also needed: a gas line sized for the stove and a 115 V supply or battery power as the manual describes.
- Optional: blower kit, remote controls, brick panels, leg-leveling kit and a natural gas to propane conversion kit.
Installation Notes
The manual requires furniture and other objects to stay at least 48 inches from the front of the stove, a safety barrier in front of the glass, and a rating of 0 to 4,500 ft before an altitude derate applies. Gas and venting work must be done by a licensed gas technician. In New York City, a direct vent gas stove must meet the NYC Fuel Gas Code and needs a permitted installation. Book a consultation and we will confirm venting and clearances before you order.
Documentation
Frequently Asked Questions
What is the BTU input of the Knightsbridge GDS60?
The manual lists a maximum input of 35,000 BTU/h on natural gas and 31,500 BTU/h on propane with a top vent. A rear exit with no vertical run must be reduced to 21,000 BTU/h by changing the supplied orifice.
Can I vent it out the back?
Yes. The stove vents through the top or the rear. A rear exit needs the GS831K trivet, which you can select on this listing, and the lower rear-vent input applies when there is no vertical run.
Does it work in a power outage?
The SAFE GUARD gas control has battery back-up, and the battery housing takes 4 AA batteries that are not supplied.
Is a vent kit included?
No. A Napoleon direct vent terminal kit is sold separately, and the right one depends on whether you terminate through a wall or the roof.
Related reading: Direct Vent Gas Fireplace Buying Guide and NYC Fireplace Code Guide.
Warranty
Per the current listing: Napoleon's President's Limited Lifetime Warranty covers the combustion chamber and heat exchanger against defects in workmanship and materials, and installation by a licensed gas technician is required to keep coverage in force. Confirm full terms in the owner's manual.
