NetZero 20" NZWP20B Waterplace Platinum Vapor Electric Fireplace

Overall Dimensions: 20" W x 12-15/16" D x 11-3/8" H (burner only)

The NetZero Waterplace Platinum NZWP20B is the top tier 20 inch water vapor fireplace burner from NetZero Fire. It makes a realistic, cool to the touch flame from tap water and LED light, with zero heat, no gas, no venting and no clearance to combustibles. Platinum adds what designers and commercial buyers ask for: more than 30 flame colors, Wi-Fi app and dry contact control, and factory fitted direct plumb components so it runs on a water line indefinitely with automatic fill and drain.

Key Specifications

Dimensions and Cutout

Features

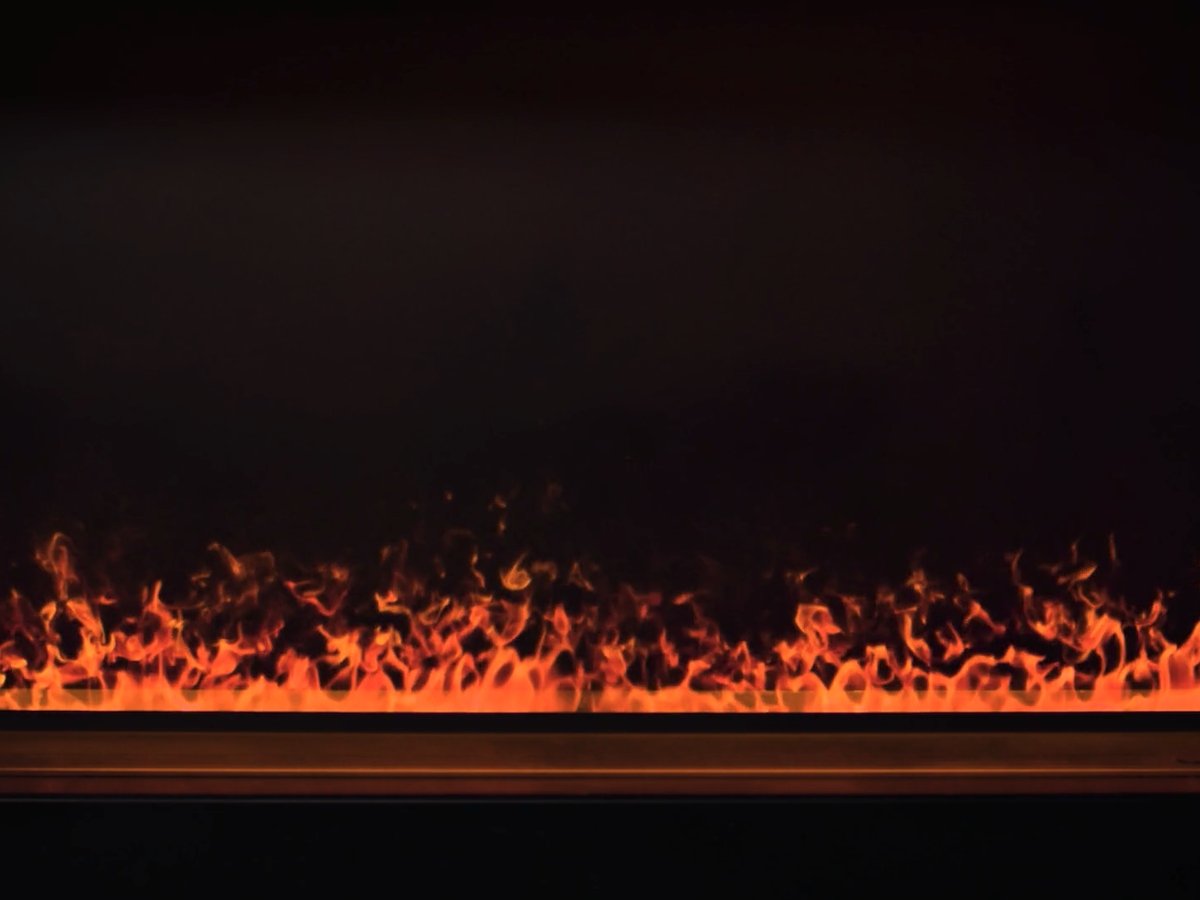

• Realistic rolling flame made from water vapor and LED light, safe to touch and silent

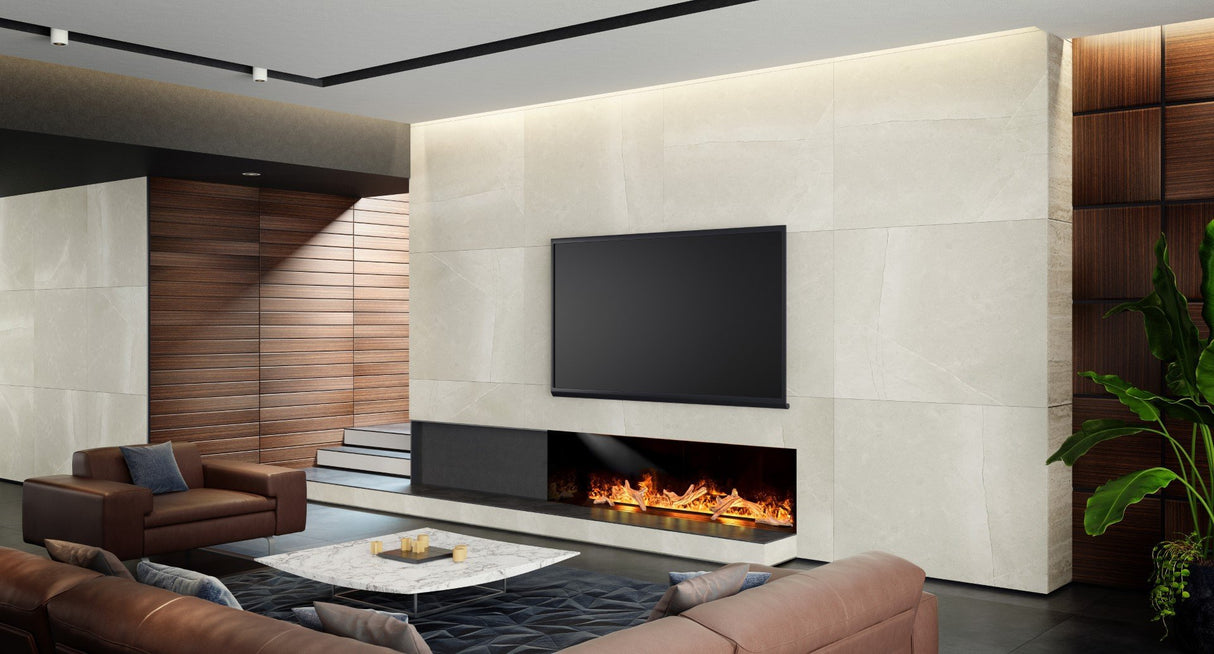

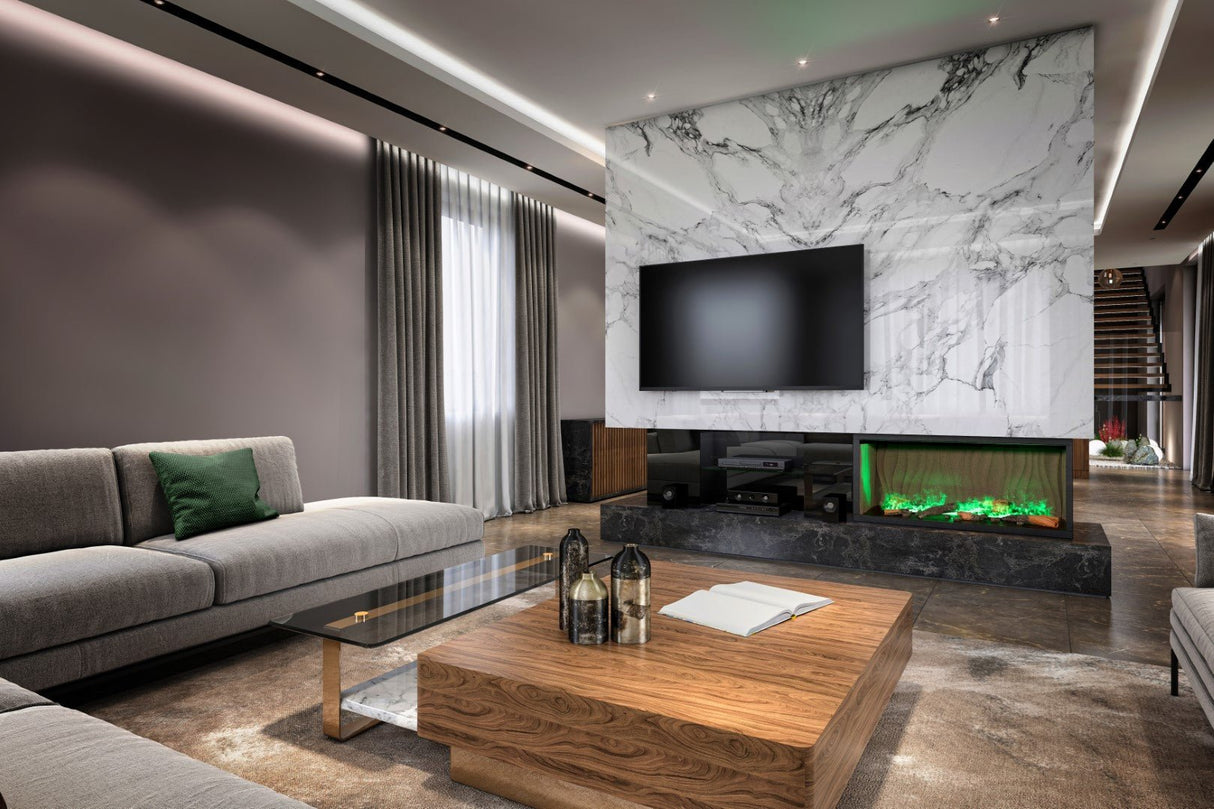

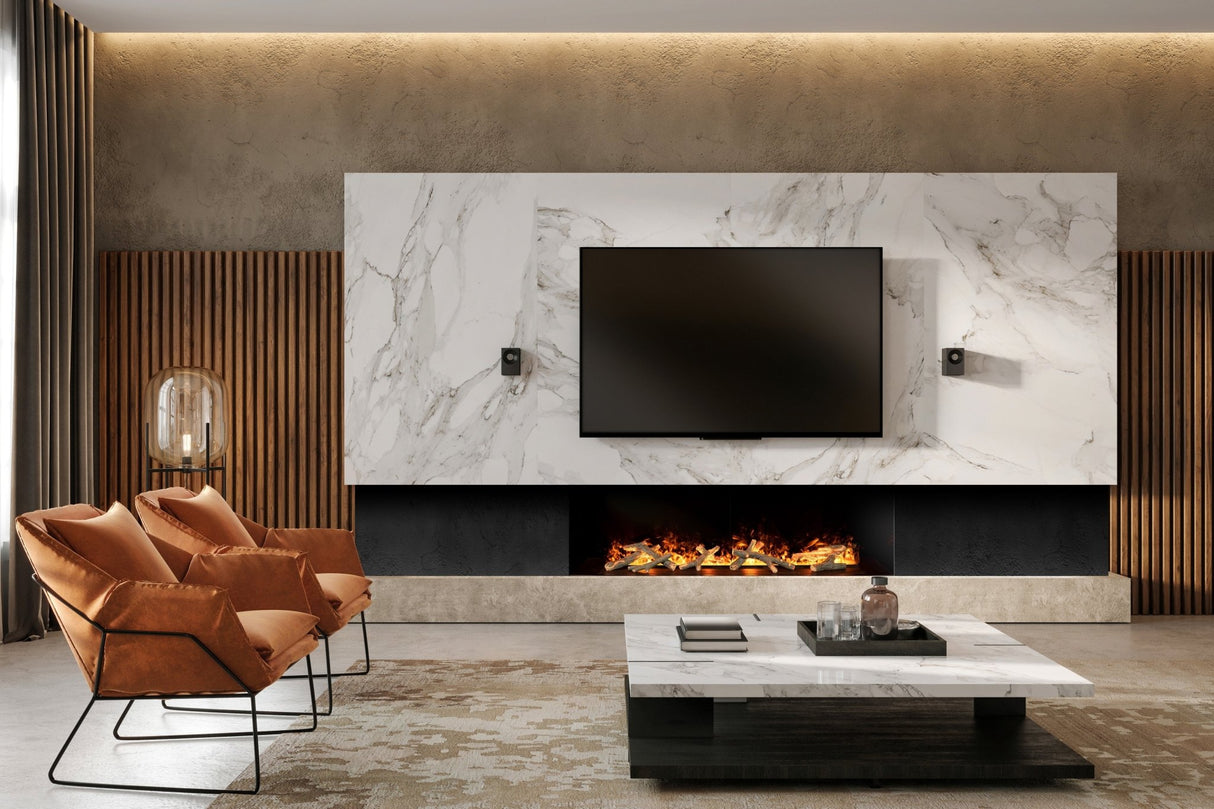

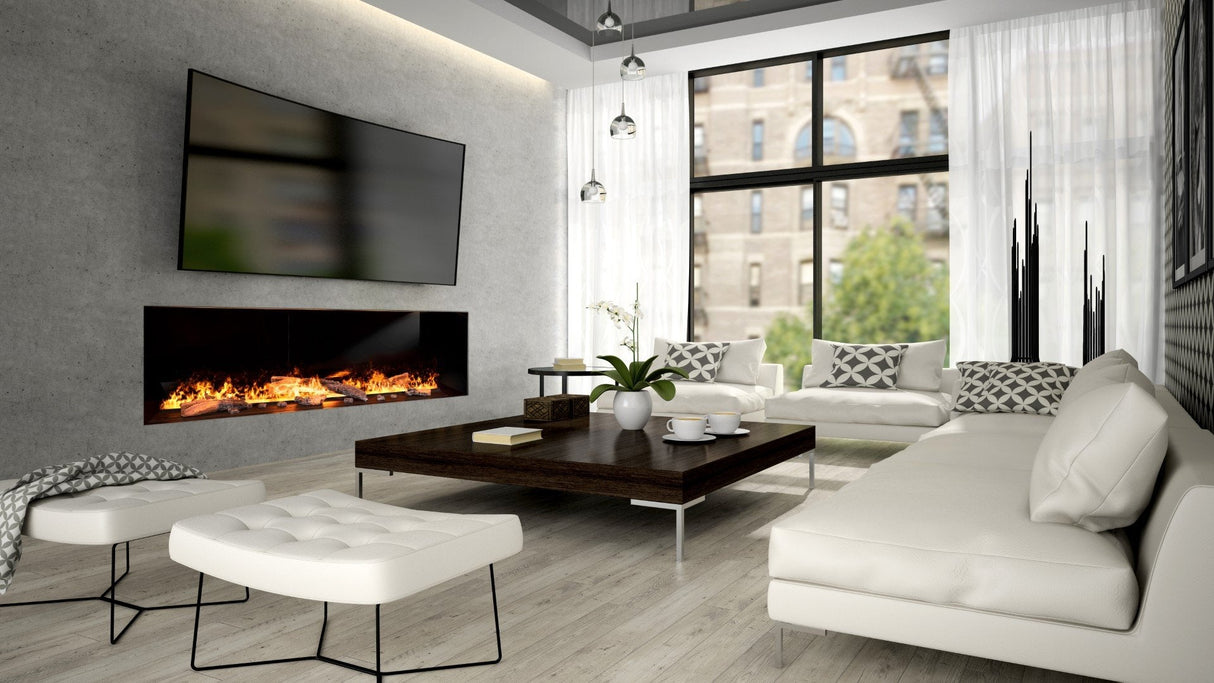

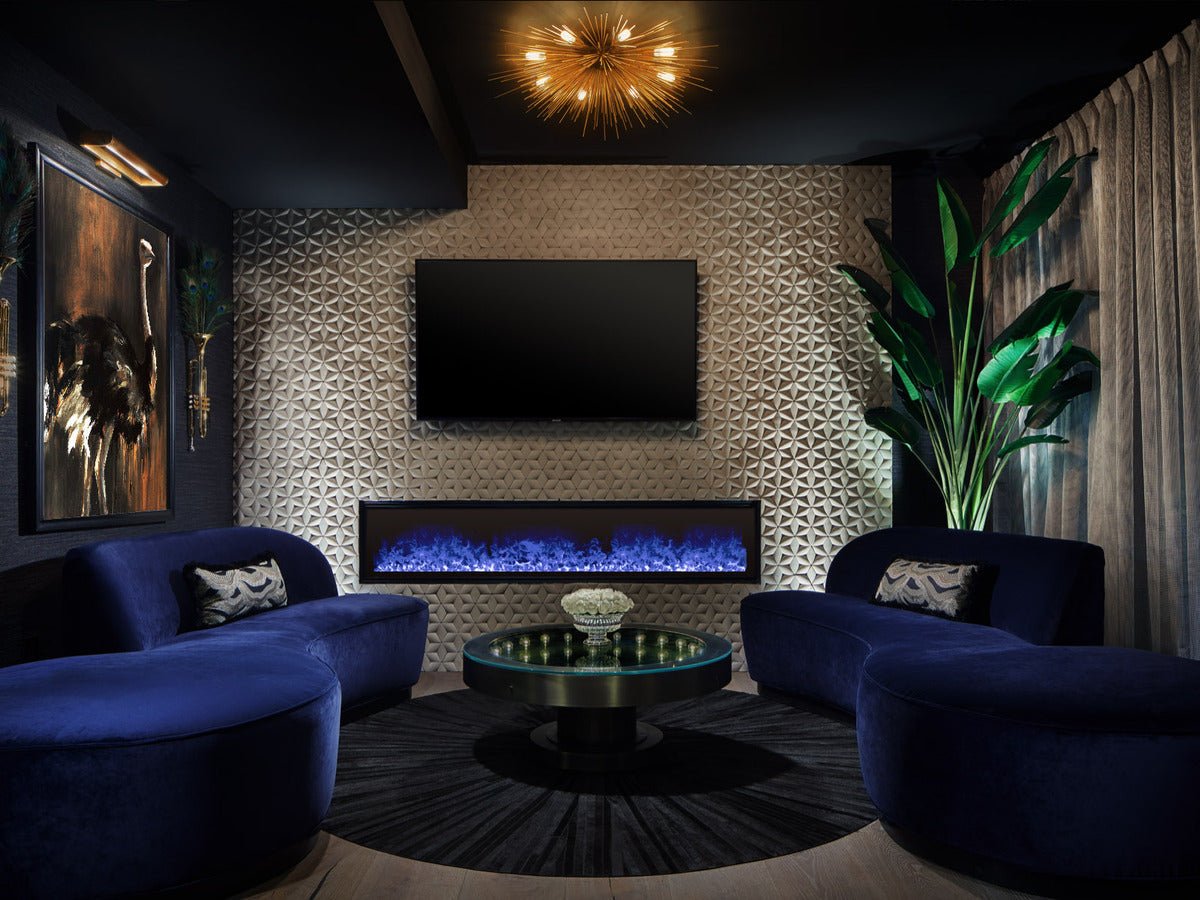

• Zero heat output, so it can run all year and sit directly under a television or inside millwork
• No gas, no venting, no clearance to combustibles: installs in a sealed enclosure almost anywhere there is an outlet

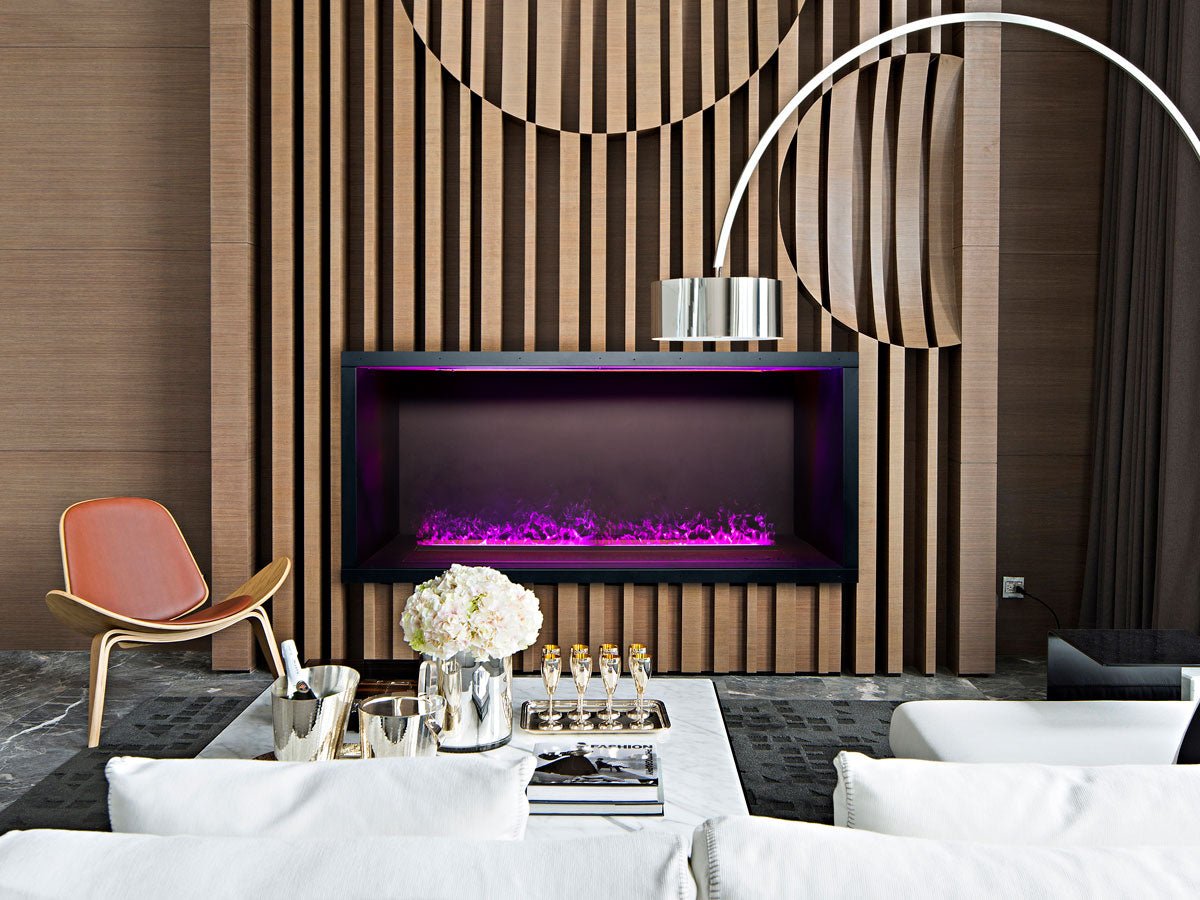

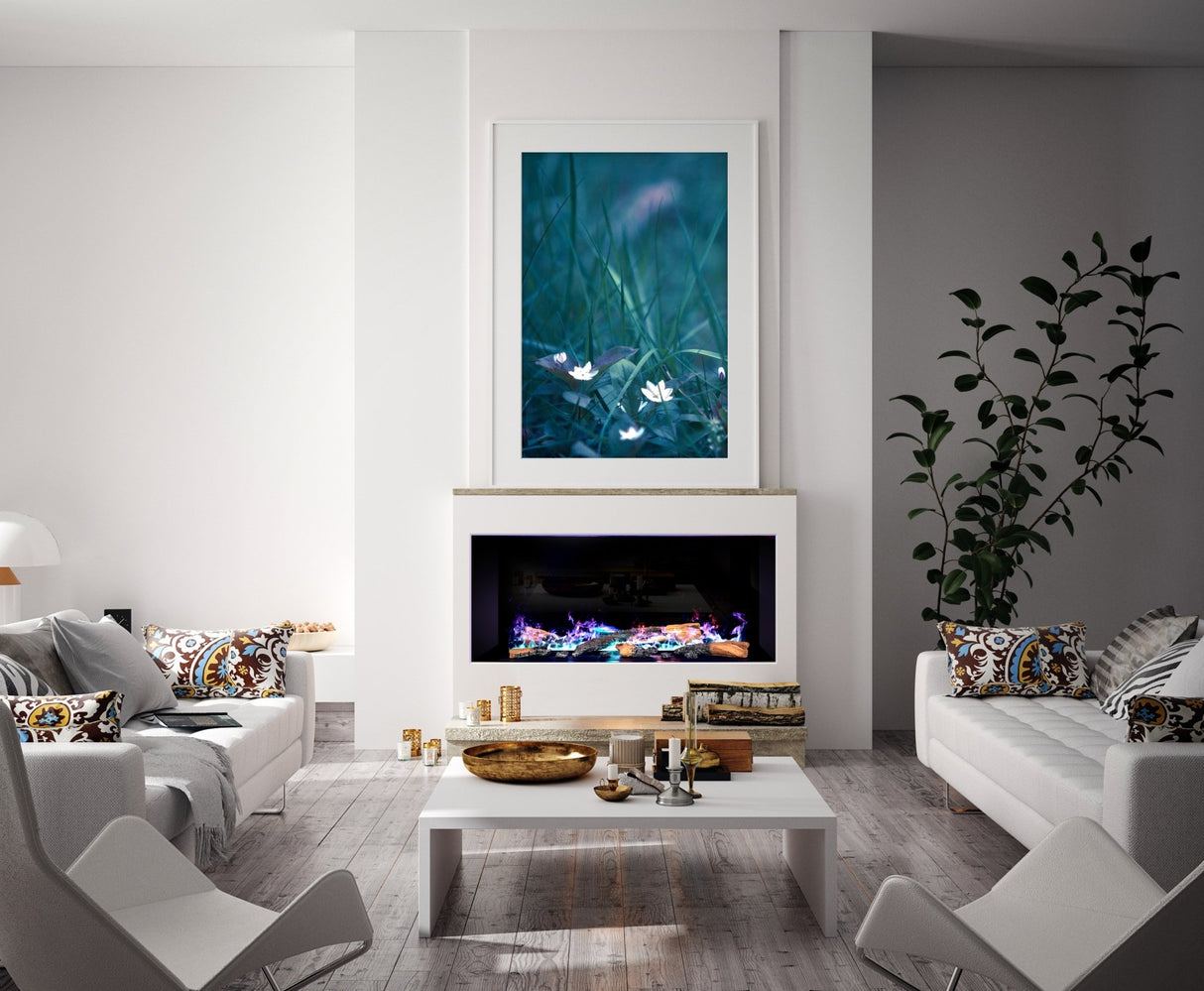

• More than 30 LED flame colors with two rows of controllable lighting effects
• Wi-Fi control through the AFIRE AWP app, plus a dry-contact input for a wall switch or home automation system
• Direct plumb components included: connect a 1/4 inch water line for unlimited run time with automatic fill and pump-assisted drain
• Adjustable flame height and speed from the remote
• 2.0 liters (about 0.5 gallon) internal tank with automatic fill pump and roughly 20 hours of flame per fill
• Automatic UV-C sanitizing lamps keep the water path and vapor clean
• Modular: link additional Waterplace burners for a continuous ribbon of flame up to 20 feet long

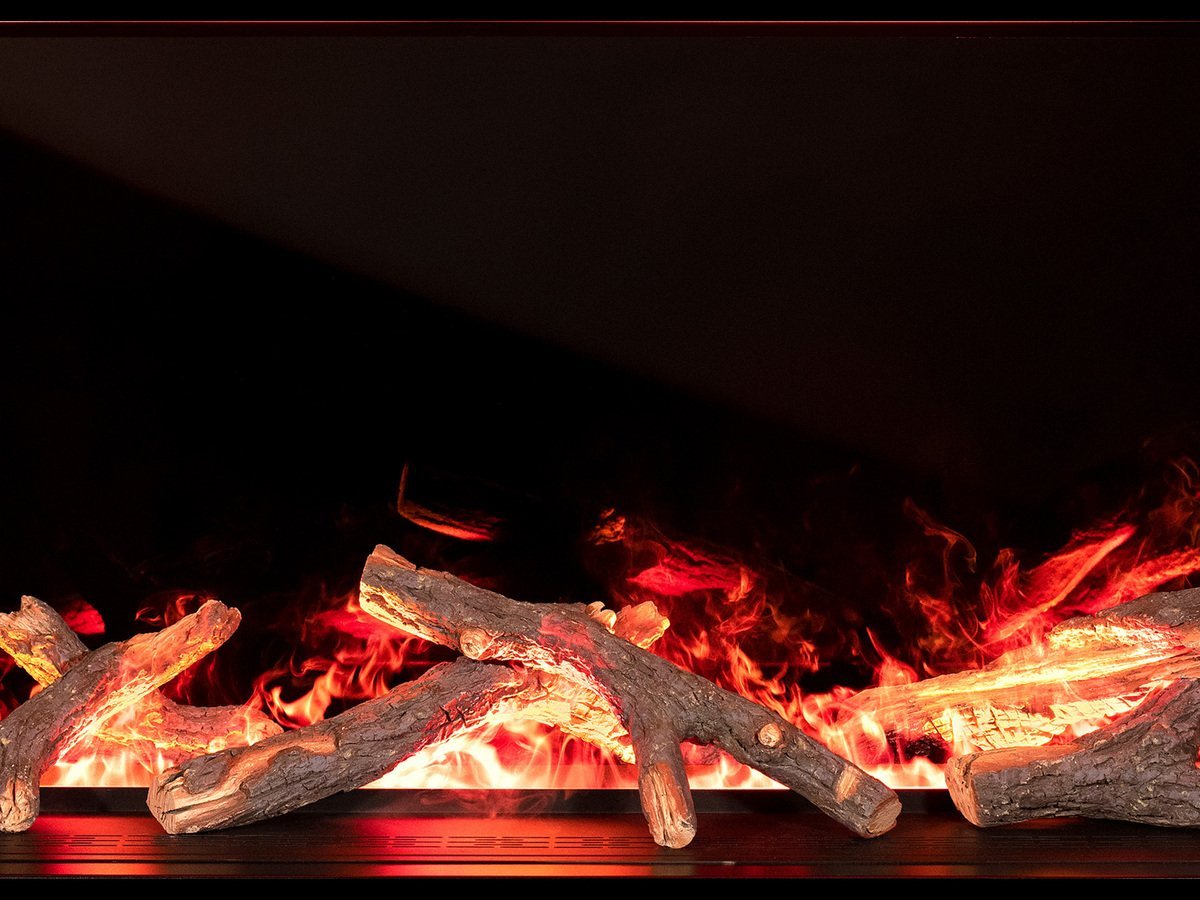

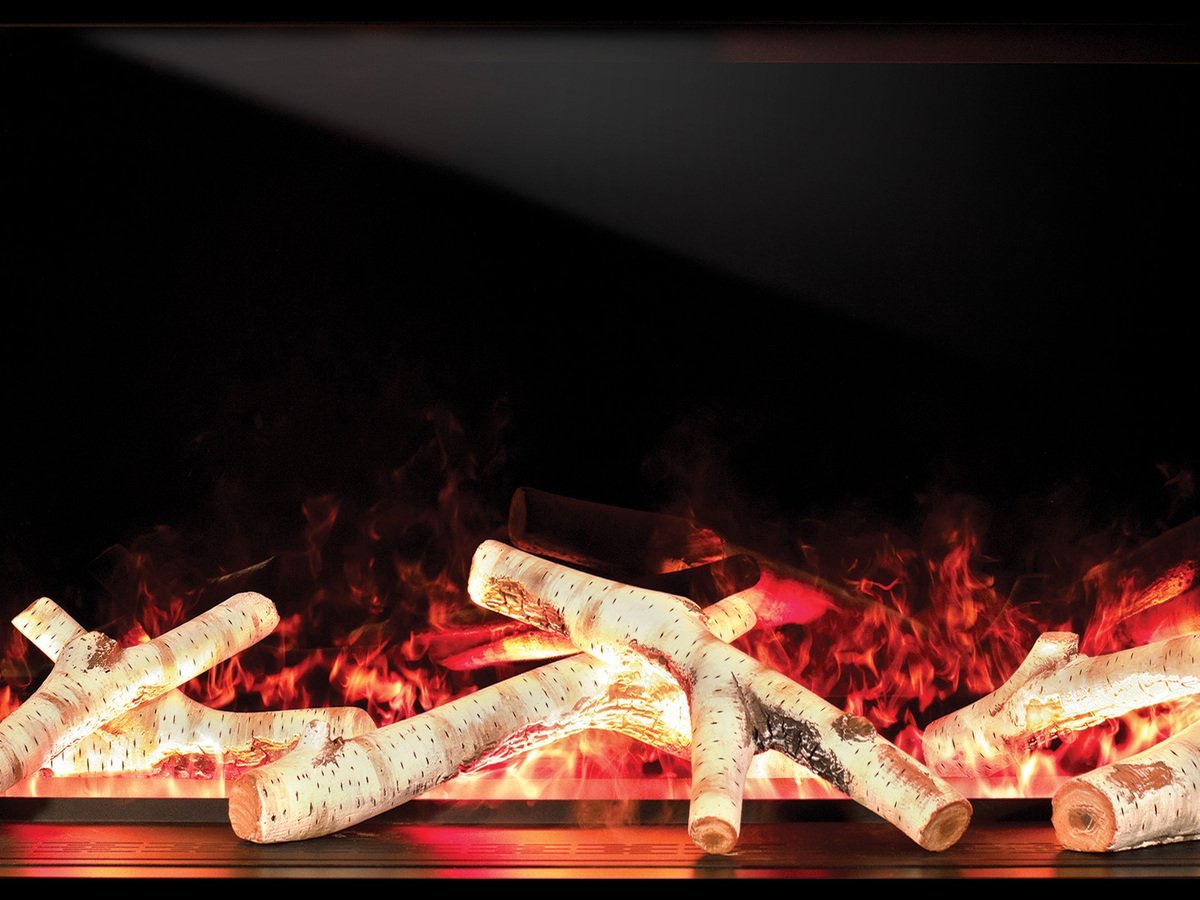

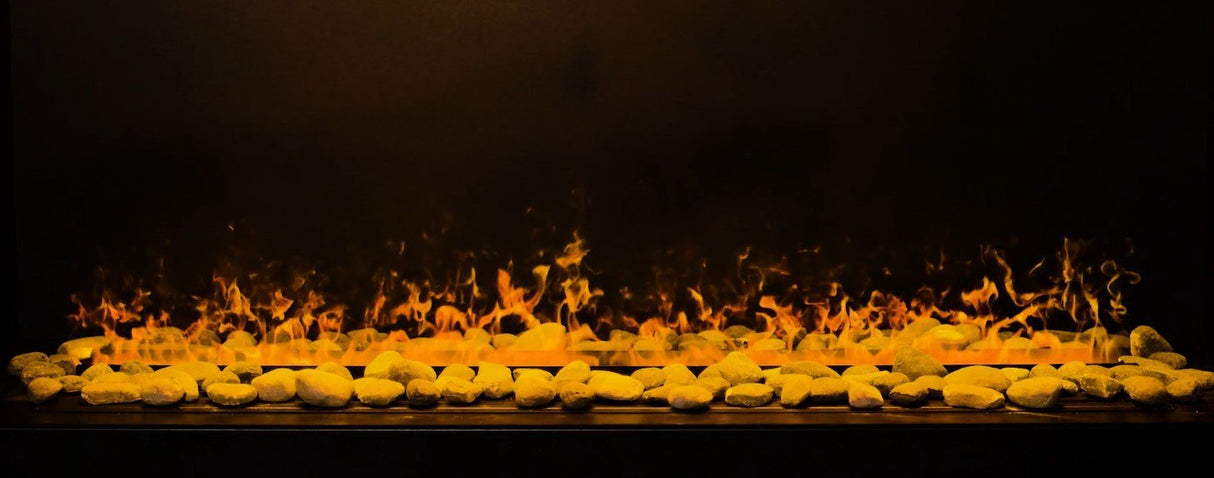

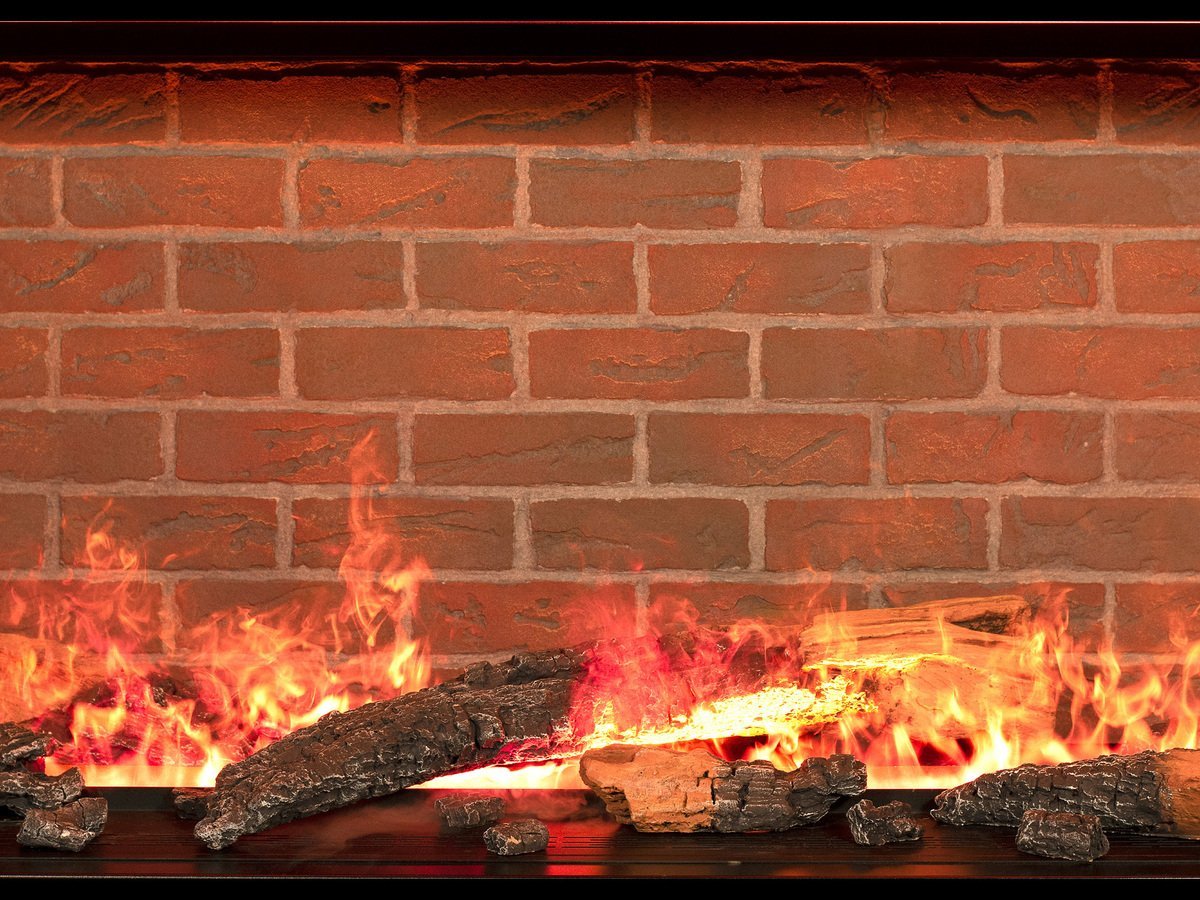

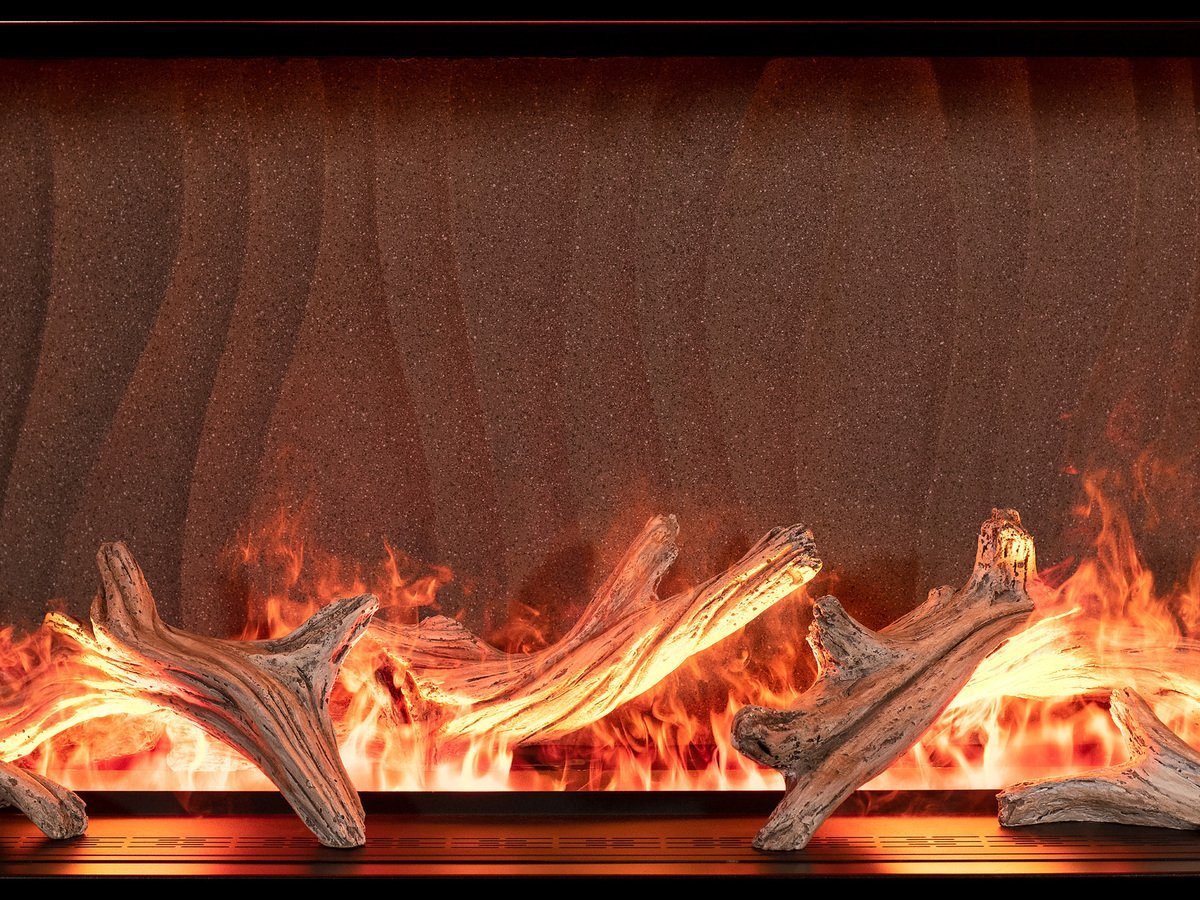

• Accepts NetZero HD log sets (Birch, White Oak, Norway Spruce, Driftwood), glass and stone media, and liners
• Drops into the NetZero NZW36F factory firebox (single-sided, left-corner, right-corner or three-sided) or a site-built enclosure

What Is Included and What You Will Need

• Included: NZWP20B burner with top plate, 24V power adapter, remote control, fill and drain hose with basket filter
• Included: direct plumb connection components for a 1/4 inch PEX water line (bottom or side entry)
• Required: a sealed enclosure or NetZero firebox, and a 120V outlet inside the enclosure
• Optional: water line with shutoff and a suitable reducer to 1/4 inch; an inline softener or NetZero water filter kit AA-11-05632 is recommended where water is hard
• Optional, selectable above: HD log set, decorative media, and the NZW36F factory-built firebox

Installation Notes

120V indoor appliance, no venting, no gas. Build a sealed enclosure to the cavity dimensions above with a 120V outlet inside for the 24V transformer, and keep the burner out of drafts, which flatten the flame. Platinum burners ship ready for a direct water connection; run a 1/4 inch line with a shutoff into the enclosure and the unit fills and drains itself. LED light shines upward out of the enclosure unless you build a light trap (NetZero publishes guidelines). Use soft or slightly hard tap water, drain the tanks if unused for more than a week, and clean the float sensors once or twice a year. With no combustion, it is suitable for New York City apartments where gas fireplaces are not permitted. We install and service Waterplace burners across NYC and Long Island; book a free design consultation to plan the enclosure, millwork and water line.

Documentation

• Spec Sheet
• Installation Manual
• NetZero Waterplace Burner Installation Manual (manufacturer)
• Waterplace Firebox Installation Manual (manufacturer)
• Light Trap Guidelines (manufacturer)
• NetZero firebox spec sheets and CAD files

Frequently Asked Questions

Does the Waterplace give off any heat?

No. The flame is cool water vapor lit by LEDs. It is a decorative fire feature only, which is why it can go under a TV, inside cabinetry or in a space where a heater would be a problem.

Can I connect it to a water line?

Yes. Platinum burners include the direct plumb components; connect a 1/4 inch line and the unit fills and drains automatically.

Can I install this in a New York City apartment?

Yes. There is no combustion, gas or venting, so the NYC Fuel Gas Code restrictions on vent-free gas appliances do not apply. It needs only a 120V outlet and, if you want, a water line.

What does Platinum add over the standard Waterplace?

Over 30 flame colors with two rows of controllable LEDs, Wi-Fi app control, a dry contact for home automation, automatic draining, and built-in direct plumb components for unlimited run time.

Related reading: Water Vapor Fireplace Buying Guide and Water Vapor vs Electric Fireplace.

Warranty

NetZero Fire covers the burner with a two year limited warranty from the date of purchase for the original purchaser. The mist maker and LED light strips are wear items and are excluded. Monthly cleaning is required to keep the warranty in force, and damage from hard water, improper water connection or freight is not covered.
