Description
Description
Overall Dimensions: 23-7/8 in. W x 31-7/8 in. H x 23-5/32 in. D (cutout 24 in. W x 32 in. H x 24 in. D), per True Residential

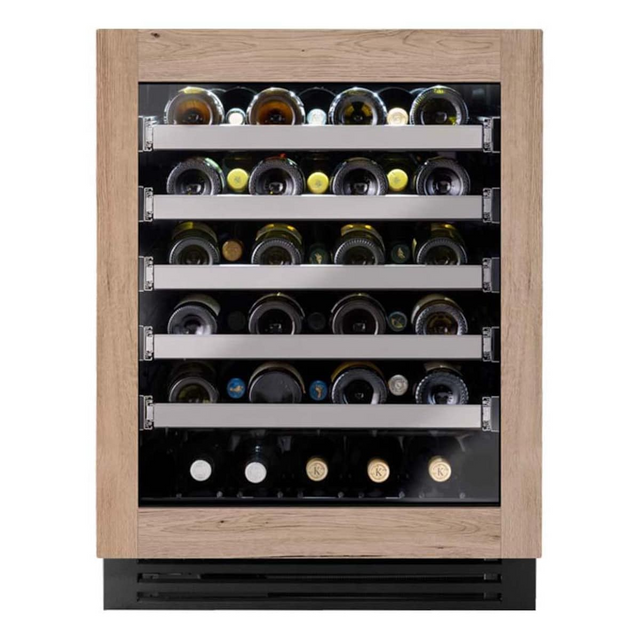

The True TUWADA-24-LG-A-O is a 24 in. ADA-height wine cabinet that holds 40 bottles in a single 40°F to 65°F zone and stands 31-7/8 in. tall to fit under a 32 in. ADA-compliant counter. It has an overlay-ready glass door with a left hinge on an articulating soft-close mechanism that can be reversed in the field. Five pull-out racks and a floor cradle keep labels visible and bottles easy to reach in accessible kitchens, bars and outdoor islands.
Key Specifications
| Model | TUWADA-24-LG-A-O |
| Type | ADA-height single-zone wine cabinet |
| Door | Overlay-ready glass door, left hinge; articulating soft-close, field-reversible |
| Bottle capacity | 40 bottles: 5 pull-out PVC-coated wire racks of 7 and a floor cradle of 5 |
| Temperature range | 40°F to 65°F |
| Overlay panel | Standard panel 23-5/8 x 28 x 3/4 in., provided by others |
| Interior and exterior | Black aluminum interior, black powder-coated steel exterior |
| Refrigeration | Forced air, R600a refrigerant; concealed digital controls |
| Lighting | White LED |
| Electrical | 115 V, 60 Hz, 0.8 A; 10 ft cord |
| Energy | 195 kWh per year |
| Weight | 225 lb |
| Leveling | 4 adjustable leg levelers standard |
| Certifications | UL rated for outdoor use; NSF/ANSI Standard 7 |
Dimensions and Cutout
| Cabinet (W x H x D) | 23-7/8 in. x 31-7/8 in. x 23-5/32 in. (+/- 1/8 in.) |
| Rough opening (W x H x D) | 24 in. x 32 in. x 24 in. minimum |
| Outdoor install | Flush install with the countertop covering the gasket; rough opening at least 24 in. deep; 4 x 10 in. rear vent if ambient regularly exceeds 95°F |
Features
- 40 bottles in a 24 in. ADA-height cabinet
- Single zone, 40°F to 65°F
- 5 pull-out wine racks plus floor cradle
- Overlay glass door framed by your panel
- Articulating soft-close, field-reversible hinge
- White LED lighting
- 4 adjustable leg levelers
- UL rated for outdoor use
What Is Included and What You Will Need
- Included: TUWADA-24-LG-A-O wine cabinet with 5 pull-out racks, floor cradle, 4 leg levelers and installation guide
- Required: custom overlay panel (23-5/8 x 28 x 3/4 in. standard) made by your cabinet maker
- Optional (True accessories): 2-1/2 in. legs, 6 in. toe kick
Installation Notes
True rates all of its undercounter units for outdoor use under UL. For outdoor kitchens, True recommends a flush install with the countertop covering the door gasket, a rough opening at least 24 in. deep, and a 4 x 10 in. rear vent where ambient temperatures regularly exceed 95°F; the gaskets are not a watertight seal against the elements. It plugs into a properly grounded 115 V, 60 Hz outlet on its own dedicated circuit; True prohibits adapter plugs and extension cords, and anti-tip brackets must be installed. In New York City apartments and terraces, plan the outlet and any GFCI requirement with your electrician and building early. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Will it fit under an ADA counter?
Yes. It is 31-7/8 in. tall for a 32 in. high, 24 in. wide and 24 in. deep cutout.
How many bottles?
40 standard bottles: 35 on five pull-out racks and 5 in the floor cradle.
Can the hinge be switched?
Yes. The soft-close hinge is field reversible.
Can it go outdoors?
Yes. True rates it for outdoor use; winterize it when temperatures stay at 32°F or below.
Related reading: Outdoor Refrigerator and Ice Maker Buying Guide and Outdoor Kitchen Planning Guide.
Warranty
True Residential ADA line warranty (spec sheet): 2 years full parts and labor and 5 years sealed system parts and labor.
