Description
Description
Stock Status: In Stock - Ships within 2-3 weeks | Standard Color - 8 Weeks | Color Match - 18 Weeks
Overall Dimensions: 14 7/8 in W x 23 19/32 in D x 31 7/8 in H

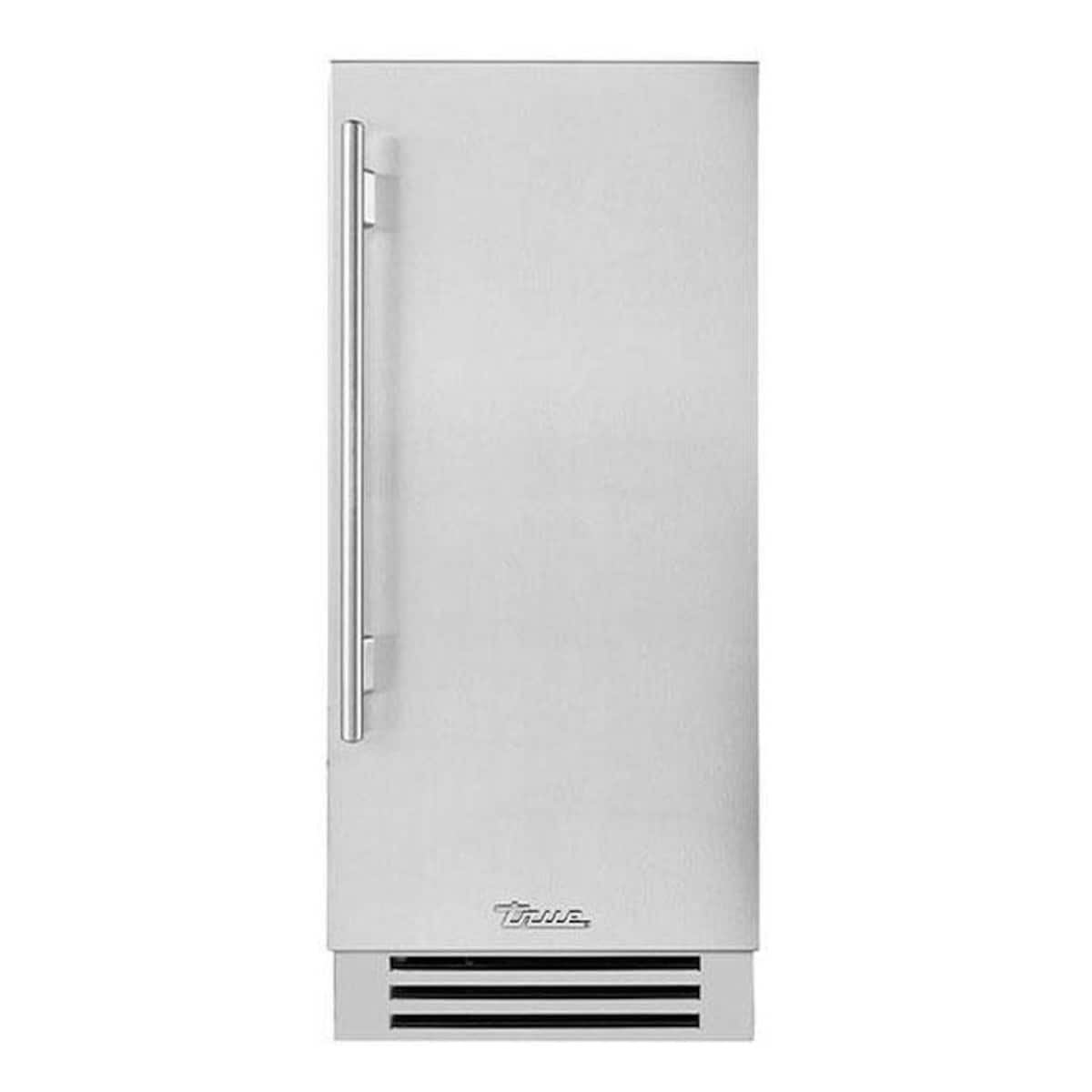

The True TUIADA-15-RS-A-S is a 15 in ADA-height clear ice machine with a solid stainless steel door that hinges on the right. At 32 in rough opening height it fits under an ADA-compliant countertop, and it makes up to 75 lbs of clear ice per day with a 28 lb bin. It is UL rated for outdoor use and includes a built-in drain pump, so it suits outdoor kitchens and bars that have no floor drain.
Key Specifications
| Model | TUIADA-15-RS-A~S (right hinge, stainless solid door) |
|---|---|
| Ice Type | Clear ice |
| Ice Production | Up to 75 lbs per day |
| Ice Storage | 28 lbs |
| Bin Level Control | 50%, 65%, 70%, 85% and 100% |
| Drain | Built-in drain pump, 1/2 in NPT connection |
| Controls | Concealed digital control behind the toekick |
| Refrigerant | R290 |
| Electrical | 115V, 60 Hz, 2.85 amps, 9 ft power cord; dedicated circuit required |
| Operating Range | Air and water temperature 40F to 100F; water pressure 20 to 80 psig |
| Weight | 140 lbs |
| Ratings | UL rated for outdoor use, NSF Standard 12 certified, Energy Star rated |
Dimensions and Cutout
| Unit (W x H x D) | 14 7/8 in x 31 7/8 in x 23 19/32 in (plus or minus 1/8 in) |
|---|---|
| Cutout (W x H x D) | 15 in x 32 in x 24 in minimum rough opening |
| Water and Drain | 1/4 in OD water supply (copper, braided stainless or PEX, compression fittings, not included); drain line rise up to 84 in on 3/8 in OD tubing, up to a 100 ft run |
Features
- Up to 75 lbs of clear ice per day with a 28 lb storage bin
- ADA height with four adjustable leg levelers
- Built-in drain pump and automatic cleaning system
- External water filter kit included, rated up to 1250 gallons
- Articulating, soft close hinge for integrated installation
- Concealed digital control behind the toekick, with TruLumina LED lighting in 14 color options
- True Magna Scoop stores on the door; ice scoop included
- UL rated for outdoor use; Energy Star rated; R290 refrigerant
What Is Included and What You Will Need
- Included: the ice machine with solid stainless steel door, True Magna Scoop, built-in drain pump, external water filter kit and 4 adjustable leg levelers.
- Needed: a cold water supply line with a shutoff valve and the supply tubing and fittings, a drain connection, and a dedicated 115V circuit. The water filter must be installed or the warranty is void.
- Optional from True: descaling solution, replacement water filter and anti-condensation pads.
Installation Notes
True requires the machine to be protected from direct rain, and it is not suitable where a pressure washer or hose is used. Build it into a masonry, brick or wood undercounter enclosure for the safest outdoor installation. Winterize the unit before it is exposed to temperatures below 32F; freeze damage is not covered by the warranty. Use no adapter plug or extension cord. Book a consultation and our team will plan the cutout, water, drain and power for your outdoor kitchen.
Documentation
Frequently Asked Questions
Can this ice machine be used outdoors?
Yes. It is UL rated for outdoor use, but it must be protected from direct rain and winterized before freezing weather.
Does it need a floor drain?
No. It has a built-in drain pump, which can lift drain water through 3/8 in OD tubing up to 84 in vertically.
Does it need a door panel?
No. This model has a solid stainless steel door. The overlay panel version is the TUIADA-15-LS-A~O.
Is the water filter required?
Yes. An external water filter is included, and the manufacturer states that failing to install it voids the machine warranty.
Related reading: Outdoor Refrigerator and Ice Maker Buying Guide.
Warranty
True Residential covers this unit with a 2 year full parts and labor warranty and a 5 year sealed system parts and labor warranty. The unit must be installed with the supplied water filter, and freeze damage is not covered.
