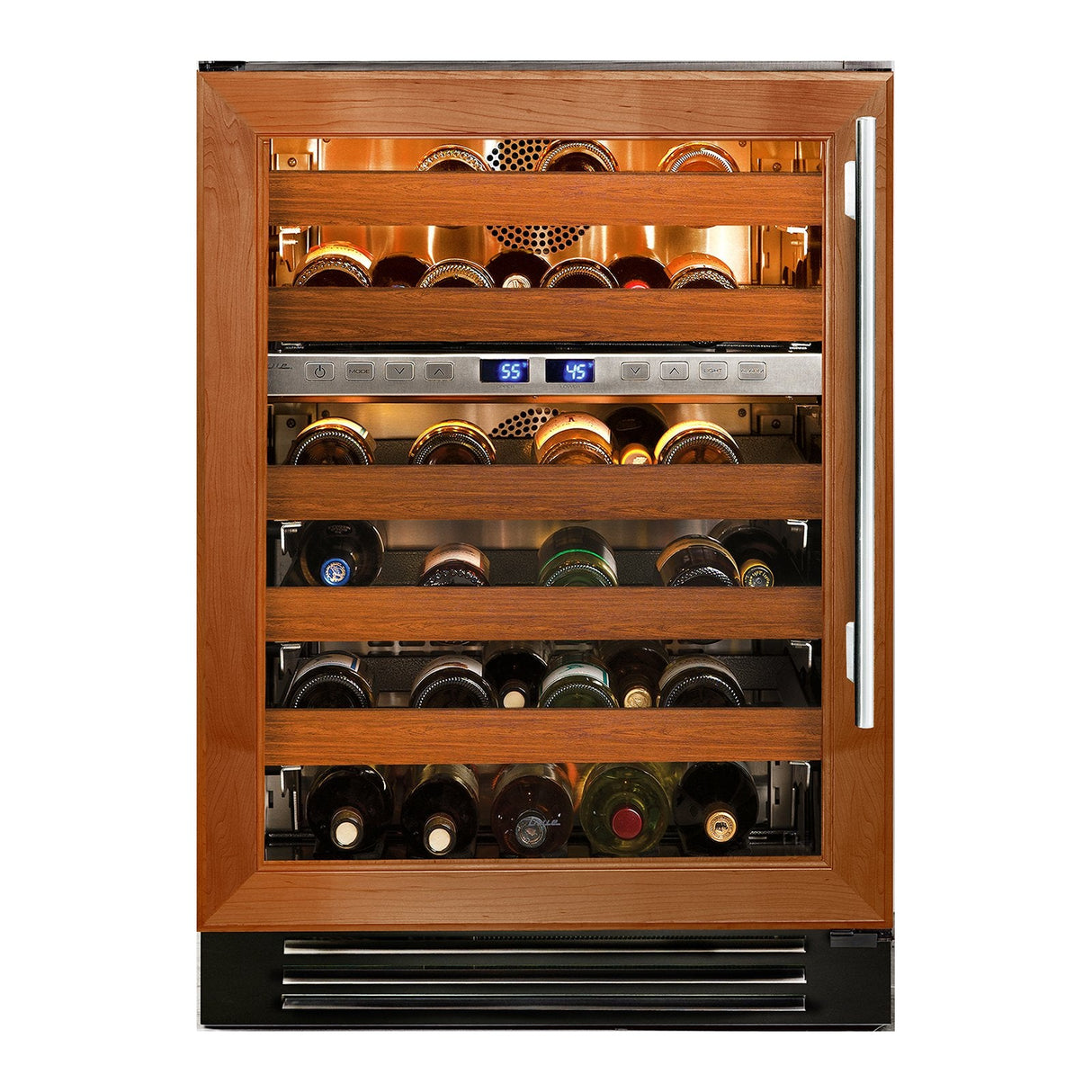

True ADA Height 24 Inch 40 Bottle Left Hinge Glass Door Outdoor Wine Cabinet - Overlay Ready - TUWADA-24-LG-A~O
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
True ADA Height 24 Inch 40 Bottle Left Hinge Glass Door Outdoor Wine Cabinet - Overlay Ready - TUWADA-24-LG-A~O is backordered and will ship as soon as it is back in stock.
Choose with help from our Maspeth showroom. Read customer reviews on Google.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Local delivery or pick-up. Eligible local orders are delivered by our team up to 120 miles. Product-specific limits and charges apply; see checkout or call for a quote.
- Factory-authorized True Residential dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Maspeth, NY 11378
- Monday–Friday
- 9:00 AM–5:00 PM
- Saturday
- 10:00 AM–3:00 PM
- Sunday
- Closed
Call ahead to confirm the model you want to see and pickup readiness.
Shipping & Delivery Area
Shipping & Delivery Area
- Online shipping is limited to Maine, Vermont, New York, New Hampshire, Massachusetts, Connecticut, Pennsylvania, New Jersey, Maryland, Delaware and Rhode Island.
- Eligible orders over $999 receive free standard shipping; eligible orders of $999 or less have a flat rate shown at checkout.
- Our own trucks deliver eligible local orders up to 120 miles. e-NRG fuel, white-glove delivery and assembly have separate eligibility, distance limits and charges.
- For other states, or when no delivery option appears, call 718-326-4328 for a quote before ordering.
- Read the shipping policy for details.
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
Call for a free quote 718-326-4328
Visit our sister site to learn more about our showroom products like Direct Vent Gas Fireplaces, www.NYCFireplaces.com
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
True ADA Height 24 Inch 40 Bottle Left Hinge Glass Door Outdoor Win...
True ADA Height 24 Inch 40 Bottle Left Hinge Glass Door Outdoor Wine Cabinet - Overlay Ready - TUWADA-24-LG-A~O is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 23-7/8 in. W x 31-7/8 in. H x 23-5/32 in. D (cutout 24 in. W x 32 in. H x 24 in. D), per True Residential
The True TUWADA-24-LG-A-O is a 24 in. ADA-height wine cabinet that holds 40 bottles in a single 40°F to 65°F zone and stands 31-7/8 in. tall to fit under a 32 in. ADA-compliant counter. It has an overlay-ready glass door with a left hinge on an articulating soft-close mechanism that can be reversed in the field. Five pull-out racks and a floor cradle keep labels visible and bottles easy to reach in accessible kitchens, bars and outdoor islands.
Key Specifications
| Model | TUWADA-24-LG-A-O |
| Type | ADA-height single-zone wine cabinet |
| Door | Overlay-ready glass door, left hinge; articulating soft-close, field-reversible |
| Bottle capacity | 40 bottles: 5 pull-out PVC-coated wire racks of 7 and a floor cradle of 5 |
| Temperature range | 40°F to 65°F |
| Overlay panel | Standard panel 23-5/8 x 28 x 3/4 in., provided by others |
| Interior and exterior | Black aluminum interior, black powder-coated steel exterior |
| Refrigeration | Forced air, R600a refrigerant; concealed digital controls |
| Lighting | White LED |
| Electrical | 115 V, 60 Hz, 0.8 A; 10 ft cord |
| Energy | 195 kWh per year |
| Weight | 225 lb |
| Leveling | 4 adjustable leg levelers standard |
| Certifications | UL rated for outdoor use; NSF/ANSI Standard 7 |
Dimensions and Cutout
| Cabinet (W x H x D) | 23-7/8 in. x 31-7/8 in. x 23-5/32 in. (+/- 1/8 in.) |
| Rough opening (W x H x D) | 24 in. x 32 in. x 24 in. minimum |
| Outdoor install | Flush install with the countertop covering the gasket; rough opening at least 24 in. deep; 4 x 10 in. rear vent if ambient regularly exceeds 95°F |
Features
- 40 bottles in a 24 in. ADA-height cabinet
- Single zone, 40°F to 65°F
- 5 pull-out wine racks plus floor cradle
- Overlay glass door framed by your panel
- Articulating soft-close, field-reversible hinge
- White LED lighting
- 4 adjustable leg levelers
- UL rated for outdoor use
What Is Included and What You Will Need
- Included: TUWADA-24-LG-A-O wine cabinet with 5 pull-out racks, floor cradle, 4 leg levelers and installation guide
- Required: custom overlay panel (23-5/8 x 28 x 3/4 in. standard) made by your cabinet maker
- Optional (True accessories): 2-1/2 in. legs, 6 in. toe kick
Installation Notes
True rates all of its undercounter units for outdoor use under UL. For outdoor kitchens, True recommends a flush install with the countertop covering the door gasket, a rough opening at least 24 in. deep, and a 4 x 10 in. rear vent where ambient temperatures regularly exceed 95°F; the gaskets are not a watertight seal against the elements. It plugs into a properly grounded 115 V, 60 Hz outlet on its own dedicated circuit; True prohibits adapter plugs and extension cords, and anti-tip brackets must be installed. In New York City apartments and terraces, plan the outlet and any GFCI requirement with your electrician and building early. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Will it fit under an ADA counter?
Yes. It is 31-7/8 in. tall for a 32 in. high, 24 in. wide and 24 in. deep cutout.
How many bottles?
40 standard bottles: 35 on five pull-out racks and 5 in the floor cradle.
Can the hinge be switched?
Yes. The soft-close hinge is field reversible.
Can it go outdoors?
Yes. True rates it for outdoor use; winterize it when temperatures stay at 32°F or below.
Related reading: Outdoor Refrigerator and Ice Maker Buying Guide and Outdoor Kitchen Planning Guide.
Warranty
True Residential ADA line warranty (spec sheet): 2 years full parts and labor and 5 years sealed system parts and labor.
