Description
Description
Overall Dimensions: 24 in. W (cutout 22 in. W x 20-1/2 in. D x 11-1/2 in. H)
The Twin Eagles TEPB24HG is a 24 in. built-in power burner with an oversized cast brass two-ring burner rated at 70,000 BTU and independent control down to a low simmer. It is built for stockpots, seafood boils and commercial woks in an outdoor kitchen.
The HG model uses a reversible heavy-duty grate of 8 mm welded stainless plates, lights with a hot surface igniter and has Exclusive Control Illumination on the knob. Choose natural gas or propane, with or without the vinyl cover.
Key Specifications
| Models | TEPB24HG-CN (natural gas), TEPB24HG-CL (propane) |
|---|---|
| Input | 70,000 BTU total, two-ring cast brass burner |
| Grate | Reversible heavy-duty grate, 8 mm stainless welded plates |
| Ignition | Hot surface igniter with safety gas valve; match-light backup |
| Electrical | 120 V, 60 Hz, 2.2 A on a GFCI-protected circuit |

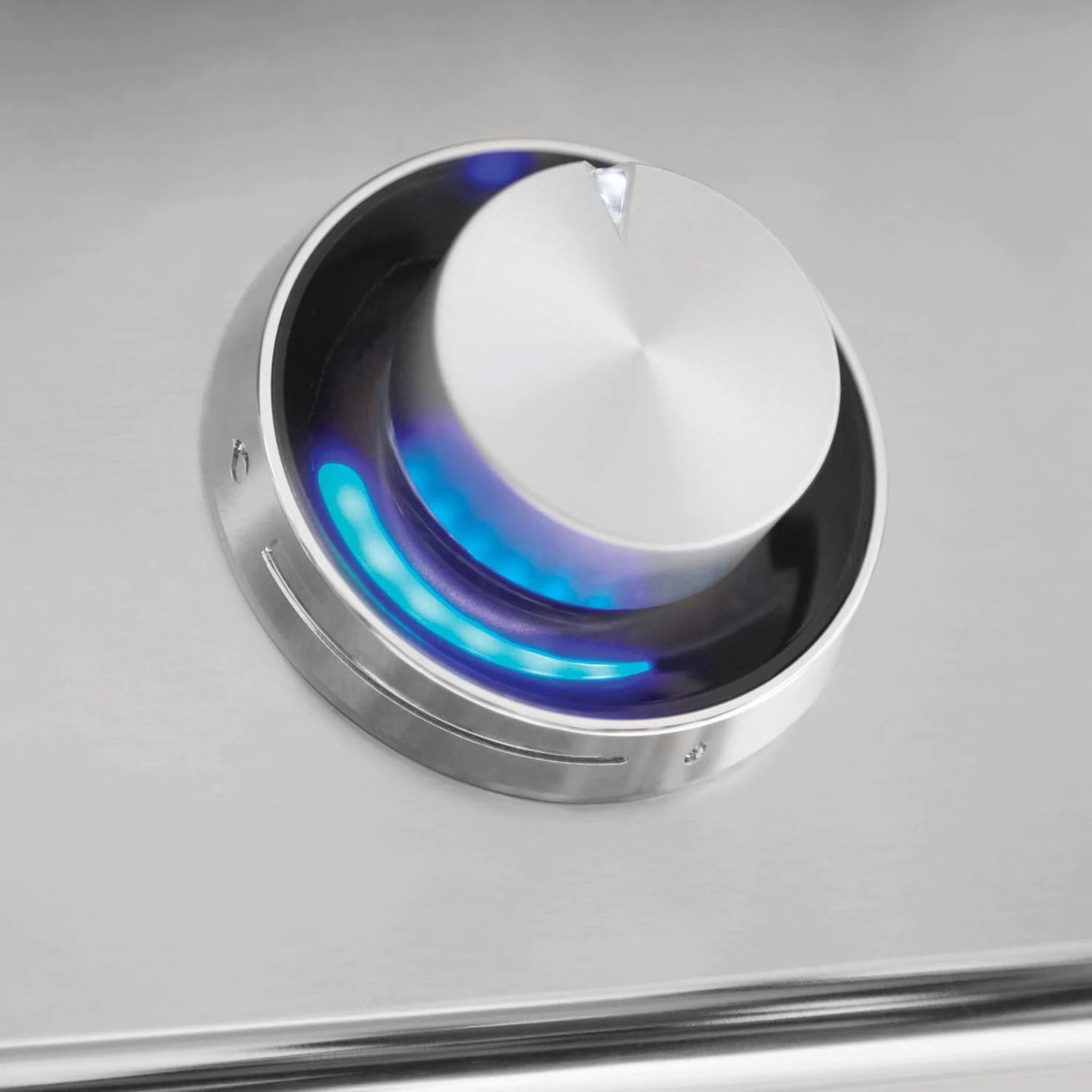

| Lighting | Exclusive Control Illumination knob |
| Gas pressure | NG regulator set to 4 in. w.c., convertible to 10 in. w.c. LP; 14 in. w.c. maximum inlet |

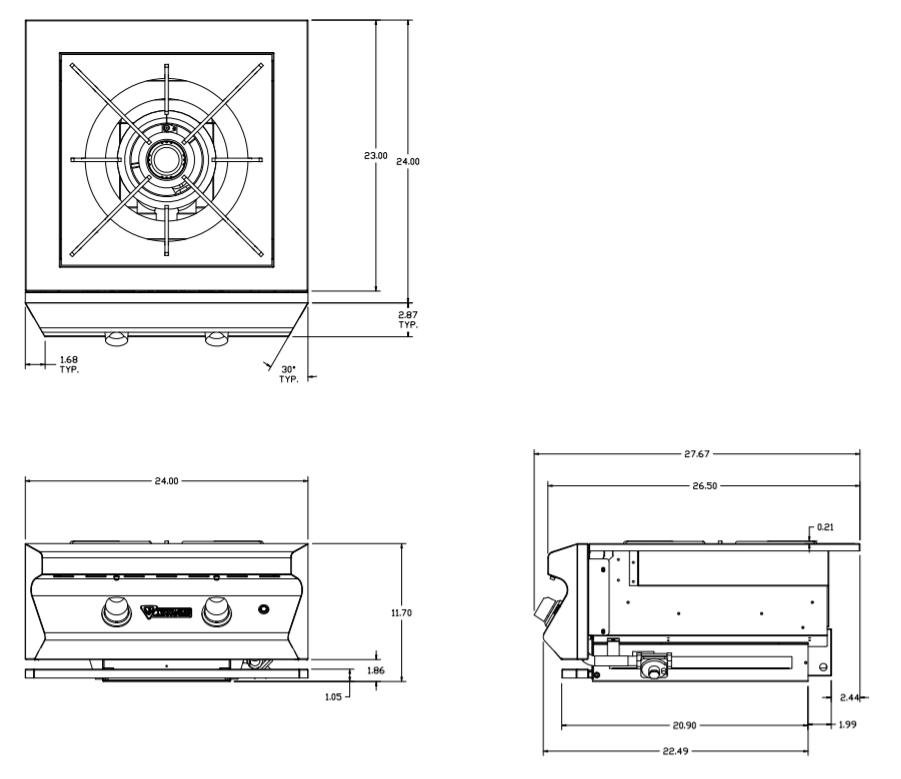

Dimensions and Cutout
| Cutout (W x D x H) | 22 in. x 20-1/2 in. x 11-1/2 in. |
|---|---|
| Enclosure | Non-combustible; Twin Eagles recommends building the enclosure 6 to 12 in. lower than the countertop |
| Clearance to combustibles | 12 in. at the sides and 6 in. at the back |
| Above cooking surface | 1 in. at the back to non-combustible construction; 1 in. at the sides recommended |
Features
- 70,000 BTU two-ring cast brass burner
- Independent ring control with low simmer
- Reversible heavy-duty welded plate grate
- Hot surface ignition
- Exclusive Control Illumination
- Fully extending drip pan
- Optional 18 x 18 in. griddle plate (TEGP18-PB)
What Is Included and What You Will Need
- Included: power burner with heavy-duty grate, drip pan assembly and factory-installed regulator; stainless steel cover per Twin Eagles brochure
- Required: a non-combustible island opening, gas supply and a GFCI-protected 120 V outlet
- Optional: vinyl cover VCPB24 (variant on this listing)
Installation Notes
Install in a non-combustible enclosure cut to 22 in. x 20-1/2 in. x 11-1/2 in., keeping 12 in. to combustible walls at the sides and 6 in. at the back. Plug into a GFCI-protected 120 V outlet. Gas connections should be made by a licensed plumber; in New York City that means a licensed master plumber and permit. Book an outdoor kitchen design consultation and we will plan the island, gas and electrical with you.
Documentation
Frequently Asked Questions
How powerful is it?
70,000 BTU from a two-ring cast brass burner, with a low simmer setting.
What cutout does it need?
22 in. W x 20-1/2 in. D x 11-1/2 in. H in a non-combustible enclosure.
Does it need electricity?
Yes. The hot surface igniter needs a GFCI-protected 120 V outlet.
Can I use a wok on it?
Yes. The reversible heavy-duty grate is designed for commercial woks and stockpots.
Related reading: Side Burner, Power Burner and Griddle Guide and Outdoor Kitchen Planning Guide.
Warranty
Twin Eagles power burner warranty per the owner's manual: one-year full warranty on the burner and all components, and a limited two-year warranty on defective parts (labor, shipping and handling paid by the owner). Original owner with proof of purchase; return the registration card within 30 days.
