Warming Trends Crossfire CFBDT Double Tree-Style Brass Gas Fire Pit Burner Kit
Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.
Warming Trends Crossfire CFBDT Double Tree-Style Brass Gas Fire Pit Burner Kit - 160K BTU 15.5 x 10-Inch with WATERSTOP / Natural Gas / I already have a Plate is backordered and will ship as soon as it is back in stock.
Pickup available at Maspeth, NY Showroom
Usually ready in 2-4 days
- Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
- Factory-authorized Warming Trends dealer. You keep the full manufacturer warranty.
- 30-day returns, no restocking fee.
- Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Free & Flat Rate Shipping
Free & Flat Rate Shipping
- Orders Over $999 Ship Out Fast & Free
- Delivery typically takes 5 -7 transit days
- $19.95-$99.95 Flat-Rate Shipping on orders under $999
- Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
- Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel
Assembly & Installation
Assembly & Installation
Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!
WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW
- Outdoor Kitchens
- Outdoor Fireplaces/Firepits
- Outdoor Pizza Ovens
- Gas Fireplaces
- Gas Inserts
- Gas Log Sets
- Fireplace Doors
- Fireplace Mantels
- Electric Fireplaces
- Water Vapor Fireplaces
- Ethanol Fireplaces
Call for a free quote 718-326-4328
Warranty
Warranty
Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.
Returns
Returns
- No-Restock Fees
- 30-Day Return Policy
- The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
- We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.
Warming Trends Crossfire CFBDT Double Tree-Style Brass Gas Fire Pit...
Warming Trends Crossfire CFBDT Double Tree-Style Brass Gas Fire Pit Burner Kit - 160K BTU 15.5 x 10-Inch with WATERSTOP / Natural Gas / I already have a Plate is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 15.5 x 10 in. (160,000 BTU) to 52.75 x 10.125 in. (480,000 BTU), per listing
The Warming Trends CROSSFIRE CFBDT is a double tree-style brass burner kit for building or converting a rectangular gas fire pit. Each kit pairs a 100% brass CROSSFIRE burner, whose jets mix gas and air for tall, bright flames, with a flex line kit, a key valve kit and match lit operation. Choose from 5 sizes from 160,000 to 480,000 BTU, natural gas or propane, and add a burner plate sized to the burner if you do not already have one.
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBDT double tree-style burner kit (5 sizes) |
| Burner material | 100% brass |
| Output | 160,000 to 480,000 BTU depending on size (select above) |
| Fuel | Natural gas or propane, burner built for one fuel (select above) |
| Ignition | Match lit with key valve |
| Gas inlet pressure (match lit) | Natural gas 3.5 to 7.0 in. W.C.; propane 11.0 to 13.0 in. W.C. |
| Flex line | Single flex line kit on smaller sizes, dual flex line kit on larger sizes (FK1 / FK2 in the SKU) |
| WATERSTOP fitting | CFBDT160, CFBDT240 (per listing) |
| Certification | Not on the certified burner list in the Warming Trends Version 6 manual (6/26) or ICC-ES listing PMG-1213 (March 2026) with any ignition; local code official approval required |
| Made in | USA (Warming Trends) |
Dimensions and Cutout

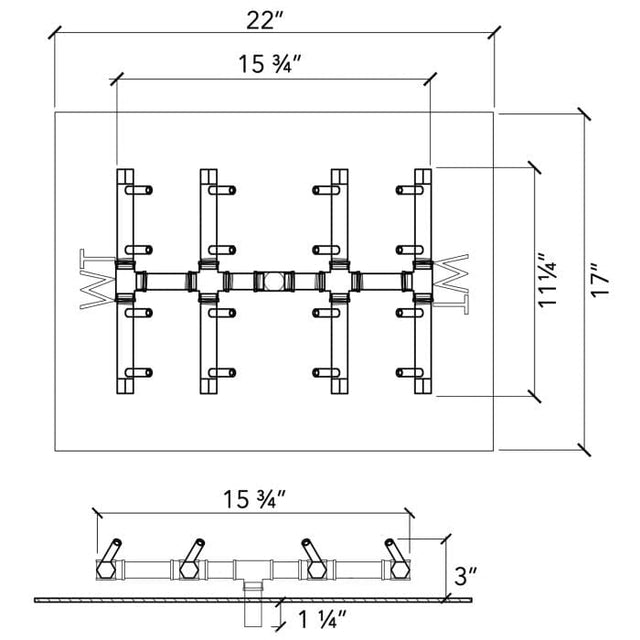

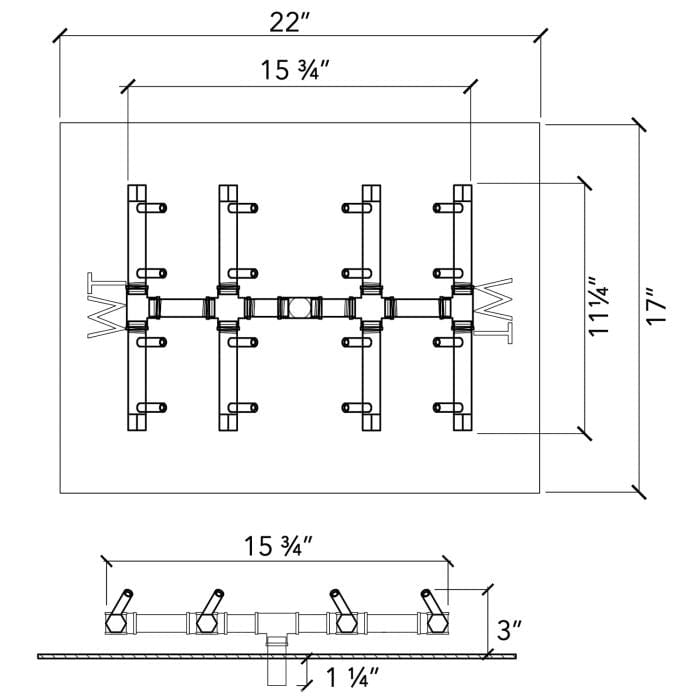

| CFBDT160 | 160,000 BTU; burner 15.5 x 10 in.; 1/2 in. inlet; plate 22 x 17 in. |

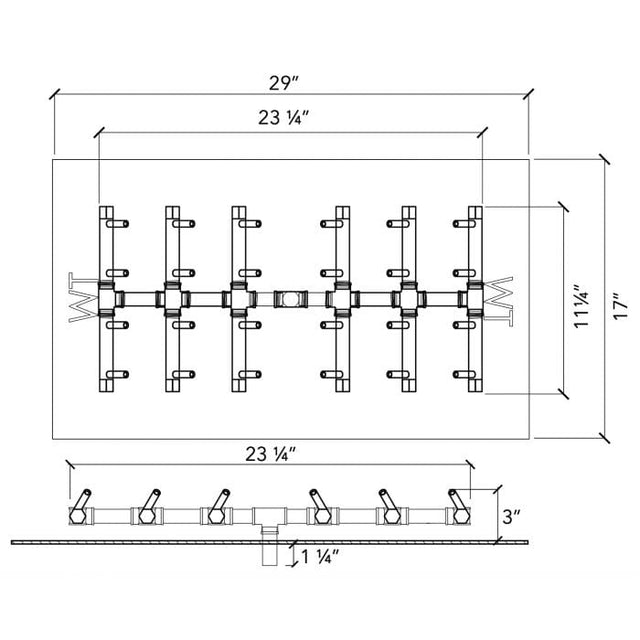

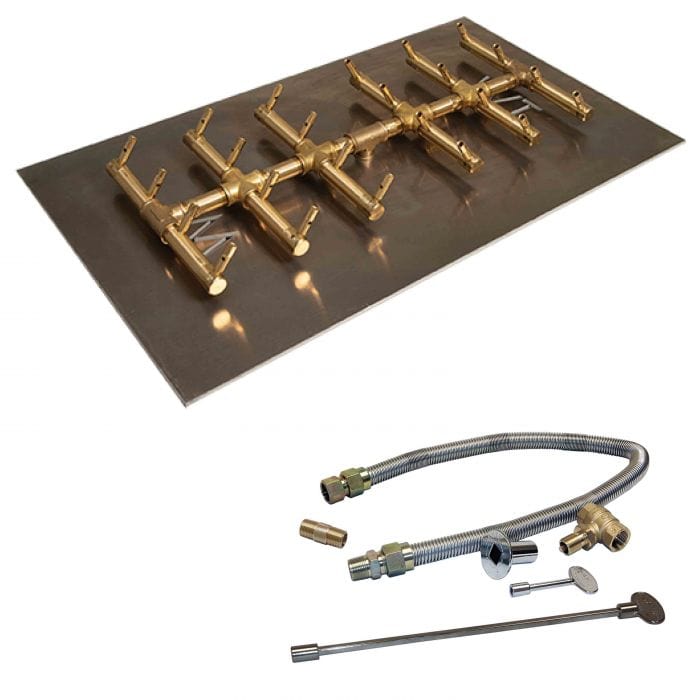

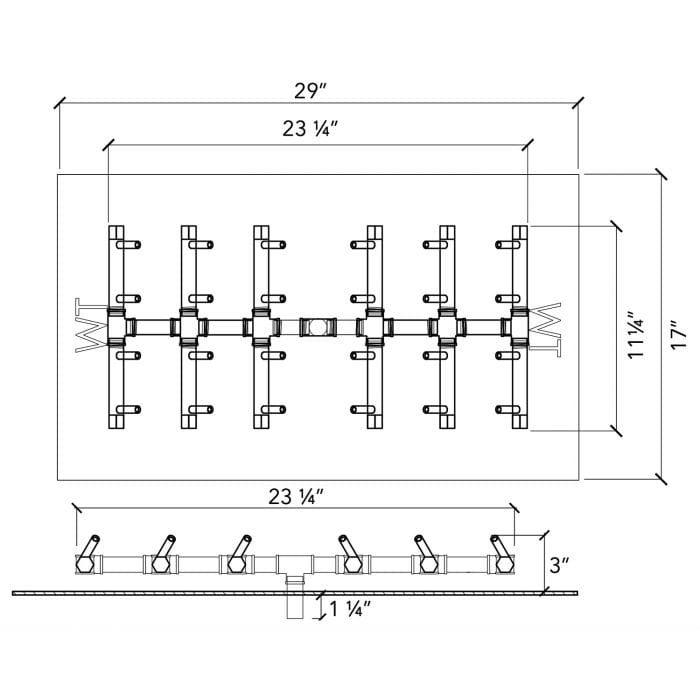

| CFBDT240 | 240,000 BTU; burner 25.5 x 10 in.; 1/2 in. inlet; plate 29 x 17 in. |

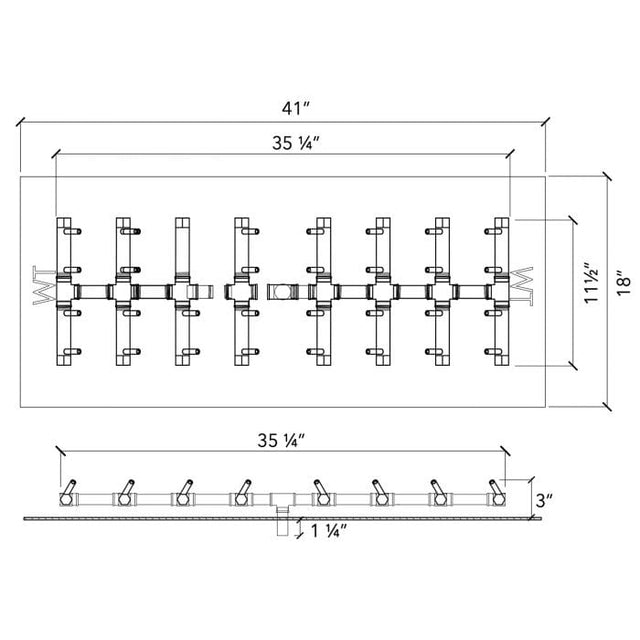

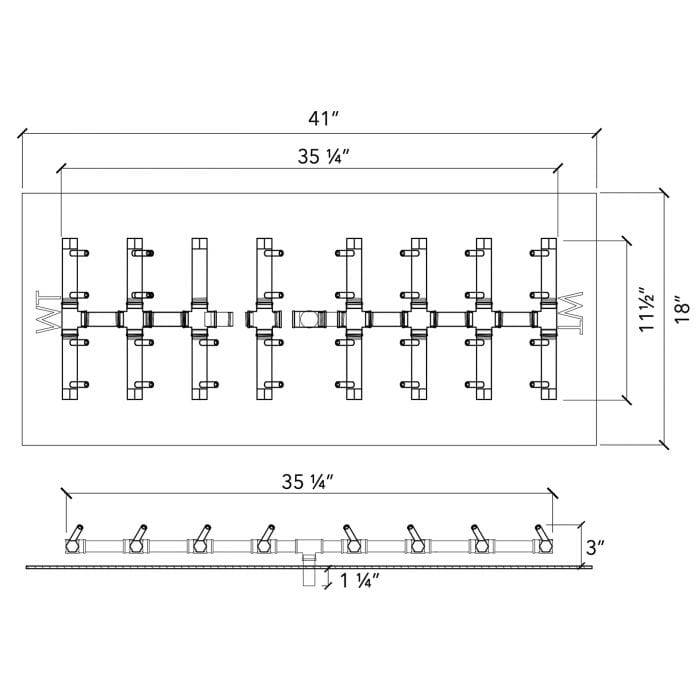

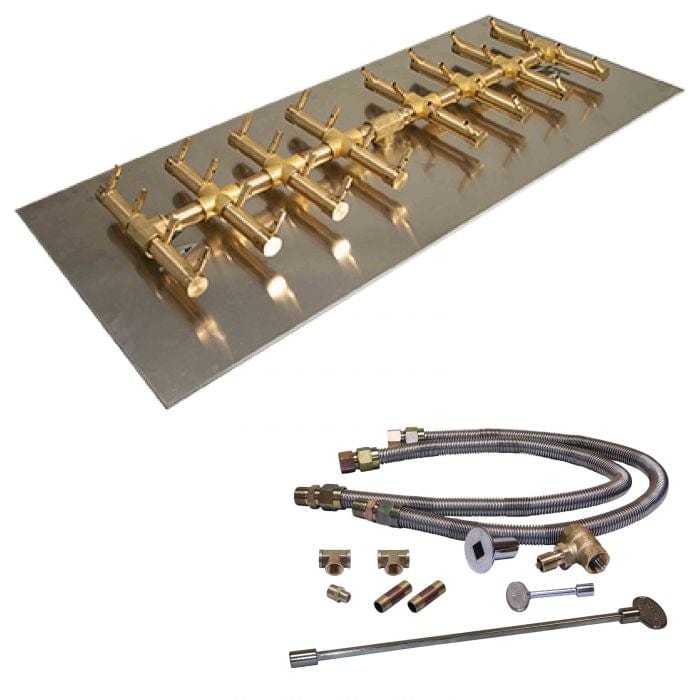

| CFBDT320 | 320,000 BTU; burner 35 x 10.125 in.; 3/4 in. inlet; plate 41 x 18 in. |

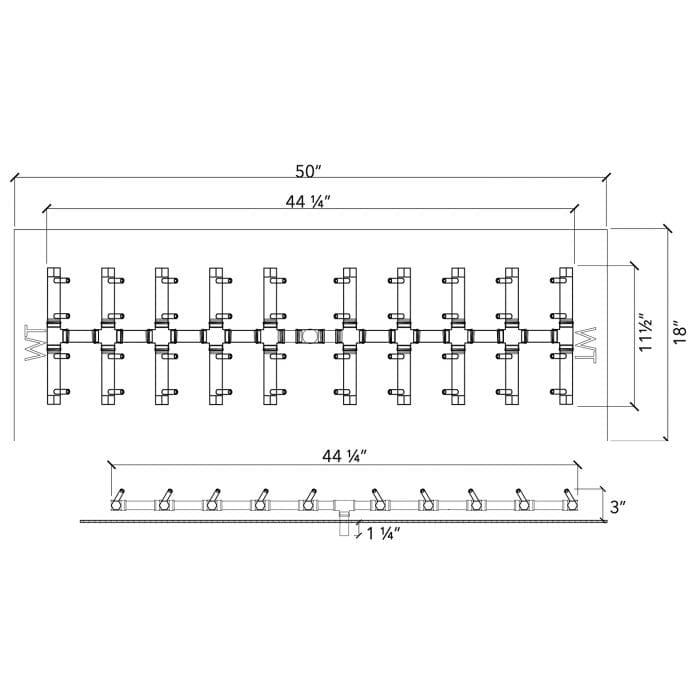

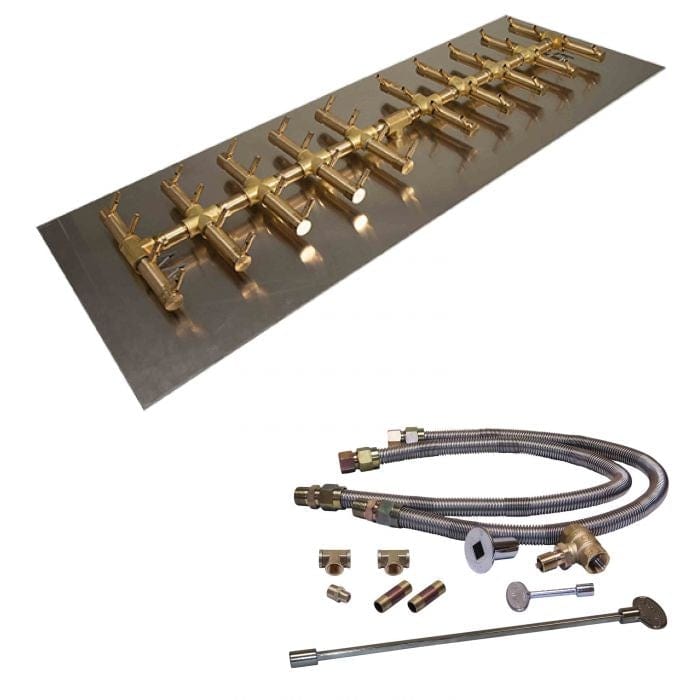

| CFBDT400 | 400,000 BTU; burner 43.875 x 10.125 in.; 3/4 in. inlet; plate 50 x 18 in. |

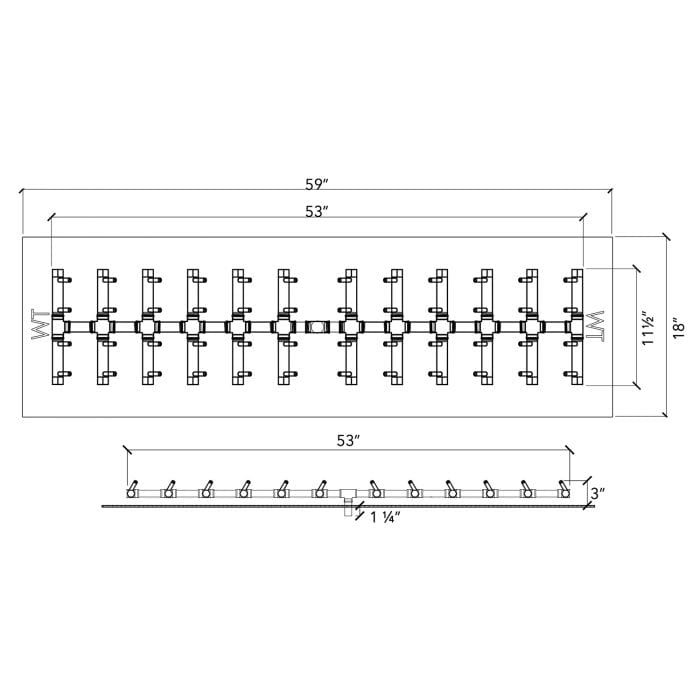

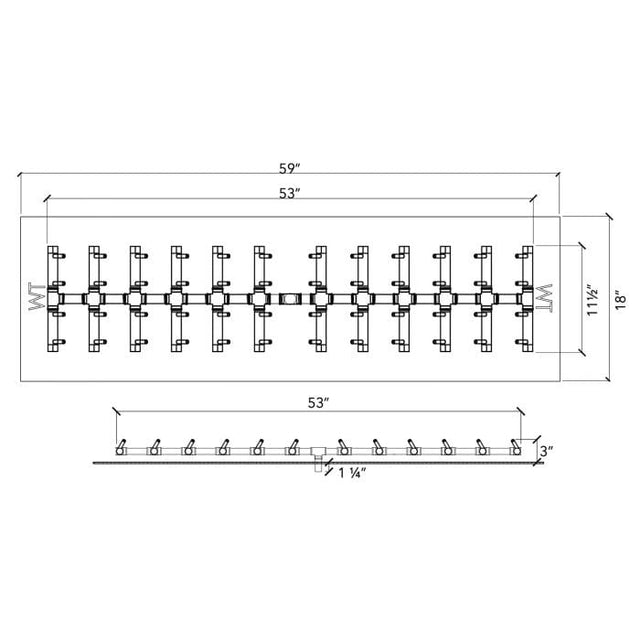

| CFBDT480 | 480,000 BTU; burner 52.75 x 10.125 in.; 3/4 in. inlet; plate 59 x 18 in. |
| Sizes source | Burner sizes and inlets per listing; plate sizes match the Warming Trends burner size guide |
Features
- 100% brass CROSSFIRE burner that will not rust
- Jetted design for tall, bright flames
- Match lit operation with key valve, no power needed
- 5 sizes from 160,000 to 480,000 BTU
- Natural gas or propane versions
- Optional burner plate sized to each burner
- Full lifetime burner warranty
- Made in the USA
What Is Included and What You Will Need

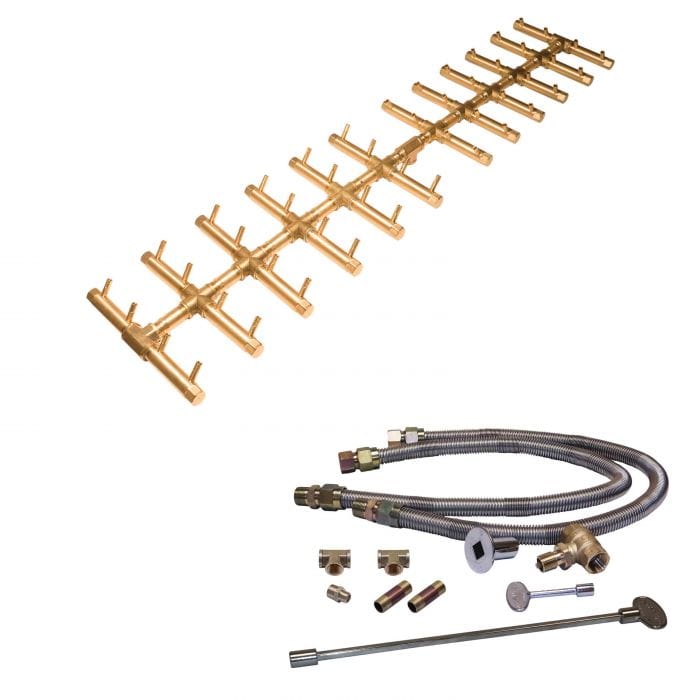

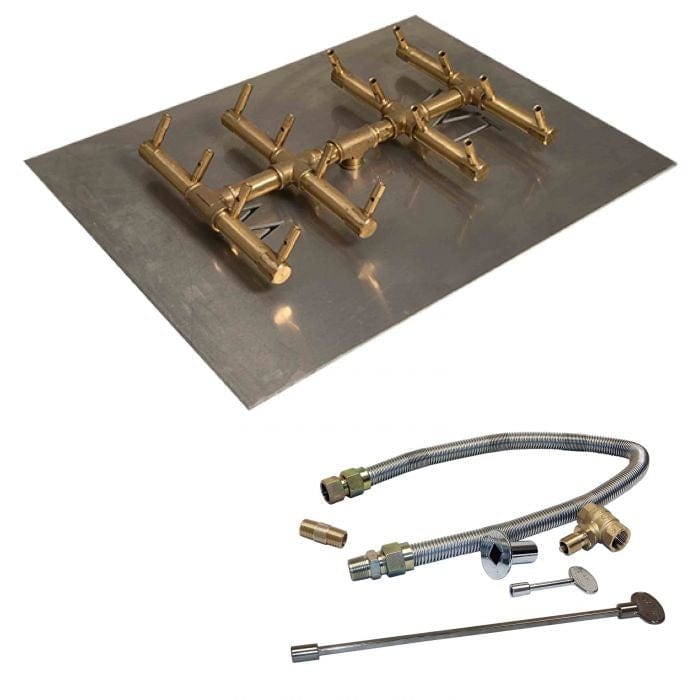

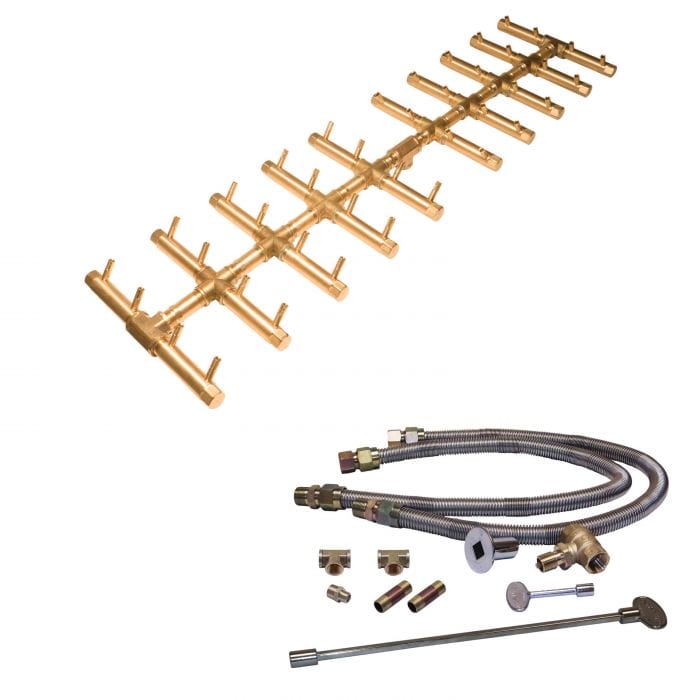

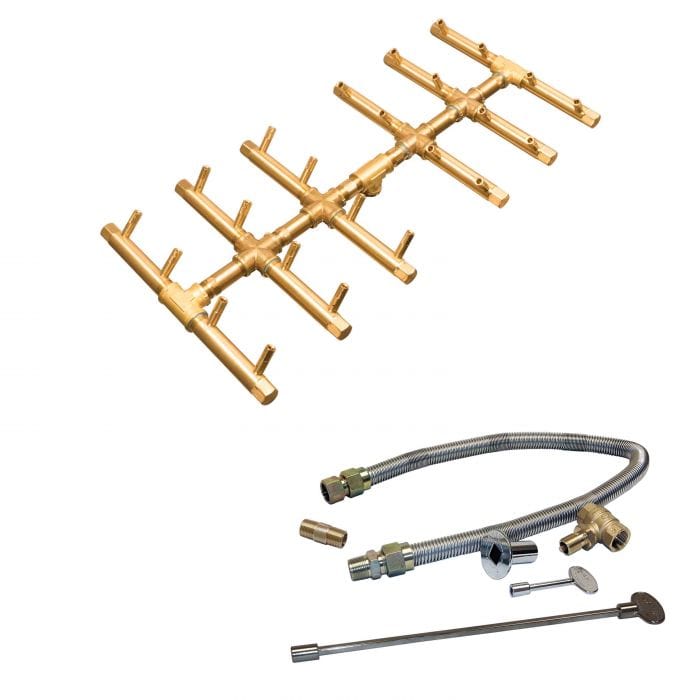

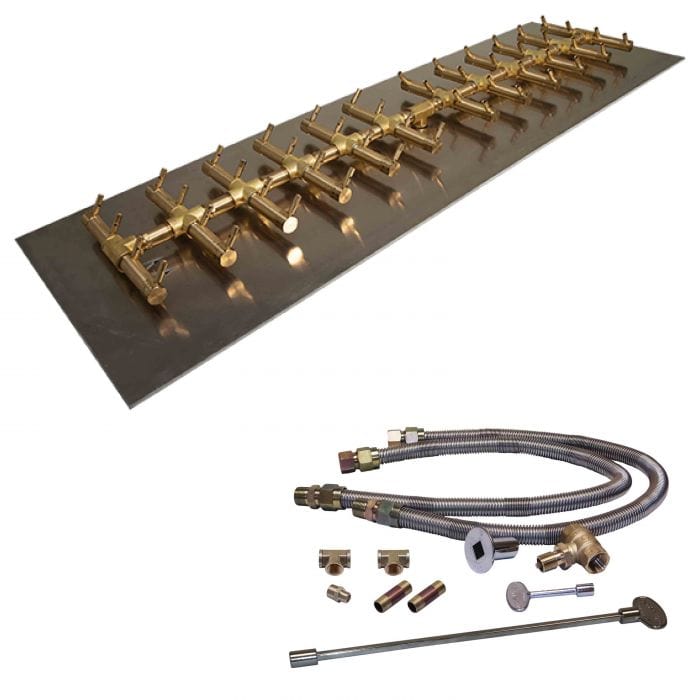

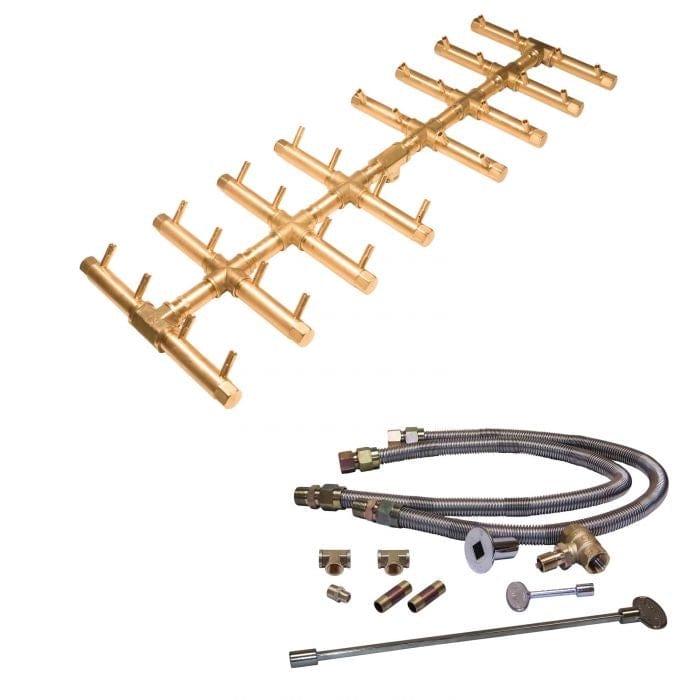

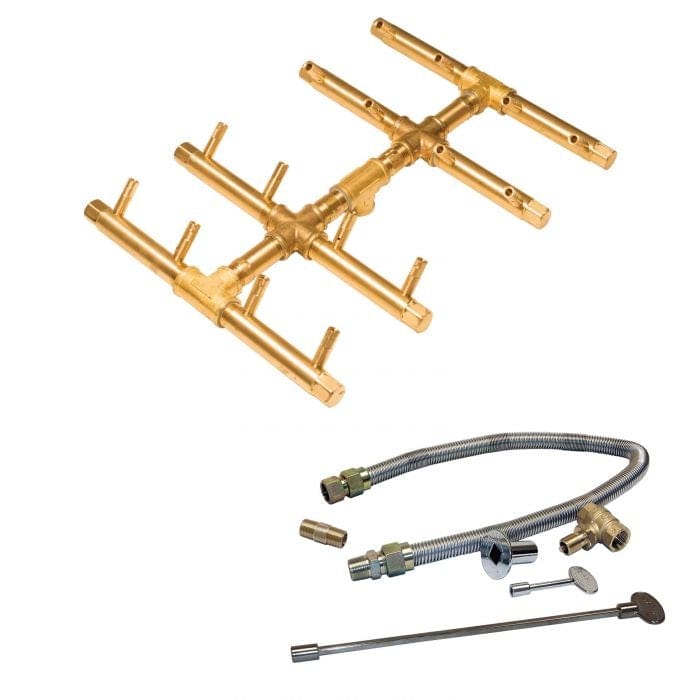

- Included: CROSSFIRE CFBDT brass burner, flex line kit (two flex lines on larger sizes), key valve kit with chrome decorative flange and two keys, match lit setup
- Optional (select above): burner plate sized to the burner
- Required: a non-combustible, vented enclosure, a gas shutoff outside the fire feature, a licensed gas installer and fire-rated media
- Optional, sold separately: lava rock or fire glass
Installation Notes
Build a non-combustible enclosure with at least two vents of 18 sq in. each on opposing sides, placed mid to low; do not fill the cavity with gravel, rock or concrete; support the plate on blocks, bricks or L-brackets rather than on the gas valve; and recess the burner 4 to 6 in. below the top to protect the flame from wind, per Warming Trends instruction manual V3.1. Keep 36 in. horizontal and 120 in. overhead clearance to combustibles and fit a gas shutoff outside the fire feature. A licensed gas professional should make the connection and leak test. Certification: no CFBDT Double Tree size appears on the Warming Trends certified burner list in the Version 6 manual (6/26) or in ICC-ES listing PMG-1213 (effective March 2026), with match lit or electronic ignition. The certified CROSSFIRE tree-style burners are the single-row CFBT110 to CFBT470 sizes, listed match lit and with Warming Trends push button spark (PBIK), 3V battery (3VIK), 24V electronic (24VIK and P24VIK), Mercury and Platinum ignition systems. Because it is not a certified configuration, installation requires approval from your local code official (the authority having jurisdiction) before you buy and install it. In New York City, fixed gas piping requires a licensed master plumber and permits, and rules for open flame and propane on terraces and rooftops vary by building, so confirm what is allowed before you order. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Owner/Instruction Manual
- Manual De Instrucciones
- Burner Size Guide

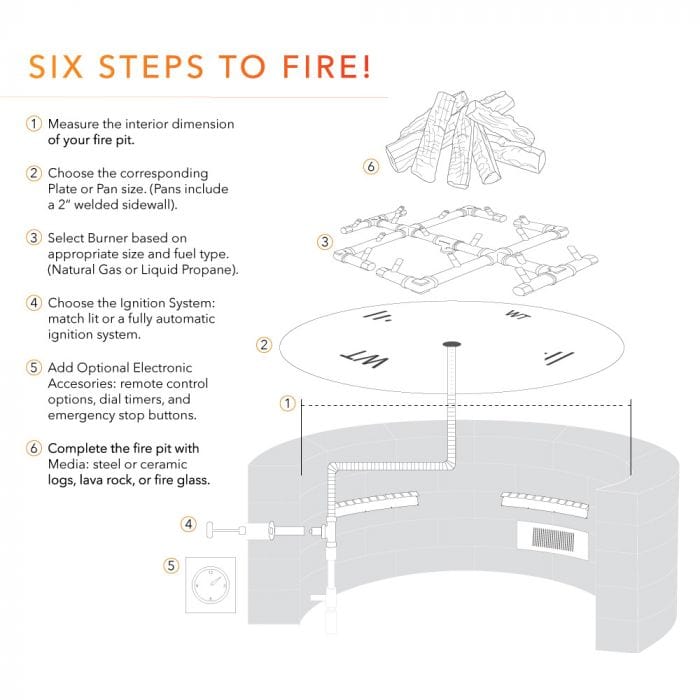

- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual, Version 6 (6/26)
- ICC-ES Listing PMG-1213, Warming Trends Certified Burner Systems (effective March 2026)
Frequently Asked Questions
Which size do I need?
Match the plate size to the inside dimensions of your fire pit, then check that your gas supply can deliver the burner's BTU rating; the Warming Trends burner size guide lists each match.
Do I need the plate option?
Only if your fire pit does not already have a plate or pan. Choose I already have a Plate to buy the burner kit alone.
Natural gas or propane?
Each burner is built for one fuel. Order the version that matches your supply; propane needs 11 to 13 in. W.C. and natural gas 3.5 to 7 in. W.C. for match lit use.
What media can I use?
Fire-rated media made for fire features, 1/2 in. or larger, placed on the plate rather than dumped over the burner and no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends full lifetime warranty on CROSSFIRE brass burners from the date of purchase, transferable with proof of ownership (Warming Trends warranty and manual V3.1). Repair or exchange is free during the warranty period; misuse, installation defects, modification and indoor use are excluded, and installation services and electronics are not covered by the burner warranty.
