Warming Trends Crossfire CFBT Tree-Style Brass Gas Fire Pit Burner Kit
Warming Trends Crossfire CFBT Tree-Style Brass Gas Fire Pit Burner Kit - 110K BTU 13.375 x 5.875-Inch / Natural Gas / I already have a Plate is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 13.375 x 5.875 in. (110,000 BTU) to 69.25 x 6.125 in. (470,000 BTU), per listing

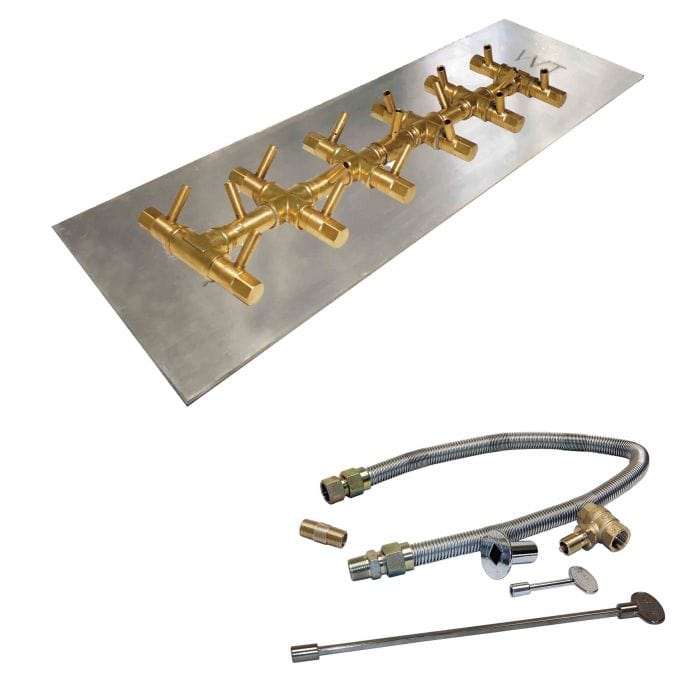

The Warming Trends CROSSFIRE CFBT is a tree-style brass burner kit for building or converting a rectangular or linear gas fire pit. Each kit pairs a 100% brass CROSSFIRE burner, whose jets mix gas and air for tall, bright flames, with a flex line kit, a key valve kit and match lit operation. Choose from 7 sizes from 110,000 to 470,000 BTU, natural gas or propane, and add a burner plate sized to the burner if you do not already have one.
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBT tree-style burner kit (7 sizes) |
| Burner material | 100% brass |
| Output | 110,000 to 470,000 BTU depending on size (select above) |
| Fuel | Natural gas or propane, burner built for one fuel (select above) |
| Ignition | Match lit with key valve |
| Gas inlet pressure (match lit) | Natural gas 3.5 to 7.0 in. W.C.; propane 11.0 to 13.0 in. W.C. |
| Flex line | Single flex line kit on smaller sizes, dual flex line kit on larger sizes (FK1 / FK2 in the SKU) |
| WATERSTOP fitting | Not listed for this family |
| Certification | CFBT110 to CFBT470 match lit listed as certified units to ANSI Z21.97/CSA 2.41-2017 (Warming Trends manual V3.1) |
| Made in | USA (Warming Trends) |
Dimensions and Cutout

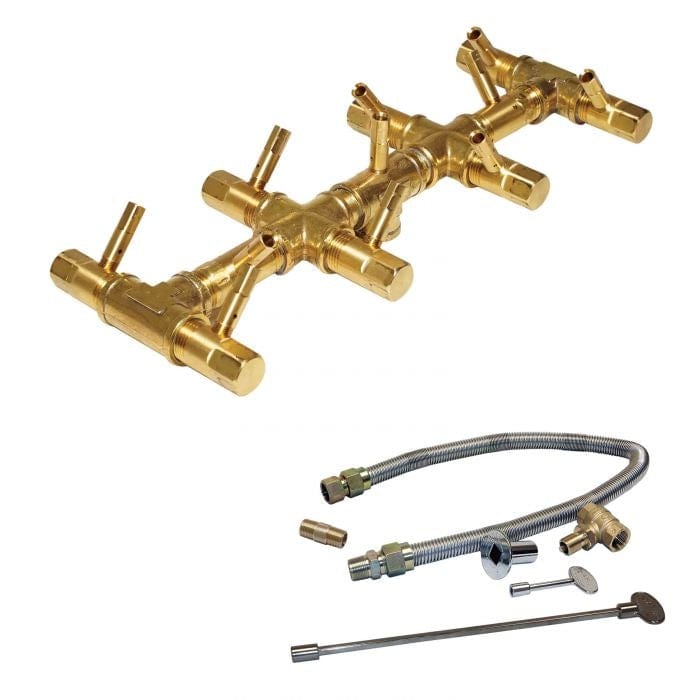

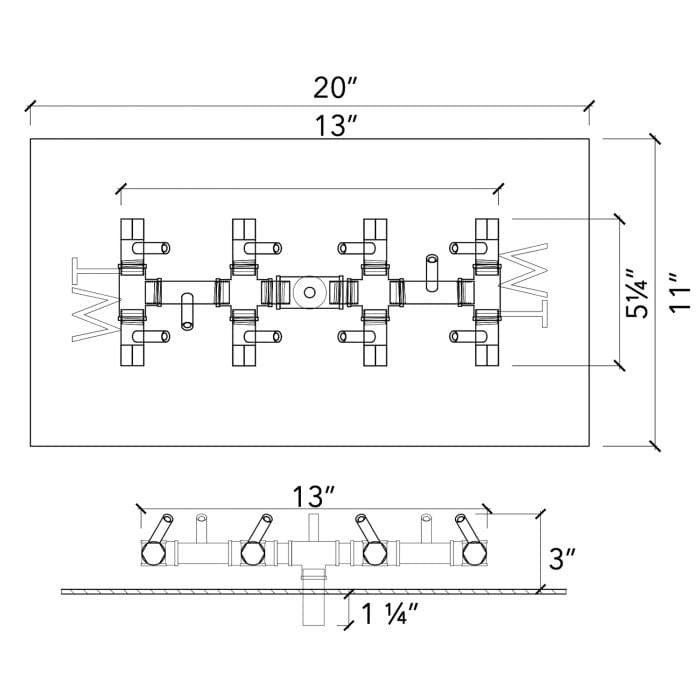

| CFBT110 | 110,000 BTU; burner 13.375 x 5.875 in.; 1/2 in. inlet; plate 20 x 11 in. |

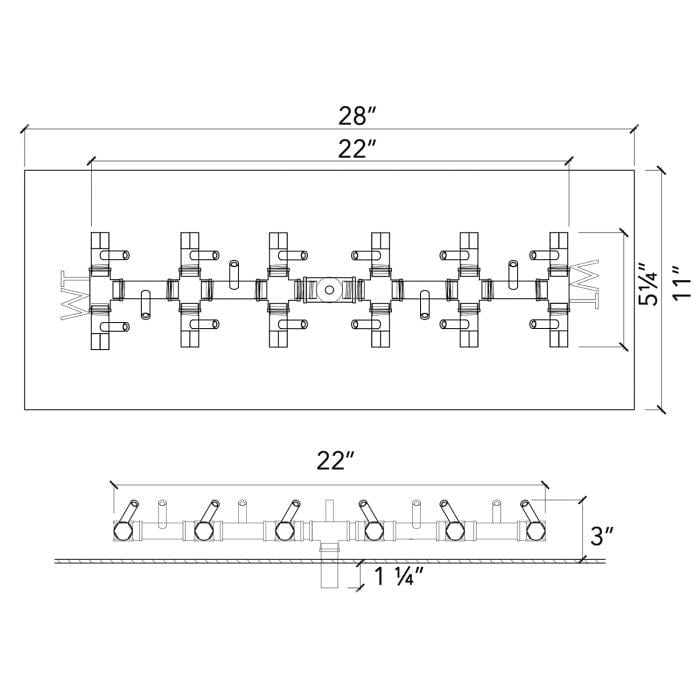

| CFBT170 | 170,000 BTU; burner 21.25 x 5.875 in.; 1/2 in. inlet; plate 28 x 11 in. |
| CFBT230 | 230,000 BTU; burner 29.125 x 5.875 in.; 1/2 in. inlet; plate 36 x 11 in. |

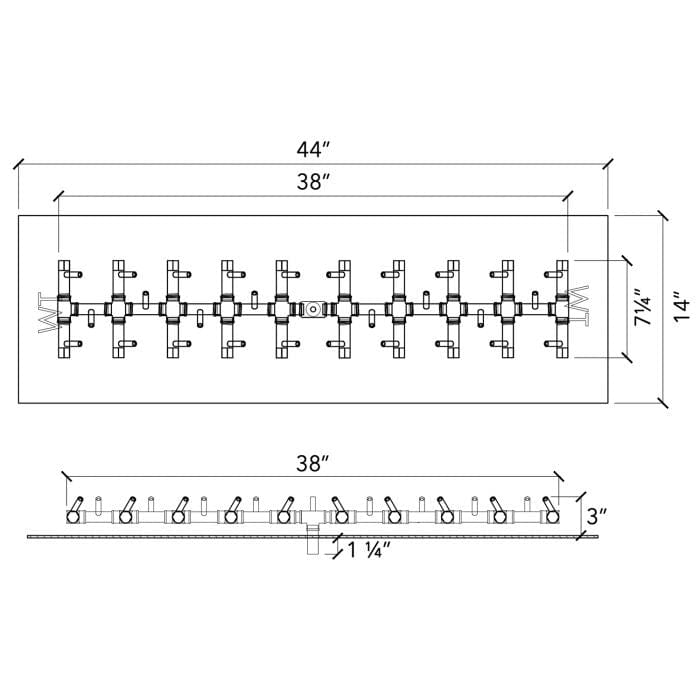

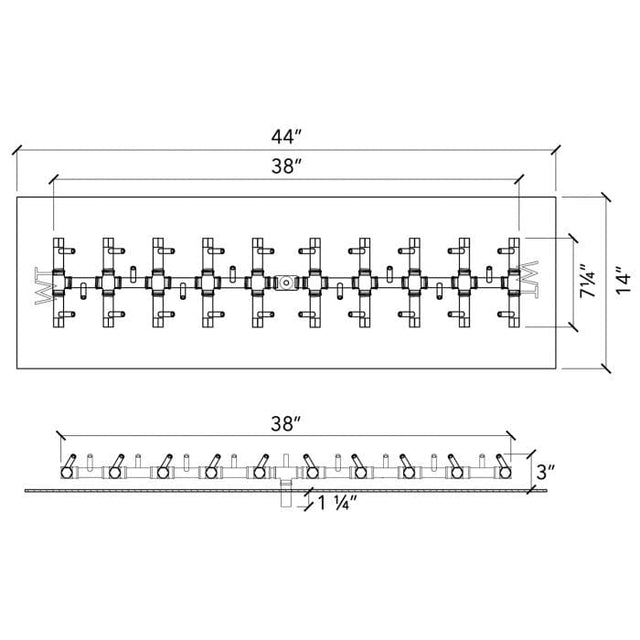

| CFBT290 | 290,000 BTU; burner 36.875 x 5.875 in.; 3/4 in. inlet; plate 44 x 14 in. |

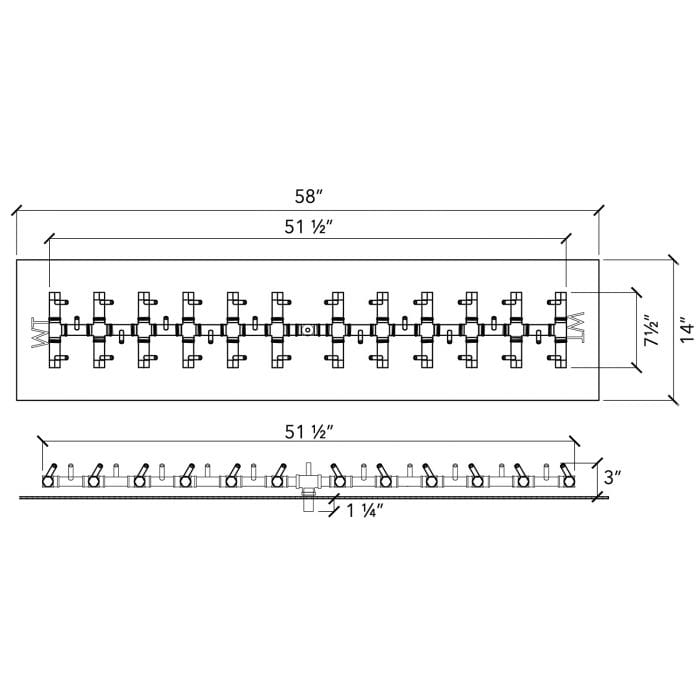

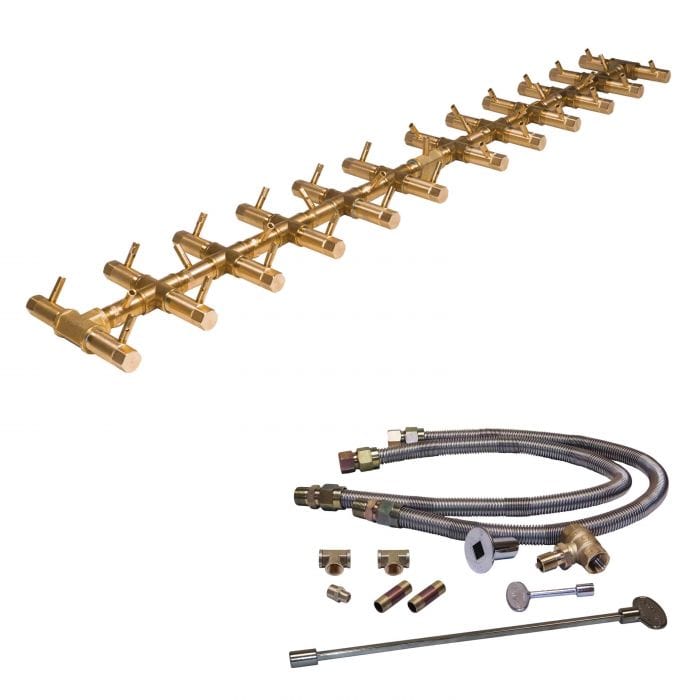

| CFBT350 | 350,000 BTU; burner 51.5 x 6.125 in.; 3/4 in. inlet; plate 58 x 14 in. |

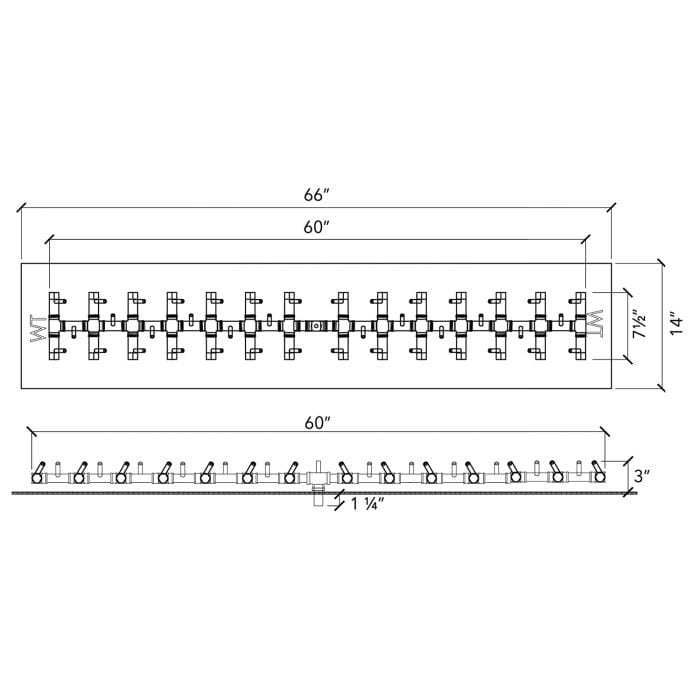

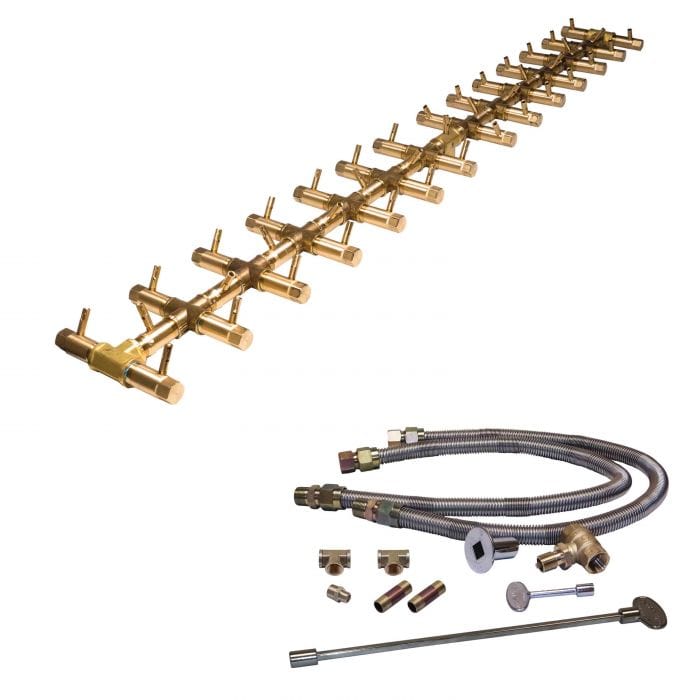

| CFBT410 | 410,000 BTU; burner 60.375 x 6.125 in.; 3/4 in. inlet; plate 66 x 14 in. |

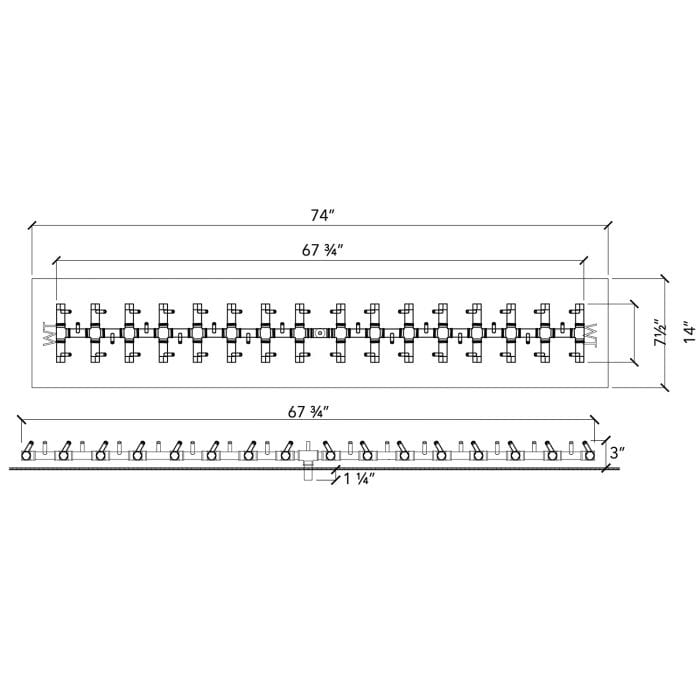

| CFBT470 | 470,000 BTU; burner 69.25 x 6.125 in.; 3/4 in. inlet; plate 74 x 14 in. |
| Sizes source | Burner sizes and inlets per listing; plate sizes match the Warming Trends burner size guide |
Features
- 100% brass CROSSFIRE burner that will not rust
- Jetted design for tall, bright flames
- Match lit operation with key valve, no power needed
- 7 sizes from 110,000 to 470,000 BTU
- Natural gas or propane versions
- Optional burner plate sized to each burner
- Full lifetime burner warranty
- Made in the USA
What Is Included and What You Will Need

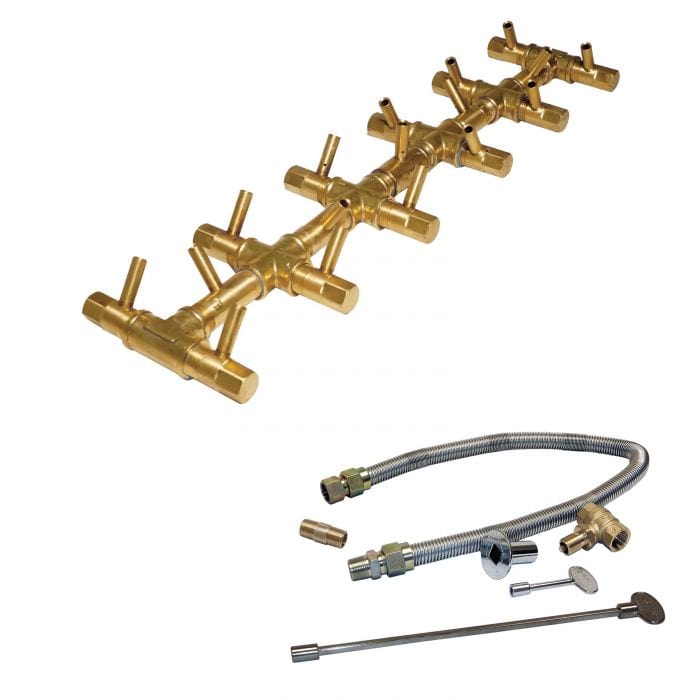

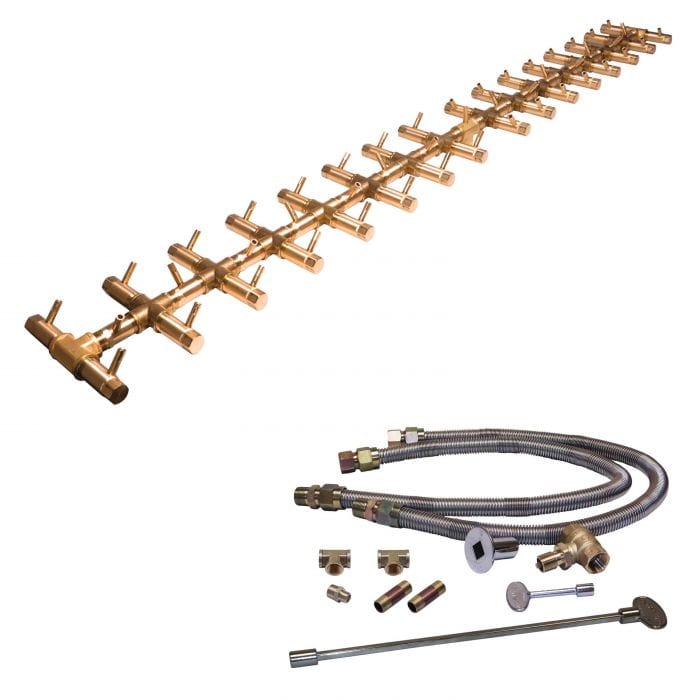

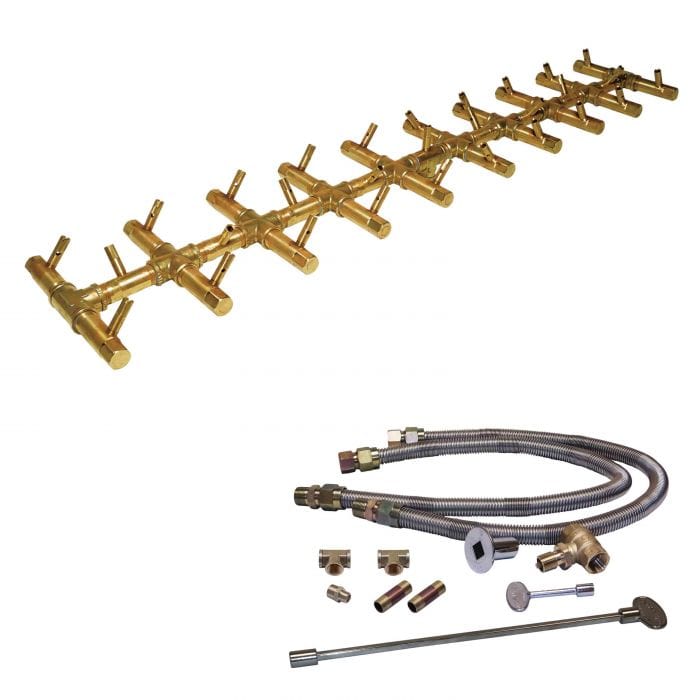

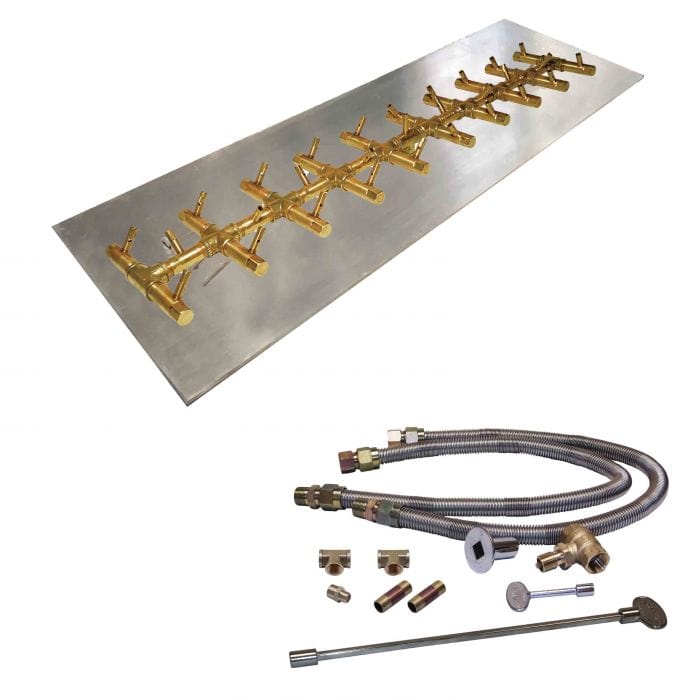

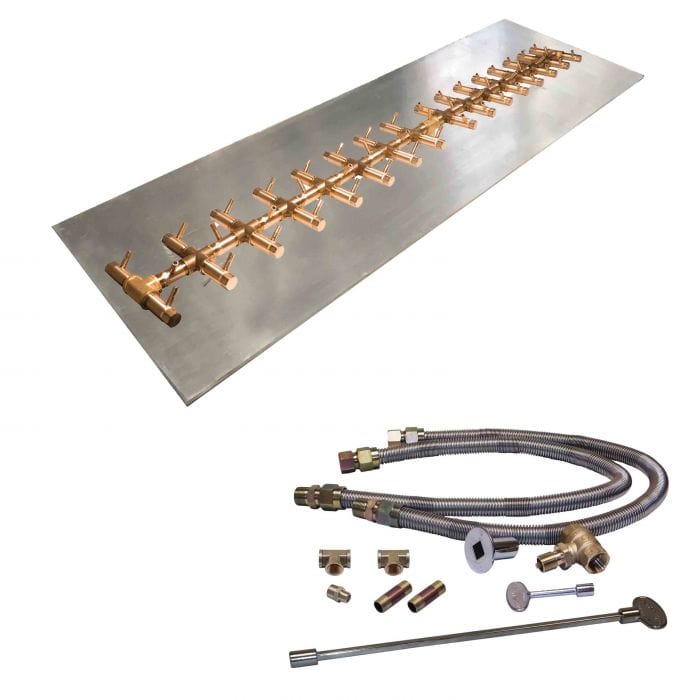

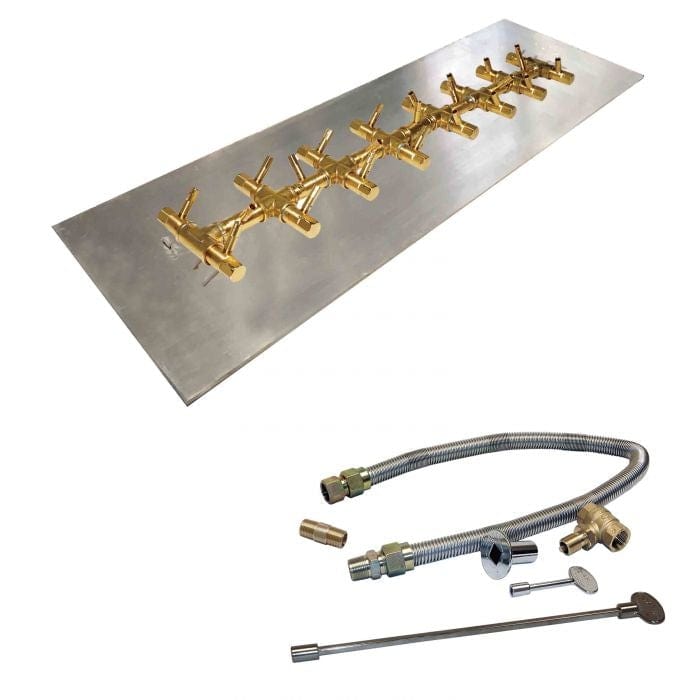

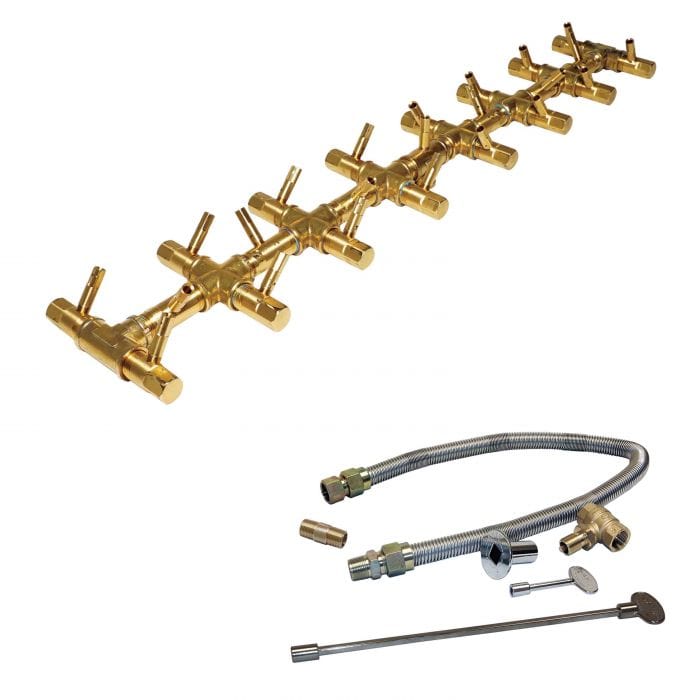

- Included: CROSSFIRE CFBT brass burner, flex line kit (two flex lines on larger sizes), key valve kit with chrome decorative flange and two keys, match lit setup

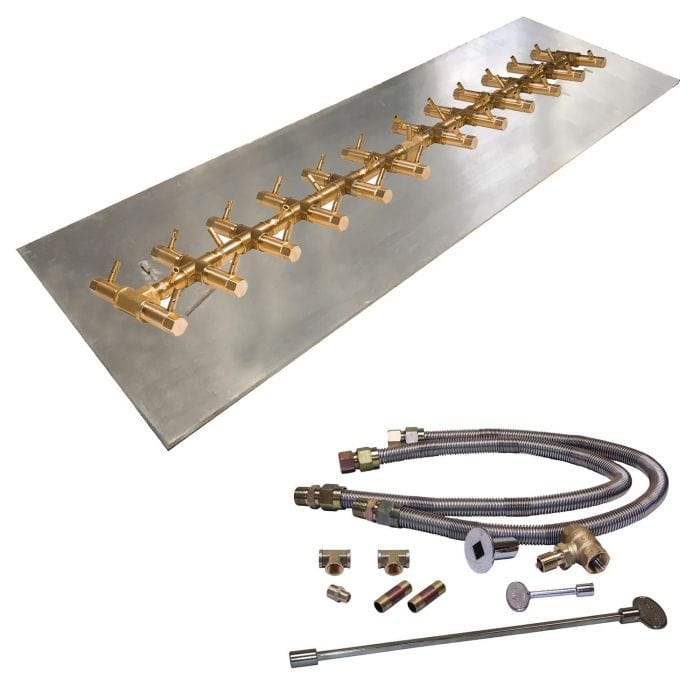

- Optional (select above): burner plate sized to the burner
- Required: a non-combustible, vented enclosure, a gas shutoff outside the fire feature, a licensed gas installer and fire-rated media
- Optional, sold separately: lava rock or fire glass
Installation Notes
Build a non-combustible enclosure with at least two vents of 18 sq in. each on opposing sides, placed mid to low; do not fill the cavity with gravel, rock or concrete; support the plate on blocks, bricks or L-brackets rather than on the gas valve; and recess the burner 4 to 6 in. below the top to protect the flame from wind, per Warming Trends instruction manual V3.1. Keep 36 in. horizontal and 120 in. overhead clearance to combustibles and fit a gas shutoff outside the fire feature. A licensed gas professional should make the connection and leak test. In New York City, fixed gas piping requires a licensed master plumber and permits, and rules for open flame and propane on terraces and rooftops vary by building, so confirm what is allowed before you order. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Owner/Instruction Manual
- Manual De Instrucciones
- Burner Size Guide

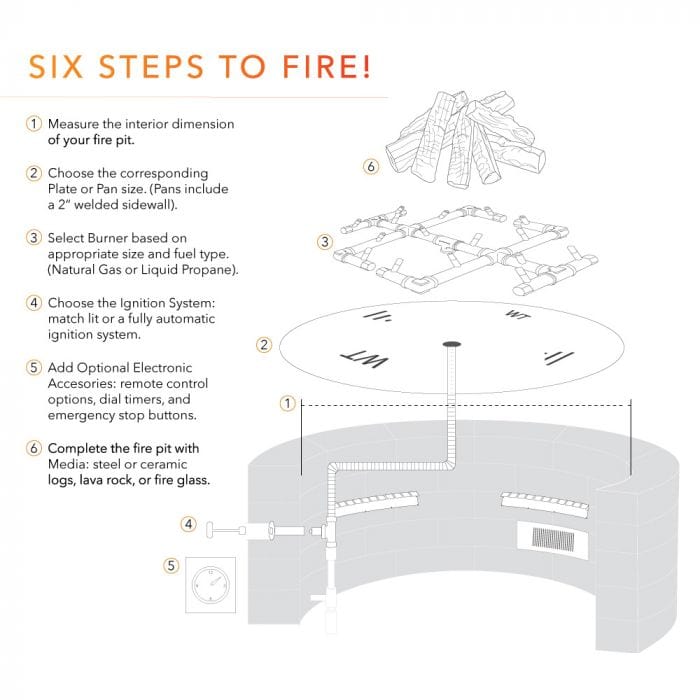

- 6 Steps To Fire
- Warming Trends Warranty
Frequently Asked Questions
Which size do I need?
Match the plate size to the inside dimensions of your fire pit, then check that your gas supply can deliver the burner's BTU rating; the Warming Trends burner size guide lists each match.
Do I need the plate option?
Only if your fire pit does not already have a plate or pan. Choose I already have a Plate to buy the burner kit alone.
Natural gas or propane?
Each burner is built for one fuel. Order the version that matches your supply; propane needs 11 to 13 in. W.C. and natural gas 3.5 to 7 in. W.C. for match lit use.
What media can I use?
Fire-rated media made for fire features, 1/2 in. or larger, placed on the plate rather than dumped over the burner and no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends full lifetime warranty on CROSSFIRE brass burners from the date of purchase, transferable with proof of ownership (Warming Trends warranty and manual V3.1). Repair or exchange is free during the warranty period; misuse, installation defects, modification and indoor use are excluded, and installation services and electronics are not covered by the burner warranty.
