Warming Trends Crossfire FO Octagon Ready To Finish Fire Pit Kit, 6...
Warming Trends Crossfire FO Octagon Ready To Finish Fire Pit Kit, 60x18-Inch - Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Available Sizes: Warming Trends FO Octagonal Ready to Finish Fire Pits with Match Light Ignition
Overall Dimensions: 60 x 60 x 18 in. (W x D x H), 36 in. round burner pan, per Warming Trends

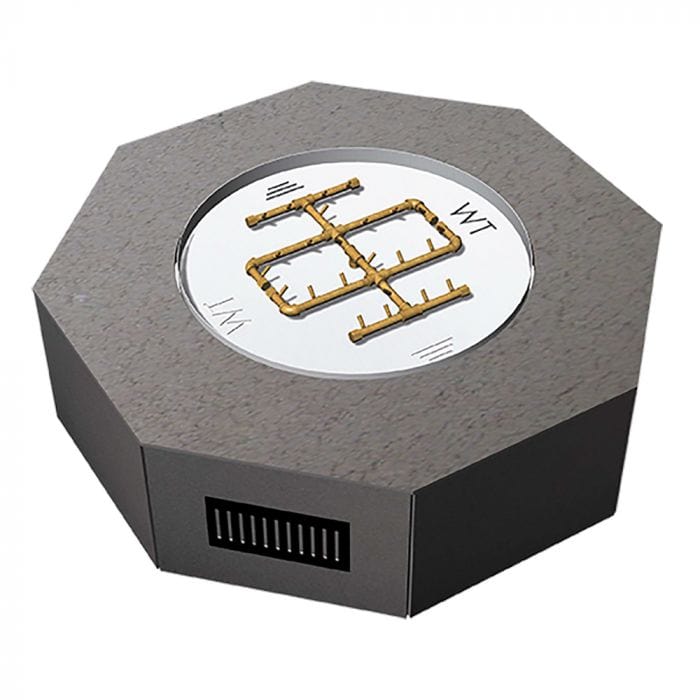

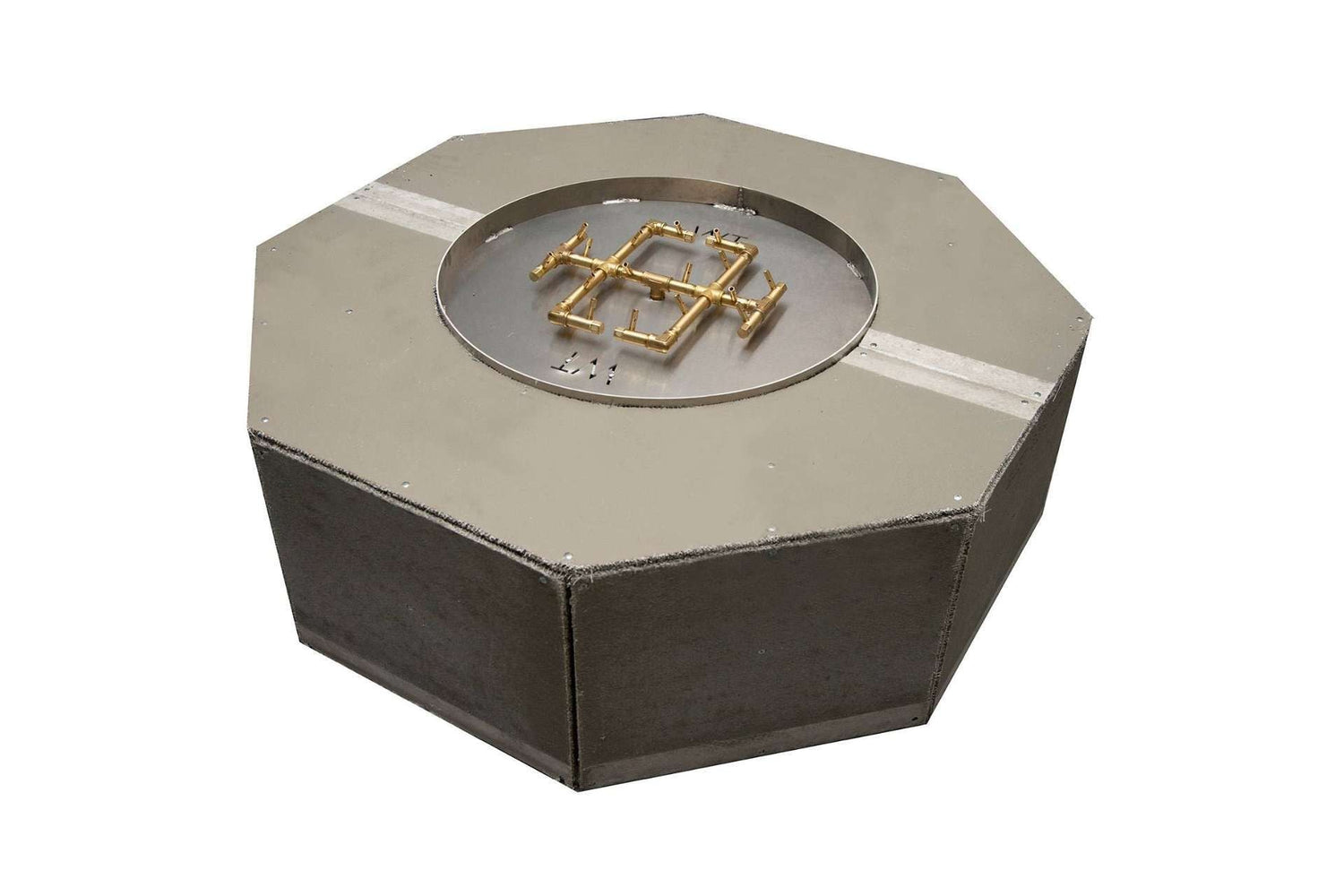

The Warming Trends CROSSFIRE FO60 is an octagon ready-to-finish gas fire pit kit: an aluminum-framed 60 x 60 x 18 in. enclosure with concrete board walls, a 36 in. round aluminum pan with 2 in. sidewalls and a 290,000 BTU original CROSSFIRE brass burner (CFB290). You add the stone, stucco or tile finish and a cap.
It runs match lit with a key valve, needs no electrical power, and is built for natural gas or propane.
Key Specifications
| Model | FO60NG (natural gas) / FO60LP (propane) |
|---|---|
| Type | Octagon ready-to-finish gas fire pit kit |
| Burner | Original CROSSFIRE brass burner CFB290, 21.5 x 21.5 x 3-1/4 in., 290,000 BTU maximum |
| Fuel | Natural gas or propane (select above) |
| Ignition | Match lit with key valve |
| Gas inlet pressure (match lit) | Natural gas 3.5 to 7.0 in. W.C.; propane 11.0 to 13.0 in. W.C. |
| Enclosure | Aluminum frame with concrete board walls, ready for stone, stucco or tile |
| Pan | 36 in. round aluminum pan with 2 in. sidewalls |
| Venting | Two vents included, installed on site |
| Certification | ANSI Z21.97/CSA 2.41-2014 outdoor decorative gas appliance (FO60 cut sheet) |
Dimensions and Cutout
| Enclosure (W x D x H) | 60 x 60 x 18 in. |
|---|---|
| Burner pan / opening | 36 in. round |
| Burner size | 21.5 x 21.5 in. CFB290 |
| Clearances to combustibles | 36 in. horizontal; 120 in. overhead |
| Vents | At least two opposing vents of 18 sq. in. each, mid to low on the enclosure |
Features
- Ready-to-finish aluminum frame with concrete board walls
- 290,000 BTU 100% brass CROSSFIRE burner
- 36 in. round aluminum pan with 2 in. sidewalls
- Match lit with key valve, no power needed
- Two enclosure vents included
- Natural gas or propane versions
- Full lifetime burner warranty
What Is Included and What You Will Need
- Included: 60 x 60 x 18 in. concrete board enclosure on an aluminum frame, 36 in. round aluminum pan, 290,000 BTU CFB290 CROSSFIRE burner, dual flex line kit, key valve kit with chrome flange and two keys, two vents, match lit setup
- Required: finishing material and cap, a level stable base, a gas shutoff outside the fire feature, a licensed gas installer and fire-rated media
- Optional, sold separately: lava rock or fire glass
Installation Notes
Set the kit on a stable, level surface, install the two supplied vents on opposing sides, and finish the concrete board walls without building the cap over the pan edge so the burner stays serviceable, per Warming Trends instruction manual V3.1. Keep 36 in. horizontal and 120 in. overhead clearance to combustibles, do not fill the cavity, and fit a gas shutoff outside the fire feature; a licensed gas professional should connect and leak test the burner. In New York City, fixed gas piping requires a licensed master plumber and permits, and rules for open flame and propane on terraces and rooftops vary by building, so confirm what is allowed before you order. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
- Owner/Instruction Manual
- Manual De Instrucciones
- Cut Sheet (Plan View)
- Cut Sheet (Section View)
- Warming Trends Warranty
Frequently Asked Questions
What do I need to finish it?
Any non-combustible finish such as stone veneer, stucco or tile over the concrete board walls, plus a cap. Keep the cap from overhanging the pan edge.
Does it need electricity?
No. It is match lit with a key valve. Electronic ignition is a separate Warming Trends option.
Are the vents installed?
No. The two vents ship with the kit and are installed on site on opposing sides of the enclosure.
What media can I use?
Fire-rated media made for fire features, 1/2 in. or larger, placed on the plate rather than dumped over the burner and no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends full lifetime warranty on CROSSFIRE brass burners from the date of purchase, transferable with proof of ownership (Warming Trends warranty and manual V3.1). Repair or exchange is free during the warranty period; misuse, installation defects, modification and indoor use are excluded, and installation services and electronics are not covered by the burner warranty.
