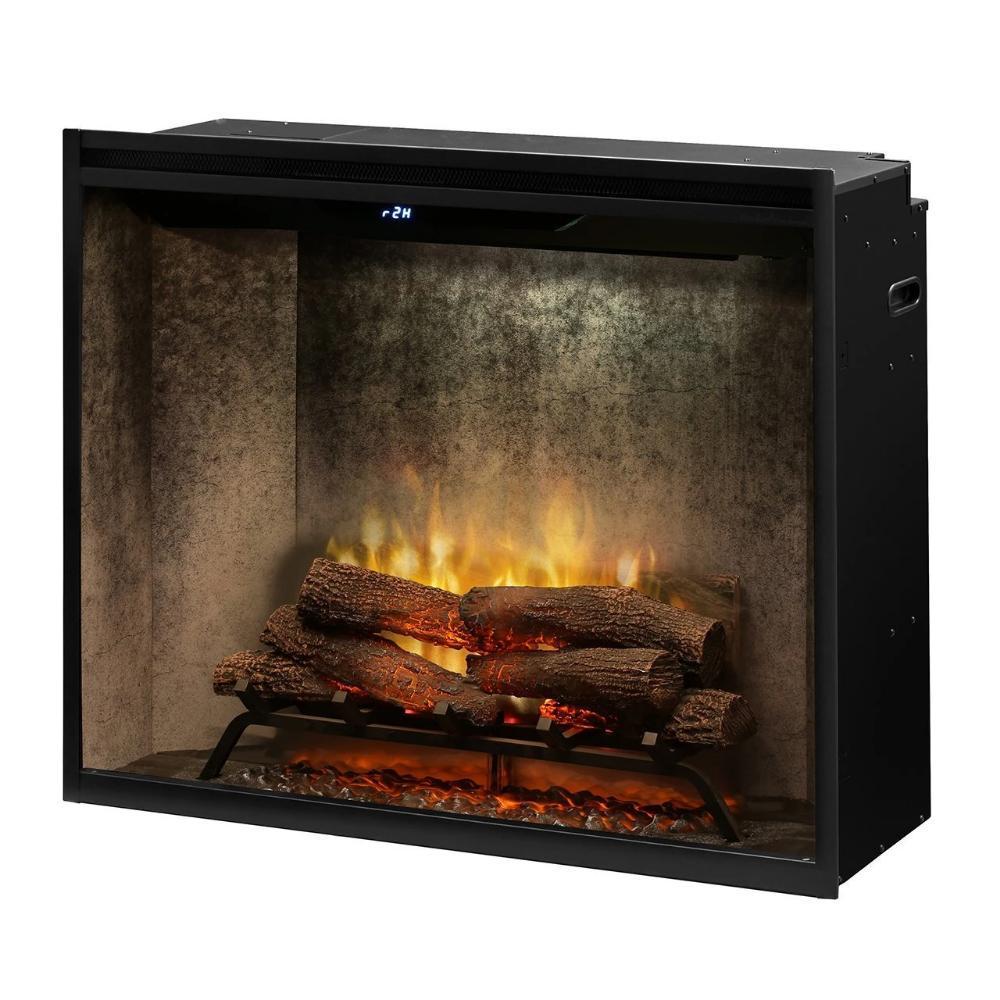

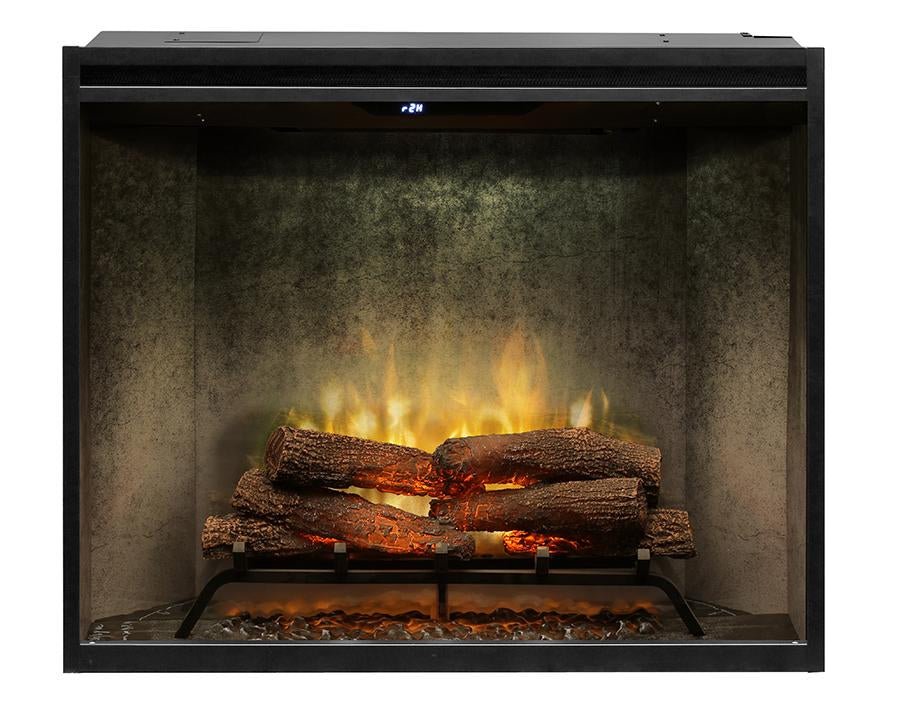

Dimplex Revillusion® 36" Portrait Built-In Firebox, Weathered Concrete
- The stunning Portrait model gives you a taller, more expansive view of the fireplace.
- For an authentic fireplace experience, the Revillusion produces flames that are larger, brighter and more random, appearing from within the logs.
- Fool even yourself with the Mirage Flame Panel that adds to the show. It is a partially frosted acrylic panel that shows only dazzling flames and no reflections.
- With patented Thruview technology, you are able to see clear through the flames to the back of the firebox for a more authentic experience.
Revillusion is a completely new way of looking at fireplaces and changing the standard for electric. A clear view through the lifelike flames, to the full brick interior, captures the charm of a wood-burning fireplace. Enjoy the look of a fireplace cut straight from the pages of a magazine by choosing Revillusion®; clearly a better fireplace.
Firebox Features
-
Revillusion® Flame Technology
Flames are larger, brighter and more random, appearing from within the logs.
-
Mirage™ Flame Panel
Partially frosted acrylic panel is clearly better than a mirror, showing only dazzling flames and no reflections.
-
ThruView™ Full-depth Design
See clear through the flames to the back of the firebox for a more authentic experience.
-
Mood Lighting
Customize the firebox glow with a choice of warm hues, plus midnight mode.
-
Color Enhancement
Adjust the flame base color to red or blue.
-
Realogs® Plus
A full grate of life-size hardwood-cast logs, tiered for greater depth.
-
Full Surround Firebox
More authentic day or night; 270-degree surround with natural soot markings.
-
Brightness and Flicker
Adjust light level to suit the room and choose flicker effect for enhanced firelight.
-
Ambient Light Sensor
Automatically adjusts firebox light to suit the room day to night.
-
Quick and Easy Installation
Simply frame, wire and finish – no venting, gas lines or safety screens. -
Primary Heat
Option to use 240 volt supply for up to 8,800 BTU - use as part of primary heating plan; heater also operates without flame and can be deactivated.
-
Direct-wire
Designed to be direct-wired to a 120, 208 or 240 volt circuit for a seamless look (optional plug kit available).
-
All-season Flames
Enjoy the unique charm of a fireplace 365 days a year using the flames without the heat.
-
Low Carbon Footprint
The most sustainable fireplace option; no emissions and 100% efficient.

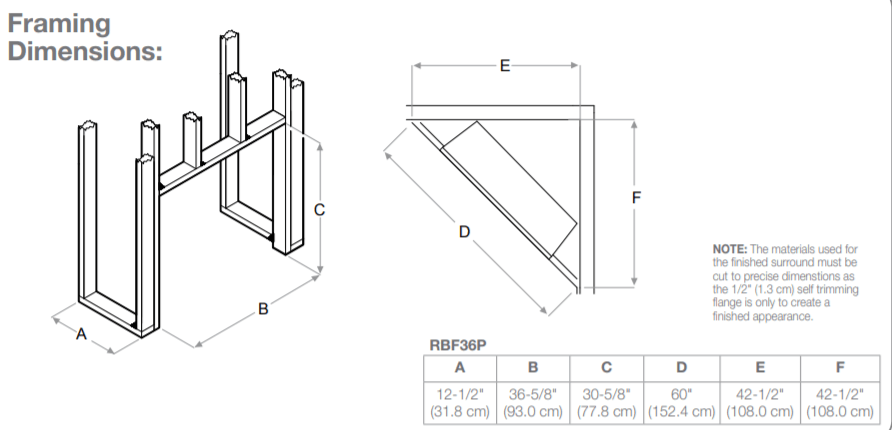

Dimensions: H 31 in x W 37 1⁄4 in x D 12 1⁄8 in
Firebox Details
Firebox: Log Set
Plug-in/Built-in Type: Built-in
Volts: 120/208/240
Wattage: 1300/1975/2575
Amps: 10.8/9.5/10.7
BTUs: 4400/6745/8794
Remote: Mood Maker Remote
Warranty: 2 Year Limited
