Owner's Manual
Key Features
- Incredibly quick and easy installation, just frame, plug it in, and finish
- Stay warm with up to 5,118 BTUs of heat
- Fit any situation with the included mood lighting, flame base color enhancement, brightness adjust, and flicker settings
- Enjoy your fireplace year-round with or without the heater

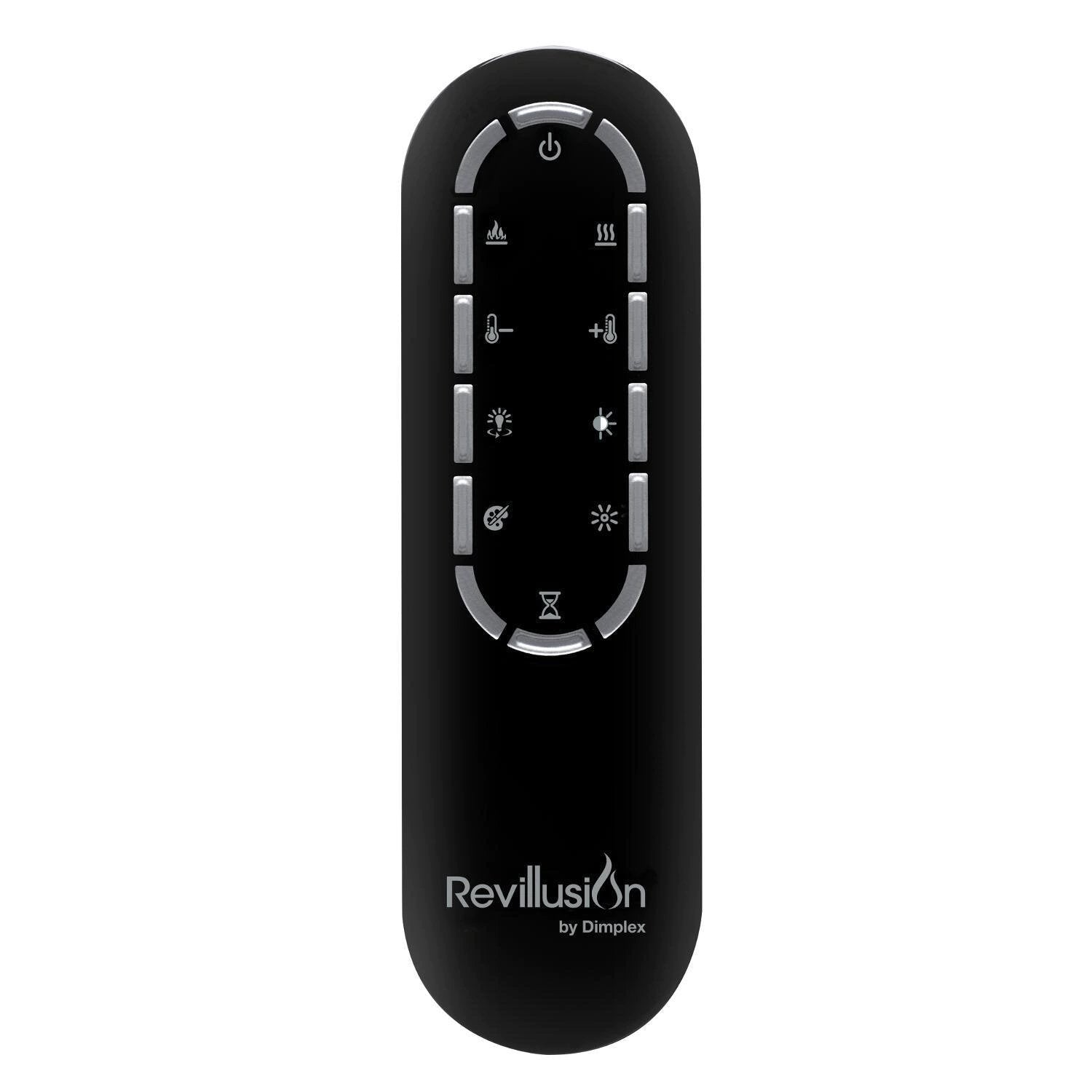

- Multi-function remote is included, allowing you to control all of the fireplace features from the comfort of your chair

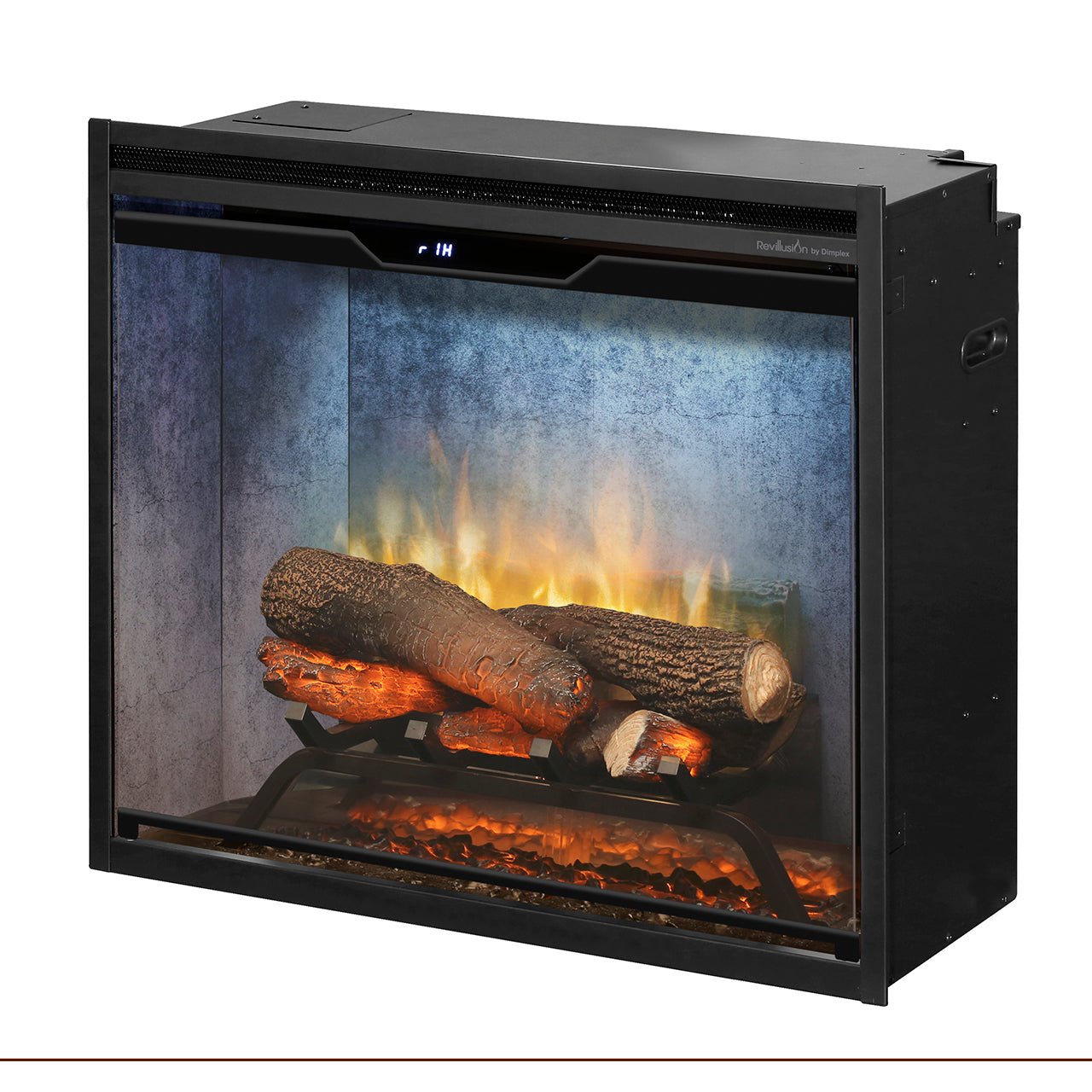

The Dimplex Revillusion 24-Inch Built-In Electric Firebox in Weathered Gray truly captures the charm of a wood-burning fireplace with a clear view through the stunning lifelike flames, all the way back to the weathered concrete interior. The Revillusion Series is changing the standard by creating a completely new way of looking at electric fireplaces. Revillusion Flame Technology creates larger, brighter, and more random flames that appear from within the logs. Partially frosted acrylic Mirage Flame Panel shows only dazzling flames and no reflections, unlike other electric fireboxes that use a mirror panel. A full bundle of hardwood cast, life-sized logs sit on top of a grate and have been tiered for even greater depth. Adjust the look of your firebox with the choice of a red or blue flame base color and the option of warm hue mood lighting, with an included midnight mode. The full brick surround firebox uses weathered gray concrete with natural soot markings, leading to a more authentic look day or night. Brightness and Flicker adjustment allows you to set the light level to suit the mood and turn on the flicker effect for enhanced firelight. The included ambient light sensor automatically adjusts the firebox lighting to suit the room at any time. Installation is quick and easy with no gas lines, venting, or safety screens. Just frame, plug it in, and finish. The Dimplex Revillusion 24-Inch Built-In Electric Firebox plugs into any standard outlet or can be hardwired to a 120 volt circuit for a truly seamless look. This electric firebox is the most sustainable fireplace option, having a low carbon footprint with no emissions, the fireplace is 100% efficient. The patented Comfort$aver ceramic heating system adjusts fan speed and heater wattage to precisely match the requirements of the room and uses 11% less energy than the leading quartz infrared heater. Control all available fireplace features from the comfort of your chair with the included Mood Maker Remote. Enjoy a fireplace that looks like it was cut out straight from the pages of a magazine.
Legal disclaimers and warnings
Product packaging, owners’ manuals, installation instructions, and/or operating instructions may include more information than what is shown on our website. The content on our site is intended to be used for reference purposes only. Please fully read all included manuals and documentation before installing or using this product.
Specifications
Fireplace Type | Standard |
Fuel Type | Electric |
Installation Type | Built-In |
Firebox Width | 25" |
Collection | Revillusion |
BTU Range | 0 - 14,999 |
BTUs | 5118 |
Heating Area | 1,000 Sq. Ft. |
Infrared | No |
Finish | Gray |
Filler Type Included | Logs |
Backlight | Yes |
Flame Style | LED |
Blower | With Blower |
Mobile Home Approved | Yes |
Adjustable Thermostat | Adjustable Thermostat |
Flame Color | Orange |
Watts | 1500 |
Volts | 120 |
Amps | 10.8 |
Wiring | Plug-In/Hardwired |
Insert Type | Electric |
Location | Indoor |
Control | Multi-Function |
Surround Material | Brick |
Surround Width Range | 0 - 29" |
Surround Dimensions | 25" |
Heat Location | Top |
Vent Type | Ventless |
Framing Dimensions | Varies |
Viewing Area | 23 3/8" W X 19" H |
Dimensions
Width | 25.25" |
Depth | 12" |
Height | 22.88" |
Weight | 55 lbs |
Warranty
Dimplex products are warrantied to be free from manufacturing defects for a period of one (2) year from the date of purchase.
