Due to different display screens, color may not arrive exactly as shown
Newest Model: Includes Front Glass Pane & 120v Plug Kit
Manufacturer’s Downloads
MODEL SPECS
BROCHURE
PRODUCT DETAILS

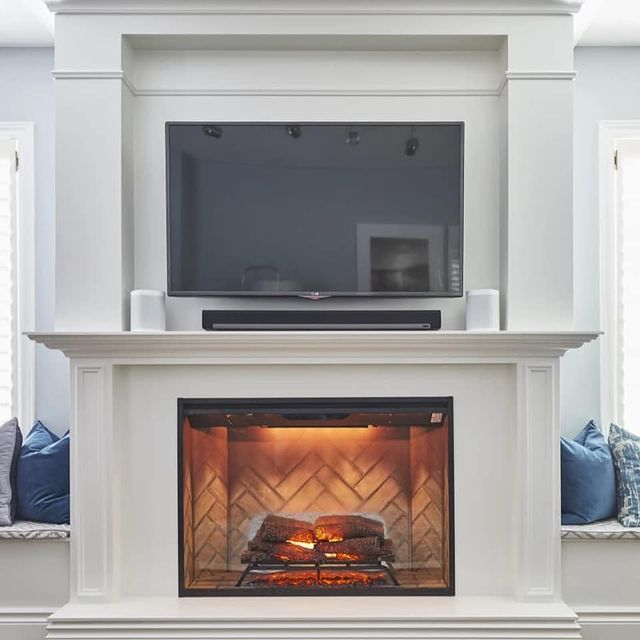

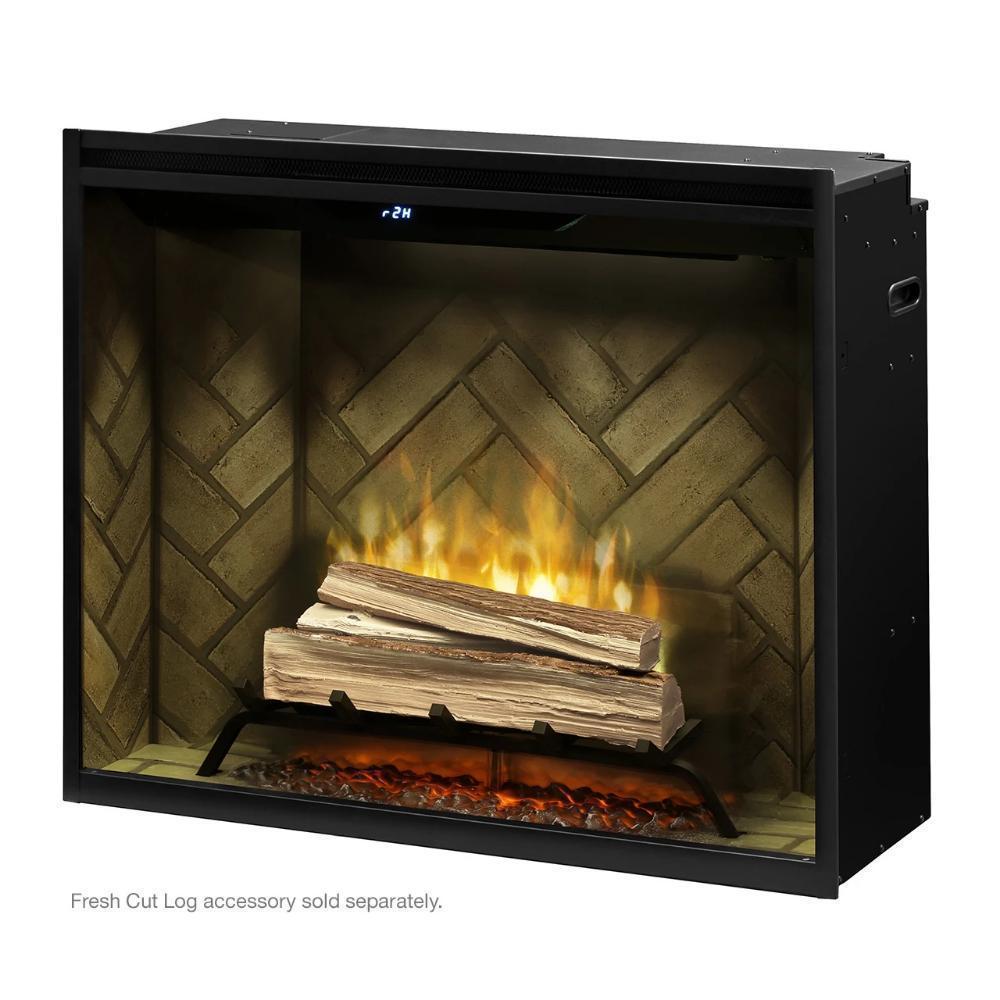

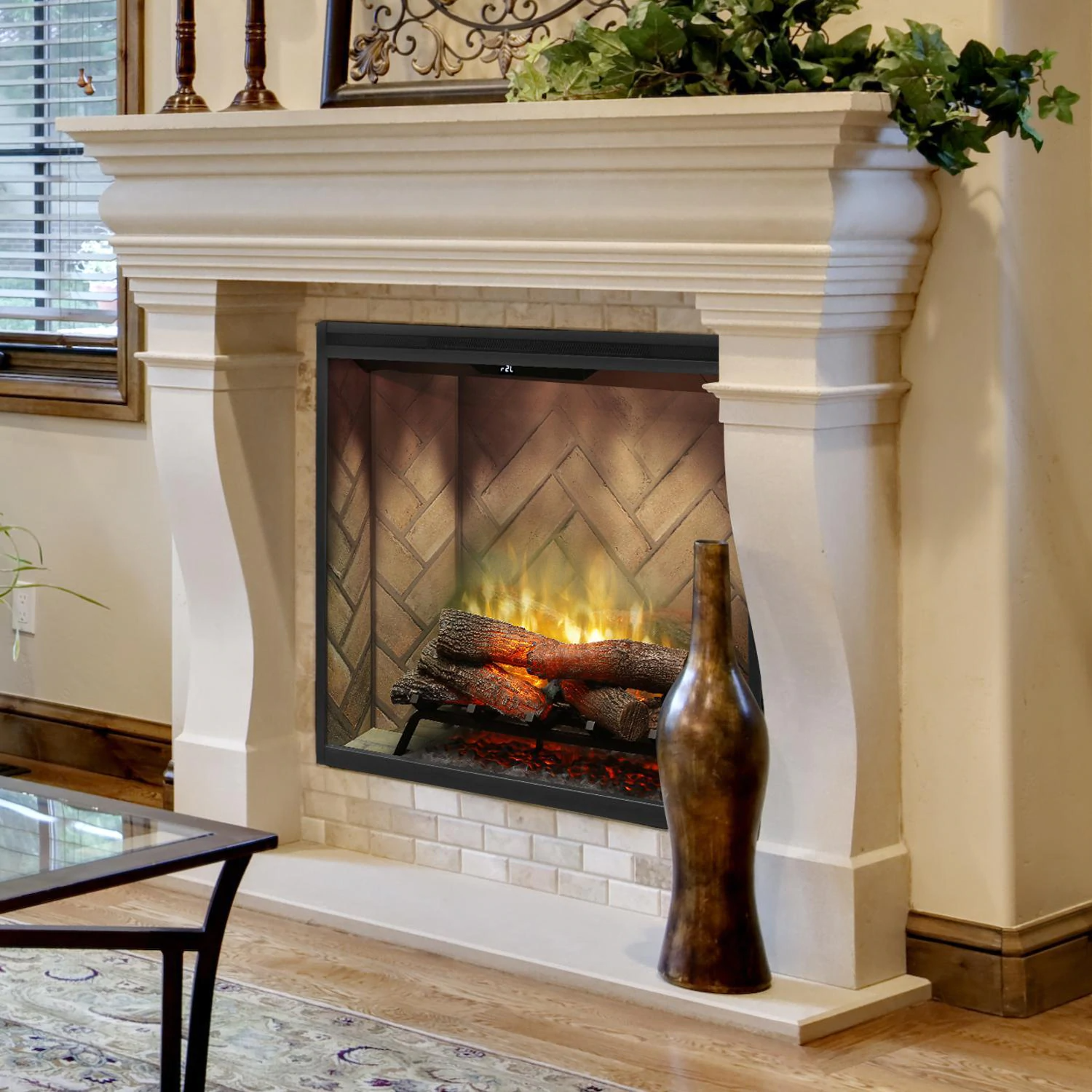

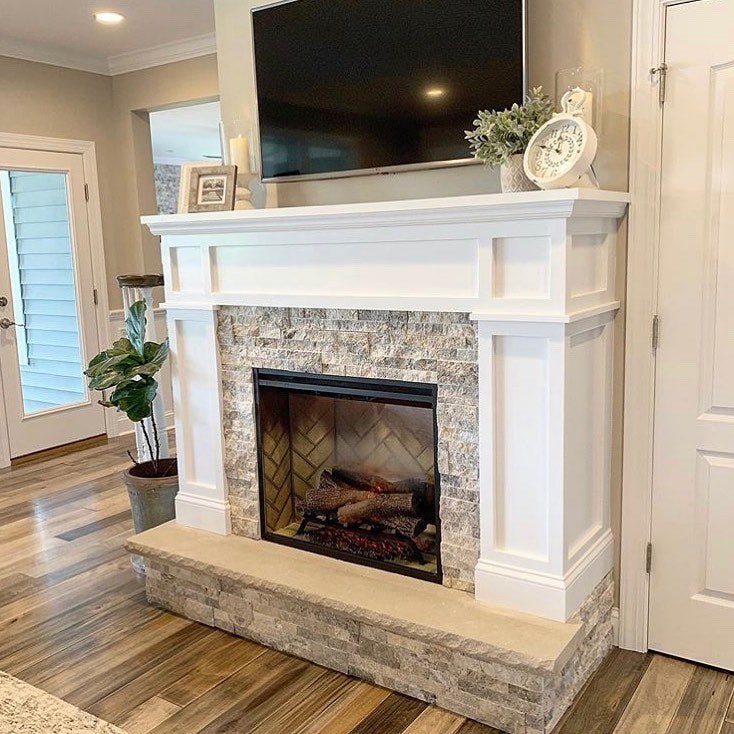

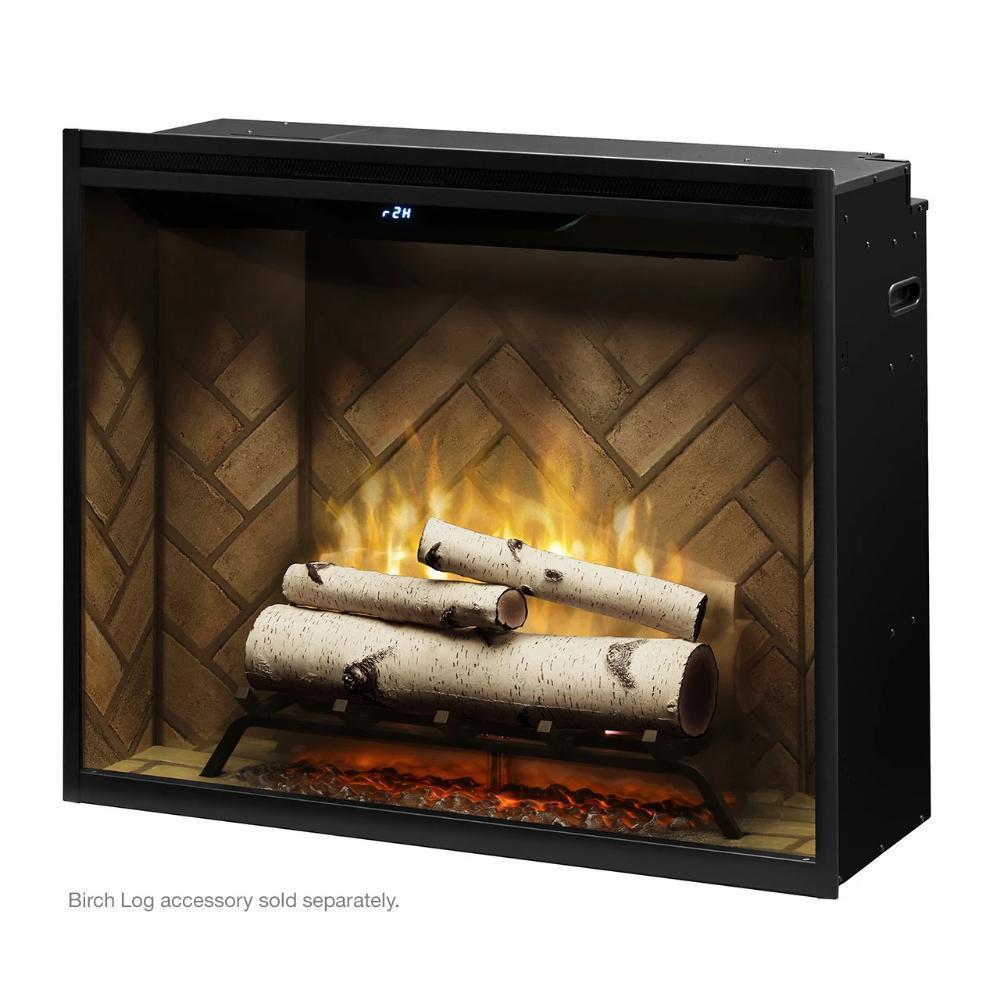

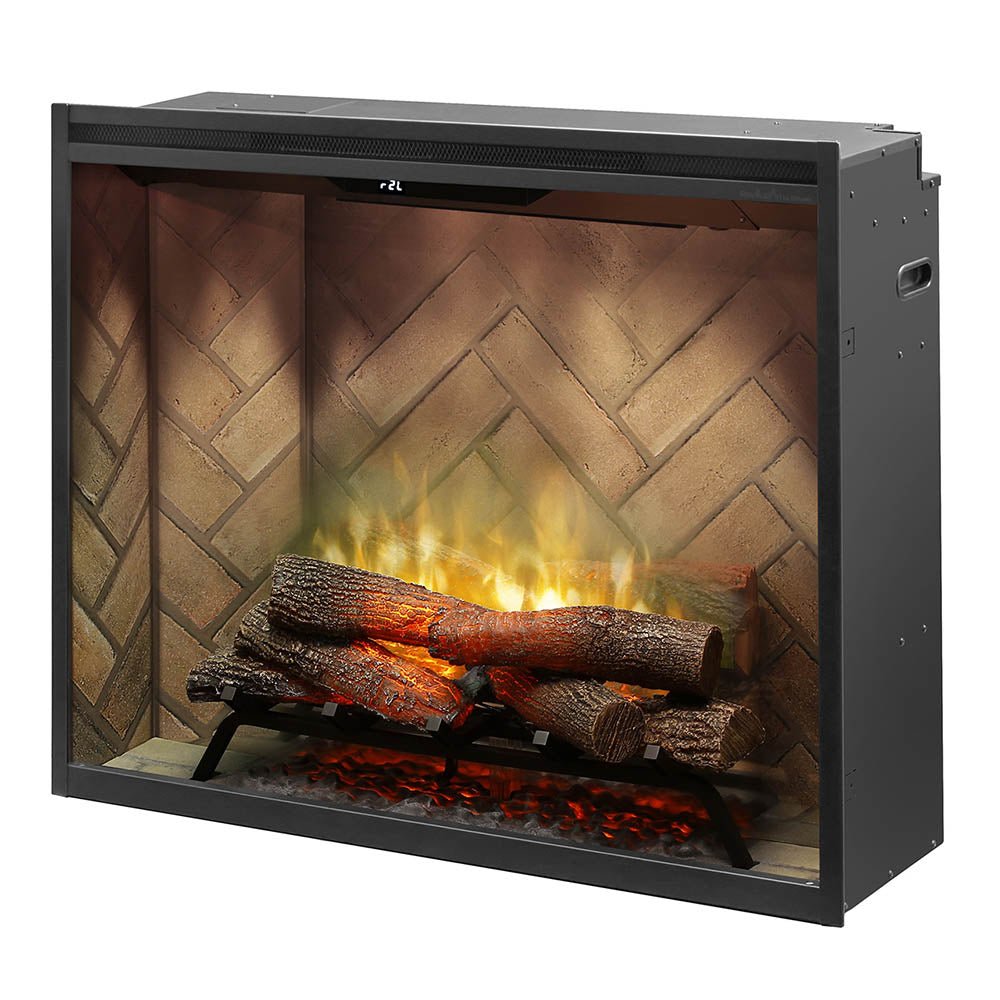

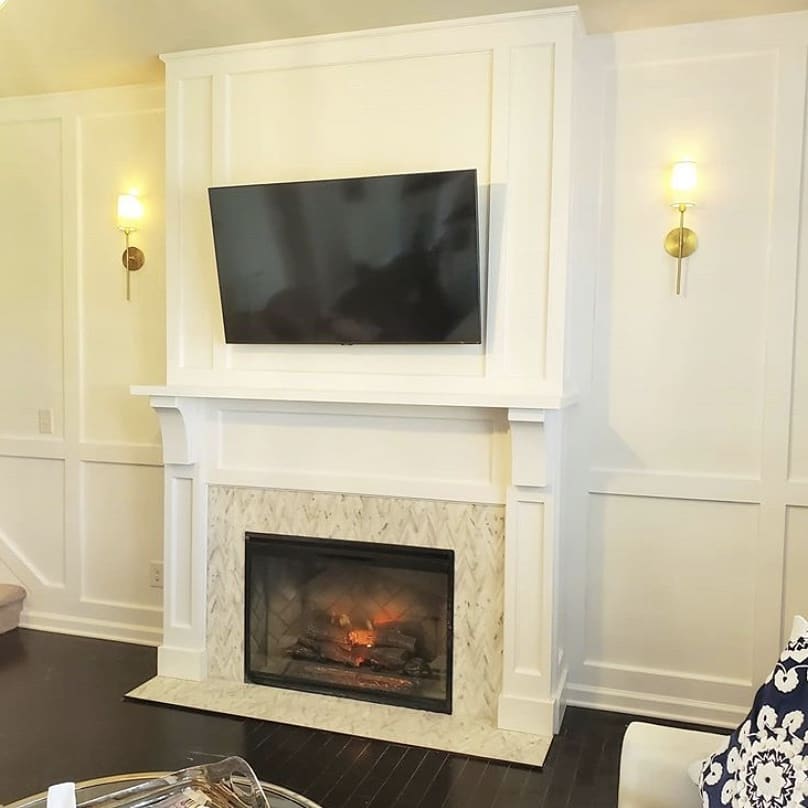

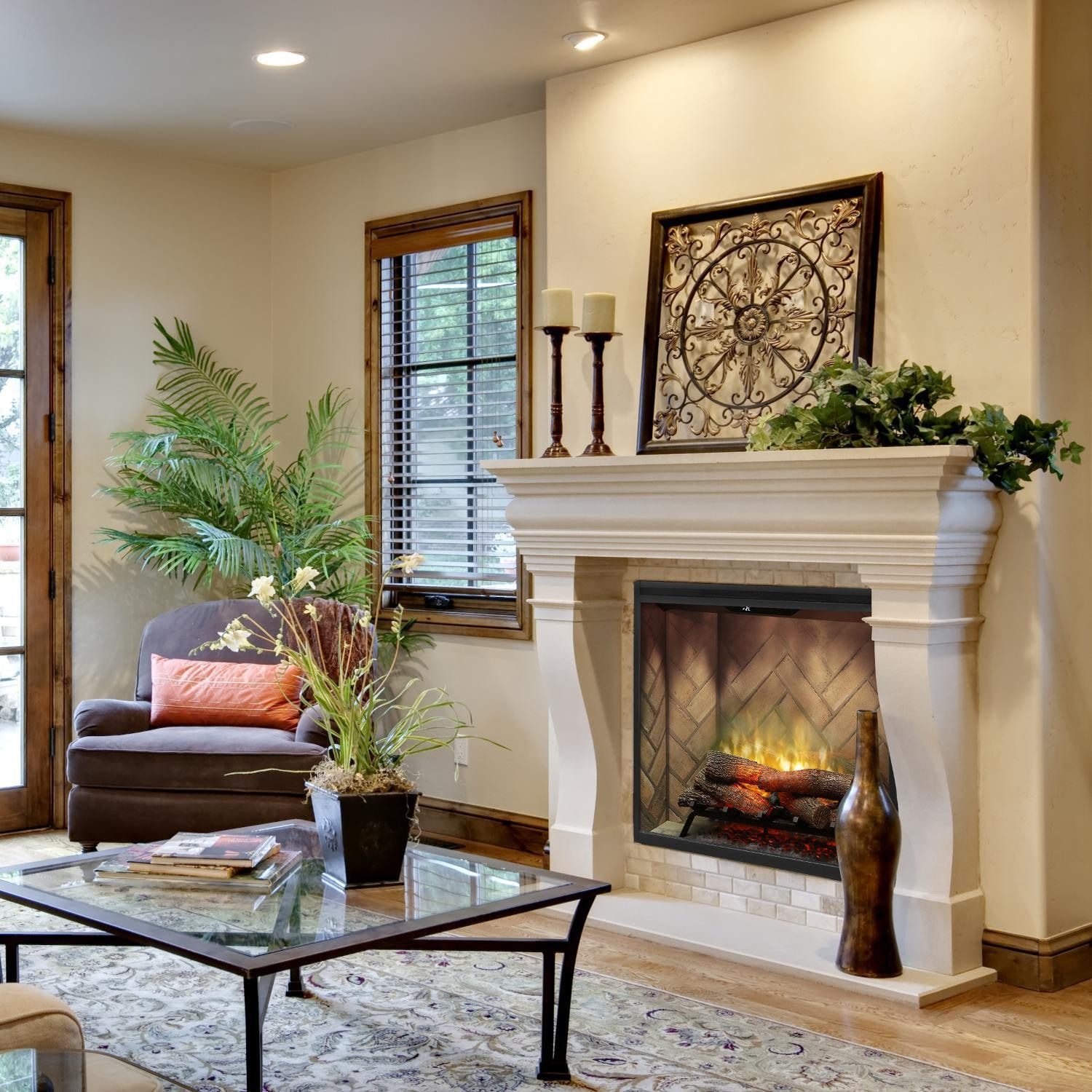

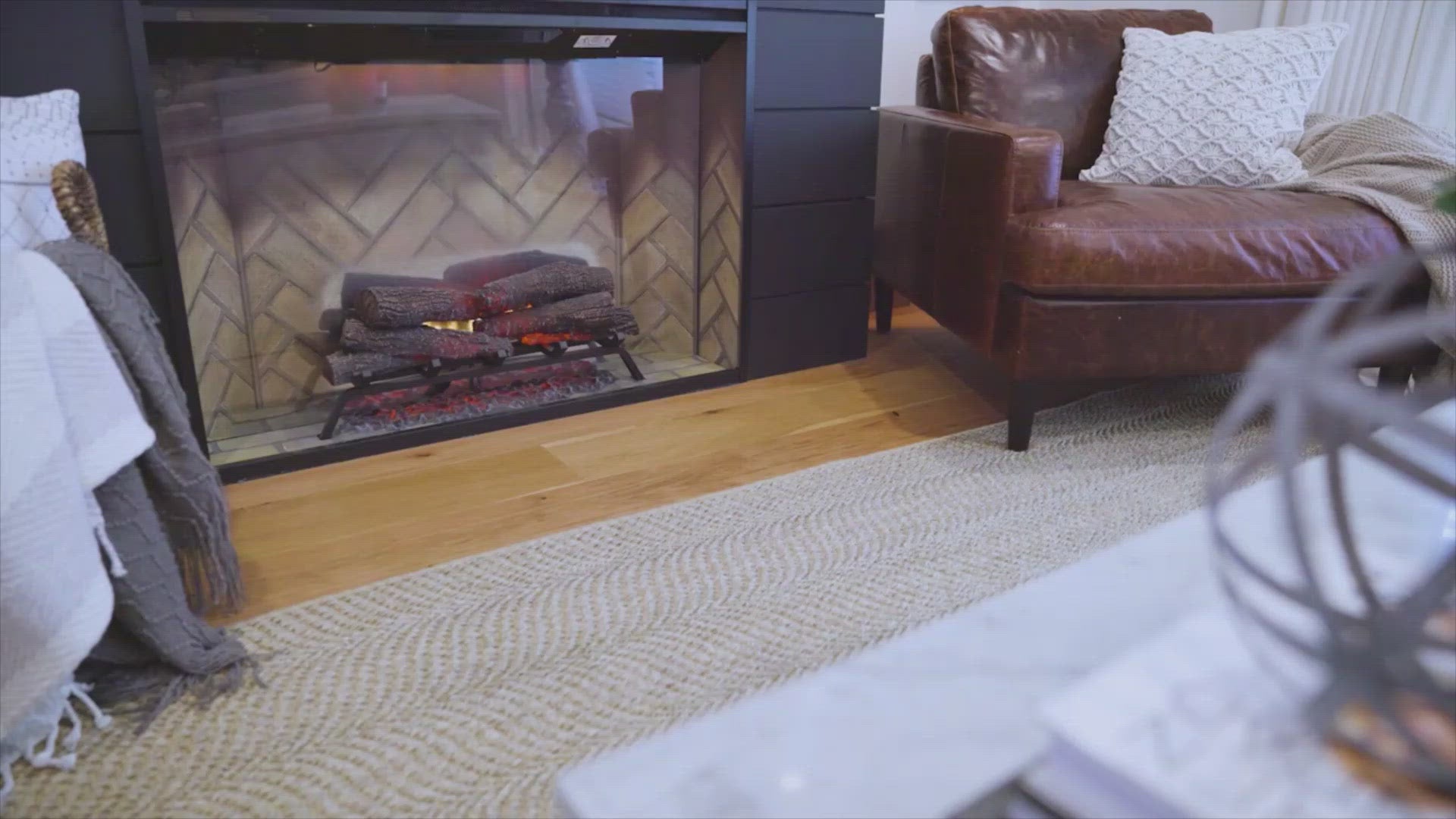

The DIMPLEX REVILLUSION 36" PORTRAIT BUILT-IN ELECTRIC FIREPLACE offers a new way of looking at electric fireplaces. Using their patented technology, Dimplex offers an electric fireplace whose flames appear to be coming from inside the logs. The partially frosted acrylic panel gives a more random appearance to the flames, giving it a more realistic display than most electric fireplaces on the market. The backer of the fireplace has natural soot markings, to better emulate the appearance of a natural wood fireplace.
The portrait model is taller than the average firebox, which allows it to fit better into some fireplaces. With so many possibilities, the DIMPLEX REVILLUSION 36" PORTRAIT BUILT-IN ELECTRIC FIREPLACE will make a great alternative to a wood or gas fireplace!
FEATURES:
- Revillusion technology gives the appearance of natural flames
- Lights automatically adjust to suit the room day to night
- Flames are adjustable from red to blue
- Direct-wired to a 120V, 208V, or 240V circuit
- Provides up to 8,794 BTUs depending on the electrical connection, and can be operated without heat
Specifications
| Fireplace Type | Standard |
| Fuel Type | Electric |
| Installation Type | Built-In |
| Firebox Width | 37" |
| Collection | Revillusion |
| BTU Range | 0 - 14,999 |
| BTUs | 4400/6745/8794 |
| Heating Area | 1,000 Sq. Ft. |
| Infrared | No |
| Finish | Brown |
| Filler Type Included | Logs |
| Backlight | Yes |
| Flame Style | LED |
| Blower | With Blower |
| Mobile Home Approved | Yes |
| Adjustable Thermostat | Adjustable Thermostat |
| Flame Color | Orange |
| Watts | 1300/1975/2575 |
| Volts | 120/208/240 |
| Amps | 10.8/9.5/10.7 |
| Wiring | Plug-In/Hardwired |
| Insert Type | Electric |
| Location | Indoor |

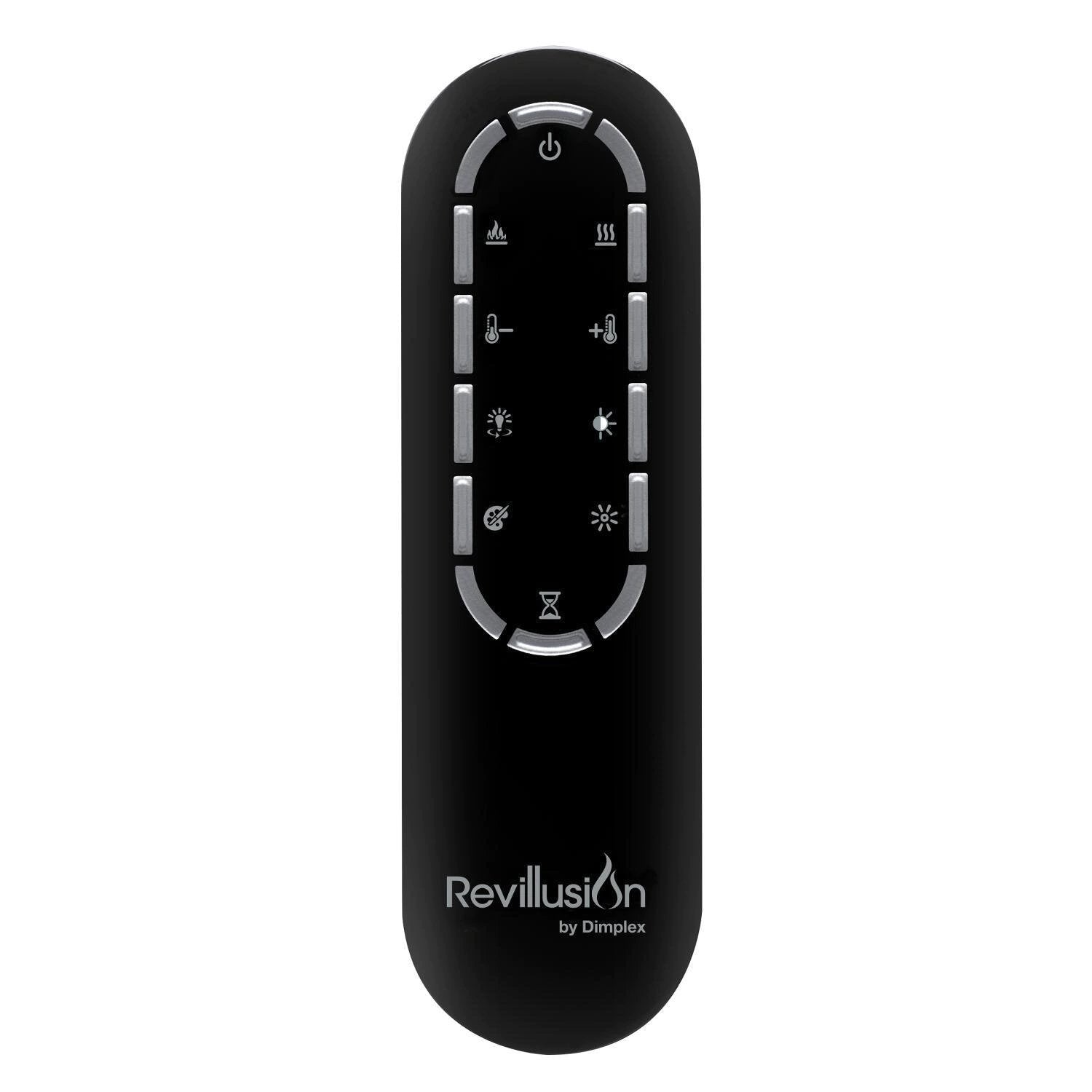

| Control | Multi-Function |
| Surround Material | Brick |
| Surround Width Range | 30 - 39" |
| Surround Dimensions | 37" |
| Heat Location | Top |
| Vent Type | Ventless |
| Framing Dimensions | 36 5/8" W X 30 5/8" H X 12 1/2" D |
| Viewing Area | 35 3/8" W X 27 1/4" H |
Warranty
Dimplex products are warrantied to be free from manufacturing defects for a period of one (2) year from the date of purchase.
Refer to manufacturers manual for full warranty details.
