Description
Description

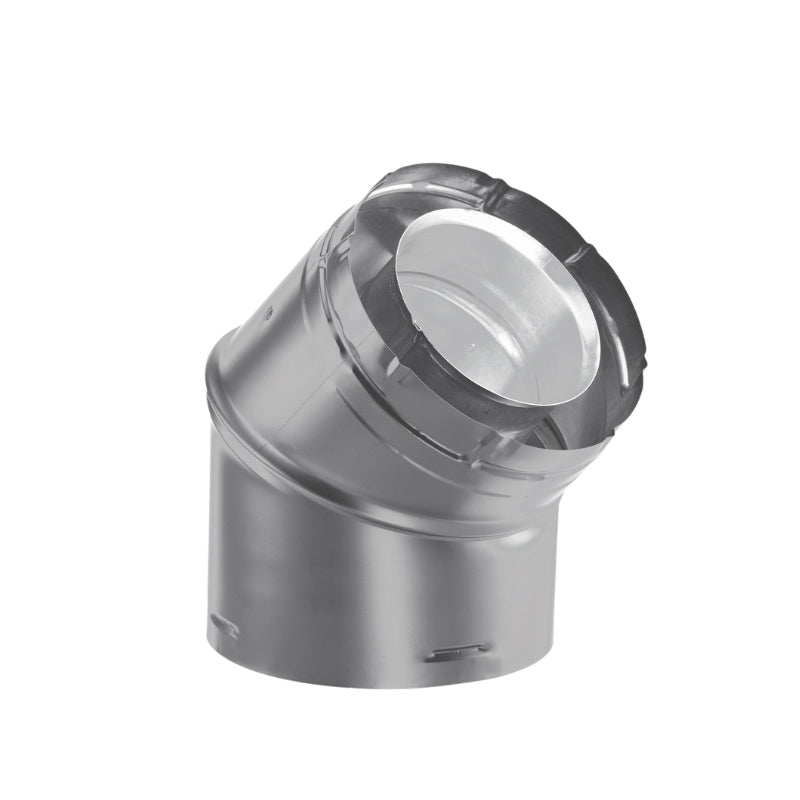

The Duravent 46DVA-E45 is a 45 degree galvanized elbow for 4 in x 6-5/8 in DirectVent Pro systems, used to change direction or offset around framing and other obstructions. It has the same fully unitized, twist-lock connection as DirectVent Pro pipe.
Features
- Fixed 45 degree bend, 4 in x 6-5/8 in
- Fully unitized, twist-lock construction
- Swivels so the lock stays fully engaged while you align the direction (Duravent)
- Galvanized outer wall
- Pair two 45 degree elbows for an offset, with an elbow strap for support
Key Specifications
| Model / SKU | Duravent 46DVA-E45 |
| Stock number | 810001308 |
| Size | 4 in x 6-5/8 in |
| Angle | 45 degrees, fixed |
| Finish | Galvanized |

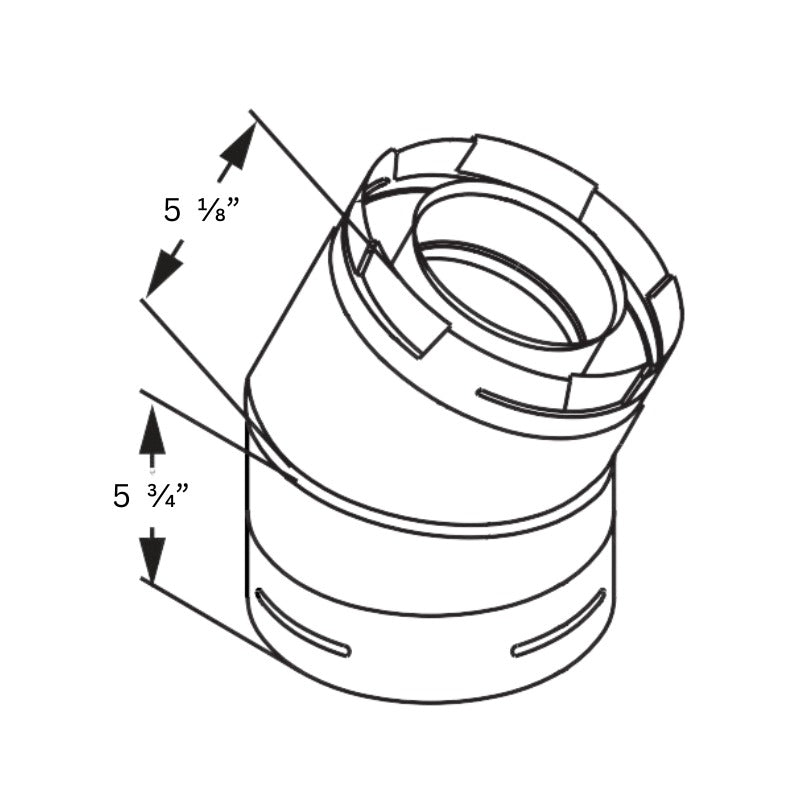

| Catalog dimensions | A 5-3/4, B 5-1/8 in (Duravent drawing letters) |
| Required or optional | Used as needed for the vent route the appliance manufacturer allows |
| UPC | 662492624241 |
What Is Included and What You Will Need
- One Duravent 46DVA-E45 45 degree elbow
- You will need: pipe lengths and supports for the run
Optional Accessories
- Duravent 46DVA-ES Elbow Strap
- Duravent 46DVA-WS Wall Strap
- Duravent 46DVA-24 24 in pipe length, galvanized
Installation Notes
Confirm the appliance manual approves DirectVent Pro, and keep the run within its rise, horizontal run and offset limits.
Planning a fireplace project or need help matching parts? Book a design consultation.
Documentation
Frequently Asked Questions
How do I offset around an obstruction?
Duravent recommends a pair of 45 degree elbows for offsets, with elbow straps for support; stay within the appliance maker offset limits.
Does the angle change when it swivels?
No. The elbow turns to set direction, but the angle stays fixed at 45 degrees.
Related reading: Direct vent gas fireplace buying guide, NYC fireplace code guide.
Warranty
Duravent Lifetime Limited Warranty (residential, sold on or after May 29, 2026): professional installs 100% for 15 years, then 50%; other installs 100% for 10 years, 75% to year 15, then 50%. Labor is not covered; proof of purchase is required.
