Description
Description

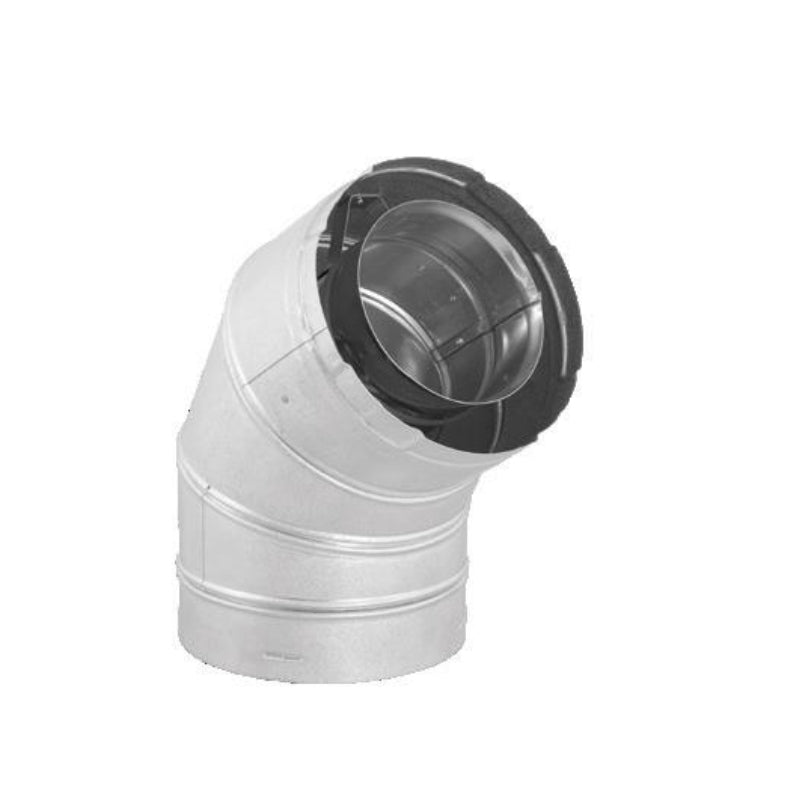

The Duravent 46DVA-E60 is a 60 degree galvanized elbow for 4 in x 6-5/8 in DirectVent Pro systems, used to change direction or offset around framing and other obstructions. It has the same fully unitized, twist-lock connection as DirectVent Pro pipe.
Features
- Fixed 60 degree bend, 4 in x 6-5/8 in
- Fully unitized, twist-lock construction
- Galvanized outer wall
- Support offsets with a Duravent elbow strap
Key Specifications
| Model / SKU | Duravent 46DVA-E60 |
| Stock number | 810001310 |
| Size | 4 in x 6-5/8 in |
| Angle | 60 degrees, fixed |
| Finish | Galvanized |

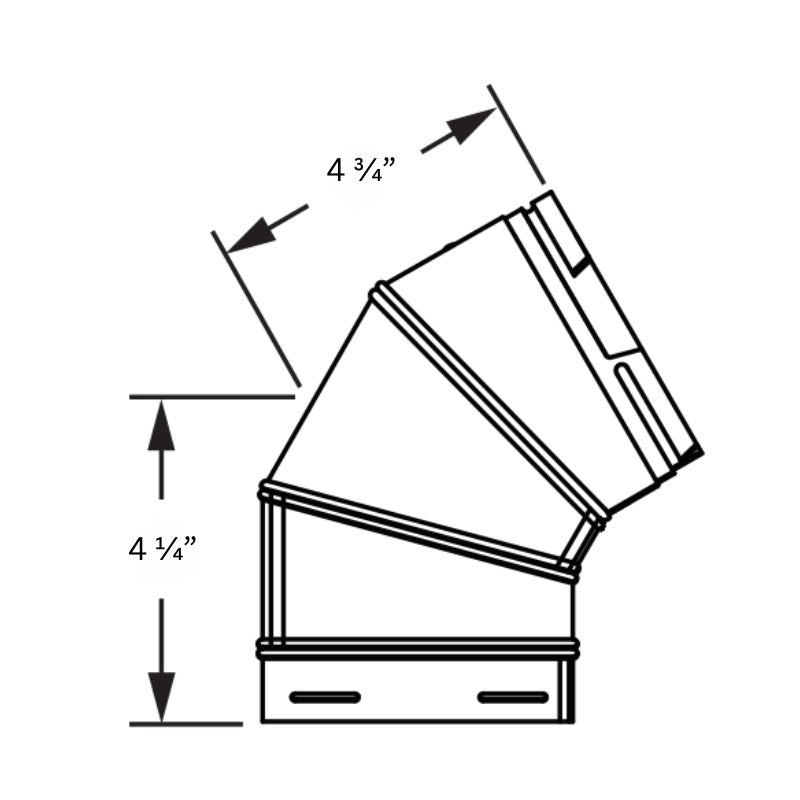

| Catalog dimensions | A 4-1/4, B 4-3/8 in (Duravent drawing letters) |
| Required or optional | Used as needed for the vent route the appliance manufacturer allows |
| UPC | 662492106419 |
What Is Included and What You Will Need
- One Duravent 46DVA-E60 60 degree elbow
- You will need: pipe lengths and supports for the run
Optional Accessories
- Duravent 46DVA-ES Elbow Strap
- Duravent 46DVA-WS Wall Strap
- Duravent 46DVA-24 24 in pipe length, galvanized
Installation Notes
Confirm the appliance manual approves DirectVent Pro, and keep the run within its rise, horizontal run and offset limits.
Planning a fireplace project or need help matching parts? Book a design consultation.
Documentation
Frequently Asked Questions
How do I offset around an obstruction?
Duravent recommends a pair of 45 degree elbows for offsets, with elbow straps for support; stay within the appliance maker offset limits.
Is this the black or galvanized version?
This is the galvanized 60 degree elbow; Duravent does not list a black 60 degree elbow.
Related reading: Direct vent gas fireplace buying guide, NYC fireplace code guide.
Warranty
Duravent Lifetime Limited Warranty (residential, sold on or after May 29, 2026): professional installs 100% for 15 years, then 50%; other installs 100% for 10 years, 75% to year 15, then 50%. Labor is not covered; proof of purchase is required.
