Available Sizes: Bromic Platinum Series II 240V Electric Heaters - White
33" | 50" (Current Size)
Overall Dimensions: 50.2 in W x 7.0 in H x 2.0 in D (Bromic Series II manual)

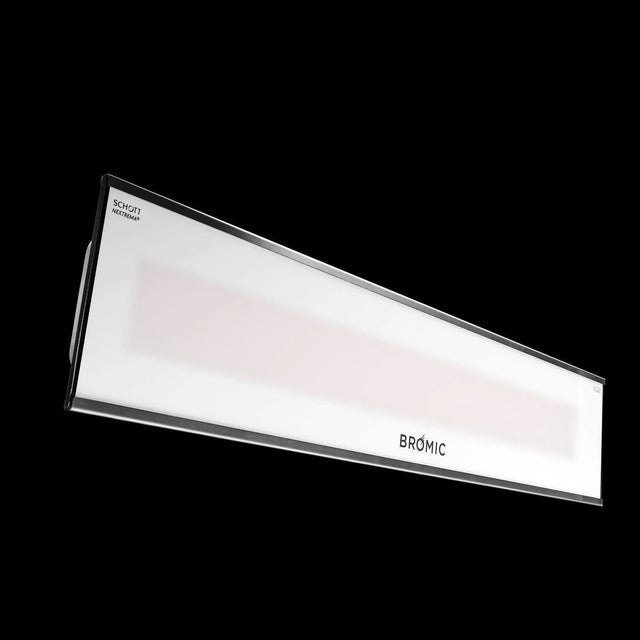

The Bromic Platinum Smart-Heat Electric Series II 3400W in white (BH0320008) is a slim, hardwired infrared heater for covered patios, pergolas, balconies and restaurant terraces. At 3,400 watts (about 11,600 BTU) Bromic rates it for roughly 108 sq ft, and its tinted glass-ceramic face gives a soft glow rather than a harsh orange light. Because it burns no fuel and needs no venting, it is a practical choice where gas is not available. Choose it on its own or with a Bromic Affinity on/off or dimmer controller above.
Key Specifications
| Model | Bromic Platinum Smart-Heat Electric Series II, 3400W, white (BH0320008) |
| Heat Output | 3,400 W (about 11,600 BTU) |
| Heat Area | About 108 sq ft per Bromic |
| Electrical | 220 to 240V AC, 50/60 Hz, 14.2 A at 240V; permanently hardwired |
| Water Rating | IPX4 (standard variant) |
| Housing | Brushed 304 stainless steel, white finish |
| Approval | Intertek 5001799 |
| Weight | 22 lb (10 kg) |
Dimensions and Cutout
| Heater Size | 50.2 in W x 7.0 in H x 2.0 in D (1275 x 182 x 54 mm) |
| Wall Mounting | At least 6 in below the ceiling and at least 72 in (6 ft) above the floor |
| Ceiling Mounting, Facing Down | 8 in below the ceiling, 18 in from a side wall, at least 96 in (8 ft) above the floor |
| Ceiling Mounting, Angled | 10 in below the ceiling, 12 in from a side wall, at least 96 in above the floor |
| Recessed (optional kit BH3130027) | Heater face at least 94 in above the floor, 20 in to the nearest wall; ceiling surface 0.4 to 1.2 in thick |
| Spacing Between Heaters | At least 20 in, edge to edge |
Features
- Ultra-thin 2 in profile in white
- Directional spot heating; the bracket can be set straight or angled 30 degrees either way
- Wind resistant with IPX4 water protection
- Heat zones: several heaters can switch on together from one remote switch
- Can be integrated into smart control systems
- Standard wall and ceiling bracket included; recess and tube suspension kits sold separately
What Is Included and What You Will Need
- Included: heater with the standard wall and ceiling mounting bracket and covers
- Required: a dedicated 240V circuit and hardwired connection with outdoor rated wiring components (IPX5 minimum) per local electrical code
- Options above: Affinity on/off controller (BH3130051) or Affinity dimmer controller (BH3130061)
- Optional: ceiling recess kit BH3130027 or a tube suspension kit, and the accessories suggested below
Installation Notes
Bromic requires this heater to be permanently installed and hardwired by an authorized, licensed person, following the minimum clearances above. For the longest life, mount the standard variant under cover and out of direct rain, and protect the bracket mounting surface from water. Building materials with low heat tolerance, such as vinyl siding or canvas, need extra protection. In New York City, hardwired electrical work must be done by a licensed electrician. Book a free design consultation and we will help you plan heater placement and controls.
Documentation
- Installation instructions and model specifications
- Wireless-control options
- Wireless on/off control manual
- Wireless dimmer manual
- Bromic design and buying guide
- Bromic heater overview
- Bromic US Warranty
Frequently Asked Questions
Does it need a gas line or venting?
No. It is an electric heater that is hardwired to a 240V supply.
How much area does it heat?
Bromic rates the 3400W model for about 108 sq ft.
Can it be mounted on the wall?
Yes. Keep it at least 6 in below the ceiling and 72 in above the floor. Ceiling mounting needs at least 96 in to the floor.
Can I dim it?
Yes, with the Affinity dimmer controller option. The on/off controller switches one or more heaters together.
Related reading: Patio heater buying guide and Best patio heater for a covered patio.
Warranty
Bromic's US warranty lists three years on Platinum Electric heaters for the original owner. Bromic supplies the replacement heater or part; labor and shipping are the owner's cost. Claims start with the dealer who sold the heater.
