Bromic  |  SKU: BH0320007

Bromic Heating Platinum Smart-Heat Series II 33-Inch 2300W 7,900 BTU 240V Electric Patio Heater - White

$1,658.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Bromic dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes: Bromic Platinum Series II 240V Electric Heaters - White

33" (Current Size) | 50"

Overall Dimensions: 33.0 x 7.0 x 2.1 in (W x H x D), per the Bromic installation manual

The Bromic Platinum Smart-Heat Electric 2300W is a slim 240V infrared heater for covered patios, pergolas, balconies and restaurant terraces. A glass-ceramic screen spreads radiant heat over about 65 sq ft while giving off a soft glow rather than a bright orange light, and the 2.1 in deep white body mounts flat to a wall or ceiling, recesses into a ceiling, or hangs from an optional pole.

Features

  • 2300 W of infrared output (about 7,850 BTU/h), sized for spot heating roughly 65 sq ft
  • Glass-ceramic screen with low light emission, so the heater reads as a warm glow
  • Only 2.1 in deep and 33 in wide, with a wind-resistant sealed case
  • Included bracket mounts to a wall or ceiling, straight or angled 30 degrees either way
  • Optional ceiling recess kits and pole mounts for a flush or dropped installation
  • Switch from a standard wall switch, or order it with a Bromic Affinity on/off or dimmer controller

Key Specifications

Model / SKU Bromic Platinum Smart-Heat Electric 2300W, White, BH0320007
UPC 9320688020062
Heat output 2300 W (about 7,850 BTU/h)
Heat coverage About 65 sq ft (current listing)
Power 220 to 240V AC, 50/60 Hz, hard-wired
Current draw About 9.6 A at 240V
Emitter Glass-ceramic screen, single element
Water rating IPX5 per the Bromic manual; mount under cover
Body Stainless steel, white finish
Mounting Wall or ceiling (bracket included); ceiling recess and pole mount optional
Controls Wall switch, or Bromic Affinity on/off or dimmer controller (options on this page)
Weight 16.5 lb (7.5 kg)

Dimensions and Cutout

Heater 33.0 in W x 7.0 in H x 2.1 in D (838 x 177 x 54 mm)
Ceiling mount, facing down At least 96 in from floor to heater; 8 in from ceiling to heater top; 10 in to side walls
Ceiling mount, angled At least 96 in from floor; 10 in above the heater
Wall mount At least 72 in from floor to heater; 6 in from heater top to ceiling
Spacing between heaters At least 20 in (500 mm), per the manual
Ceiling recess 34.2 x 9.1 in cut-out for recess kit BH3130017; heater face at least 94 in above the floor and 20 in from the nearest wall, per the manual

What Is Included and What You Will Need

  • Platinum Smart-Heat Electric 2300W heater in white, BH0320007
  • Wall and ceiling bracket with straight and angled covers, positioning screws and cable gland
  • Optional on this page: Bromic Affinity on/off controller (BH3130051) or dimmer controller (BH3130061)
  • You will need: a dedicated 220 to 240V circuit with a double-pole isolating breaker, a licensed electrician, and a switch or controller

Optional Accessories

Installation Notes

This heater must be permanently hard-wired to a 220 to 240V supply by a licensed electrician, with an all-pole circuit breaker upstream. Keep it out of reach of a bath, shower or pool, never cover it, and allow two hours after switching off before handling. Bromic recommends mounting it under cover, away from direct rain, for the longest life and best appearance.

Observe the mounting heights and clearances in the table above for the bracket position you choose; the recessed and pole options have their own clearances in the Bromic instructions.

In New York City, new electrical circuits must be installed and filed by a licensed electrician, and outdoor terraces in multifamily buildings usually need board or landlord approval first.

Planning heat for a terrace or covered patio? Book a design consultation.

Documentation

Frequently Asked Questions

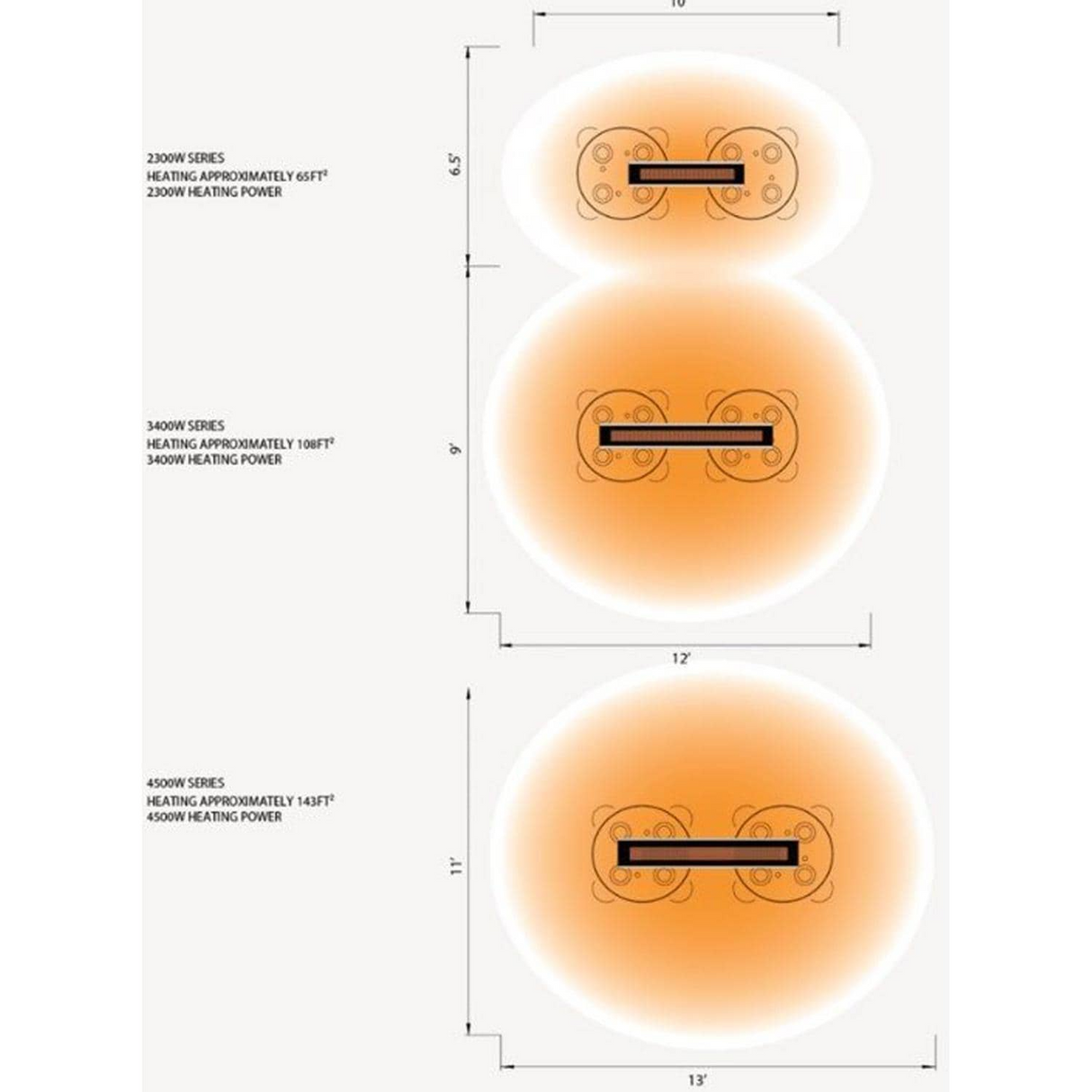

How much area does the 2300W model heat?

About 65 sq ft of focused spot heat, per the current listing. For larger seating areas, use several heaters spaced at least 20 in apart or step up to the 3400W model.

Can it be installed indoors?

Bromic describes the Platinum Smart-Heat Electric as suitable for outdoor and indoor heating applications. Indoor use still has to meet your local electrical and building code.

Does it plug in?

No. It is hard-wired to a 220 to 240V circuit by a licensed electrician.

Can it get wet?

Bromic rates it IPX5 against water, but recommends mounting it under cover and away from direct rain.

How do I control it?

Wire it to a standard switch, or choose the Affinity on/off or dimmer controller option on this page.

Related reading: Patio heater buying guide, Best patio heater for a covered patio, Bromic vs Infratech patio heaters.

Warranty

Per the current listing, Bromic Heating warrants its patio heaters, in residential or commercial installations, to the original purchaser against defects in materials and workmanship for one year from the date of purchase. See the manufacturer documentation for full terms.
