Description
Description
Overall Dimensions: 40.9 in L x 10.3 in W x 6.9 in H (1039 x 261 x 175 mm), per the Bromic manual

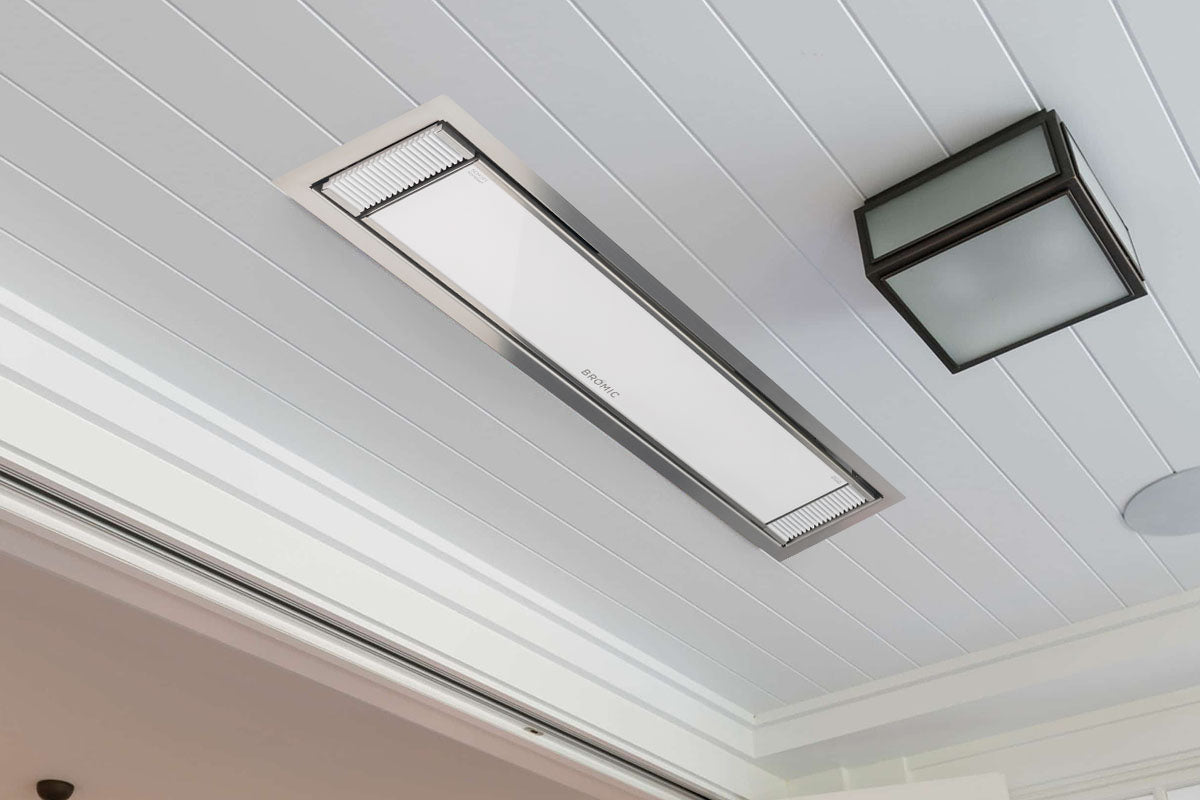

The Bromic BH3623009 is the standard low-clearance ceiling recess kit for the Platinum Smart-Heat Electric 2300W heater. It sets the heater flush into a ceiling or soffit with only about 7 in (180 mm) of space above the finished surface, so a covered terrace, pergola or porch ceiling can have hidden radiant heat where a standard recess box will not fit.
Features
- Recesses the Platinum Electric 2300W heater flush with about 180 mm (7.1 in) of vertical space above the ceiling surface
- Brushed 304 stainless steel recess box, IP cover, terminal box and trim assembly
- Built-in fan keeps the recess cool; it needs a constant (unswitched) supply drawing under 1 A

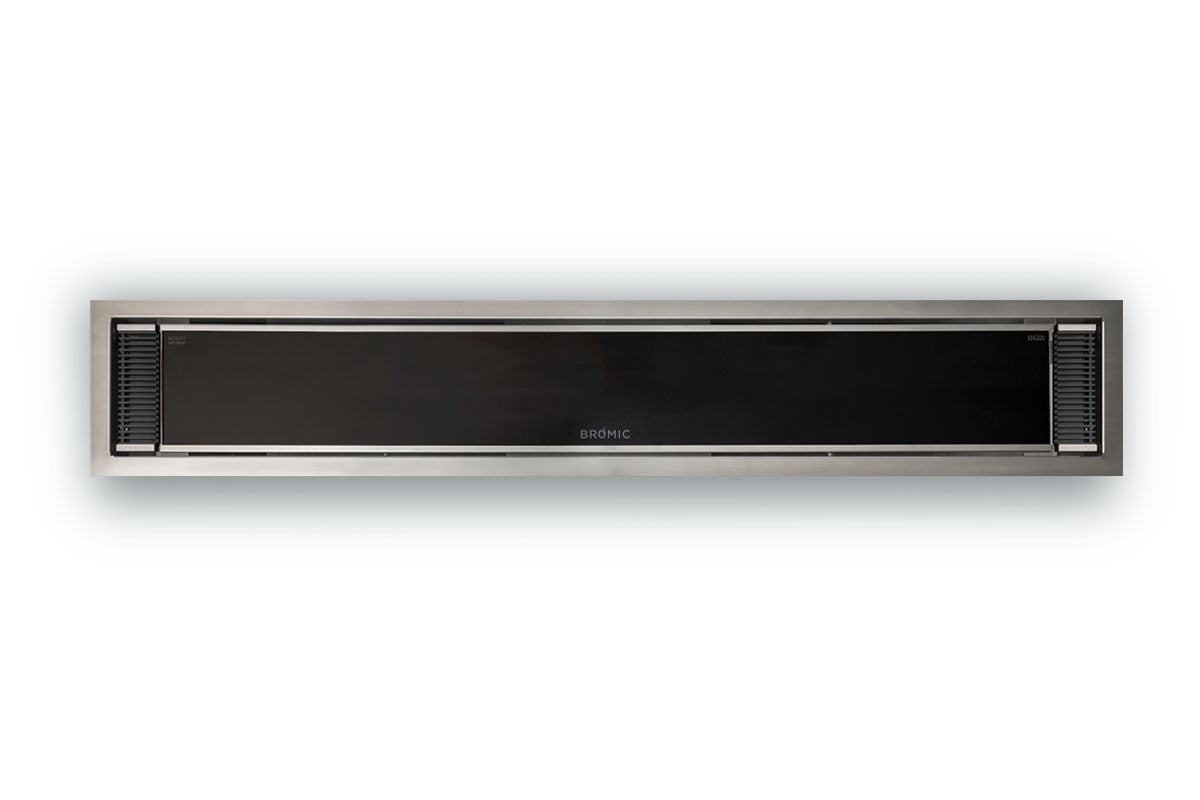

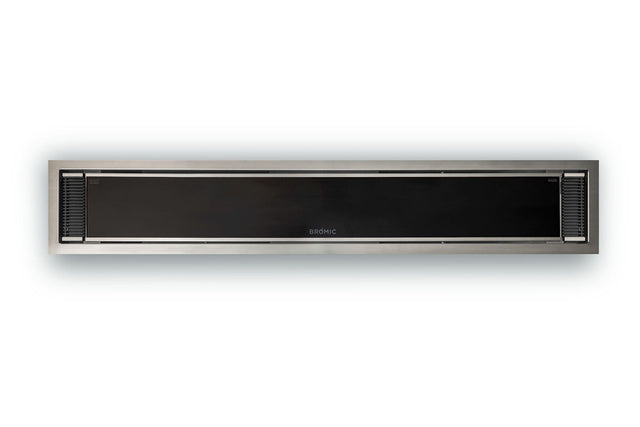

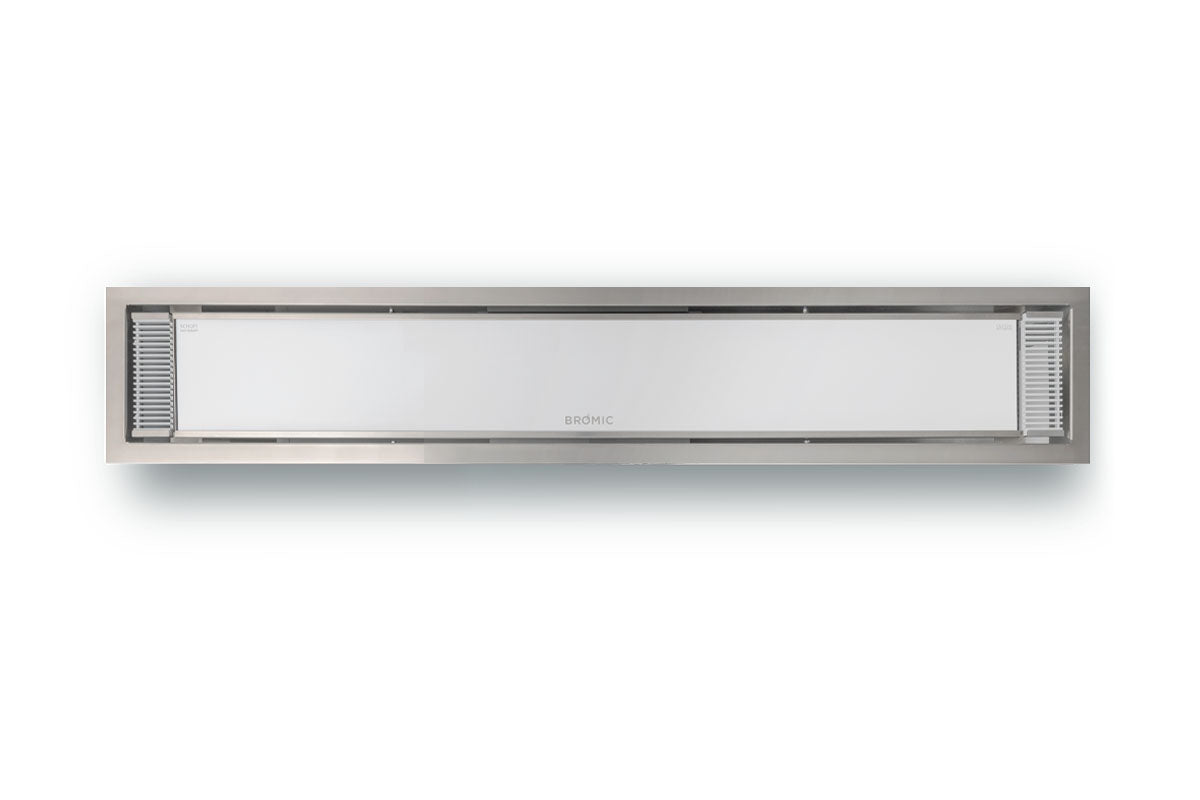

- Black and white vent covers to match the heater color
- Sized for the 2300W heater only; a marine grade 316 version is listed separately (BH3623011)
Key Specifications
| Model / SKU | Bromic Platinum Electric Low Clearance Recess Kit, 2300W, standard; BH3623009 (manual part BH3623009-1) |
| Fits | Bromic Platinum Smart-Heat Electric 2300W heater (sold separately) |
| Material | Brushed 304 stainless steel |
| Kit weight | 24.3 lb (11 kg) |
| Fan supply | 100-127 V, 208 V or 220-240 V AC, under 1.0 A, constantly powered |
| Heater supply (kit + heater) | 208 V, 11.1 A or 220-240 V, 9.6 A |

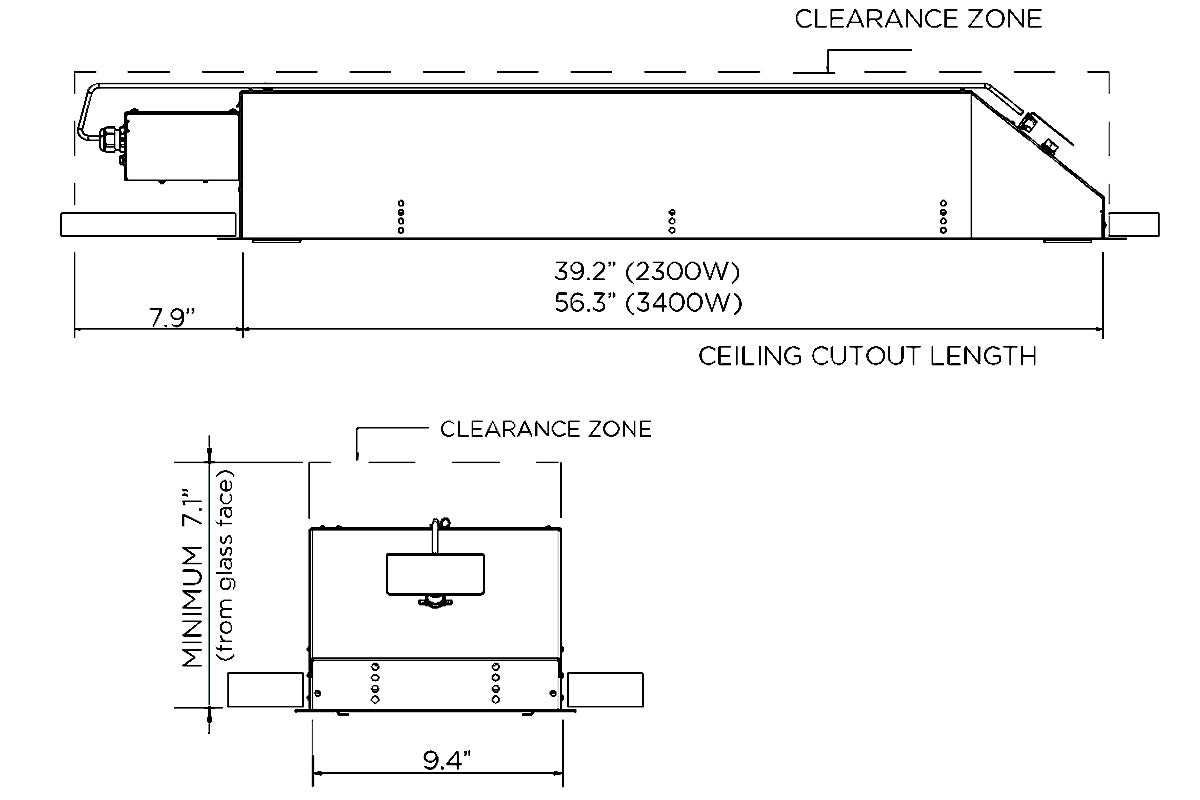

Dimensions and Cutout
| Kit (L x W x H) | 1039 x 261 x 175 mm (40.9 x 10.3 x 6.9 in) |
| Ceiling cutout | 995 x 240 mm (39.2 x 9.4 in); ceiling thickness 10 to 30 mm |
| Clearances | 180 mm above the ceiling surface; 200 mm from the terminal box end; 500 mm from the cutout to the nearest wall and between heaters; heater surface at least 2400 mm (about 7 ft 10 in) above the floor |
What Is Included and What You Will Need
- Ceiling recess box, IP cover and terminal box
- Black and white vent covers, trim assembly and trim screws
- You will need: the Bromic Platinum Electric 2300W heater, fasteners for the ceiling box, a framed opening that does not cut joists, and a licensed electrician
Optional Accessories
- Bromic Heating Platinum Smart-Heat Series II 33-Inch 2300W 7,900 BTU 240V Electric Patio Heater - Black
- Bromic Heating Platinum Smart-Heat Series II 33-Inch 2300W 7,900 BTU 240V Electric Patio Heater - White
- Bromic Affinity Smart-Heat Control System
Installation Notes
The kit must be permanently installed by a licensed electrician to local code. Do not cut or notch joists or rafters, never cover the heater with insulation, and protect it fully from water above; the standard version must not be exposed to direct rain. The fan needs a constant, unswitched supply, and the heater will not run unless the thermal cut-off plug is fitted in the terminal box.
In New York City, a new heater circuit on a terrace, balcony or roof requires a licensed electrician and an electrical permit, and co-op or condo boards often require approval, so plan the wiring before you order.
Planning heat for a covered terrace or pergola? Book a design consultation.
Documentation
Frequently Asked Questions
Is the heater included?
No. Order the Bromic Platinum Electric 2300W heater separately.
How much ceiling depth does it need?
About 180 mm (7.1 in) of vertical space above the ceiling surface, plus the 995 x 240 mm cutout.
Why does it need constant power?
The kit fan cools the recess and must run independently of the heater switch.
Related reading: Patio heater buying guide, Best patio heater for a covered patio.
Warranty
Per the current listing, Bromic covers the recess kit under its one year parts warranty on the heater series, for the original owner; labor is not included. Repairs must be carried out by a Bromic authorized service agent. See the Bromic warranty for full terms.
