EcoSmart Fire XL1200 Ethanol Burner
EcoSmart Fire XL1200 Ethanol Burner - Stainless Steel is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 47.2 in L x 7.7 in W x 4.4 in H

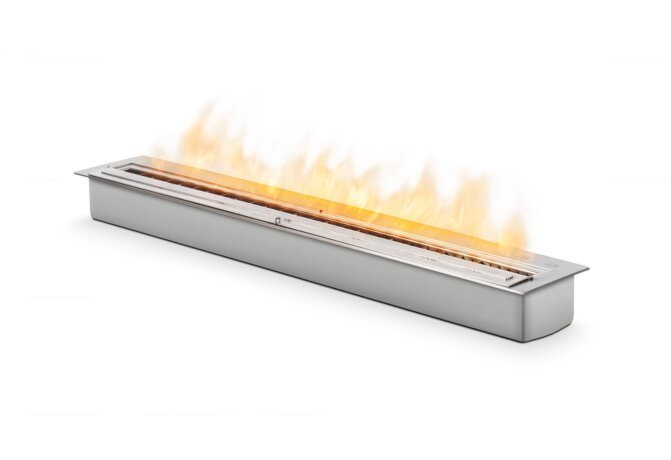

The EcoSmart Fire XL1200 is the longest burner in the XL Series: a 47.2 in drop-in bioethanol burner in grade 304 stainless steel with a 10 L tank and an approximate 9 to 14 hour burn. It sets into a non-combustible surround, cabinet, bench or firebox and needs no flue, gas line or wiring. Use one for a single long flame, or set several side by side for a continuous linear fire indoors or outdoors.
Key Specifications

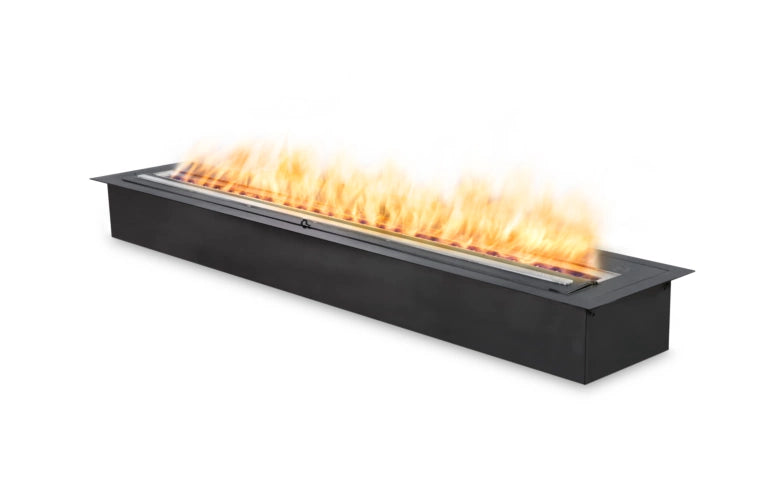

| Model | XL1200 bioethanol burner (ESF.2.B.XL12 stainless steel; ESF.2.B.XL12.BL black) |
|---|---|
| Fuel | e-NRG bioethanol only |
| Fuel capacity | 10 L (2.6 gal) |
| Burn time | 9 to 14 hours (approx.) |
| Fuel consumption | 0.87 L/h (0.23 gal/h) |
| Thermal output (net max) | 15,290 BTU/h (17 MJ/h, 4.5 kW) |
| Heats on average (indoors) | Over 700 sq ft (65 sq m) |
| Minimum room size | 4,061 cu ft (115 cu m) per burner |
| Material | Grade 304 stainless steel |
| Application | Indoor and outdoor |
| Certification | UL listed to ANSI/UL 1370 (USA); complies with the ACCC safety mandate (Australia) |
| Weight | 15.7 kg (34.5 lb) |
Dimensions and Cutout

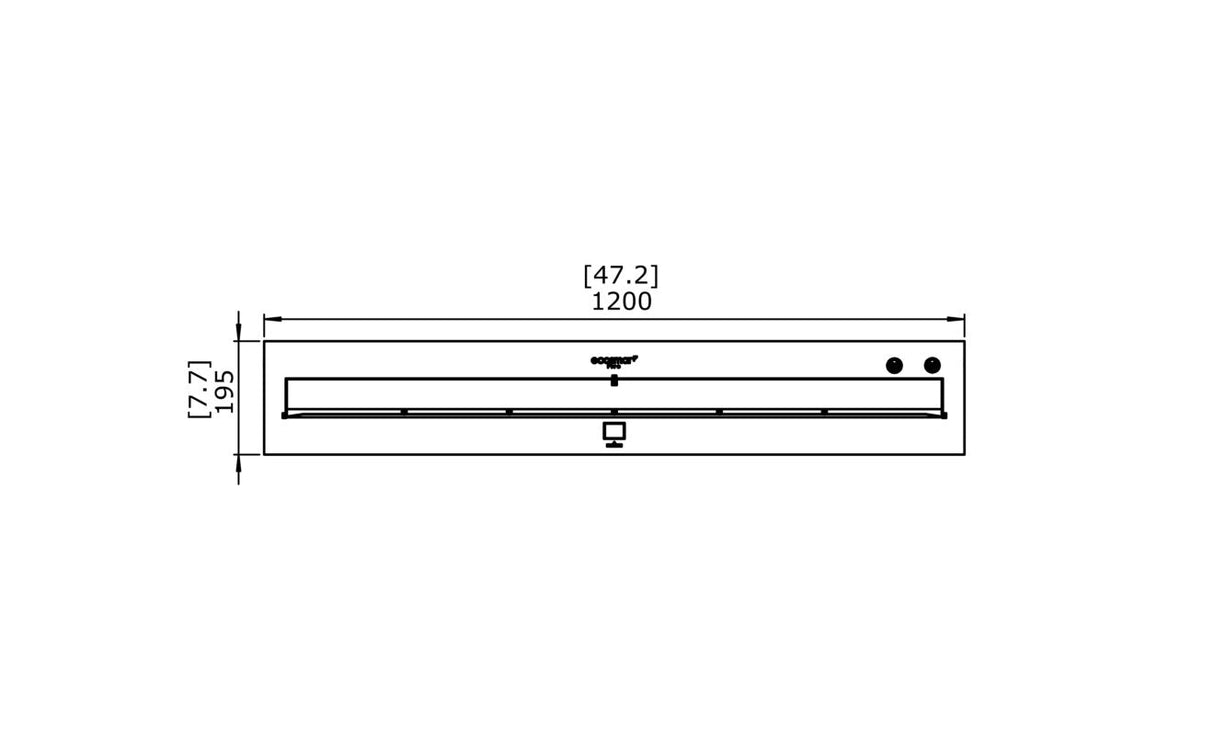

| Burner flange (L x W) | 47.2 in x 7.7 in (1,200 mm x 195 mm) |
|---|---|
| Burner body (L x W) | 46.2 in x 6.2 in (1,174 mm x 157 mm) |
| Height | 4.4 in (112 mm) |
| Cutout (L x W) | 46.8 in x 7.1 in (1,190 mm x 180 mm), burner lip resting on top of the surface |
| Cutout minimum depth | 5.1 in (130 mm); burner sits 0.2 in (5 mm) proud |
| Minimum firebox (within a firebox) | 59.1 in W x 13.8 in D x 19.7 in H (1,500 x 350 x 500 mm) |
| Burner placement in a firebox | At least 2.0 in front, 1.6 in rear, 5.9 in left and 5.9 in right from the flange edge |
| Without a firebox | Overhead 59.1 in (1,500 mm) indoors, 78.7 in (2,000 mm) outdoors; 23.6 in (600 mm) to combustible materials |
| Flame to curtains and flammables | At least 59.1 in (1,500 mm) |
Features
- Longest XL Series burner, for a stretched linear flame in custom settings
- Run several burners side by side for a longer continuous flame
- Flip lid shut-off system closes over the ignition zone to put out the flame
- Dedicated filling point separated from the ignition zone, with a supported jerry can spout to reduce spills
- Baffle inserts to regulate and stabilize the flame and improve fuel efficiency
- Deep drawn stainless steel fabrication, which EcoSmart says eliminates the potential for leaks
- No flue, chimney, gas line or electrical connection
What Is Included and What You Will Need
- Included per EcoSmart: XL1200 burner, 5 baffles, jerry can, lighting rod and lighter, operations manual
- Optional from EcoSmart: twin feet fixings, fire screens and fire screen fixings, black glass charcoal
- Required: e-NRG bioethanol fuel and a level, non-combustible setting built to the cutout above
- For a custom firebox: non-combustible construction built to take a Top Tray, 0.8 in (20 mm) spacers on all sides, and a static windscreen 7 to 9 in high across the full width
Installation Notes
The XL1200 must be set only into non-combustible materials on a flat, level surface, away from drafts and cross ventilation. EcoSmart asks that drawings of a custom setting be sent to a local representative for review before installation, and recommends an EcoSmart firebox over a custom-built one. Check the burner against the cutout before work starts. Do not use it in a bathroom or other small room, and keep at least 4,061 cu ft of room volume per burner. Refuel only when the flame is out and the burner has cooled at least 60 minutes. Bioethanol needs no flue, but fire codes and building rules still apply, so confirm that an ethanol appliance is acceptable in your New York City building, co-op or condo before ordering. Book a free design consultation and we will help you plan the setting, clearances and installation.
Documentation
Frequently Asked Questions
What size cutout does the XL1200 need?
EcoSmart lists a cutout of 46.8 in x 7.1 in (1,190 x 180 mm) with a minimum depth of 5.1 in (130 mm). The lip rests on the surface and sits 0.2 in proud.
Can I use it indoors?
Yes. It is rated for indoor and outdoor use. Indoors the room must be at least 4,061 cu ft per burner, and it must not go in a bathroom or other small room.
How long does a full tank last?
The 10 L tank burns about 9 to 14 hours, using about 0.87 L per hour at the maximum setting.
Can I install two burners together?
Yes. XL burners can be set side by side for a longer linear flame. Room size requirements apply per burner, so plan the room volume for the total number of burners.
Related reading: Ethanol Fireplace buying guide.
Warranty
Per the EcoSmart operations manual (V0720), stainless steel parts, including raw, linished and powder coated, carry a 2-year warranty from the date of purchase, and mild steel, glass and other listed materials carry 1 year. Chips and scratches are not covered, and installation corrections, misuse and unapproved modifications are excluded. Our earlier listing stated 12 months, so confirm the terms that apply to your order.
