EcoSmart Fire XL700 Ethanol Burner
EcoSmart Fire XL700 Ethanol Burner - Stainless Steel is backordered and will ship as soon as it is back in stock.
Description
Description
Overall Dimensions: 27.6 in L x 7.7 in W x 4.4 in H

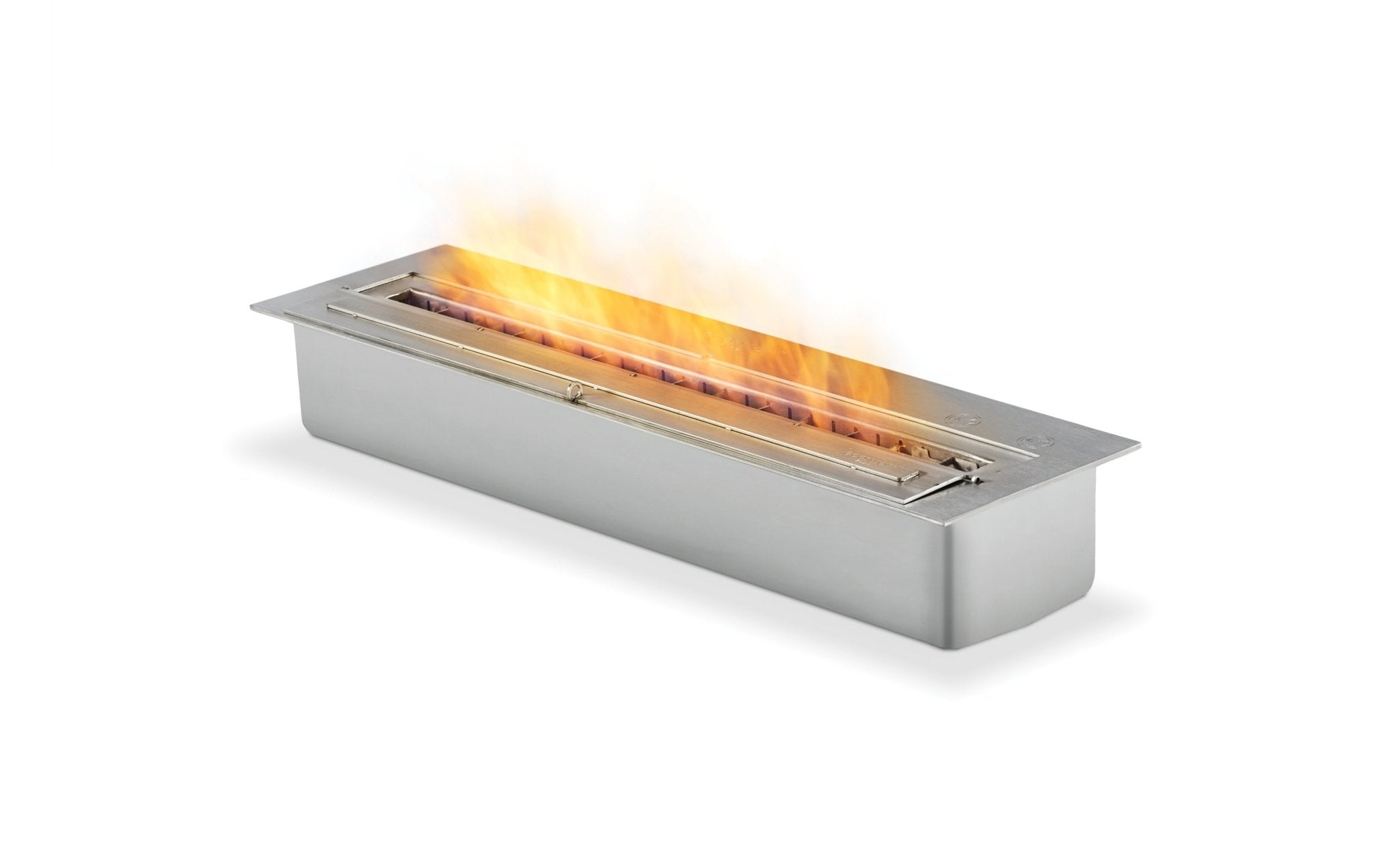

The EcoSmart Fire XL700 is a 27.6 in drop-in linear bioethanol burner in grade 304 stainless steel with a 7 L tank and an approximate 9 to 12 hour burn. It sets into a non-combustible surround, cabinet, bench or firebox and needs no flue, gas line or wiring. Use it for a compact linear flame in a custom fireplace, media wall or outdoor setting.
Key Specifications

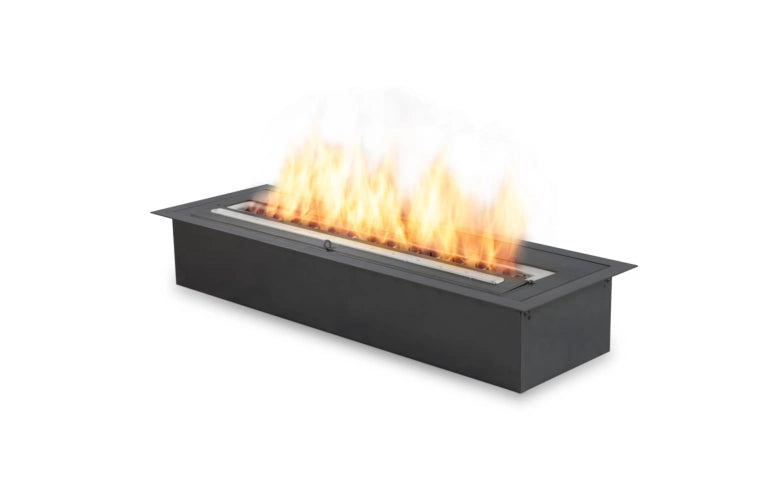

| Model | XL700 bioethanol burner (ESF.2.B.XL7 stainless steel; ESF.2.B.XL7.BL black per current listing) |
|---|---|
| Fuel | e-NRG bioethanol only |
| Fuel capacity | 7 L (1.8 gal) |
| Burn time | 9 to 12 hours (approx.) |
| Fuel consumption | 0.7 L/h (0.18 gal/h) |
| Thermal output (net max) | 13,650 BTU/h (14.5 MJ/h, 4 kW) |
| Heats on average (indoors) | Over 538 sq ft (50 sq m) |
| Minimum room size | 3,178 cu ft (90 cu m) per burner |
| Material | Grade 304 stainless steel |

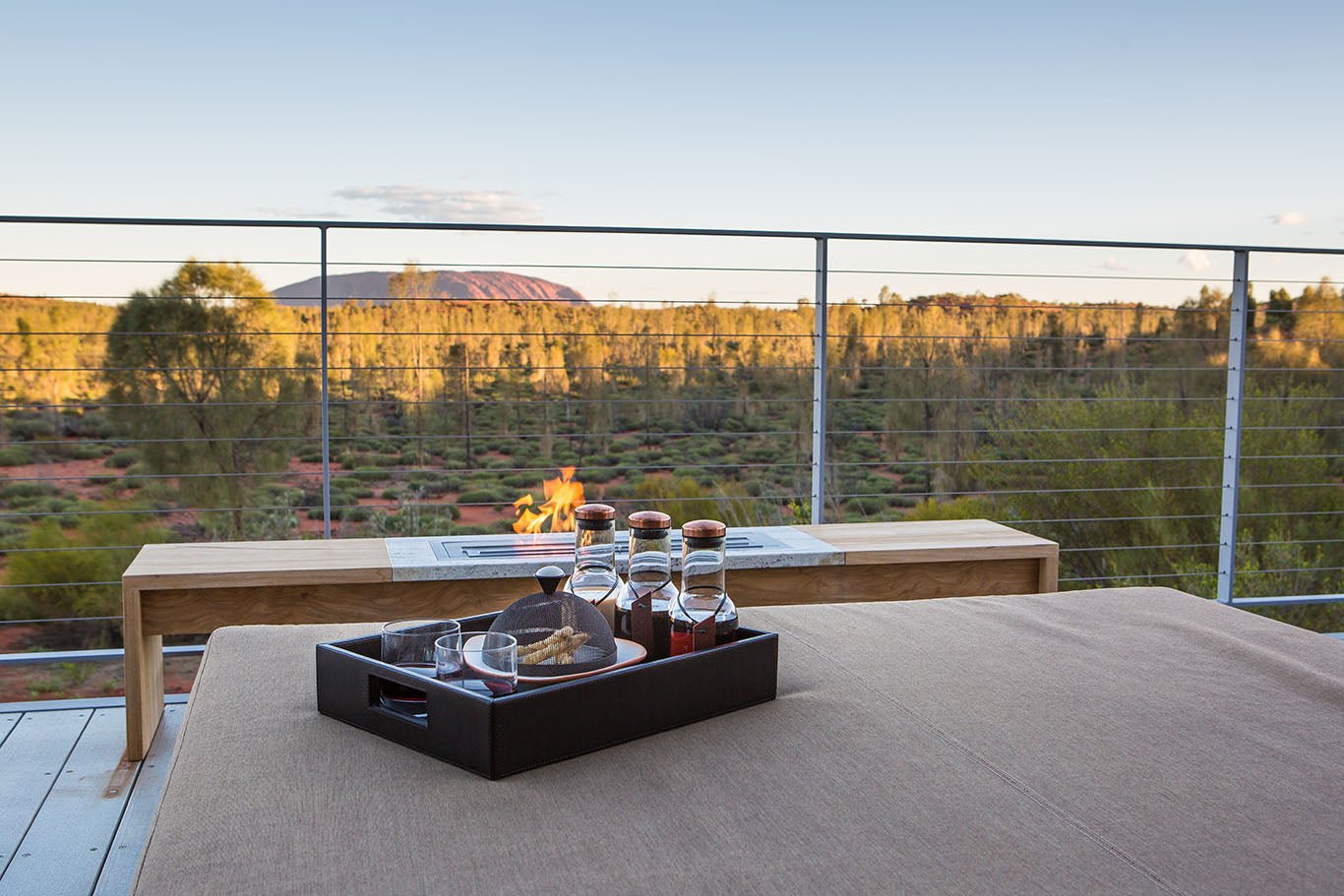

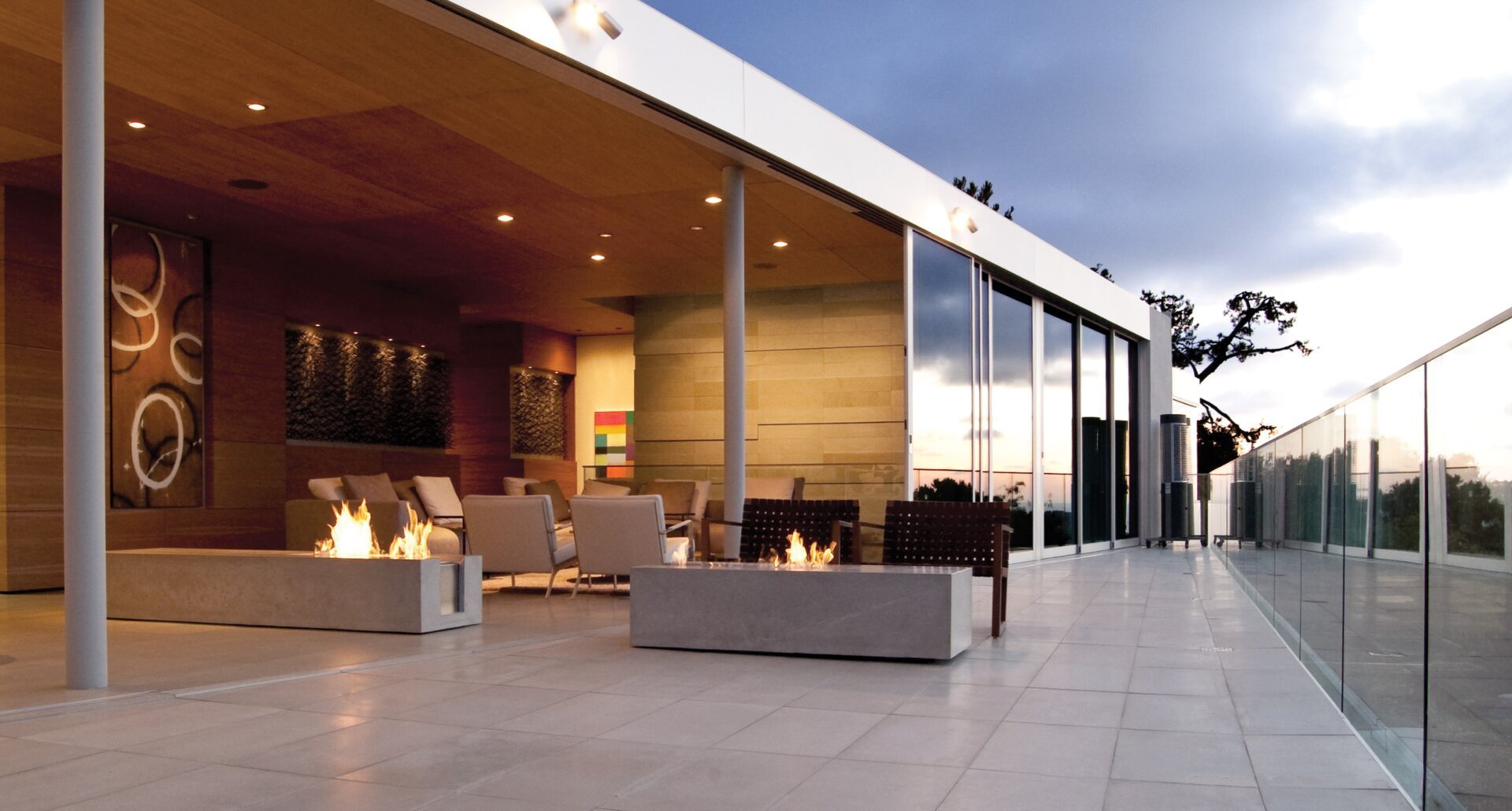

| Application | Indoor and outdoor |
| Certification | UL listed to ANSI/UL 1370 (USA); complies with the ACCC safety mandate (Australia) |
| Weight | 9.2 kg (20.2 lb) |
Dimensions and Cutout

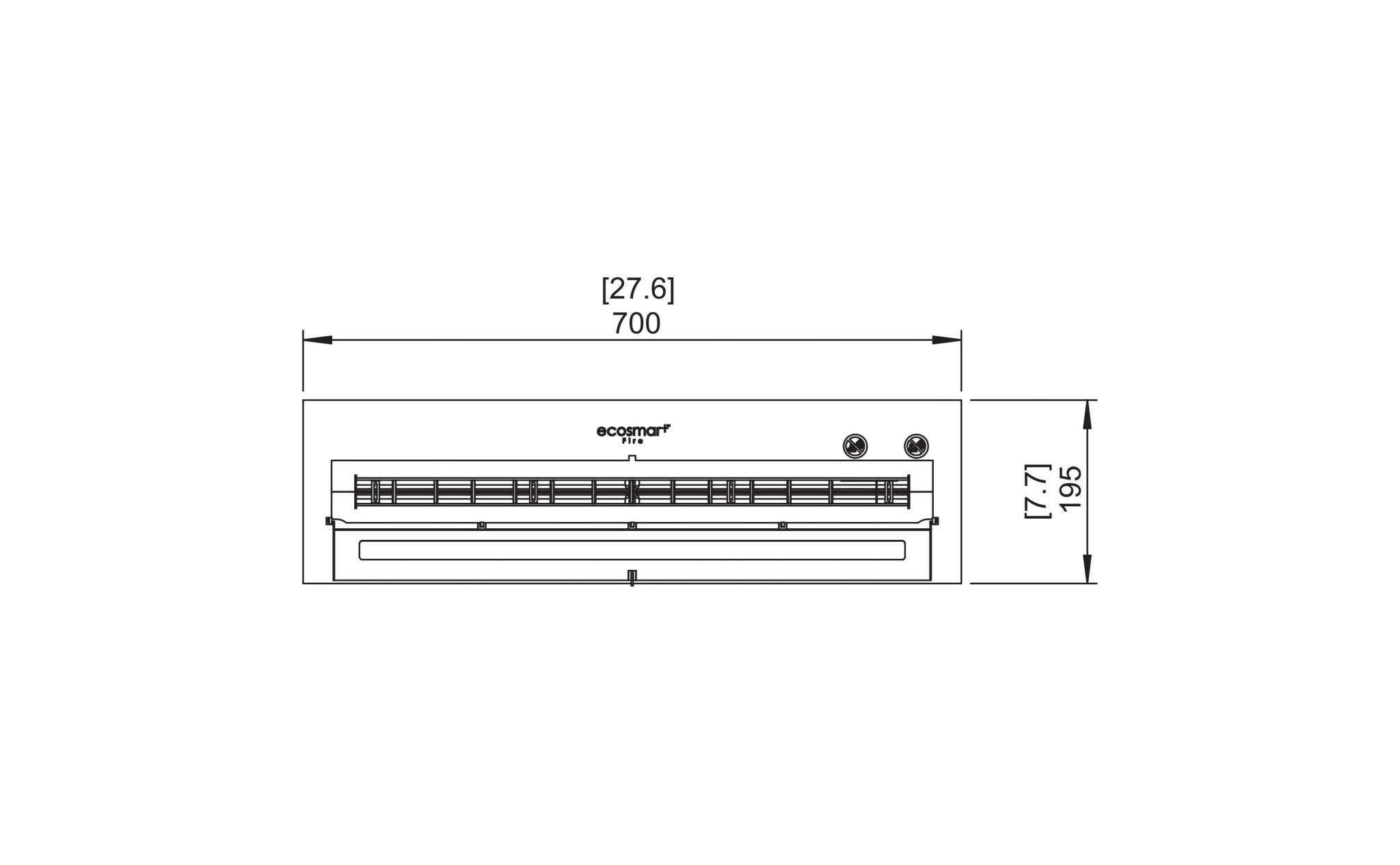

| Burner flange (L x W) | 27.6 in x 7.7 in (700 mm x 195 mm) |
|---|---|

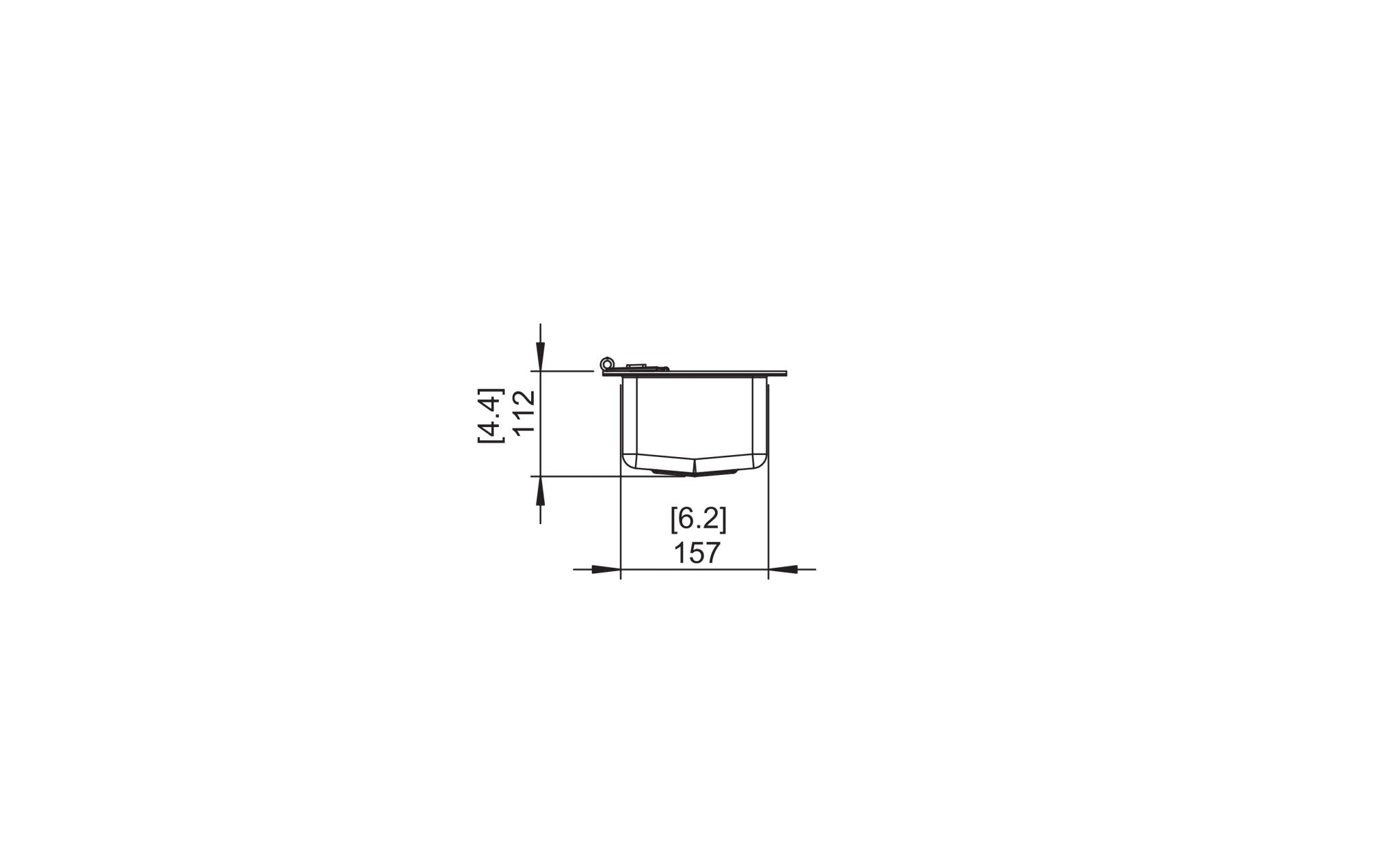

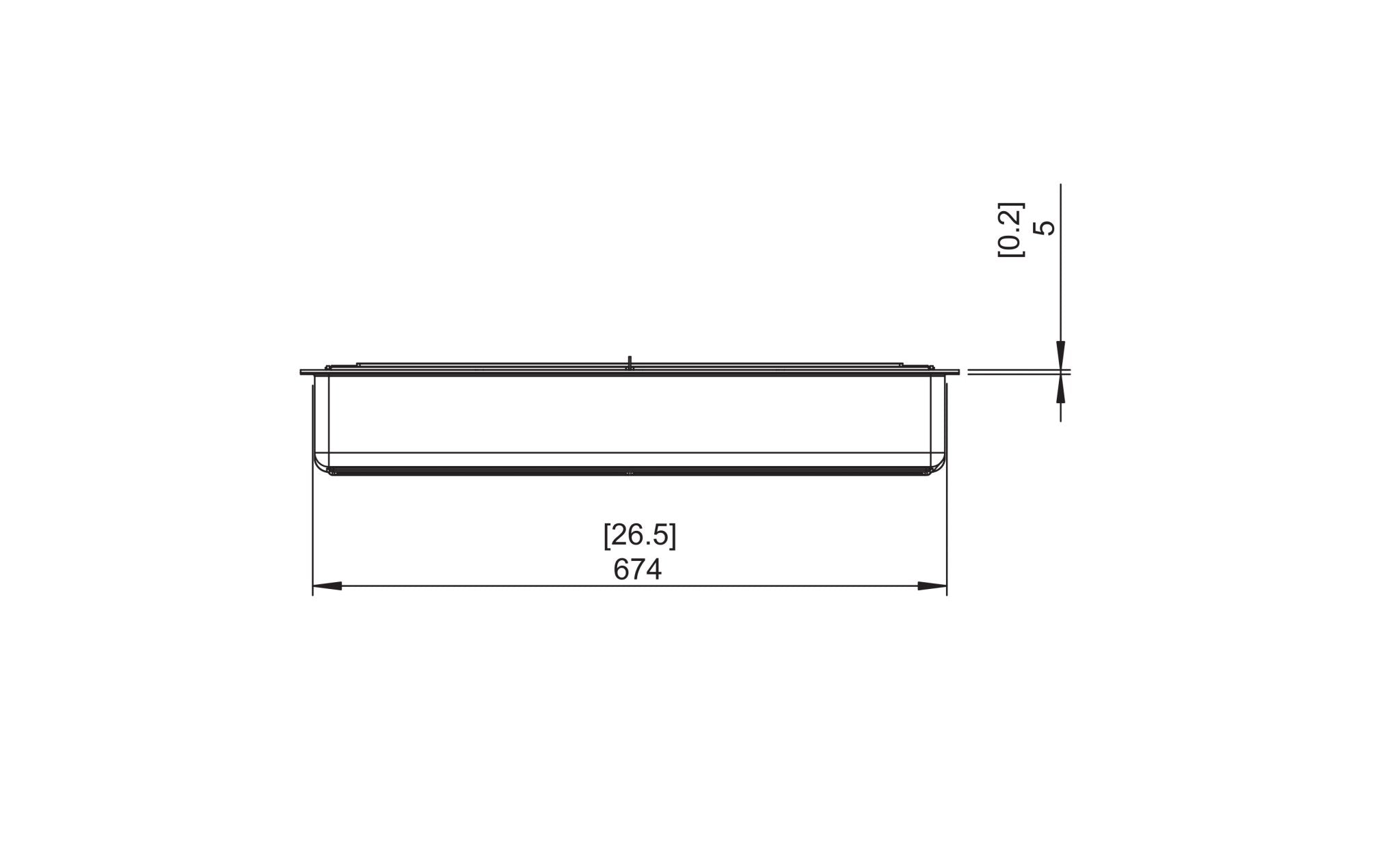

| Burner body (L x W) | 26.5 in x 6.2 in (674 mm x 157 mm) |
| Height | 4.4 in (112 mm) |
| Cutout (L x W) | 27.2 in x 7.1 in (690 mm x 180 mm), burner lip resting on top of the surface |
| Cutout minimum depth | 5.1 in (130 mm); burner sits 0.2 in (5 mm) proud |
| Minimum firebox (within a firebox) | 39.4 in W x 13.8 in D x 19.7 in H (1,000 x 350 x 500 mm) |
| Burner placement in a firebox | At least 2.0 in front, 1.6 in rear, 5.9 in left and 5.9 in right from the flange edge |
| Flame to curtains and flammables | At least 59.1 in (1,500 mm) |
Features

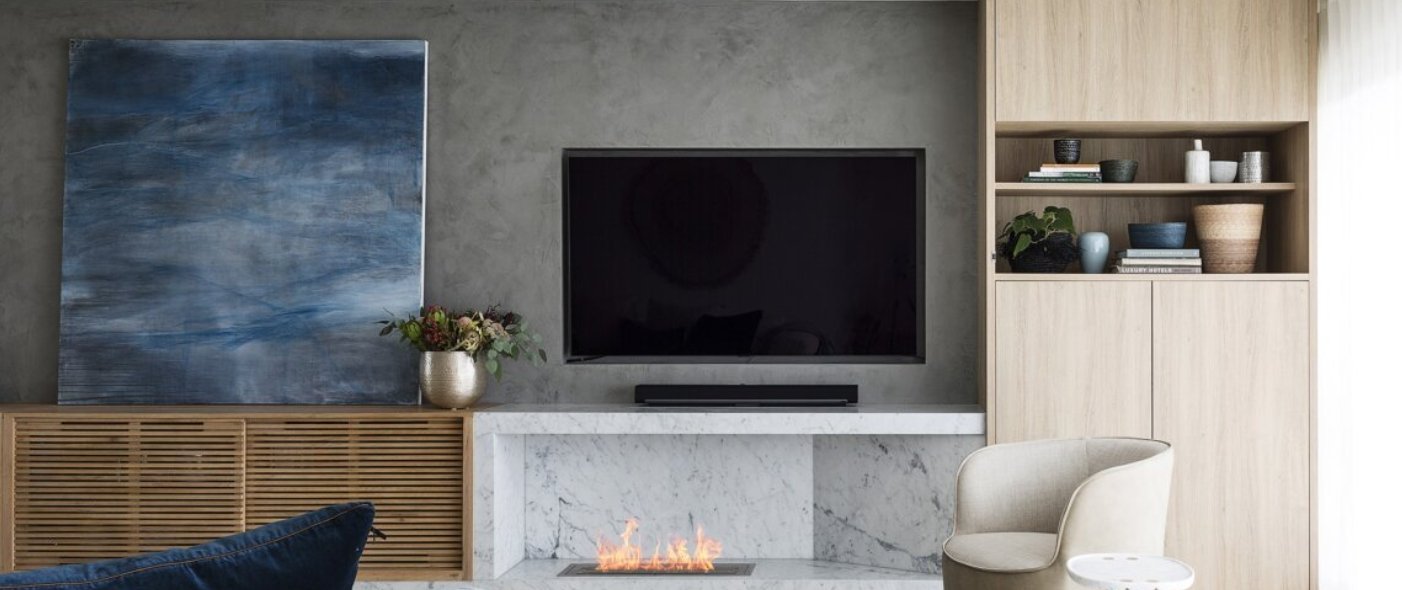

- Compact XL Series linear burner for custom cabinetry, media walls, benches and pillars
- Flip lid shut-off system closes over the ignition zone to put out the flame
- Dedicated filling point separated from the ignition zone, with a supported jerry can spout to reduce spills
- Three baffle inserts to regulate and stabilize the flame and improve fuel efficiency
- Deep drawn stainless steel fabrication, which EcoSmart says eliminates the potential for leaks

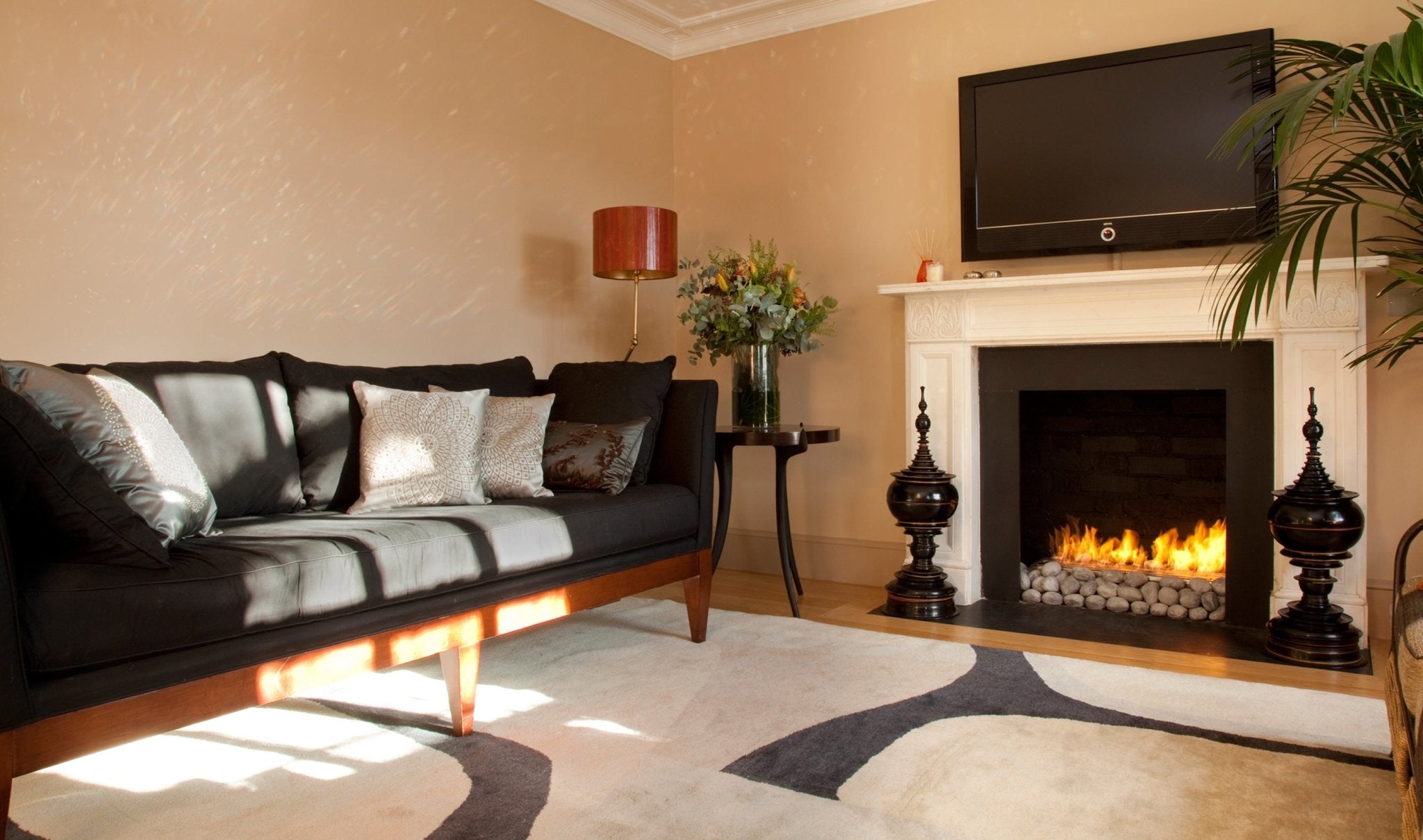

- Can be used standalone in a tailored setting or in an EcoSmart firebox
- No flue, chimney, gas line or electrical connection
What Is Included and What You Will Need
- Included per EcoSmart: XL700 burner, 3 baffles, jerry can, lighting rod and lighter, operations manual
- Optional from EcoSmart: twin feet fixings, fire screens and fire screen fixings, black glass charcoal
- Required: e-NRG bioethanol fuel and a level, non-combustible setting built to the cutout above
- For a custom firebox: non-combustible construction built to take a Top Tray, 0.8 in (20 mm) spacers on all sides, and a static windscreen 7 to 9 in high across the full width
Installation Notes
The XL700 must be set only into non-combustible materials on a flat, level surface, away from drafts. EcoSmart asks that drawings of a custom setting be sent to a local representative for review before installation. Check the burner against the cutout before work starts. Do not use it in a bathroom or other small room, and keep at least 3,178 cu ft of room volume per burner. Refuel only when the flame is out and the burner has cooled. Bioethanol needs no flue, but fire codes and building rules still apply, so confirm that an ethanol appliance is acceptable in your New York City building, co-op or condo before ordering. Book a free design consultation and we will help you plan the setting, clearances and installation.
Documentation
Frequently Asked Questions
What size cutout does the XL700 need?
EcoSmart lists a cutout of 27.2 in x 7.1 in (690 x 180 mm) with a minimum depth of 5.1 in (130 mm). The lip rests on the surface and sits 0.2 in proud.
Can I use it indoors?
Yes. It is rated for indoor and outdoor use. Indoors the room must be at least 3,178 cu ft per burner, and it must not go in a bathroom or other small room.
How long does a full tank last?
The 7 L tank burns about 9 to 12 hours, using about 0.7 L per hour at the maximum setting.
Can I install two burners together?
Yes. XL burners can be set side by side for a longer linear flame. Room size requirements apply per burner.
Related reading: Ethanol fireplace buying guide.
Warranty
Per the EcoSmart operations manual (V0720), stainless steel parts, including raw, linished and powder coated, carry a 2-year warranty from the date of purchase, and mild steel, glass and other listed materials carry 1 year. Chips and scratches are not covered, and installation corrections, misuse and unapproved modifications are excluded. Our earlier listing stated 12 months, so confirm the terms that apply to your order.
