EcoSmart Fire  |  SKU: ESF.2.B.XL5

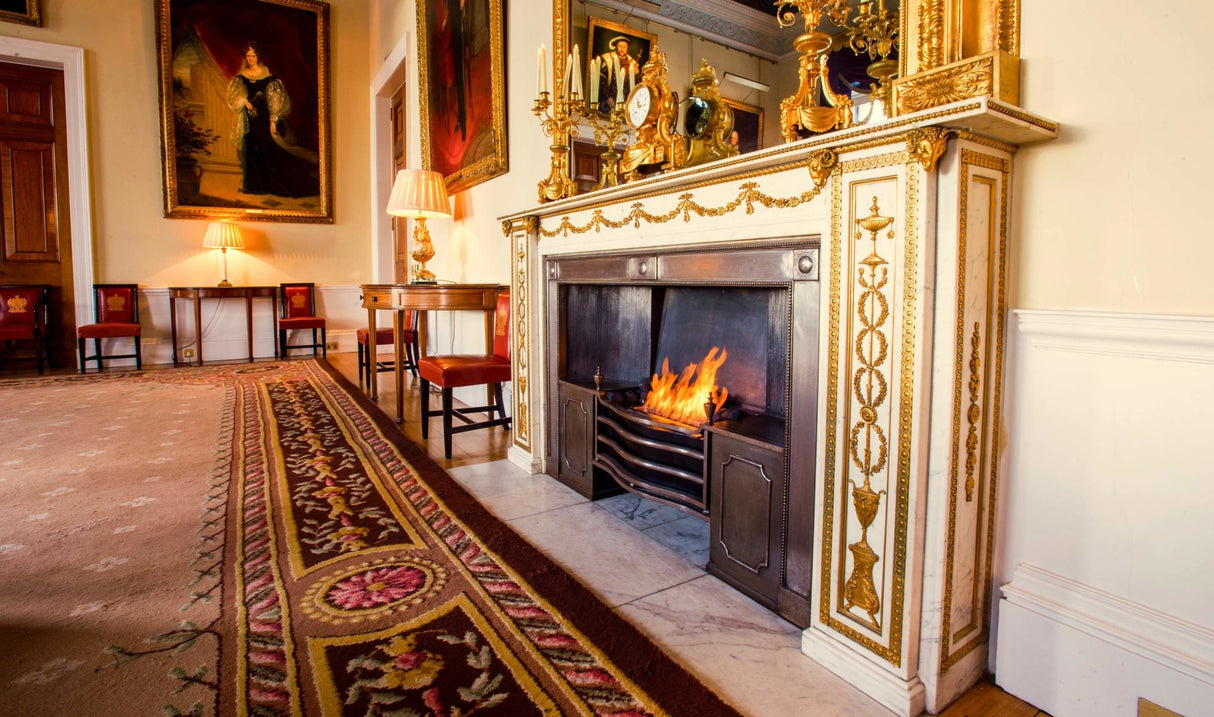

EcoSmart Fire XL500 Ethanol Burner

$2,895.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized EcoSmart Fire dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Explore other EcoSmart Fire XL ethanol burner models: 500 (current) | 700 | 900 | 1200

Overall Dimensions: 19.7 in L x 7.7 in W x 4.4 in D (500 x 195 x 112 mm, per current listing)

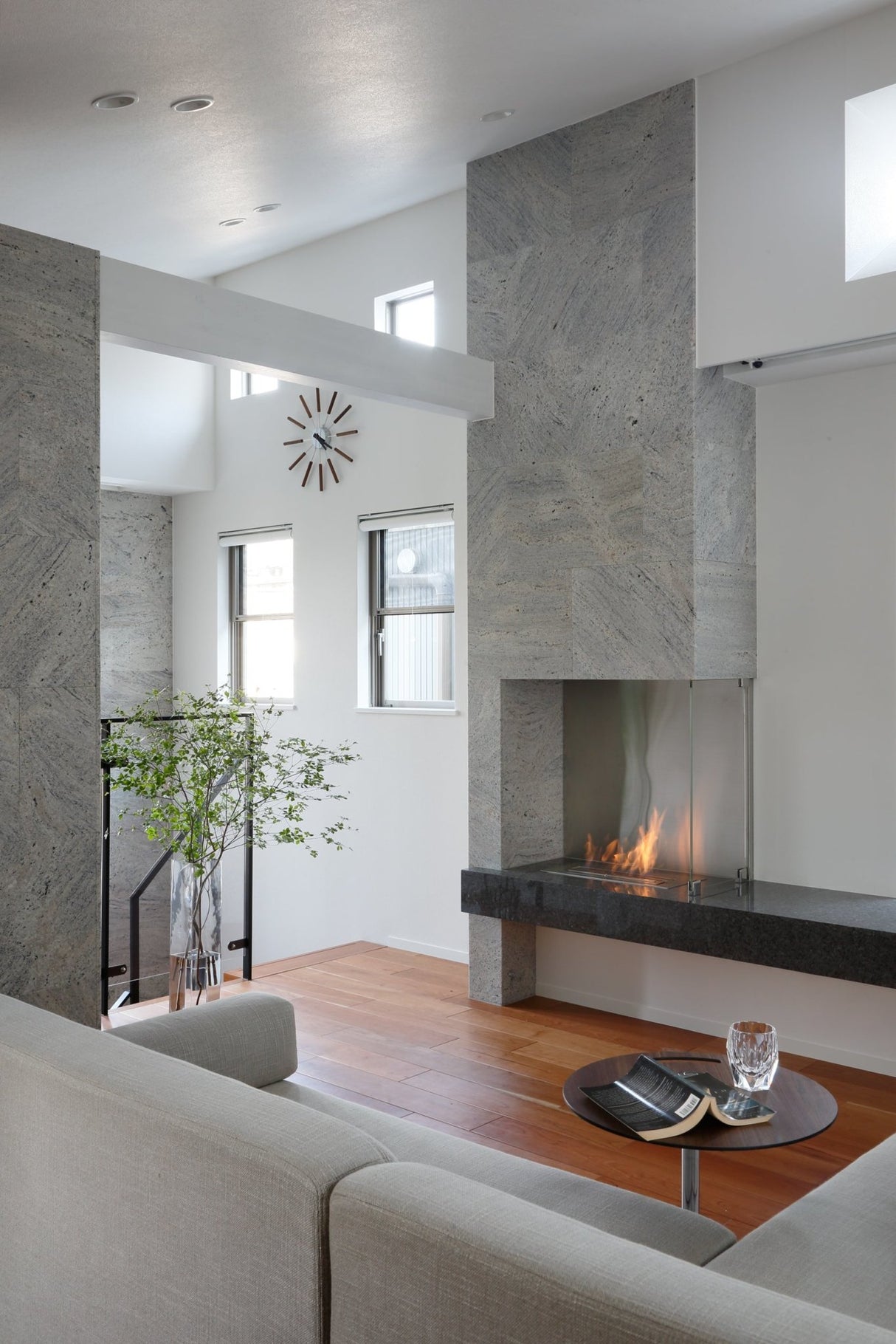

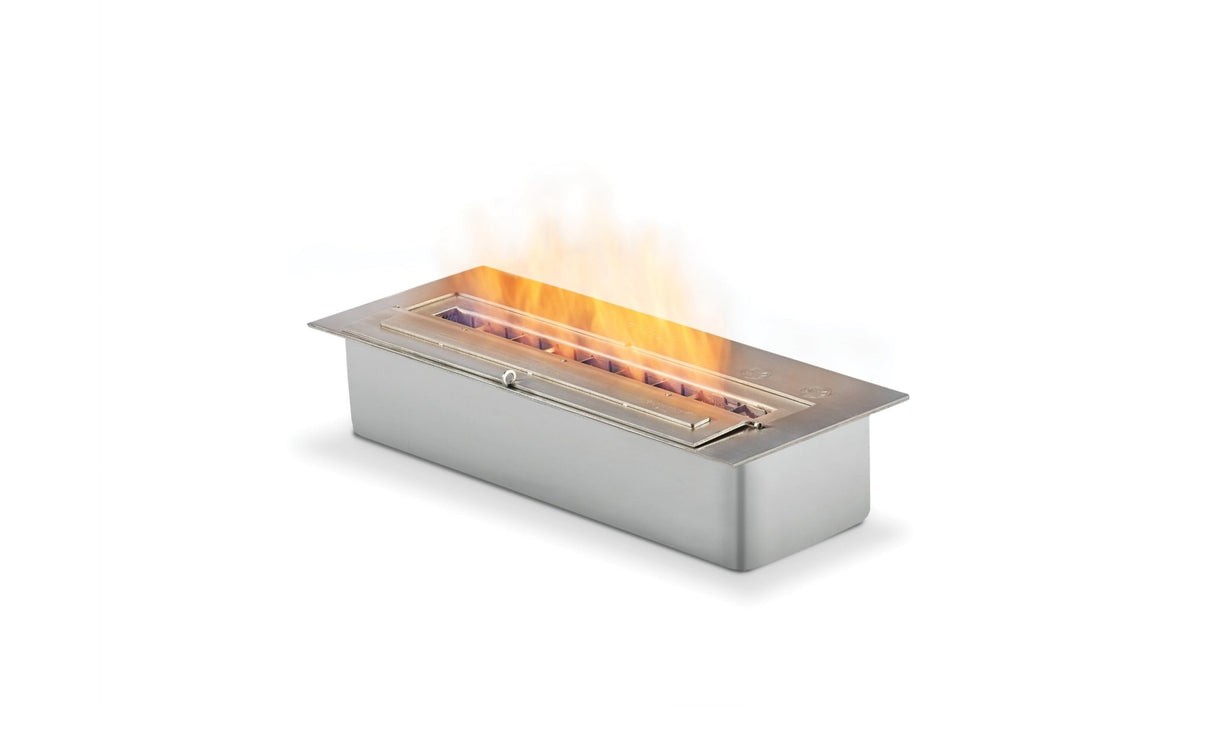

The EcoSmart Fire XL500 is the compact member of EcoSmart's XL family of linear bioethanol burners, built from grade 304 stainless steel for custom fireplaces, cabinetry, media walls, stone benches and pillars, indoors or out. It burns e-NRG bioethanol with an orange flame and no smoke, soot or ash, so it needs no gas line, flue or electrical connection. A flip-lid shut-off, a separate filling point and baffle inserts that regulate the flame make it simple to run, and it can stand alone in a bespoke setting or sit in a zero-clearance EcoSmart Flex insert.

Key Specifications

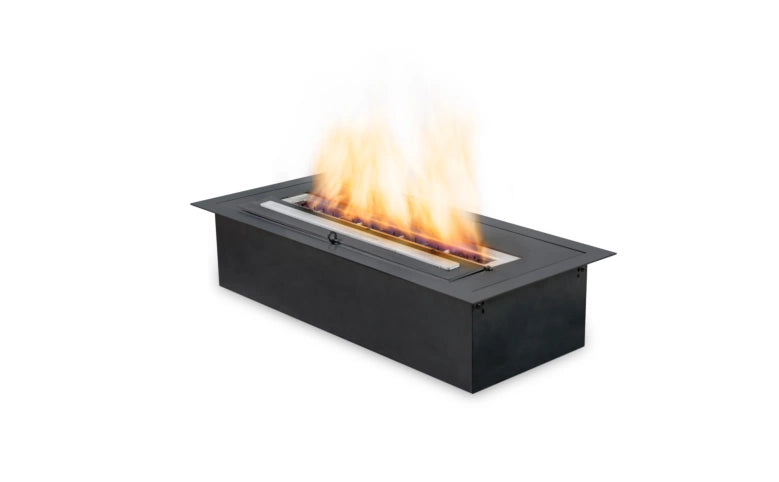

Model EcoSmart Fire XL500, ESF.2.B.XL5 (stainless); black ESF.2.B.XL5.BL per current listing
Fuel e-NRG bioethanol
Fuel Capacity 5 L (1.3 gal)
Heat Output 11,430 BTU/h (3.35 kW, 12 MJ/h) max
Heats on Average Over 430.6 sq ft indoors
Fuel Use and Burn Time 0.5 L/h (0.13 gal/h); about 10 to 13 hours
Application Indoor and outdoor
Material Grade 304 stainless steel
Certification UL listed to ANSI/UL 1370
Weight 14.7 lb (6.7 kg) per the spec sheet

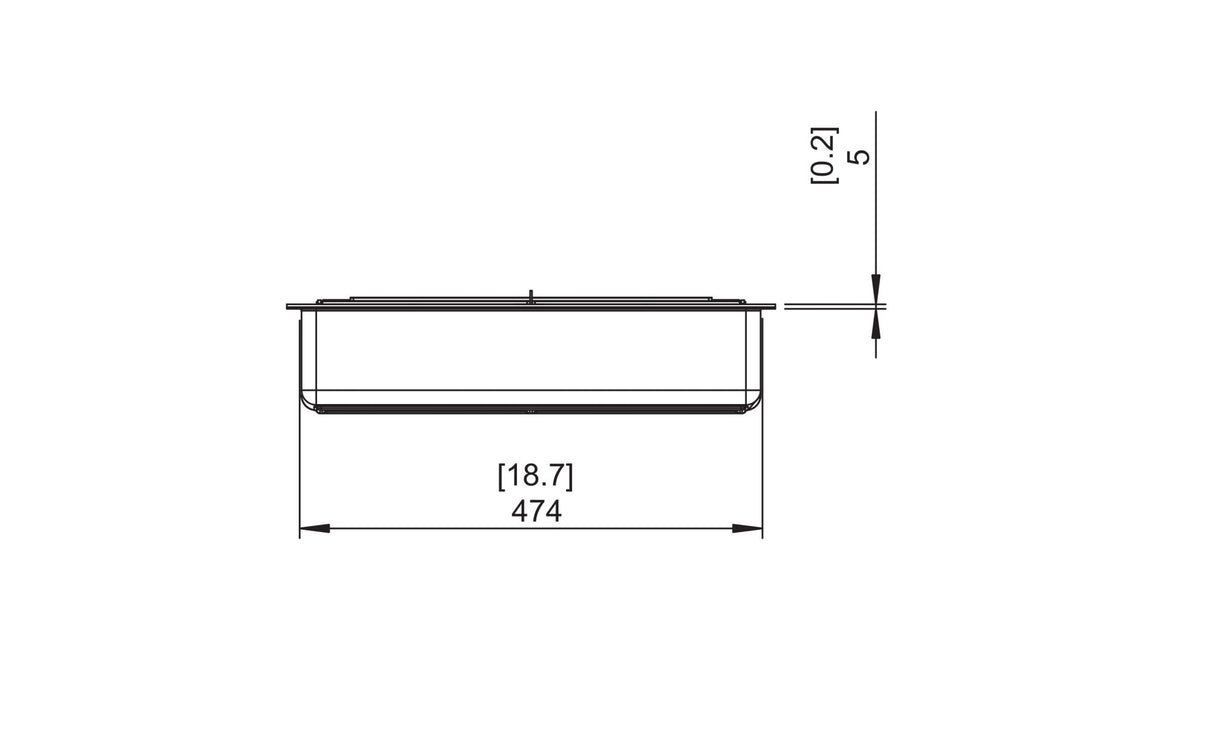

Dimensions and Cutout

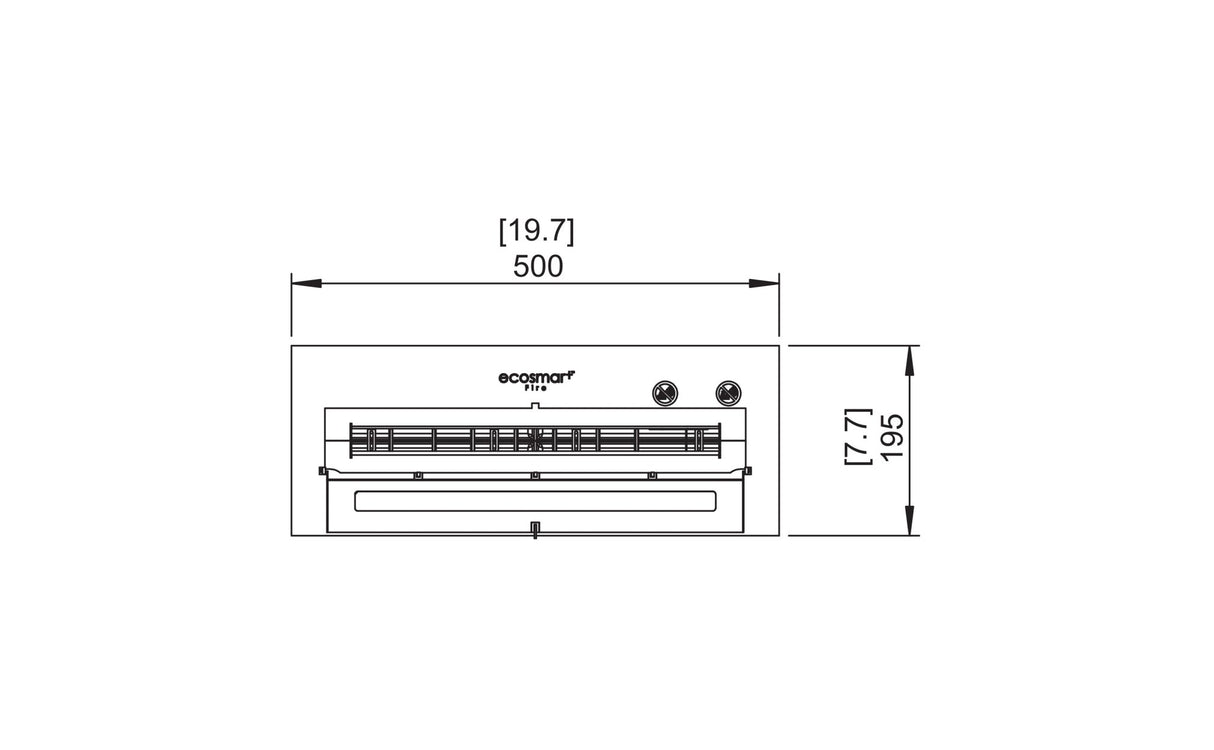

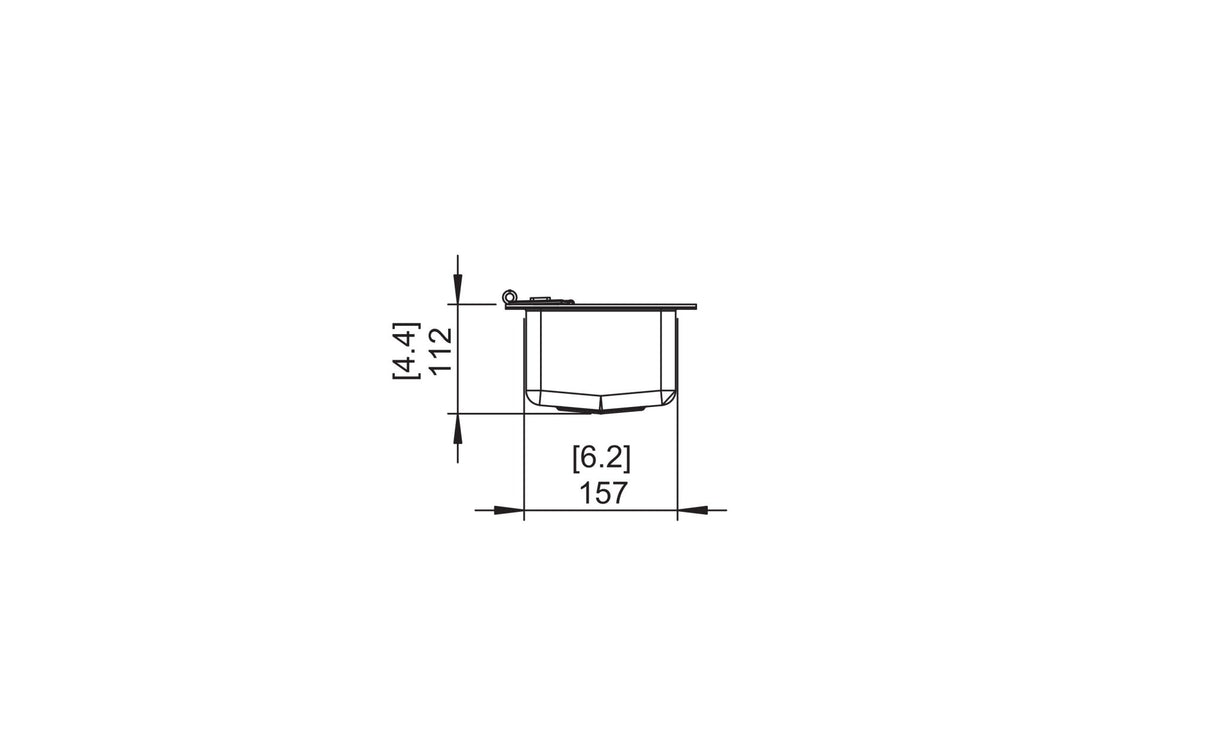

Burner 19.7 in L x 7.7 in W x 4.4 in D per current listing
Cutout About 19.3 x 7.1 in (490 x 180 mm) per the EcoSmart cut-out drawing; verify against the burner before building
Minimum Firebox (within a firebox) 31.5 in W x 13.8 in D x 19.7 in H
Minimum Room Size 2,825 cu ft (80 cu m) per burner
Clearances (XL series) Overhead 59.1 in (1,500 mm) indoors and 78.7 in (2,000 mm) outdoors; at least 23.6 in (600 mm) to combustible materials

Features

  • Compact linear flame for custom-designed fireplaces

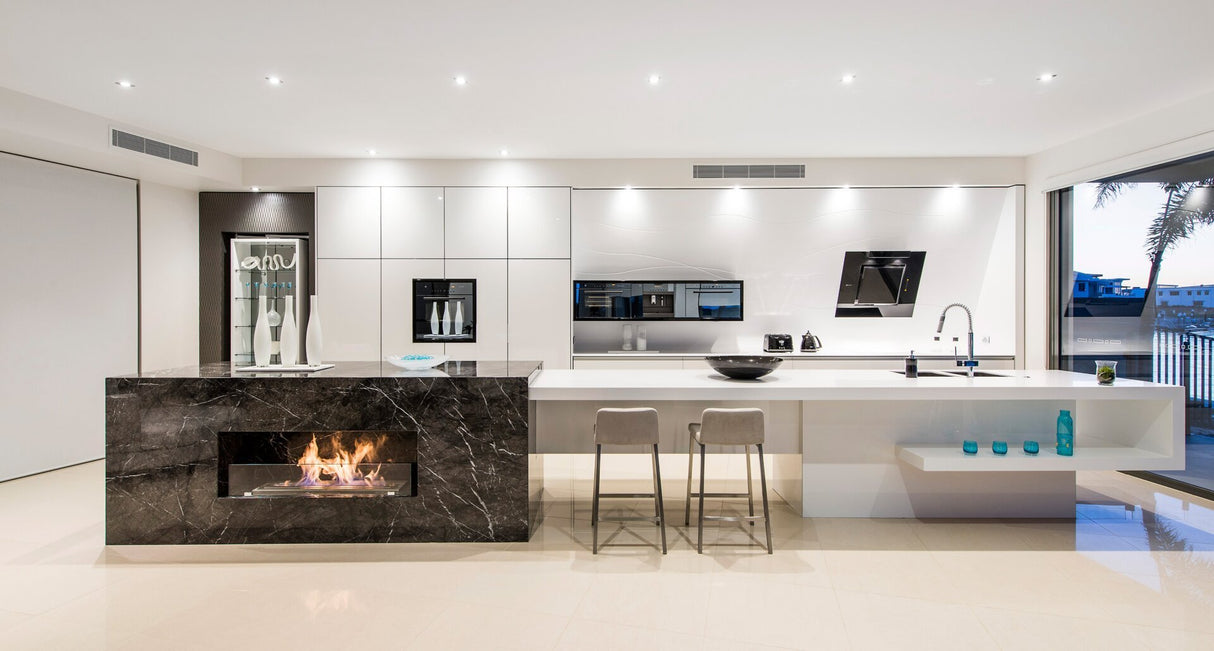

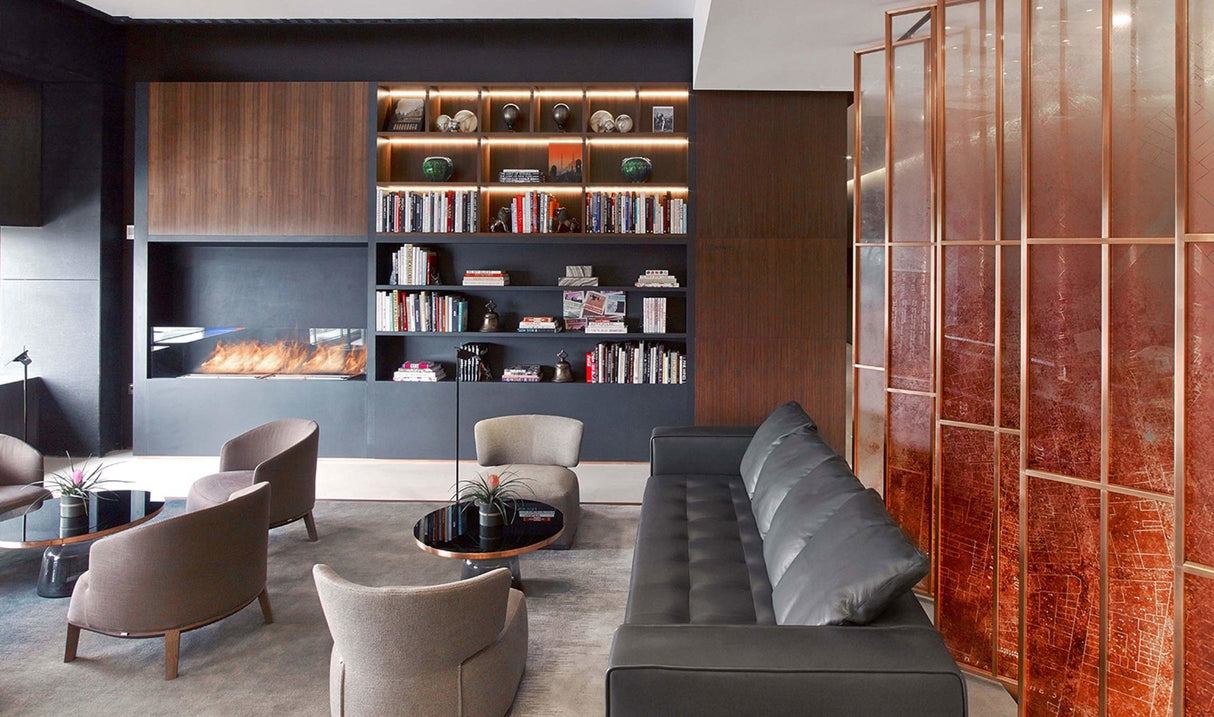

  • Integrates into cabinetry, media units, walls, timber or stone benches and pillars
  • Baffle inserts (two for the XL500) regulate and stabilize the flame and improve fuel efficiency
  • Flip-lid shut-off system to extinguish the flame
  • Dedicated filling point separated from the ignition zone to limit spills
  • Works standalone or inside an EcoSmart Flex zero-clearance insert

What Is Included and What You Will Need

  • Included: burner with jerry can, lighting rod and lighter per the EcoSmart spec sheet; per current listing also the bottle adaptor, butane and XL baffles
  • Required: e-NRG bioethanol fuel and a housing built to EcoSmart's cut-out and clearance rules
  • Optional from EcoSmart: twin feet fixings, fire screens and black glass charcoal

Installation Notes

Build the housing to the cut-out dimensions and keep the firebox and clearance minimums above, checking the physical burner against the cut-out before work begins. Use it only in a well-ventilated room of at least 2,825 cu ft protected from cross drafts, and let the burner cool for 60 minutes before refueling. If a custom design is planned, EcoSmart asks that drawings be checked against its safety requirements. Book a free design consultation and we will help you design the housing.

Documentation

Frequently Asked Questions

How long does a fill last?

About 10 to 13 hours on the 5 L tank, at roughly 0.5 L per hour.

What room size does it need indoors?

At least 2,825 cu ft (80 cu m) per burner.

Can it go outdoors?

Yes. EcoSmart lists the XL500 for indoor and outdoor application.

Can I put it in an existing fireplace?

The burner manual allows installation within a firebox at least 31.5 in wide, 13.8 in deep and 19.7 in high.

Related reading: Which EcoSmart burner do I need? and Ethanol fireplace buying guide.

Warranty

EcoSmart's warranty is two years from purchase on stainless steel parts, including raw, linished and powder coated, and one year on mild steel, cement, glass, leather, fabric and MDF. Chips and scratches are not covered.
