Osburn  |  SKU: OB03510, OA10163, OA10032, OA10125

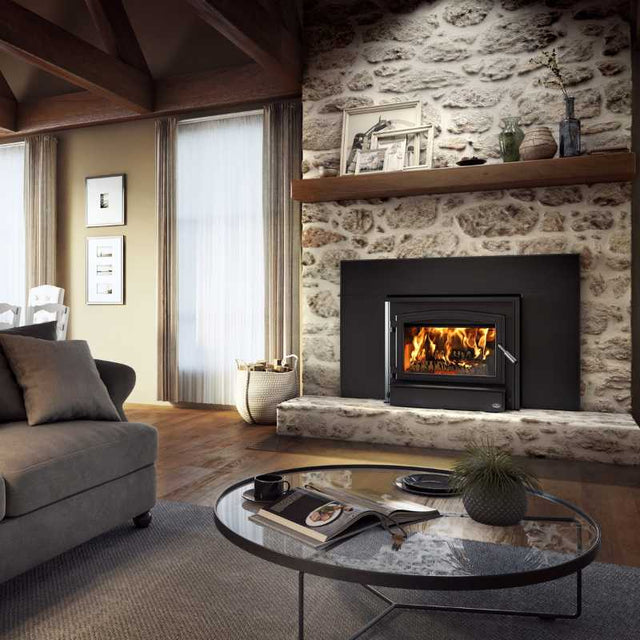

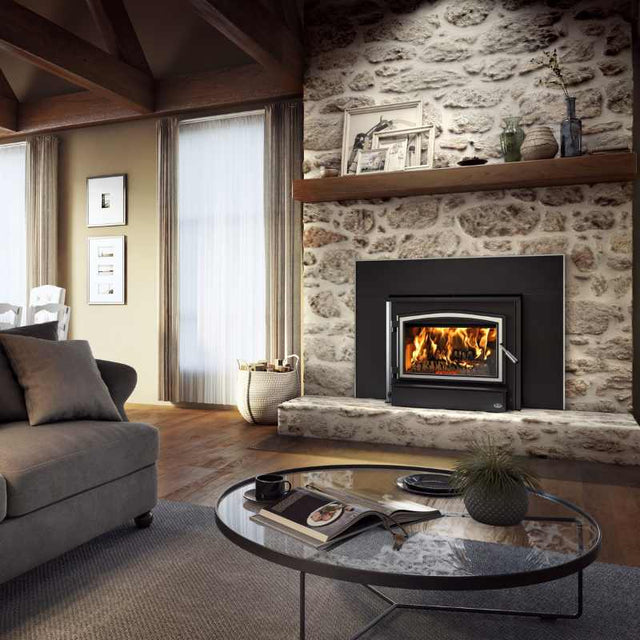

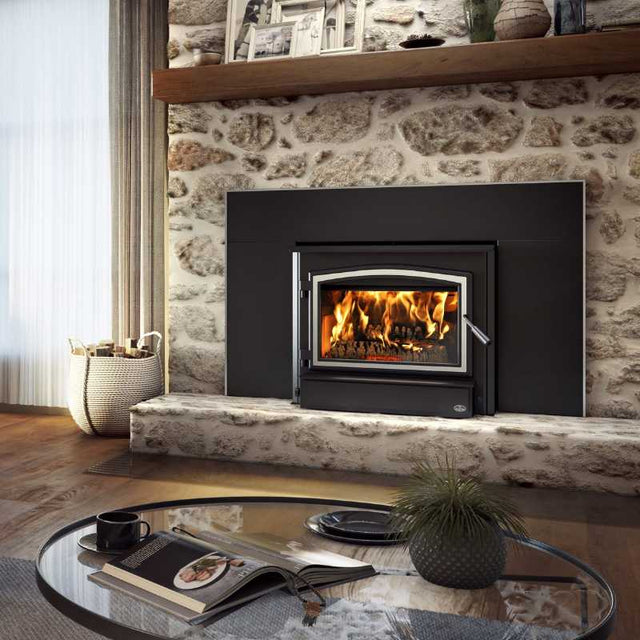

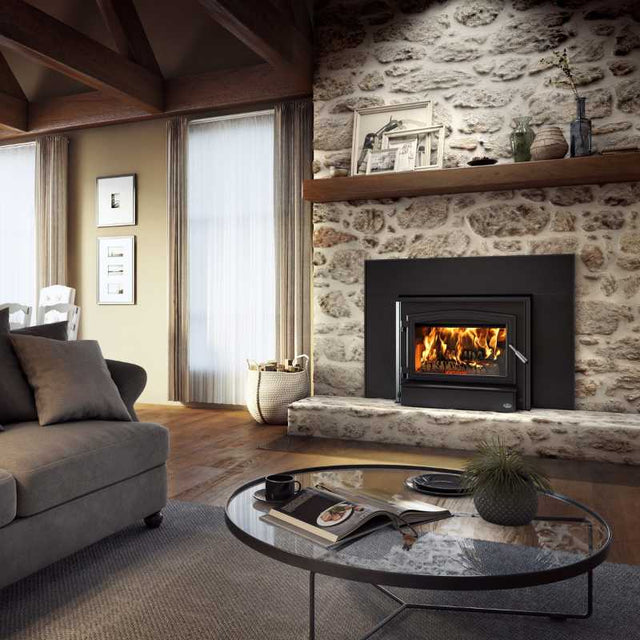

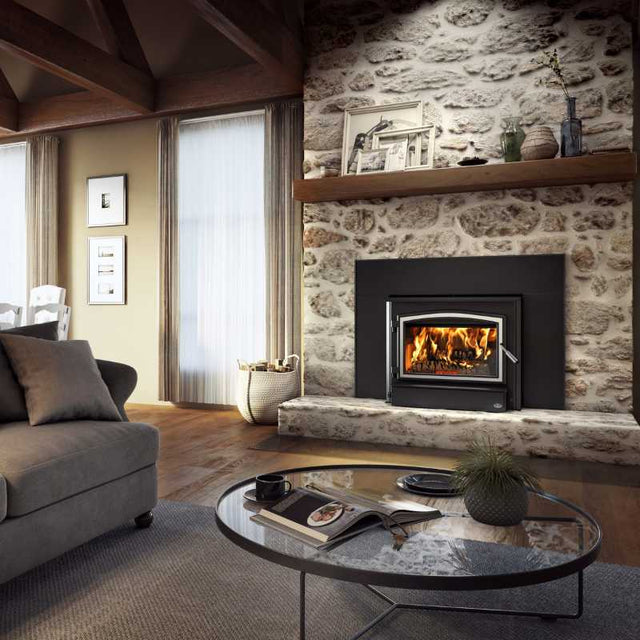

Osburn 3500 Wood Insert | OB03510

$4,279.00

Images & size shown are for reference only: colors may vary by screen, lighting, & natural material variation. See description for dimensions & finish options or call us to request a sample if an exact match is needed.

Most items ship within 1 business day. Manufacturer-direct items may take up to 2 weeks. Call us before ordering if needed immediately. 718-326-4328

Pickup available at Maspeth, NY Showroom

Usually ready in 2-4 days
400+ five-star Google reviews
  • Free shipping on this item to most of the US, or free local delivery by our team. Most items ship within 1 business day.
  • Factory-authorized Osburn dealer. You keep the full manufacturer warranty.
  • 30-day returns, no restocking fee.
  • Professional installation available across NYC, Long Island, Westchester, northern NJ and Greenwich/Stamford, CT.
Questions about fit, venting or power? Talk to the team that installs it. Mon to Fri 9 to 5, Sat 10 to 3.
Call 718-326-4328 Free Consultation

Free & Flat Rate Shipping
  • Orders Over $999 Ship Out Fast & Free
  • Delivery typically takes 5 -7 transit days
  • $19.95-$99.95 Flat-Rate Shipping on orders under $999
  • Our team & trucks deliver locally within 60 miles of our showroom. (Tri-State NY,NJ,CT including all of Suffolk County)
  • Free Shipping Applies to Contiguous US only - See our shipping page for exclusions e.g. ethanol fuel

Assembly & Installation

Our company installs in the following areas: Manhattan, Queens, Brooklyn, Nassau, Suffolk, Staten Island, Bronx, & Westchester NY. Hudson, Union, Essex, & Bergen NJ. Greenwich & Stamford, CT. Check out our portfolio of projects we built!

WE OFFER INSTALLATION FOR THE PRODUCTS WE SELL BELOW

Call for a free quote 718-326-4328

Warranty

Manufacturer's warranty their products only if they are purchased from an authorized retailer like us. If an issue occurs and the item was purchased from a 3rd party website i.e. Amazon, your claim may be denied. What this means for you as a customer? As a factory authorized & trained dealer for every brand on our website, you will maintain full manufacturer's warranty. Please click on the manufacturer's manual in the description for full warranty coverage information.

Returns
  • No-Restock Fees
  • 30-Day Return Policy
  • The NYC Fireplaces Team wants you to love what it is that you've ordered! If for some reason you have an issue with your product, we offer a '30-Day Return Policy'.
  • We allow returns on all new, unused, unassembled, and "resalable" items in their original packaging within 30 days of the delivery date for a refund (minus the original shipping costs, and the shipping costs you incur shipping the product back). Naturally, if your return is because of our error, you are not responsible for any shipping costs.

Description

Available Sizes: Osburn Wood Fireplace Inserts

Osburn 1700 | Osburn 2000 | Osburn 3500 (Current Size)

Osburn 1700, 2000 and 3500 wood inserts. Firebox size, heating capacity and required fireplace opening differ by model; confirm your fireplace dimensions before ordering.

Overall Dimensions: Insert 27-3/4" W with about 18-1/4" minimum projection; faceplates 32" H x 44" W or 32" H x 50" W

The Osburn 3500 is an EPA certified wood-burning insert for an existing masonry fireplace, with one of the larger glass doors in its class and a 3.5 cubic foot firebox that takes logs up to 22 inches. It is rated for 1,000 to 2,700 square feet and ships with a blower, so it suits a home that wants real wood heat from a fireplace opening that currently wastes it.

Key Specifications

Model OB03510 (Osburn 3500)
Fuel Dry cordwood, 16 inch recommended, 22 inch maximum log length
Maximum Heat Output 110,000 BTU/h
Heating Area 1,000 to 2,700 sq ft
Firebox Volume 3.5 cu ft overall; 2.84 cu ft EPA loading volume
Average Overall Efficiency 71% HHV (dry cordwood)
Emissions 1.32 g/h average particulate; 92 g/h average CO (installation manual)
Burn Time Up to 10 hours, per current listing
Door Glass Ceramic glass, 16-3/4" x 10-7/16", 5/32" thick
Blower Included, up to 144 CFM, 115 V, 60 Hz, 1.1 A, three-position rheostat
Certification EPA Phase II non-catalytic; UL 1482, UL 737, ULC-S628
Weight Not published in the manual

Dimensions and Cutout

Insert Width 27-3/4"
Minimum Projection About 18-1/4"
Door Opening 19" W x 10-5/8" H
Minimum Masonry Opening 26-1/4" W x 18-3/8" H x 31" D (add at least 4" to the width if you use a fresh air intake)
Maximum Masonry Thickness 5"
Flue Outlet 6" with a continuous 6" liner to the top of the chimney
Floor Protection Non-combustible, extending 16" in front (US) and 8" at the sides
Mantel Combustible shelf up to 12" deep, at least 27" above the insert

Features

  • Large ceramic glass door for a wide view of the fire
  • Heat output of 17,200 to 57,800 BTU/h overall, per current listing, with a 110,000 BTU/h maximum
  • Double-cage blower with automatic start and stop from a thermodisc sensor
  • Choice of door overlay and faceplate to suit the opening
  • Black or brushed nickel trim options on the faceplate
  • Optional 6 inch liner kits offered as a configuration choice on this listing
  • Lifetime limited warranty on firebox welds, cast iron door frame and ceramic glass

What Is Included and What You Will Need

  • Included per the installation manual: blower, ash lip, air control handle, combustion chamber side bricks, and the faceplate, trims and door overlay you select.
  • Required: a continuous 6 inch stainless steel liner from the insert to the top of the chimney (the listing offers 25 ft and 35 ft kits as an option, or have your installer supply one), with at least 12 inches of rigid liner above the masonry to the rain cap.
  • Required: a sound masonry chimney that extends at least 3 ft above the roof contact point and 2 ft above anything within 10 ft.
  • Optional: fresh air intake kit AC01298, rigid fire screen (required for door-open operation) and liner fastening system.

Installation Notes

The manual requires installation by a qualified technician, a liner that meets UL 1777 or the Canadian equivalents, and non-combustible floor protection in front of the unit. Wood burning in New York City is regulated: Local Law 38 of 2015 limits new solid fuel fireplaces and the Air Pollution Control Code governs what can be burned, so confirm the rules for your address before you order. Book a consultation and we will review the chimney, the opening and local requirements with you.

Documentation

Frequently Asked Questions

How big a space will the Osburn 3500 heat?

Osburn rates it for 1,000 to 2,700 square feet with a maximum output of 110,000 BTU/h on dry cordwood. Actual results depend on insulation and layout.

Does it need a liner?

Yes. The manual calls for a continuous 6 inch liner from the insert to the top of the chimney, with at least 12 inches of rigid liner above the masonry chimney to the rain cap.

Does it work without electricity?

The blower is the only electrical component, so the insert burns without power. The blower adds up to about 2% efficiency per the manual.

Can I burn wood in NYC?

NYC limits new solid fuel fireplaces under Local Law 38 of 2015 and controls fuels through its Air Pollution Control Code. Check your building and address with us before ordering.

Related reading: Are Wood-Burning Fireplaces Legal in NYC? and How to Measure a Fireplace Opening.

Warranty

Osburn's Limited Lifetime Warranty covers firebox welds, the cast iron door frame, ceramic glass and plating for life, surrounds, baffle and secondary air tubes for 7 years (parts only), the blower, electronics and wiring for 2 years parts and 1 year labor, and gaskets, insulation, paint and refractory bricks for 1 year. The warranty is void if the unit burns anything other than cordwood. See the manual for full terms.
