Description
Description
Overall Dimensions: 36" W x 21" D x 23-7/8" H

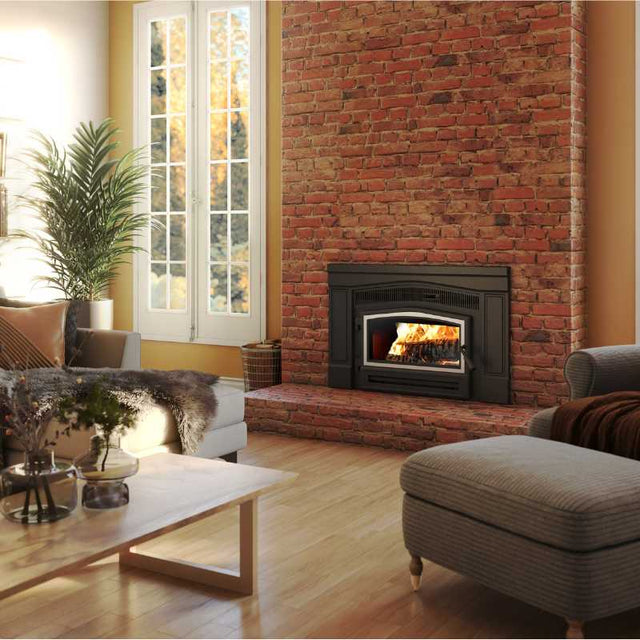

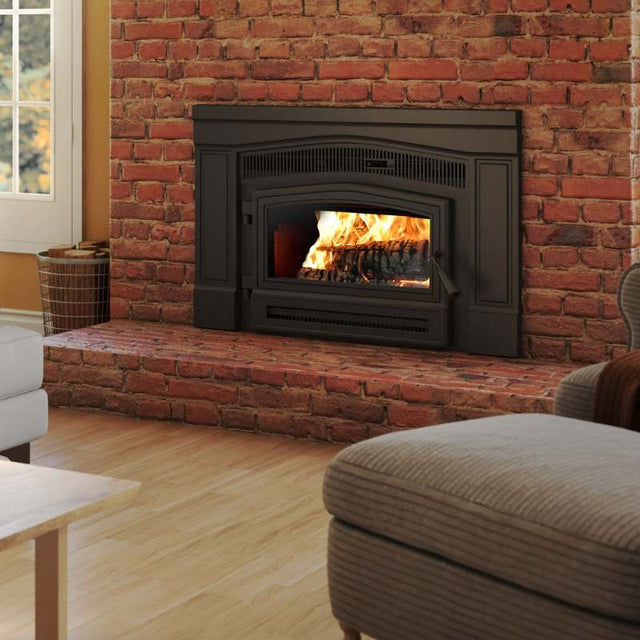

The Osburn Matrix 1900 is a compact EPA certified wood insert with a cast iron faceplate, a large ceramic glass door and an included blower. Its tapered top and sides are designed to fit smaller masonry hearths, and the deep bottom of the combustion chamber lets ash accumulate between cleanings. It suits homeowners who want real wood heat for roughly 250 to 1,200 square feet from an existing fireplace.
Key Specifications
| Model | Osburn Matrix 1900 (OB01900) |
|---|---|
| Fuel | Dry cordwood, 16" recommended, 17" maximum log length |
| Combustion | Non-catalytic, EPA certified |
| Maximum Heat Output | 45,000 BTU/h (13.19 kW) |
| Heat Output Range | 8,471 to 31,700 BTU/h |
| Recommended Heating Area | 250 to 1,200 sq ft |
| Firebox Volume | 1.1 cu ft (EPA loading volume 1.03 cu ft) |
| Maximum Burn Time | 7 hours |
| Efficiency | 75% HHV / 80% LHV average, 82% optimum overall |
| Emissions | 1.5 g/h particulate, EPA / CSA B415.1-10 |
| Flue Outlet | 6" diameter, liner type ULC S635, CAN/ULC-S640 or UL 1777 |
| Blower | Included, up to 90 CFM |
| Door and Glass | Single door, ceramic glass in a cast iron frame, air-wash system |
| Safety Listing | UL 1482, UL 737, ULC-S628 |
| Shipping Weight | 332 lb (151 kg), per current listing |
Dimensions and Cutout
| Overall width | 36" |
|---|---|
| Overall depth | 21" |
| Overall height | 23-7/8" |
| Minimum masonry opening | 25" W x 19" H x 15-1/2" D |
| Firebox | 16-3/4" W x 8-7/8" H x 12-3/8" D |
| Door opening | 18-1/4" W x 7-7/8" H |
| Glass | 18" W x 8-1/8" H |
Features
- Cast iron faceplate with a patterned upper louver and framing columns
- Large ceramic glass door with air wash for a panoramic view of the fire
- Flush mount blower, black wooden handle and air control with removable handle
- Tapered top and sides for installation in smaller hearths
- Deep combustion chamber bottom for ash accumulation
- Molded refractory bricks and a stainless steel secondary air system
- C-Cast (or equivalent) baffle
- Door overlay in black or brushed nickel
What Is Included and What You Will Need
- Included: the Matrix 1900 insert, faceplate and blower, with the door overlay finish you select
- Required: a continuous stainless steel liner to the chimney top, minimum liner height 12 feet. A 6" liner and venting kit with adapter and termination cap can be selected in the Venting option.
- Required: floor protection and hearth as shown in the owner's manual
- Required: dry, seasoned cordwood
Installation Notes
This insert is for installation in an existing masonry fireplace and must be connected to a full-length liner. It is not approved for mobile homes. Clearances to combustibles, floor protection and mantel limits are in section 2 of the owner's manual and must be followed exactly. Use a qualified, certified installer. Wood burning appliances are restricted in New York City, so review our wood burning legality guide and book a design consultation before you order.
Documentation
- Osburn Matrix 1900 Wood Insert Owners Manual (Installation and Operation)
- Osburn Matrix 1900 Wood Insert (Safety Notifications and General Information)
- Osburn Matrix 1900 Wood Insert Dimensions
Frequently Asked Questions
How much space will it heat?
Osburn recommends 250 to 1,200 square feet. Actual results depend on your home layout, chimney draft, climate and fuel.
Will it fit a small fireplace?
The minimum masonry opening is 25" wide, 19" high and 15-1/2" deep, and the tapered top and sides are designed for smaller hearths. Measure your opening against these numbers before ordering.
Do I need a liner?
Yes. The manual calls for an approved chimney liner with a minimum liner height of 12 feet and a 6" flue outlet.
What fuel can I burn?
Dry cordwood only. The unit is certified for cordwood, so do not burn other materials.
Related reading: Wood Burning Fireplaces in NYC and How to Measure a Fireplace Opening.
Warranty
Osburn Limited Lifetime Warranty for the original retail purchaser. The combustion chamber welds and cast iron door frame carry lifetime parts coverage and 5 years of labor. Blower, switches and wiring are covered for 2 years parts and 1 year labor. Coverage varies by component, so read the full terms in the owner's manual.
