Description
Description
Available Sizes:
36″ model HBZDV3624 (Current Size) 42″ model HBZDV4224 47″ model HBZDV4736
Clean View, tempered-glass HBZDV models. 3624/4224: 24,000 BTU NG / 22,000 BTU LP; 4736: 40,000 BTU NG / 36,000 BTU LP. Framing, viewing area, log/media choices and fitted components differ. Select the same fuel and ignition configuration and verify model-specific requirements.
Overall Dimensions: framing 38 7/16 in W x 41 in H x 19 1/2 in D with the Clean View kit (louvered framing 36 3/8 in W x 35 in H x 17 in D)
The Kingsman HBZDV3624 is a 36 in zero clearance direct vent gas fireplace with a dual burner, realistic flame pattern and Designer Clean View technology, which leaves a clean glass front with no louvers. It is the 24,000 BTU version of the HBZDV 36 chassis, sold in natural gas or propane with a millivolt or electronic (IPI) valve and an optional brick or porcelain liner. It suits a bedroom, den or smaller living room where the larger HBZDV3628 burner would be more heat than needed.
Key Specifications
| Model | HBZDV3624N / NE (natural gas), HBZDV3624LP / LPE (propane), with HB36CVCK Clean View kit |
| Input, natural gas | 24,000 BTU maximum, 14,000 BTU low |
| Input, propane | 22,000 BTU maximum, 15,000 BTU low |
| Valve | Millivolt (N, LP) or IPI intermittent pilot (NE, LPE) |
| Burner | Dual burner with realistic flame pattern; flame sensor shuts off gas if the pilot is not sensed |
| Glass viewing area | 29 3/4 in W x 18 5/8 in H, tempered glass per current listing |
| Venting | Direct vent, rear or top, horizontal or vertical (4 in flex inside 7 in flex, Kingsman or approved systems) |
| Gas supply pressure, natural gas | 5.5 in w.c. minimum, 7 in normal, 9 in maximum |
| Gas supply pressure, propane | 11 in w.c. minimum and normal, 12 in maximum |
| Gas inlet | 3/8 in NPT |
| Certification | CSA/ANSI Z21.88, CSA 2.33 and CSA 2.17 |
Dimensions and Cutout
| Framing with Clean View kit (HB36CVCK) | 38 7/16 in wide x 41 in high minimum x 19 1/2 in deep; unit width 38 1/16 in |
| Framing, louvered | 36 3/8 in wide x 35 in high x 17 in deep |
| Minimum enclosure height with vent | 42 1/2 in (Clean View) / 42 in (louvered) |
| Clearance to combustibles | 0 in back, sides, floor and top from standoffs; 60 in from bottom of fireplace to ceiling |
| Vent pipe clearance | 1 in around horizontal and flex vertical pipe, 1 1/4 in for hard pipe vertical; 1 1/2 in above horizontal pipe |
Features
- Designer Clean View technology with tempered front glass and safety screen barrier
- Millivolt or IPI valve works during a power failure with hi/low heat and flame adjustment
- Flame sensor monitors the pilot and shuts off gas if it is not sensed
- Dual burner with a realistic flame pattern

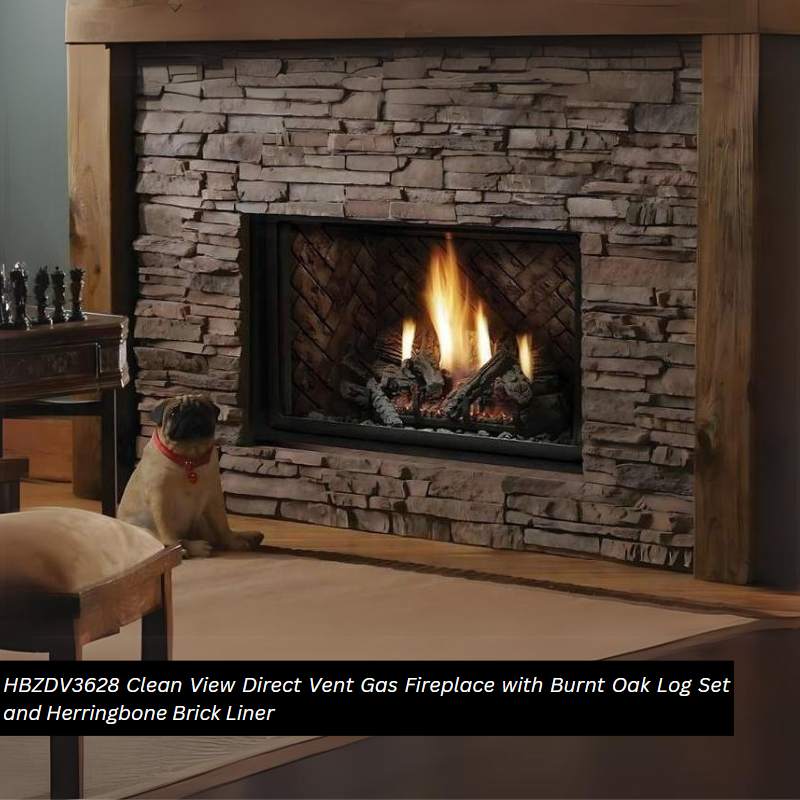

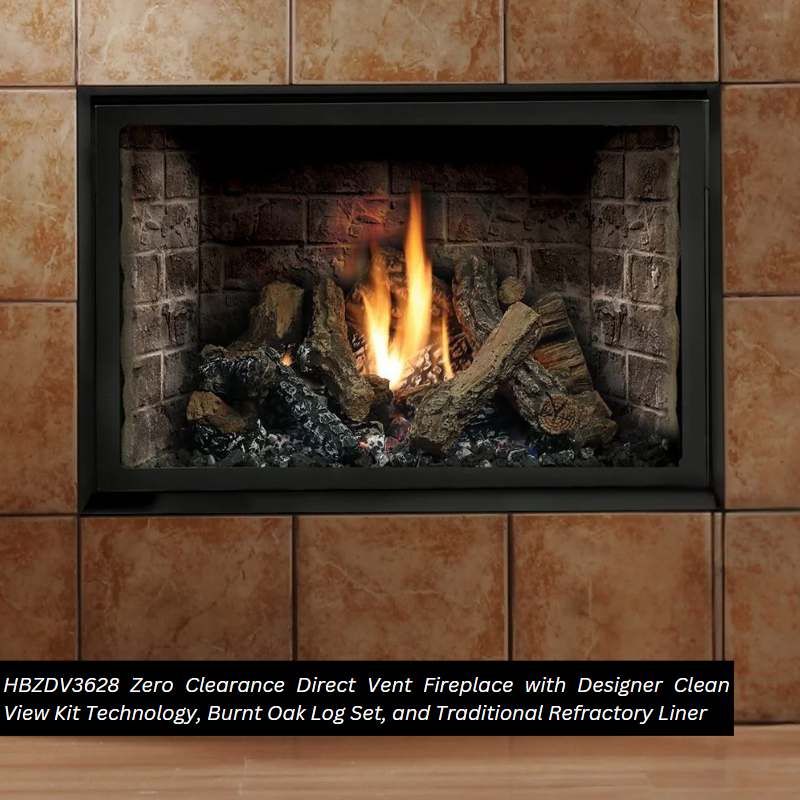

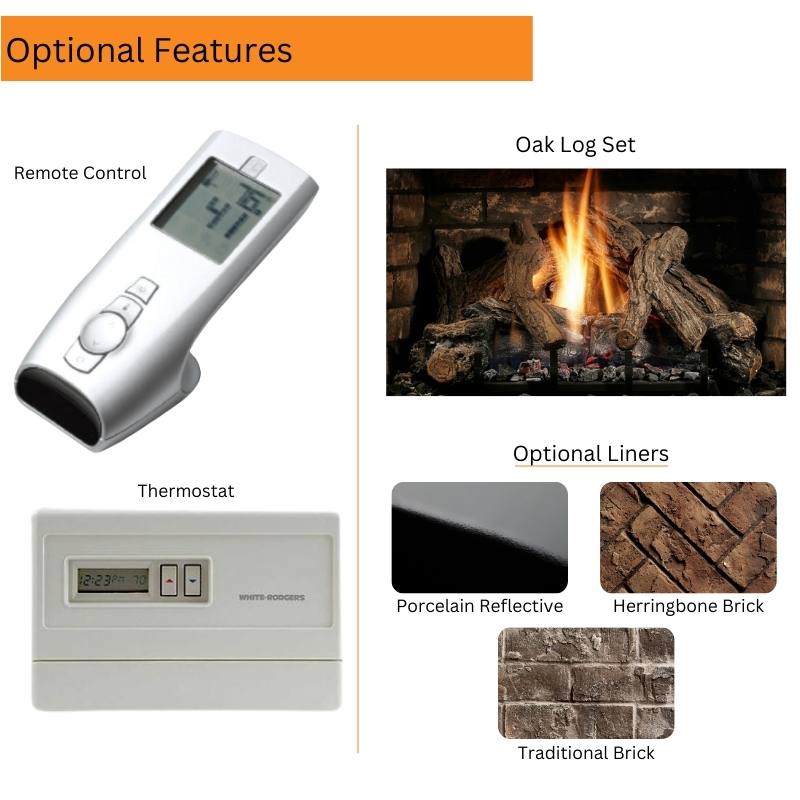

- Matte black liner standard; Traditional Brick, Herringbone Brick or Porcelain Reflective optional
- Optional heat-activated variable-speed fan kit
- Optional thermostat and remote controls
What Is Included and What You Will Need
- Included: fireplace with Clean View kit and standard matte black liner; the variant selected determines fuel, ignition, media and liner
- Required: Kingsman burnt oak log set LOGC44 (selectable as a variant), direct vent pipe and termination, a gas line, and a licensed installer
- Optional: fan kit, wall-mount millivolt or programmable thermostat, remote control, and the wall mount battery holder (WMBH) for IPI models
Installation Notes
Install per the Kingsman manual with approved Kingsman flex or hard-pipe venting, observing vent termination clearances. Propane horizontal runs need at least one foot of vertical vent before the first elbow. With the Clean View kit, the floor or hearth may rise up to 3 in (combustible) or 7 in (non-combustible) above the bottom of the fireplace. A licensed gas fitter must install it, and in New York City gas fireplace work requires a licensed professional under a DOB permit. Book a design consultation and we will plan the vent route and framing.
Documentation
Frequently Asked Questions
HBZDV3624 or HBZDV3628?
Same 36 in chassis and framing. The 3624 runs up to 24,000 BTU on natural gas; the 3628 up to 28,000 BTU for larger rooms.
Is it vented to the outside?
Yes. It is a sealed direct vent unit vented through a side wall or roof with Kingsman approved vent systems.
Do I have to buy the log set?
The listing marks the LOGC44 burnt oak log set as required; select it in the variant options.
Can I put a mantel above it?
Yes, within the mantel clearances in the manual; painted mantels need a heat-resistant finish rated 250 F.
Related reading: Direct vent gas fireplace buying guide and NYC fireplace code guide.
Warranty
Per the Kingsman manual: basic one (1) year warranty on component parts including labor, and a limited lifetime warranty on the heat exchanger, combustion chamber and burner for the original owner (labor and freight not covered under the lifetime terms).
