Description
Description
Available Sizes:
36″ model HBZDV3624 42″ model HBZDV4224 47″ model HBZDV4736 (Current Size)
Clean View, tempered-glass HBZDV models. 3624/4224: 24,000 BTU NG / 22,000 BTU LP; 4736: 40,000 BTU NG / 36,000 BTU LP. Framing, viewing area, log/media choices and fitted components differ. Select the same fuel and ignition configuration and verify model-specific requirements.
Glass Viewing Area: 39-1/2 in. W x 26-3/8 in. H (per current listing); 47 in. size class

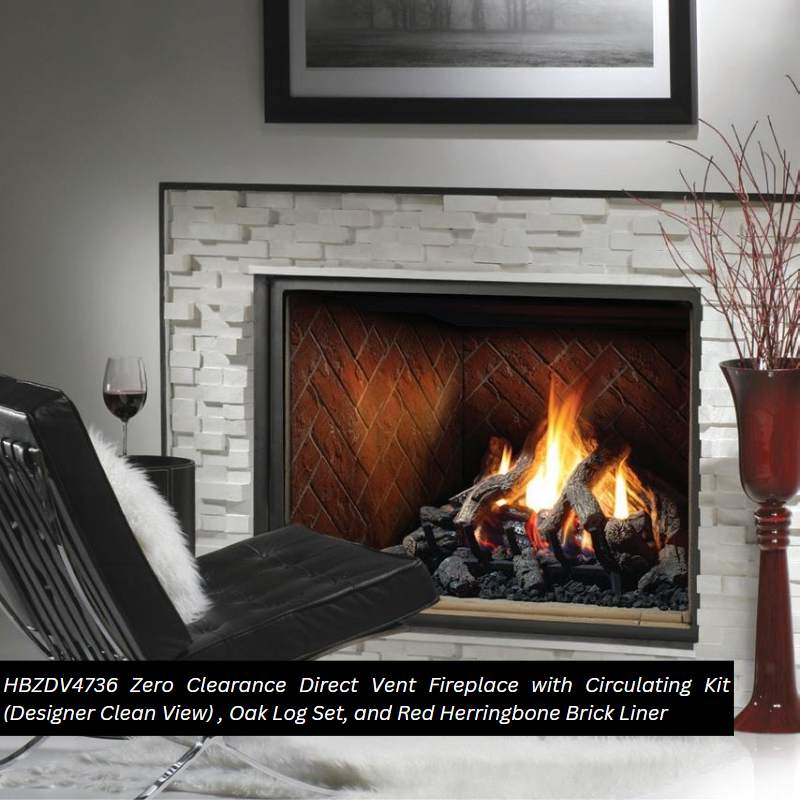

The Kingsman HBZDV4736 is a 47-inch zero clearance direct vent gas fireplace with a large traditional firebox, a dual burner and Kingsman's Designer Clean View kit, which hides the louvers for a clean, framed look. It is a strong value for a family room or den where you want a big, realistic log fire and real heat, and it can run through a power failure on its millivolt or battery-backed IPI valve.
Key Specifications
| Models | HBZDV4736N / HBZDV4736LP (millivolt), HBZDV4736NE / HBZDV4736LPE (IPI electronic ignition) |
| Input | 40,000 BTU/h natural gas; 36,000 BTU/h propane |
| Ignition | Millivolt standing pilot or IPI (Proflame 1) electronic ignition with battery pack |
| Burner | Dual burner with Hi/Lo flame and heat adjustment |
| Front | HB47CVCK Designer Clean View Circulating Kit (included in every option above) |
| Glass | Tempered; viewing area 39-1/2 in. x 26-3/8 in. (per current listing) |
| Venting | Direct vent, 4 in. x 6-5/8 in. flue collar; Kingsman 4 in. / 7 in. flex or approved hard pipe with adapter |
| Gas supply | NG 5.5 in. to 9 in. w.c.; LP 11 in. to 12 in. w.c.; 3/8 in. NPT inlet |

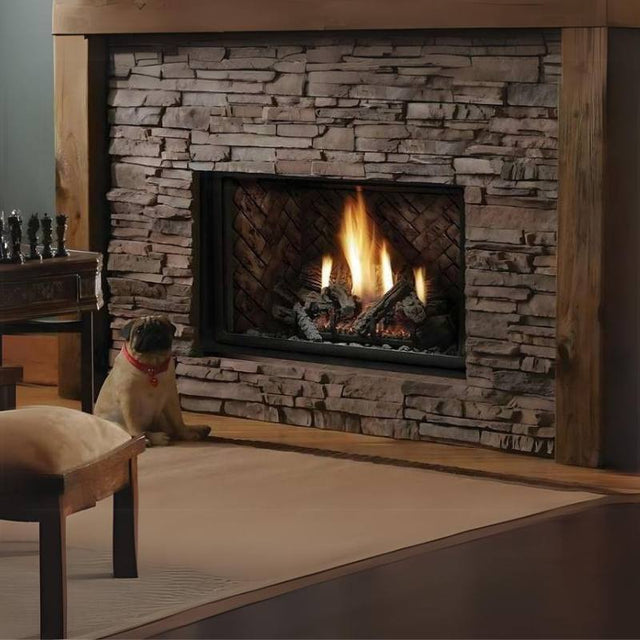

| Liner | Matte black standard; brick, herringbone, red herringbone or porcelain reflective optional |
| Certification | CSA/ANSI Z21.88 / CSA 2.33 vented gas fireplace heater; CSA 2.17 |
Dimensions and Cutout
| Unit and framing dimensions | See the HB47 Fireplace Dimensions and framing drawings in the installation manual (louvered and CVCK versions differ) |
| Ceiling | 60 in. minimum from the bottom of the fireplace to the ceiling |
| Clearances | 0 in. at back, sides and top standoffs and floor; 1 in. to horizontal and Kingsman flex vertical vent pipe |
| Raised installs | With HB47CVCK, the floor or hearth can rise up to 7 in. above the bottom of the fireplace |
| Vent runs | Horizontal portion of a top vent system up to 20 ft |
Features
- Designer Clean View technology hides the louvers behind a flush front
- Dual burner with a realistic flame pattern
- Millivolt or IPI valve works during a power failure, with Hi/Lo heat and flame adjustment
- Flame sensor provides 100% gas shut off if the pilot is not sensed
- Safety screen barrier
- Zero clearance to framing at the standoffs; can be installed flat on a wall, across a corner, as an island or as a room divider
- Optional Z36FK fan kit with variable speed wall control
- Optional thermostats and remotes: wall millivolt or programmable thermostat, on/off, modulating and fan control remotes
What Is Included and What You Will Need
- Included: HBZDV4736 fireplace, HB47CVCK clean view kit, safety screen, plus the log set and liner selected above
- Required: a log set or rock kit (Kingsman requires one per unit; choose the Fiber Split Oak Log Set LOGF36 above or the MQROCK1 rock kit)
- Required: Kingsman 4 in. / 7 in. direct vent pipe and termination
- Optional: Z36FK fan kit, HB47 liners, wall thermostat or remote control, HB47SBL surround
Installation Notes
Frame to the HB47 framing drawings in the manual, keep 60 in. from the bottom of the fireplace to the ceiling, and leave 1/2 in. in front of the nailing tabs for finish materials. The fireplace vents through a 4 in. x 6-5/8 in. direct vent to an exterior wall or roof; Kingsman recommends at least 1 ft of vertical rise before the elbow on propane horizontal installs. Installation must be done by a qualified, licensed gas installer. In New York City, direct vent gas fireplaces are installed under the NYC Fuel Gas Code by a licensed plumber with DOB filing where required. We can confirm venting and framing during a fireplace consultation.
Documentation
Frequently Asked Questions
Millivolt or IPI: which should I choose?
Millivolt models use a standing pilot and need no electrical connection. IPI models light the pilot only when needed and run on a battery pack or AC adapter. Both keep working in a power outage.
Is a log set required?
Yes. Kingsman requires a log set or rock kit for each unit. Choose the Fiber Split Oak Log Set in the options above unless you are supplying an approved Kingsman media kit separately.
Does it put out real heat?
Yes. It is certified as a vented gas fireplace heater (ANSI Z21.88) at up to 40,000 BTU/h on natural gas, and the optional fan kit helps circulate warm air.
Related reading: Direct Vent Gas Fireplace Buying Guide and Gas Insert vs. New Direct Vent Fireplace.
Warranty
Kingsman Limited Lifetime Warranty: during the first year after installation, defective component parts are replaced including labour, through an authorized Kingsman dealer (accent light bulbs, gasketing, glass fronts and paint excluded). The heat exchanger, combustion chamber and burner are warranted for as long as the original owner owns the fireplace; labour, material, freight and handling are not covered under the lifetime portion.
