Description
Description
Available Sizes:
36″ model HBZDV3624 42″ model HBZDV4224 (Current Size) 47″ model HBZDV4736
Louvered, tempered-glass HBZDV models. 3624/4224: 24,000 BTU NG / 22,000 BTU LP; 4736: 40,000 BTU NG / 36,000 BTU LP. Framing, viewing area, log/media choices and fitted components differ. Select the same fuel and ignition configuration and verify model-specific requirements.
Overall Dimensions: see the Kingsman 42HB manual drawings; louver kit HB42GBL is listed on every variant

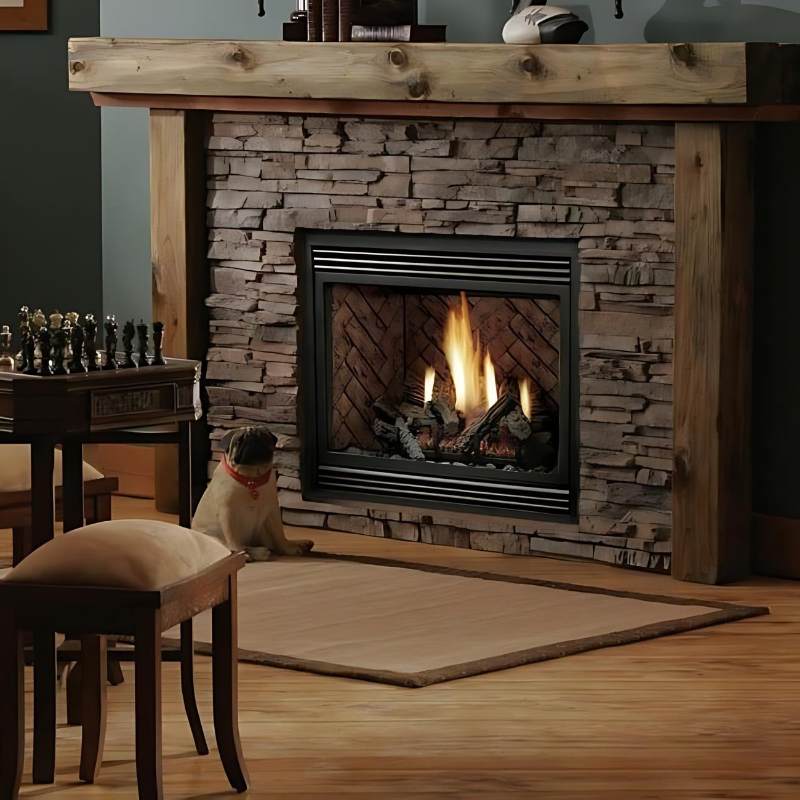

The Kingsman HBZDV4224 is a 42 inch zero clearance direct vent gas fireplace in its louvered configuration, with a dual burner, a realistic flame pattern and a 24,000 BTU maximum input. Black louvers above and below a 33 3/8 by 20 3/8 inch tempered glass view give a classic fireplace face, and millivolt or IPI valves keep it running in a power failure. It is the most economical way into the 42 inch HBZDV chassis for a family room or den.
Key Specifications
| Model | HBZDV4224N / NE (natural gas), HBZDV4224LP / LPE (propane), with HB42GBL louvers |
| Configuration | Louvered (black grills) |
| Input, natural gas | 24,000 BTU maximum, 14,000 BTU low |
| Input, propane | 22,000 BTU maximum, 15,000 BTU low |
| Valve | Millivolt (N, LP) or IPI intermittent pilot (NE, LPE) |
| Burner | Dual burner with realistic flame pattern; flame sensor shuts off gas if the pilot is not sensed |
| Glass | Tempered; viewing area 33 3/8 in W x 20 3/8 in H per current listing |
| Venting | Direct vent, 4 in inner and 7 in outer pipe |
| Gas supply | 3/8 in NPT inlet; natural gas 5.5 in w.c. minimum, 7 normal, 9 maximum; propane 11 in w.c. minimum and normal, 12 maximum |
| Certification | CSA/ANSI Z21.88:19, CSA 2.33:19 and CSA 2.17-2017 |
| Weight | Not published |
Dimensions and Cutout
| Unit and framing size | Shown in drawings in the Kingsman 42HB-MAN19 manual; confirm against the manual before framing |
| Ceiling clearance | 60 in minimum from the bottom of the fireplace |
| Floor height | A combustible floor may rise 1 in above the bottom of a louvered unit |
| Wide surround (louvered units only) | 37 5/8 in H x 45 1/8 in W per current listing |
| Island with top vent | Horizontal portion of the vent may not exceed 20 ft |
| Vent clearances | 1 1/2 in above horizontal pipe; 1 in to the side and below; 1 in for vertical Kingsman pipe |
Features
- Classic louvered face with black grills
- Millivolt or IPI valve works in a power failure with high and low heat and flame adjustment
- Dual burner with a realistic flame pattern
- Flame sensor monitors the pilot and shuts off gas if it is not sensed
- Safety screen barrier and matte black liner

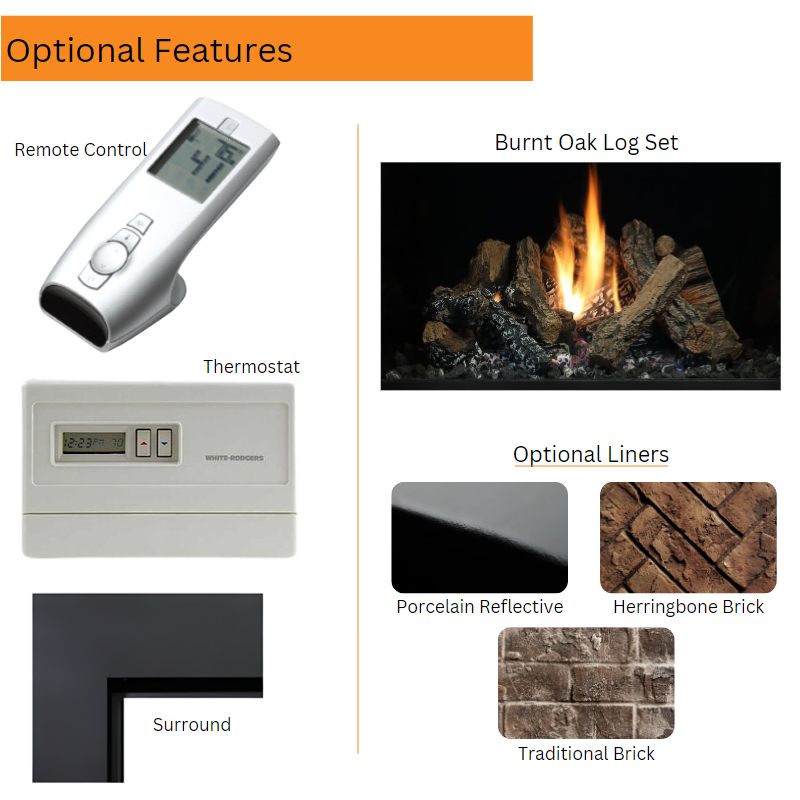

- Optional liners: traditional brick, herringbone brick or porcelain reflective
- Optional heat-activated variable-speed fan kit, thermostats and remote controls
What Is Included and What You Will Need
- Included: fireplace, HB42GBL louvers and safety screen; the variant selected sets fuel, ignition and media
- Required: a log set (the manual lists LOGC42, LOGC43, LOGC44 and MQLOGC45 as compatible; LOGC44 is selectable on this listing), 4 in and 7 in direct vent pipe and termination, a gas line and a licensed installer
- Optional: wide surround, fan kit, wall mount millivolt or programmable thermostat, remote control and the wall mount battery holder (WMBH) for IPI models
Installation Notes
Install per the Kingsman manual with approved Kingsman or listed vent pipe. Propane horizontal installs need at least one foot of vertical rise before the elbow on any horizontal run of one foot or more. Natural gas or propane only as shown on the rating plate. A licensed gas fitter must install it. In New York City, gas fireplace work must be done by a licensed professional under a DOB permit, and the direct vent route should be planned before ordering. Book a free design consultation and we will help you plan the layout, utilities and installation.
Documentation
Frequently Asked Questions
Louvered or Clean View?

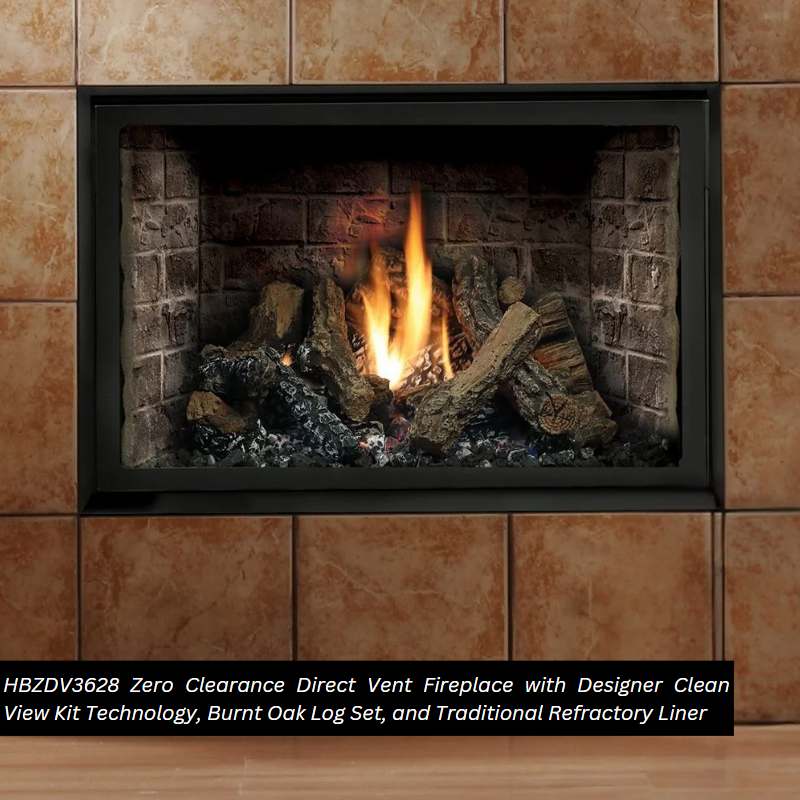

Same chassis and burner. The louvered version has black grills above and below the glass; the Clean View kit gives a louver-free front and allows a higher combustible floor. Both are listed separately.
How is the HBZDV4224 different from the HBZDV4228?
The 4224 has a lower input, 24,000 BTU versus 28,000 BTU on natural gas, and accepts tempered glass.
Do I have to buy the log set?
The listing marks a log set as required. The manual lists LOGC42, LOGC43, LOGC44 and MQLOGC45 as compatible.
Does it work in a power failure?
Yes. The millivolt and IPI valve systems operate during a power failure.
Related reading: Direct vent gas fireplace buying guide and NYC fireplace code guide.
Warranty
Per the Kingsman manual: a basic one year warranty replaces any component found defective in materials or workmanship, including labor, excluding accent light bulbs, gasketing, glass fronts and paint. The heat exchanger, combustion chamber and burner are covered for the period the original owner owns the product, with replacement parts only (labor, freight and handling are not covered).
