Kingsman ZCV34 34" Zero Clearance Clean View Direct Vent Gas Fireplace | Tempered Glass

Overall Dimensions: framing depth 18-1/8 in (flush with the unit face); unit width and height are in the Kingsman manual drawings

The Kingsman ZCV34 with tempered glass is a 34 inch dedicated Clean View zero clearance direct vent gas fireplace for new construction or renovation. It has a 28 5/8 in by 25 3/8 in viewing area and up to 19,000 BTU, with millivolt or ProFlame II electronic ignition that keeps working in a power failure. The tempered glass version is the value choice in the ZCV34 line, and an optional vented chase gives cool touch walls above the fireplace for a TV mount.

Key Specifications

Dimensions and Cutout

Features

• Dedicated Clean View appliance with Low E tempered glass
• Millivolt or IPI valve works in a power failure with high and low heat and flame adjustment

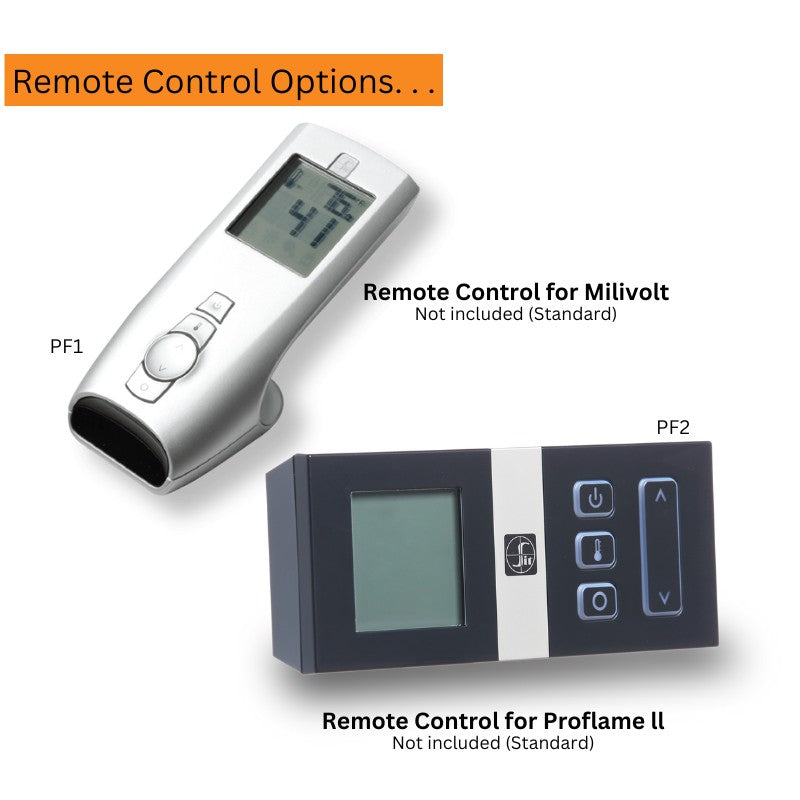

• ProFlame II models include a remote with flame, fan, thermostat and smart thermostat control
• Safety screen barrier and matte black liner
• Optional vented chase for cool touch walls or reduced mantel clearances

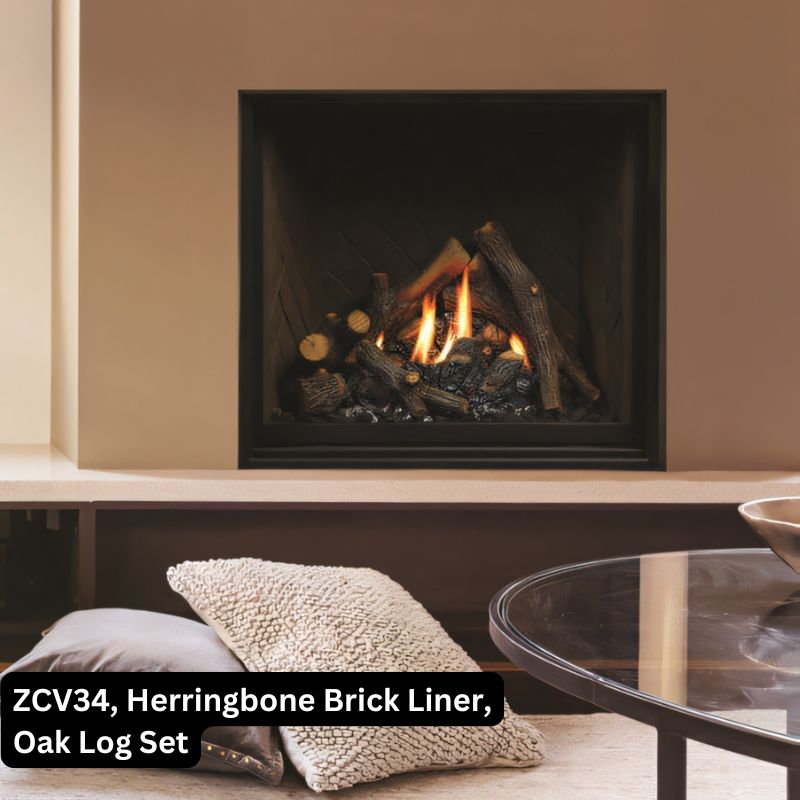

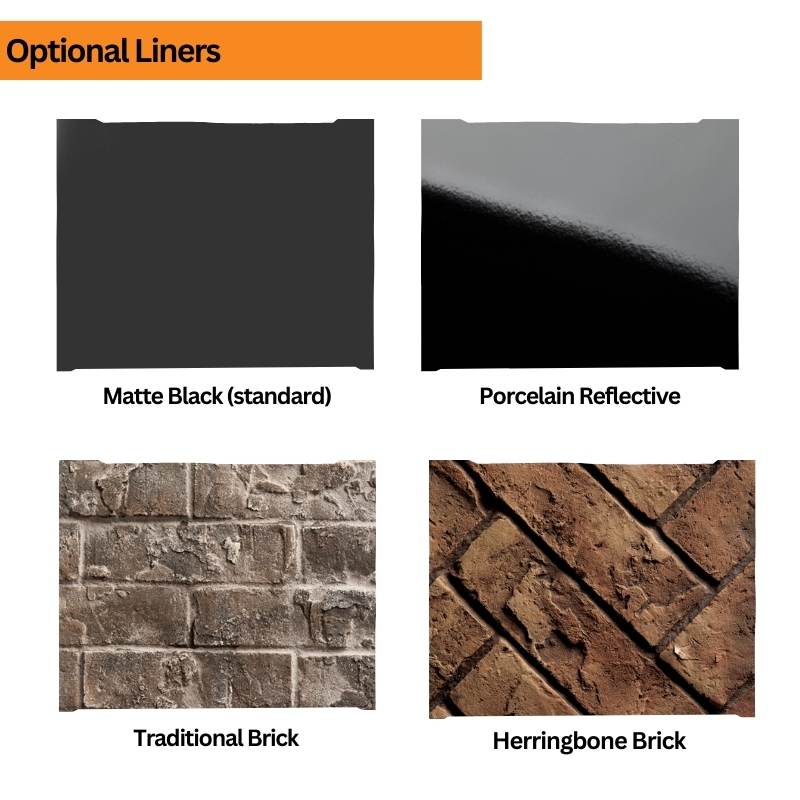

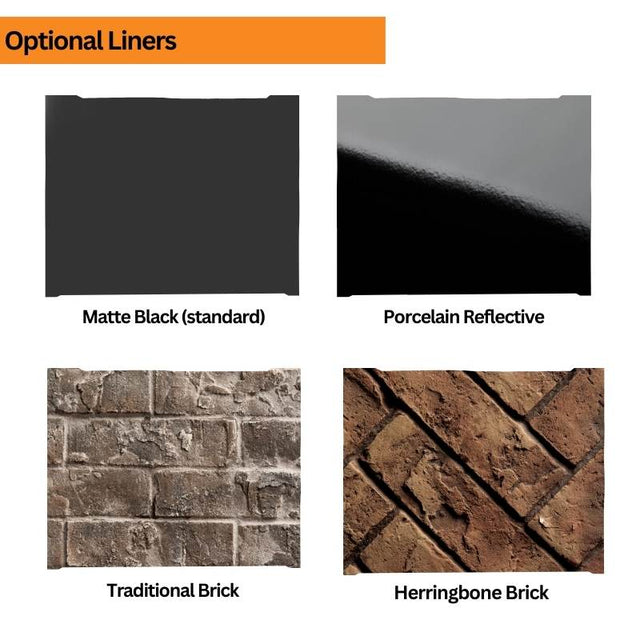

• Liners: standard matte black, traditional brick, herringbone brick or porcelain reflective

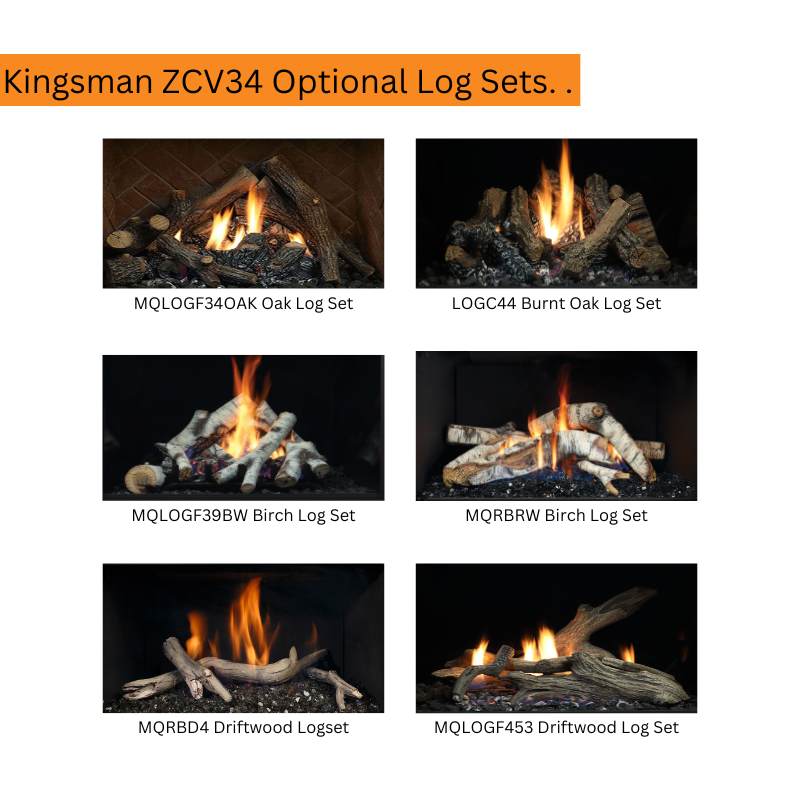

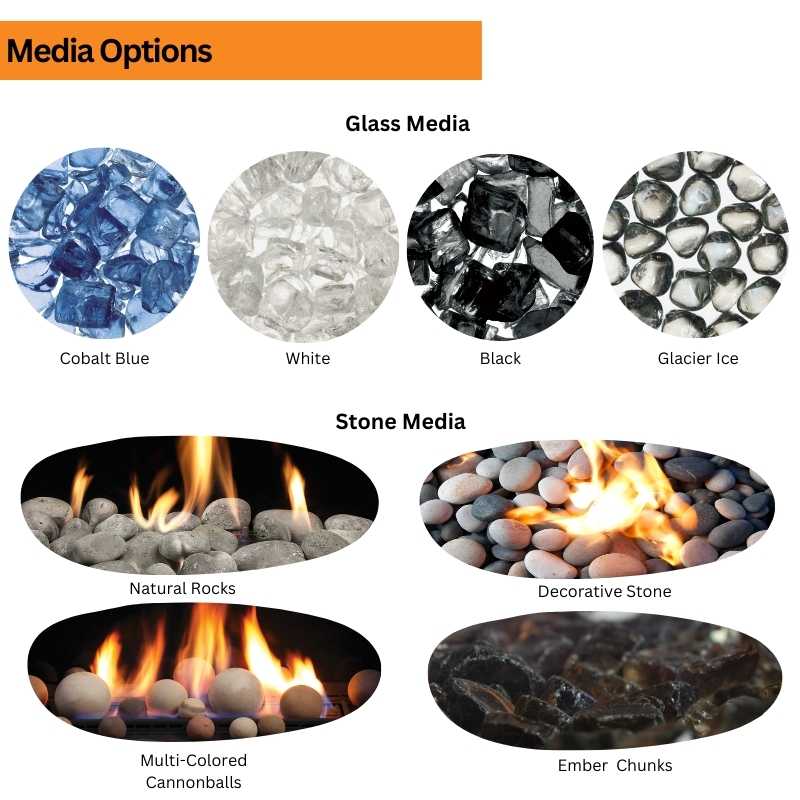

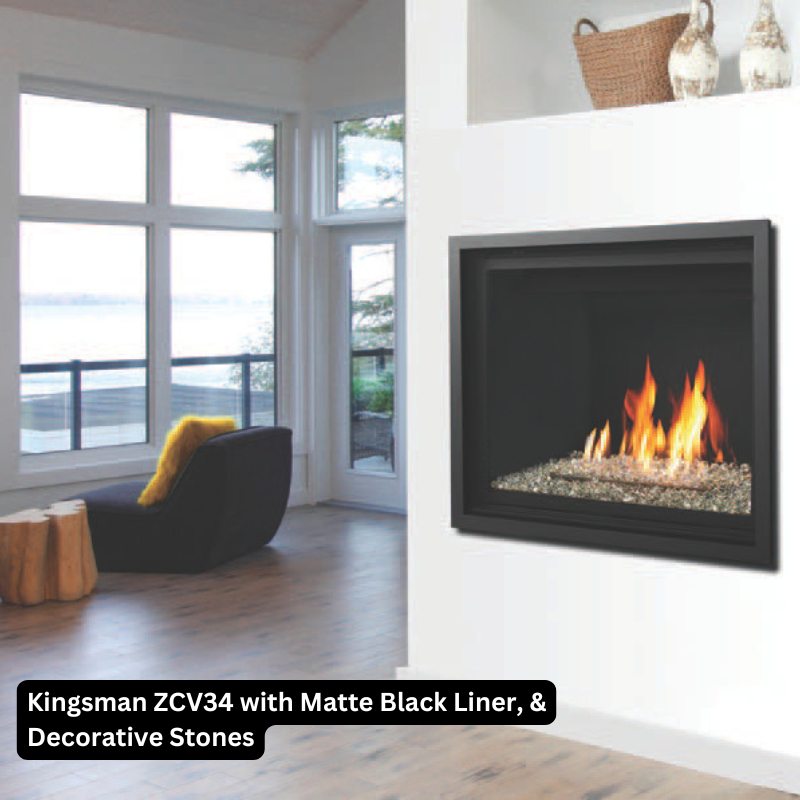

• Media: contemporary rocks, driftwood, decorative stones, ember glass, cannonballs, or oak, birch and driftwood log sets

What Is Included and What You Will Need

• Included: fireplace with safety screen and the liner selected; ProFlame II models add the remote control
• Required: media or a log set, chosen as a required step on this listing; the manual says the unit must not run without decorative glass embers on the burner and media tray
• Required: Kingsman or approved direct vent pipe and termination, a gas line and a licensed installer; non-vented chase installs also need the Z58WTS wall thimble shield

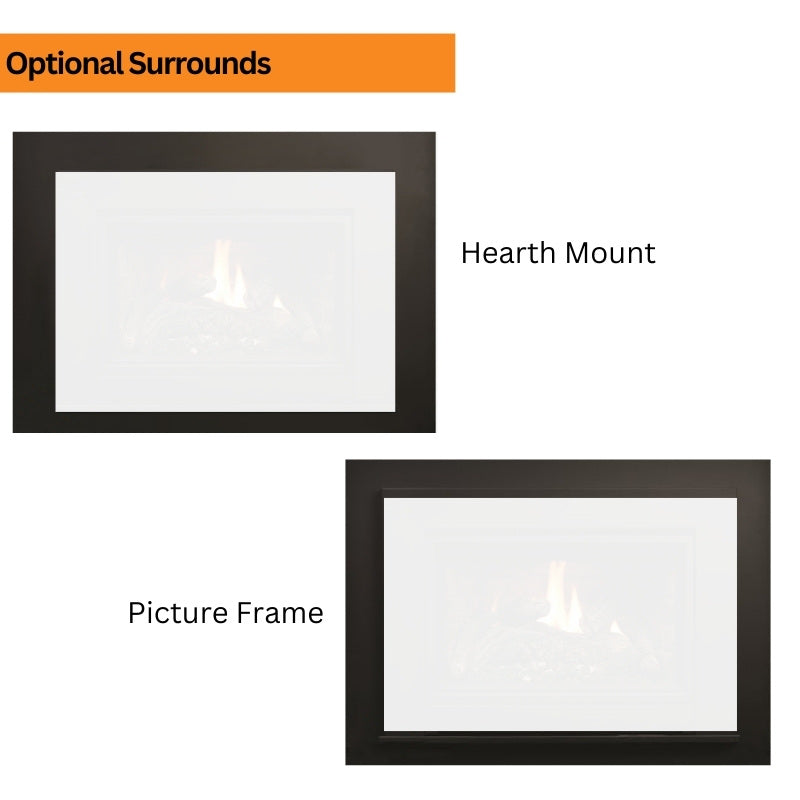

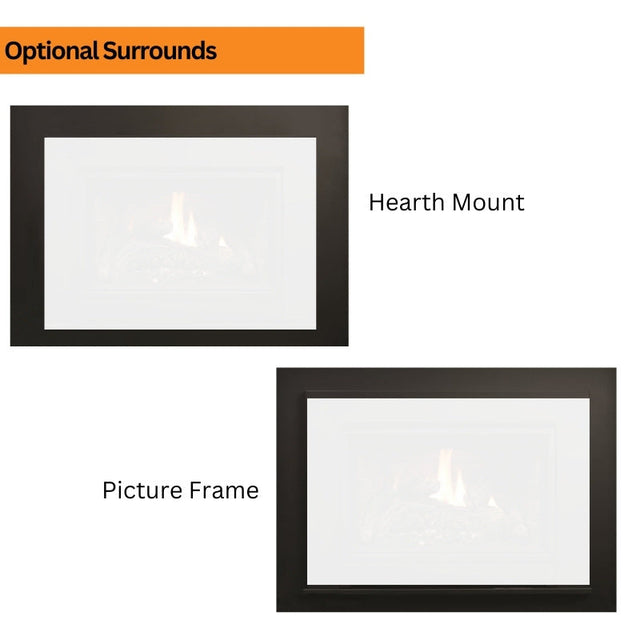

• Optional: Z46FK fan kit, surrounds, accent lighting for the glass tray, thermostats, remote controls and the wall mount battery holder (WMBH)

Installation Notes

Choose a vented or non-vented chase before framing, because the manual gives separate framing, clearance and facing rules for each. Face materials on a non-vented chase must be non-combustible. Kingsman warns that tempered glass is vulnerable to thermal shock, so keep water away from the glass, especially when hot. Install natural gas or propane only as shown on the rating plate, by a licensed gas fitter. In New York City, gas fireplace work must be done by a licensed professional under a DOB permit, and the direct vent route should be planned before ordering. Book a free design consultation and we will help you plan the layout, utilities and installation.

Documentation

• Installation Manual (ZCV34, Bentley 34)

Frequently Asked Questions

Tempered or ceramic glass?

This listing is the non-H model with Low E tempered glass. The H models use Robax ceramic or coated Neoceram glass and are listed separately.

Can I mount a TV above it?

Kingsman offers a vented chase option for cooler walls and reduced mantel clearances. Follow the manual for chase, mantel height and facing, and check your TV maker limits.

Does it work in a power failure?

Yes. Millivolt and IPI valve systems operate during a power failure, and the optional wall mount battery holder supports IPI models.

Is media included?

No. This listing sets media as a required separate choice, so pick logs, rocks, stones or glass before ordering.

Related reading: Direct vent gas fireplace buying guide and NYC fireplace code guide.

Warranty

Per the Kingsman manual: a basic one year warranty replaces any component found defective in materials or workmanship, including labor, excluding accent light bulbs, gasketing, glass fronts and paint. The heat exchanger, combustion chamber and burner are covered for the period the original owner owns the product, with replacement parts only (labor, freight and handling are not covered).
