Description
Description
Available Sizes: Kingsman ZCV Tempered Glass Direct Vent Gas Fireplaces
Overall Dimensions: 42-7/16" W x 18-7/16" D x 40-7/8" H; framing 42-1/2" W x 41" H x 18-1/2" D
The Kingsman ZCV42 with tempered glass is a 42 inch dedicated Clean View zero clearance direct vent gas fireplace for new construction or renovation. It runs up to 25,000 BTU on natural gas or propane, with millivolt or ProFlame II electronic ignition that keeps working in a power failure. The tempered glass version is the value choice in the ZCV42 line, with seven liner choices and the same vented chase option for a cooler wall under a TV.
Key Specifications
| Model | ZCV42N, ZCV42LP (millivolt); ZCV42NE2, ZCV42LPE2 (ProFlame II electronic with remote) |
| Configuration | Dedicated Clean View, zero clearance direct vent |
| Input, natural gas | 25,000 BTU maximum, 16,500 BTU low |
| Input, propane | 25,000 BTU maximum, 19,500 BTU low |
| Glass | Tempered glass, 5 mm (non-H models) |
| Gas supply | 3/8 in NPT inlet; natural gas 5.5 in w.c. minimum, 7 normal, 9 maximum; propane 11 in w.c. minimum and normal, 12 maximum |

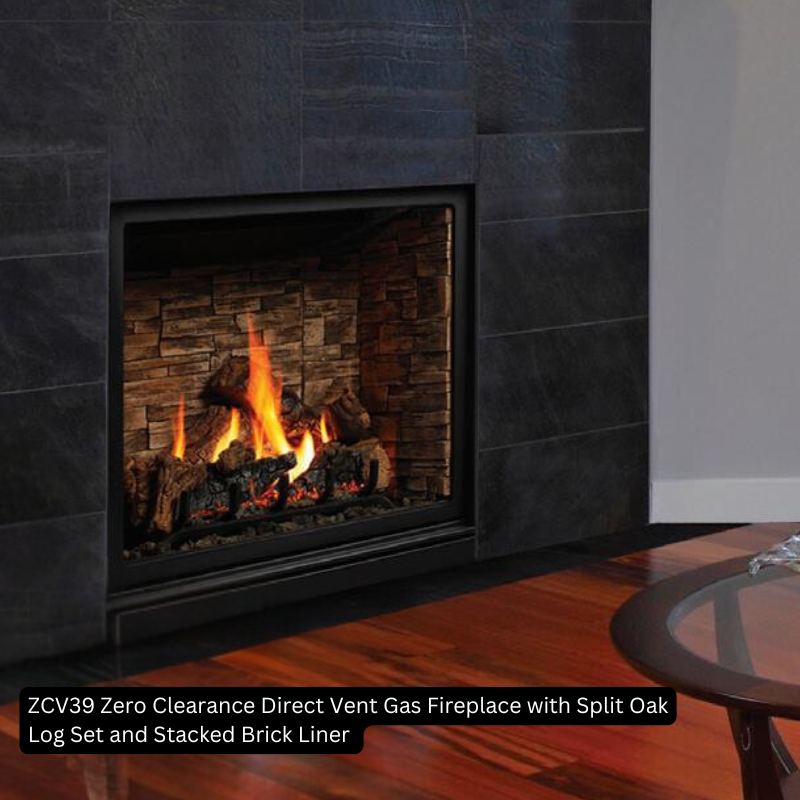

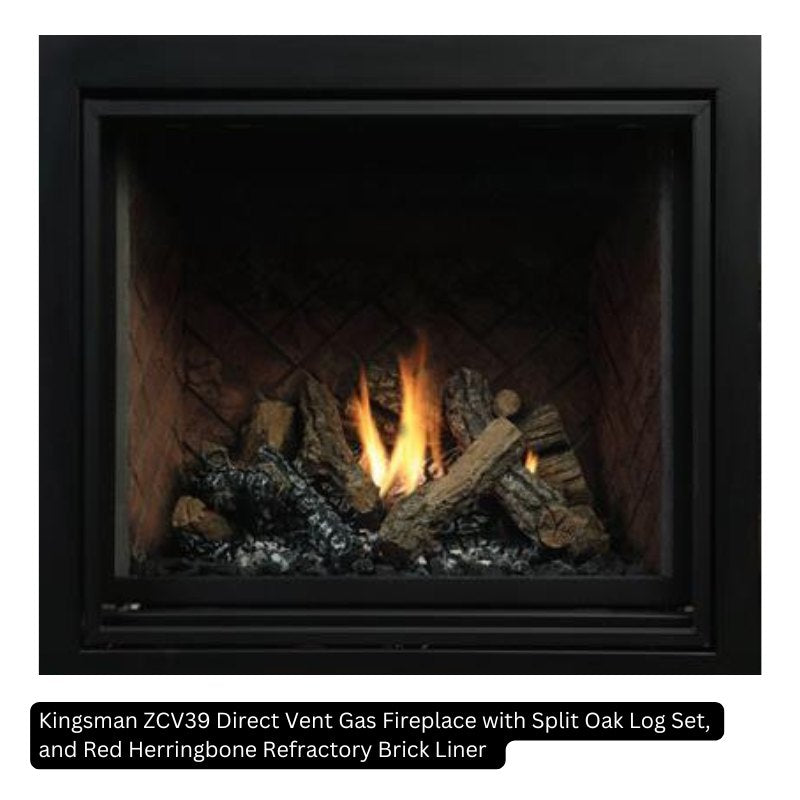

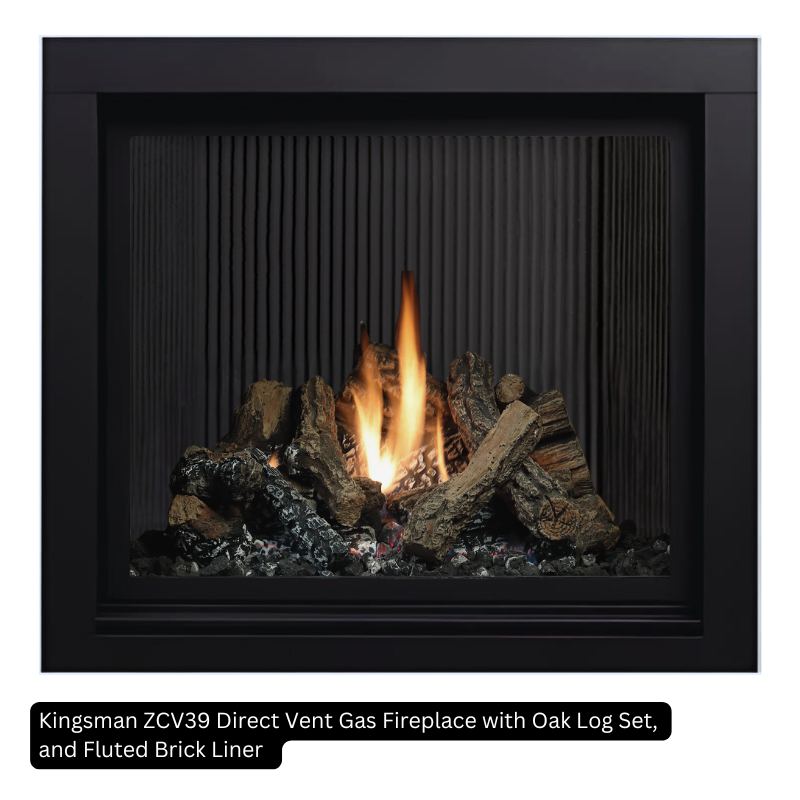

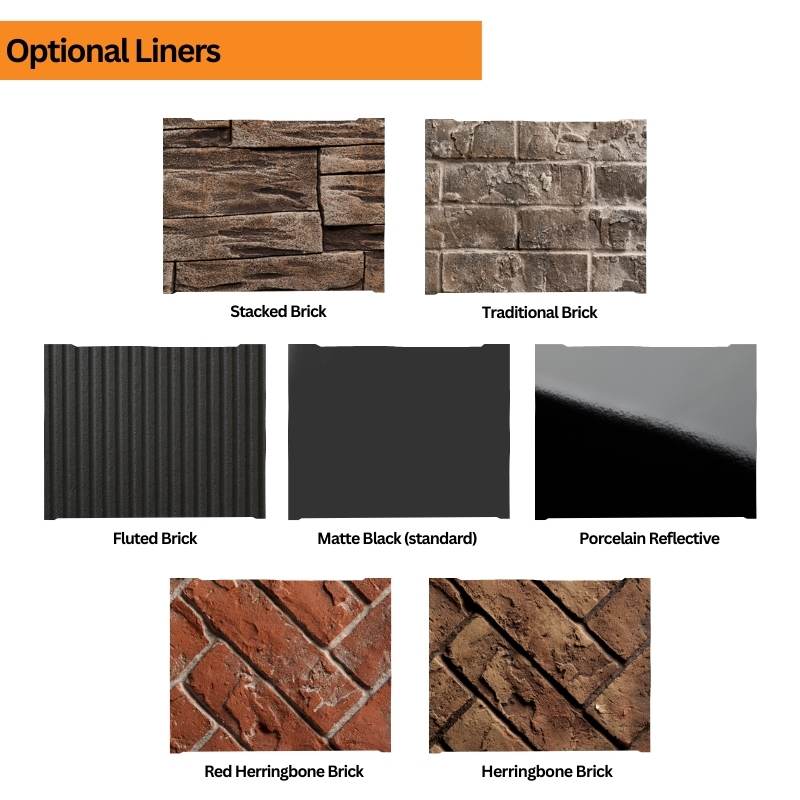

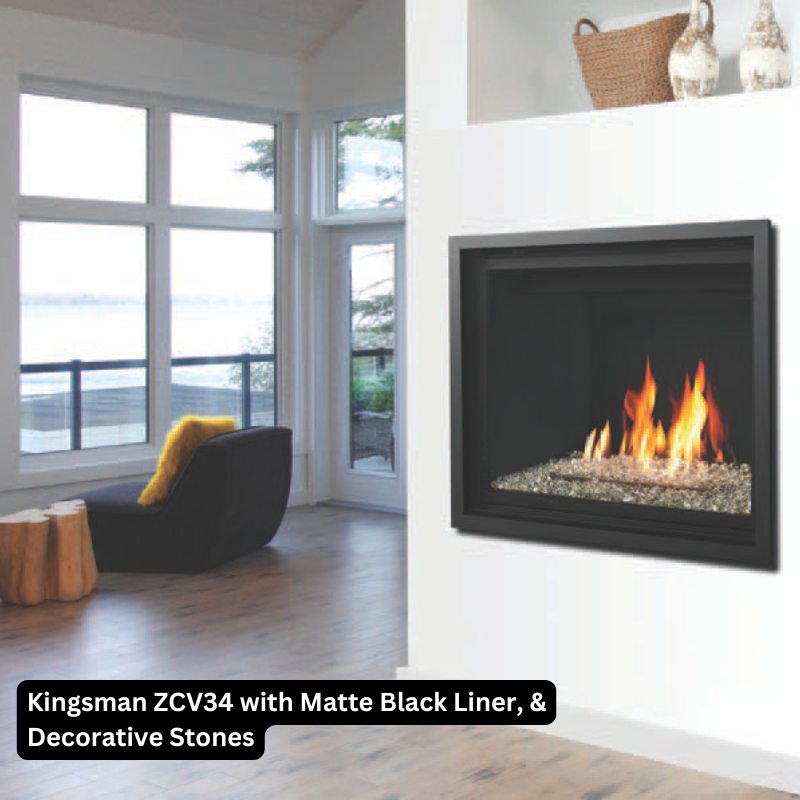

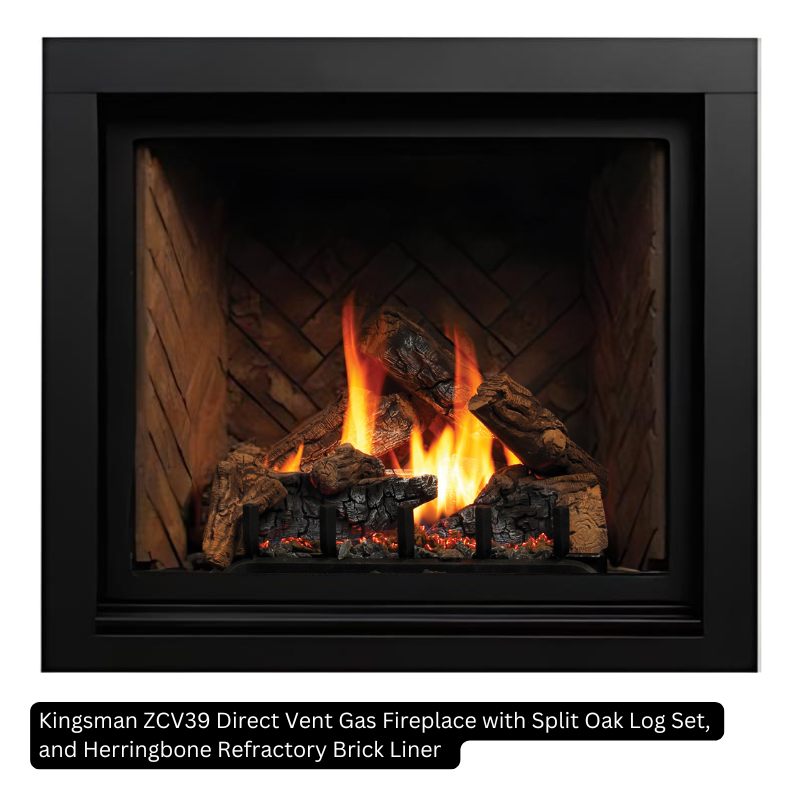

| Liner | Standard matte black; optional traditional brick, herringbone brick, red herringbone brick, stacked brick, fluted brick or porcelain reflective |
| Certification | CSA/ANSI Z21.88:19, CSA 2.33:19 and CSA 2.17-2017 |
| Weight | Not published |
Dimensions and Cutout
| Unit (W x D x H) | 42-7/16" x 18-7/16" x 40-7/8" overall (37-5/8" face height) |
| Glass viewing area | 33-11/16" W x 27-3/16" H per the manual drawing |
| Framing (non-vented chase) | 42-1/2" W x 41" H x 18-1/2" D with drywall flush with the unit face, 19" D from the back wall to the face |
| Minimum ceiling and enclosure heights | Vary by fuel and chase type; propane needs more height than natural gas. See the framing pages of the manual |
| Clearance to combustibles | Front 36"; back, sides, floor and top 0"; vertical vent pipe 1" |
| Vent | Direct vent, 4 in inner and 7 in outer pipe |

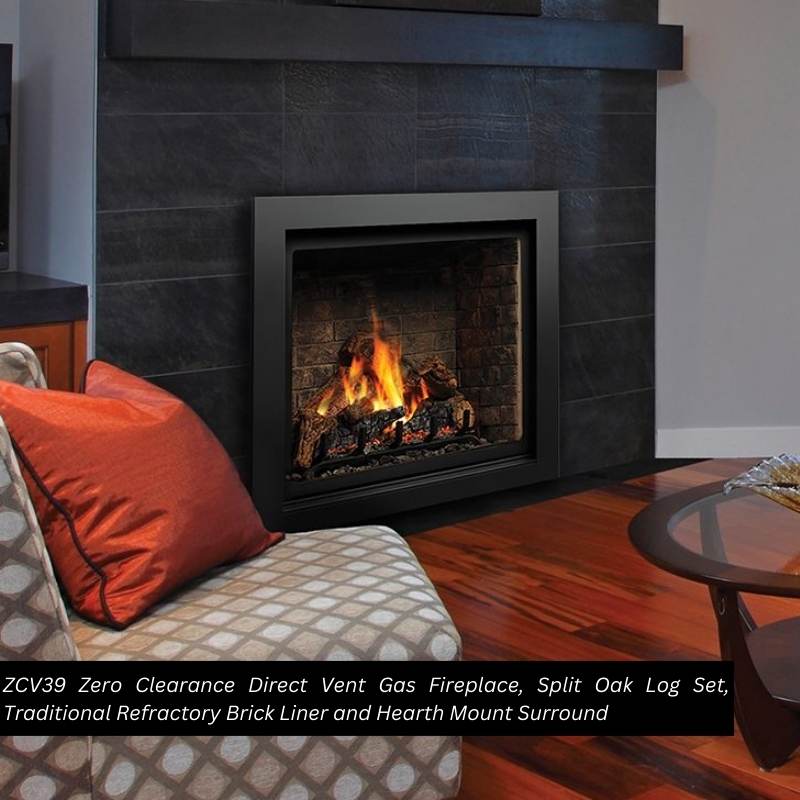

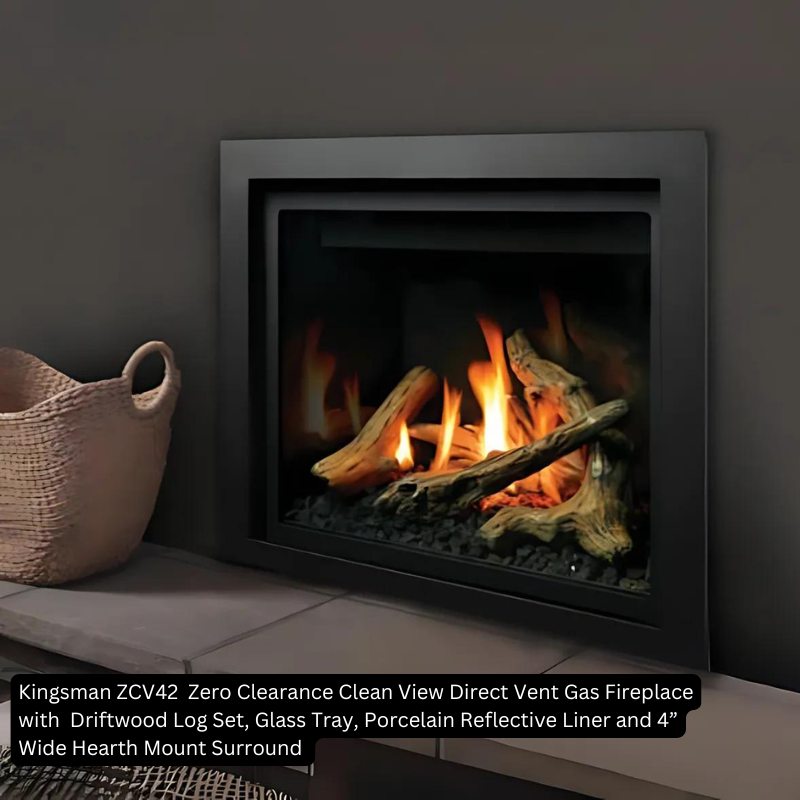

| Surrounds | Picture frame 4 in wide covers 44 11/16" W x 40 1/8" H; 1 5/8 in wide covers 40 3/16" W x 35 5/8" H; hearth mount 4 in wide covers 44 11/16" W x 38 1/8" H per current listing |
Features
- Dedicated Clean View appliance with tempered glass
- Millivolt or IPI valve system operates during a power failure, with high and low heat and flame adjustment
- Safety screen barrier included

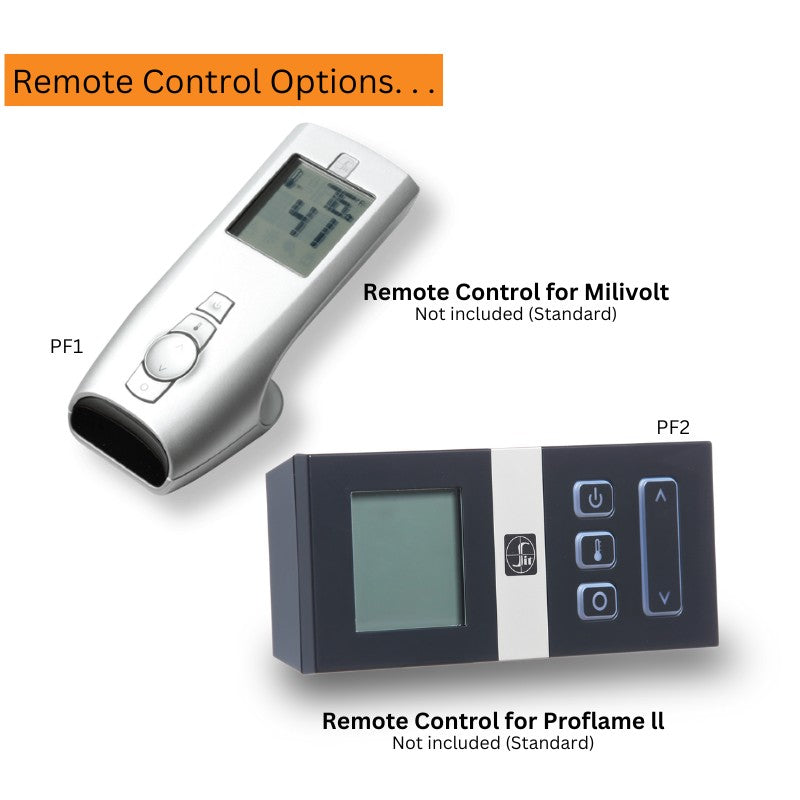

- ProFlame II models include a remote with flame, fan, thermostat and smart thermostat control
- Optional vented chase for cool touch walls or reduced mantel clearances

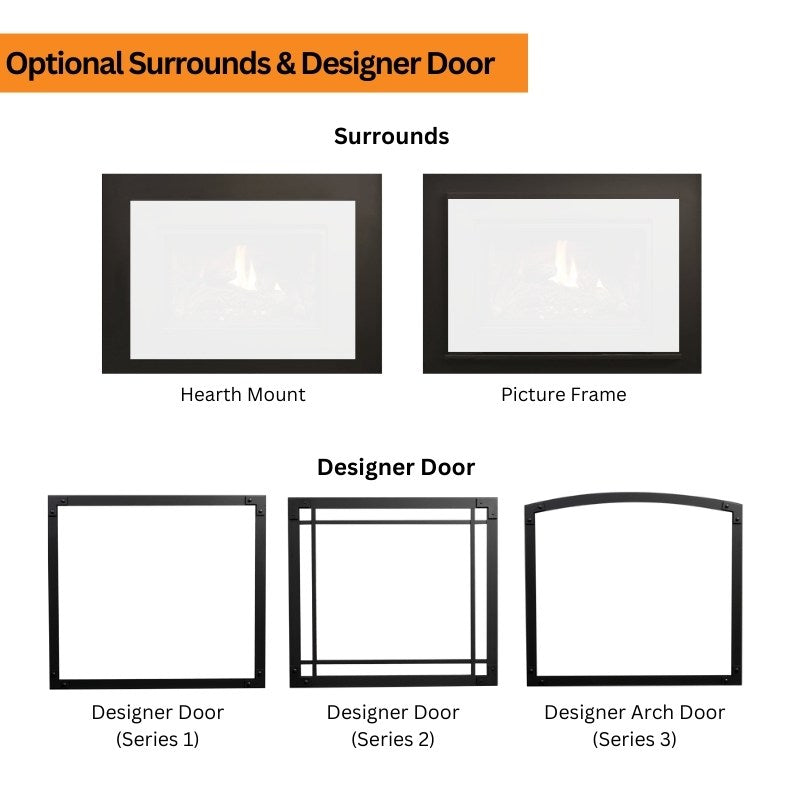

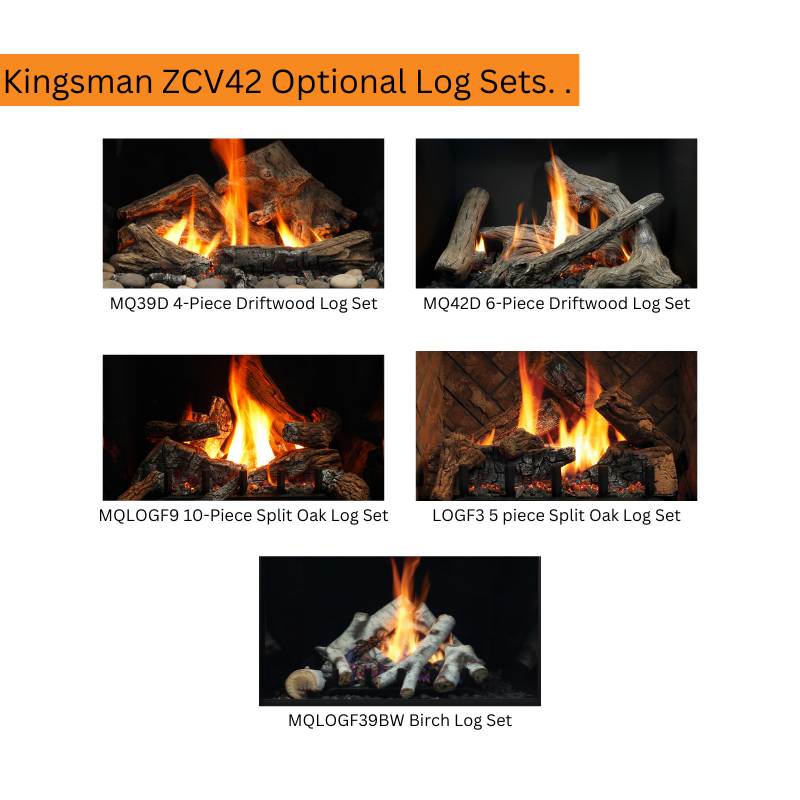

- Seven liner choices and a wide range of media, log sets, designer doors and surrounds
- Heat activated fan kit with variable speed control available
What Is Included and What You Will Need
- Included: the fireplace with safety screen and the liner you select; ProFlame II models add the remote control
- Required: media or a log set, chosen as a required step on this listing
- Required: Kingsman or approved 4 in and 7 in direct vent pipe and termination, a gas line, and a licensed installer
- Optional: fan kit, picture frame surrounds, hearth mount surround, glass tray media accessory, millivolt remote and programmable thermostat
Installation Notes
Install natural gas or propane only as shown on the rating plate. Choose a non-vented or vented chase before framing, because the manual gives separate framing, clearance, mantel and facing requirements for each. Kingsman warns that tempered glass is vulnerable to thermal shock, so keep water away from the glass, especially when hot. In New York City, gas fireplace work must be done by a licensed professional under a DOB permit, and the direct vent route should be planned before ordering. Book a free design consultation and we will confirm framing, venting and approvals for your building.
Documentation
Frequently Asked Questions
What is the maximum BTU?
Kingsman lists 25,000 BTU maximum for the tempered glass ZCV42 on either fuel; 16,500 BTU is the natural gas low setting.
Tempered or ceramic glass?
This listing is the non-H model with tempered glass. The H models use Robax ceramic or coated Neoceram glass and carry a higher maximum input.
Does it work in a power failure?
Yes. The millivolt and IPI valve systems operate during a power failure, and the optional wall mount battery holder supports IPI models.
Is media included?

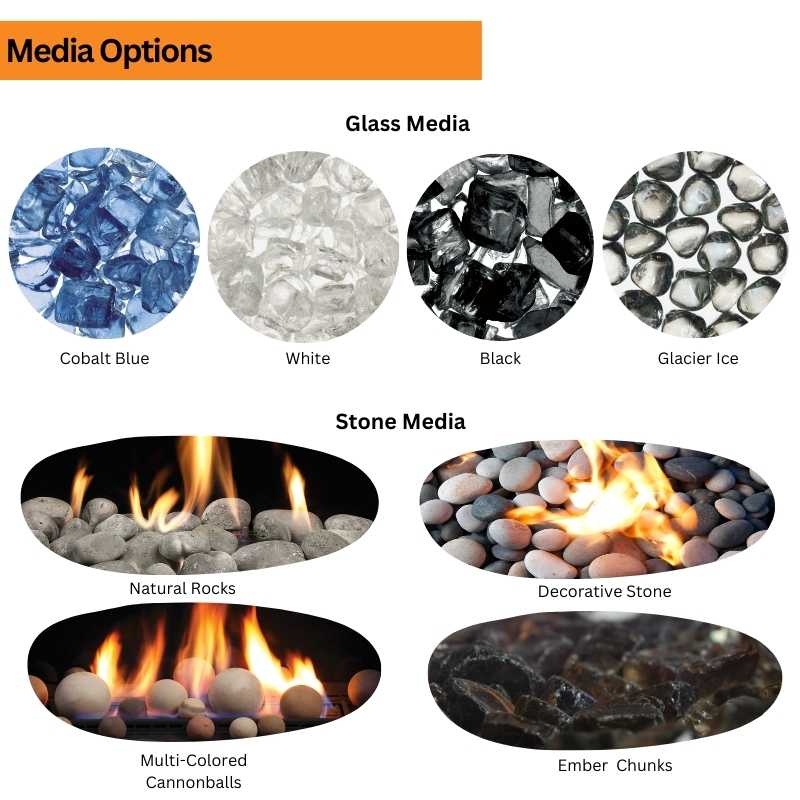

No. This listing sets media as a required separate choice, so pick logs, rocks, stones or glass before ordering.
Related reading: Direct vent gas fireplace buying guide and NYC fireplace code guide.
Warranty
Per the Kingsman manual: a basic one year warranty replaces any component found defective in materials or workmanship, including labor, excluding accent light bulbs, gasketing, glass fronts and paint. The heat exchanger, combustion chamber and burner are covered for the period the original owner owns the product, with replacement parts only (labor, freight and handling are not covered).
