Description
Description
10% Cash Back on Lynx - Limited Time
Click Here For Details
Overall Dimensions: 20-9/16 in W x 22-5/8 in D x 33-5/8 to 34-3/8 in H; cutout 21-1/2 x 33-3/4 to 34-1/2 x 24-1/2 in (W x H x D), per Lynx

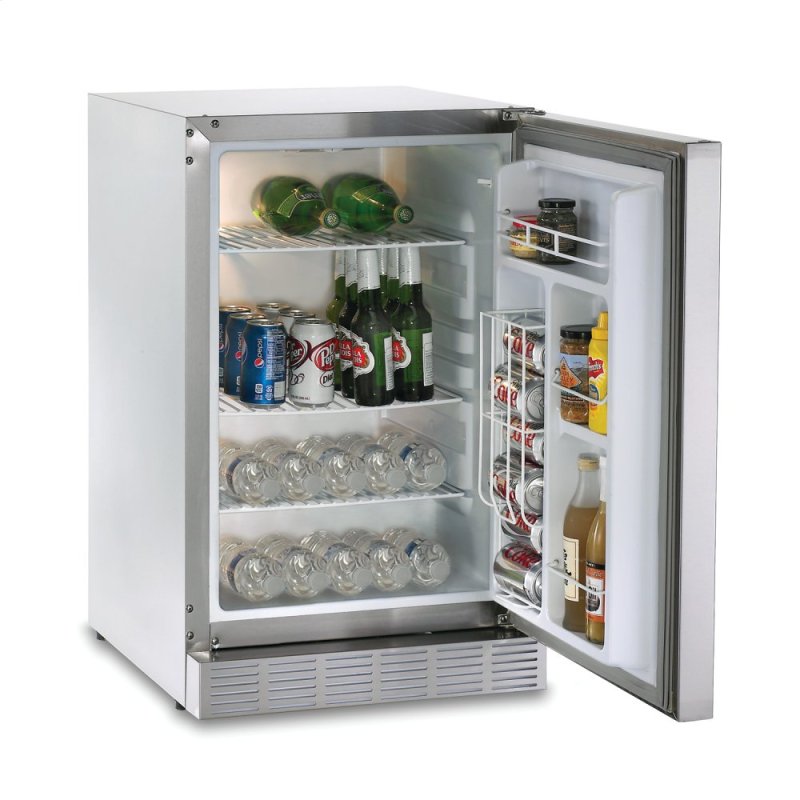

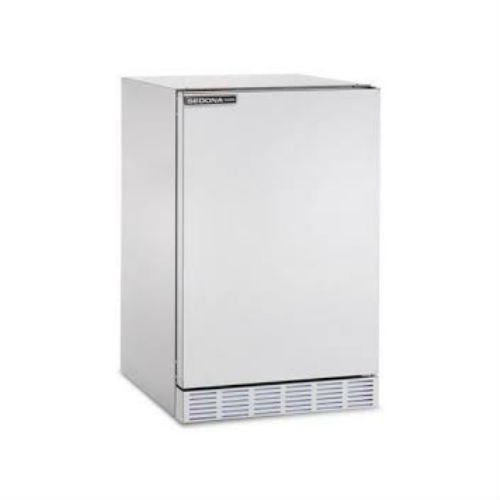

The Sedona by Lynx L500REF is a 20 in, 4.1 cu ft UL-listed stainless refrigerator that keeps drinks and prepped food cold right at a Sedona island. It vents through the front grille so it can be built in under the counter or stand on its own, with three adjustable wire shelves, an interior light and a door that can be switched to open from either side.
Features
- 4.1 cu ft capacity in a 20 in wide stainless cabinet
- Front venting for built-in or freestanding installation
- Three adjustable, removable wire shelves plus door storage with a can dispenser and condiment bar
- Interior light for visibility at night
- Dial thermostat with settings 0 to 7
- Field-reversible door swing and adjustable leveling legs
Key Specifications
| Model / SKU | Sedona by Lynx L500REF |
| UPC | 810043020039 |
| Capacity | 4.1 cu ft (per current listing) |
| Installation | Built-in or freestanding, front venting |
| Shelves | 3 adjustable wire shelves, door bar, can dispenser, condiment bar |
| Controls | Mechanical dial thermostat, 0 (off) to 7 (coldest); 3 for normal use |
| Electrical | 115 V AC, 60 Hz, GFCI-protected grounded 3-prong outlet; 15 A fuse or breaker; dedicated circuit recommended |
| Operating ambient | 60 F to 90 F |
| Certification | cULus listed (UL 471) |
| Door | Stainless, field reversible |
Dimensions and Cutout
| Overall | 20-9/16 in W x 22-5/8 in D (with door) x 33-5/8 in H minimum, 34-3/8 in H maximum on the legs |
| Cutout | 21-1/2 in W x 24-1/2 in D minimum x 33-3/4 in H minimum, 34-1/2 in H maximum |
| Ventilation | Keep the front grille unobstructed; Lynx shows 4-1/2 in of space behind the cabinet used for ventilation |
| Door clearance | 21-3/4 in in front with the door open 90 degrees |
What Is Included and What You Will Need
- L500REF refrigerator with 3 shelves
- Adjustable hinge and handle kit
- Instruction manual
- You will need: a GFCI-protected, grounded 115 V outlet on its own circuit, and a level floor or island base strong enough for the loaded unit
Optional Accessories
- Sedona by Lynx 36 in built-in gas grill
- Sedona by Lynx 36 in door and double drawer combo (LSA636)
- Sedona by Lynx 19 in double drawers (LUD519)
- Sedona by Lynx 18 in drop-in ice bin cooler (LDC18)
Installation Notes
For a built-in installation, frame a 21-1/2 in wide opening at least 24-1/2 in deep and 33-3/4 to 34-1/2 in high, keep the front grille completely clear, and level the cabinet on its adjustable legs. Lynx's current manual calls for the refrigerator to sit at least 12 in from the grill, away from direct sun and other heat sources.
Lynx specifies a well-ventilated location with ambient temperatures between 60 F and 90 F, protected from direct wind and rain, so a covered location suits it best. Let the refrigerator stand upright for about 2 hours before plugging it in, then allow 2 to 3 hours to cool before loading food. Do not use an adapter, and avoid extension cords.
Fitting refrigeration into an outdoor kitchen? Book a design consultation.
Documentation
- Sedona by Lynx L500REF Refrigerator Instruction Manual
- Sedona by Lynx 20 in Outdoor Refrigerator Dimensions and Cutout (L500REF)
Frequently Asked Questions
Can it be built in?
Yes. It vents through the front grille, so it can be built in under a counter in a 21-1/2 in wide cutout or used freestanding.
What cutout does it need?
21-1/2 in wide, at least 24-1/2 in deep, and 33-3/4 to 34-1/2 in high.
What temperatures can it handle?
Lynx rates it for ambient temperatures from 60 F to 90 F in a location protected from wind and rain.
Can the door open the other way?
Yes. The manual shows how to reverse the door swing.
Does it need a dedicated circuit?
Lynx recommends a separate circuit with a GFCI-protected, grounded outlet and a 15 A fuse or breaker.
Related reading: Outdoor refrigerator and ice maker buying guide, Outdoor kitchen planning guide.
Warranty
Lynx warrants the L500REF to the original purchaser, at the original site of delivery and with proof of purchase, against defects in workmanship and material under normal residential use for one (1) year. Coverage is limited to repair or replacement of the product at the manufacturer's option.
Per the Lynx instruction manual, the warranty excludes rental and commercial use, does not cover labor charges, and shipping and handling charges apply to warranty parts. See the manual for full terms.
