Crossfire CFBDT Double Tree-Style Brass Gas Fire Pit Burner
Crossfire CFBDT Double Tree-Style Brass Gas Fire Pit Burner - 160K BTU 15.5 x 10-Inch with WATERSTOP / Natural Gas is backordered and will ship as soon as it is back in stock.
Description
Description
Burner sizes: 15.5 x 10 in. (160,000 BTU) to 52.75 x 10.125 in. (480,000 BTU), per listing

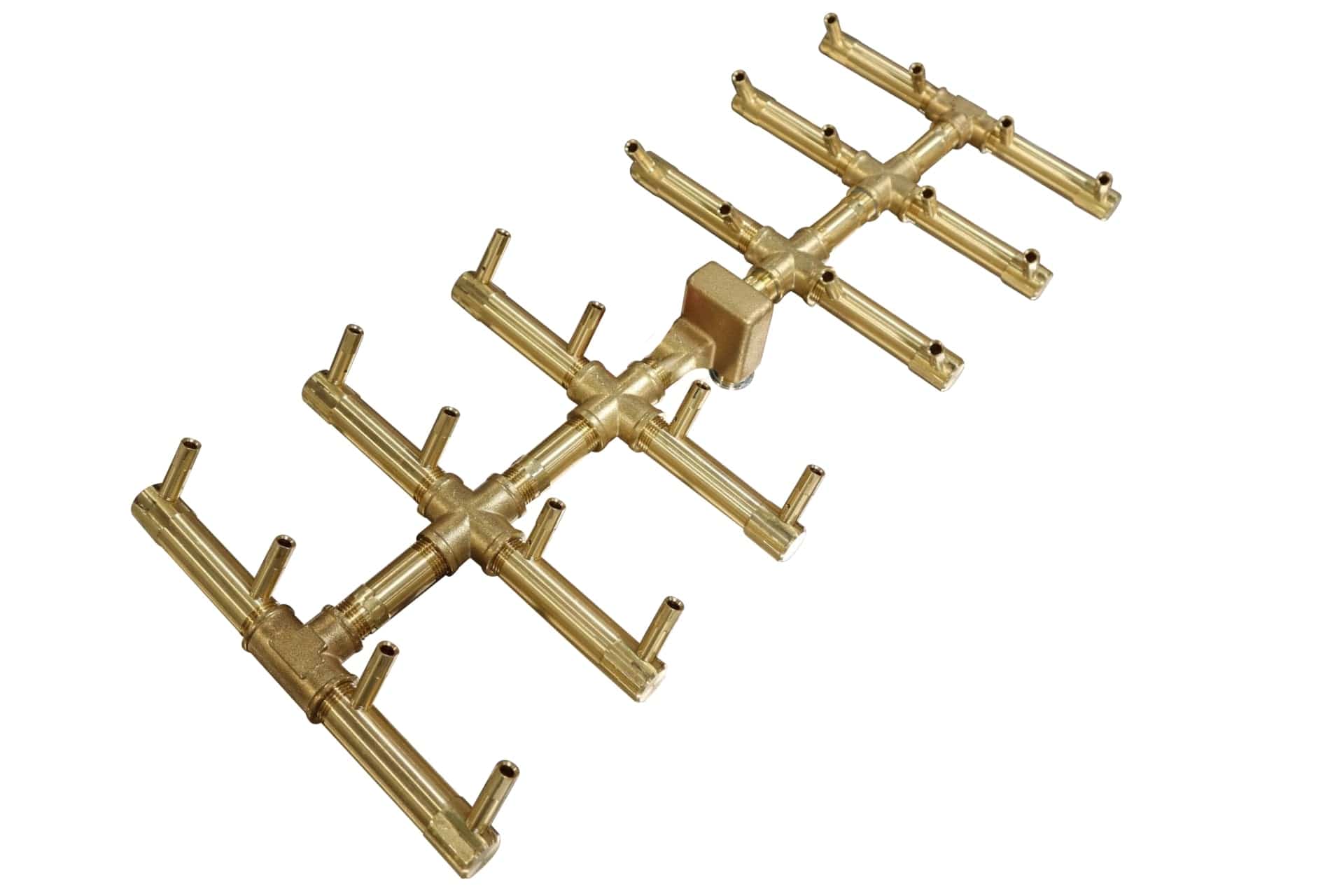

The Warming Trends CROSSFIRE CFBDT is a double tree-style brass burner for rectangular fire pits: two rows of flame branches off a center manifold, filling a long, fairly narrow opening with tall flame. It is 100% brass, so it will not rust, and the two smaller sizes have Warming Trends' WATERSTOP fitting.
Five sizes run from 160,000 to 480,000 BTU for plates from 22 x 17 to 59 x 18 in., in natural gas or propane. This listing is the burner alone; plate, flex line, valve and ignition are separate.
Key Specifications
| Model family | Warming Trends CROSSFIRE CFBDT double tree-style burner (5 sizes) |
|---|---|
| Burner material | 100% brass |
| Output | 160,000 to 480,000 BTU by size (select above) |
| Fuel | Natural gas or propane, burner built for one fuel (select above) |
| Inlet | 1/2 in. on CFBDT160 and CFBDT240; 3/4 in. on CFBDT320 and larger (per listing) |
| WATERSTOP | CFBDT160 and CFBDT240 |
| Gas inlet pressure | NG 3.5 to 7.0 in. W.C.; LP 11.0 to 13.0 in. W.C. (match lit, Version 6 manual) |
Dimensions and Cutout

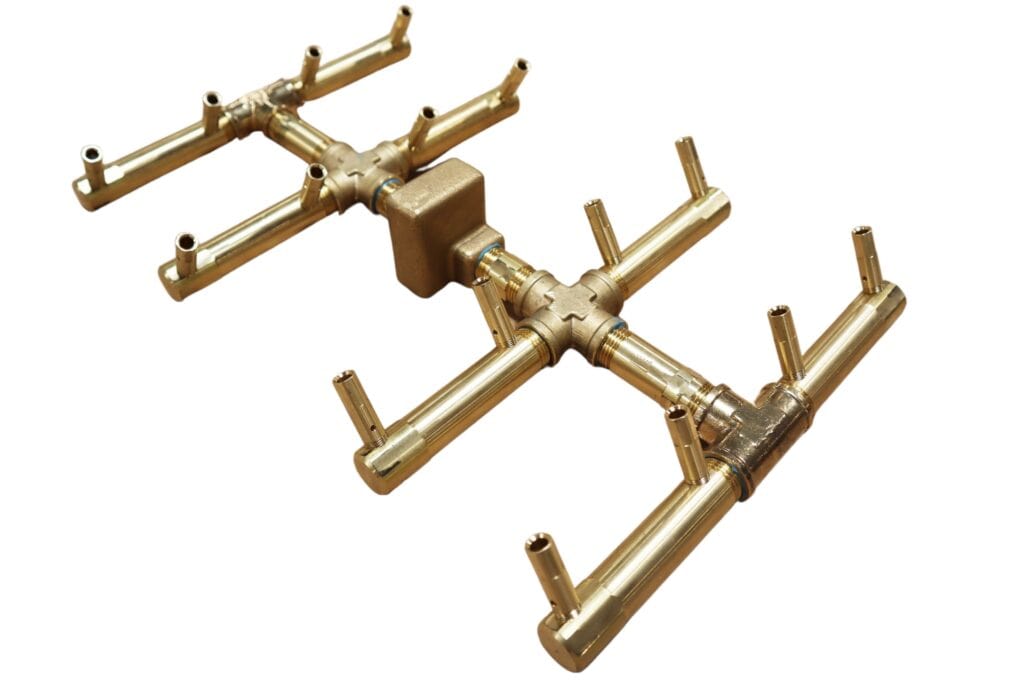

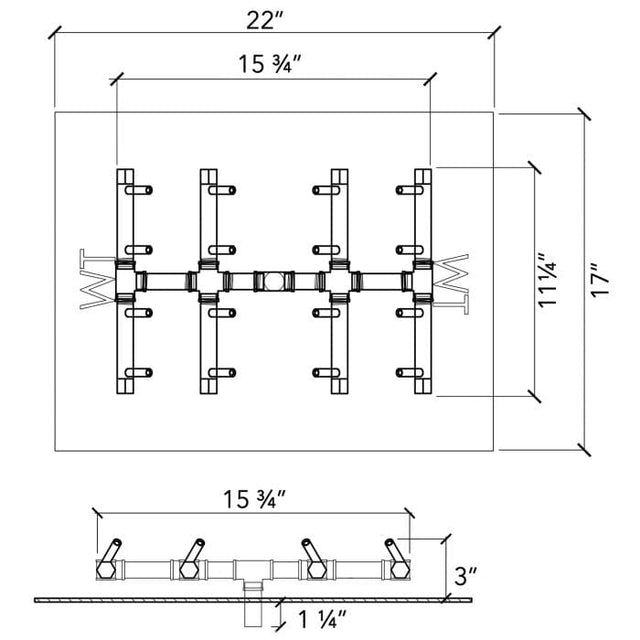

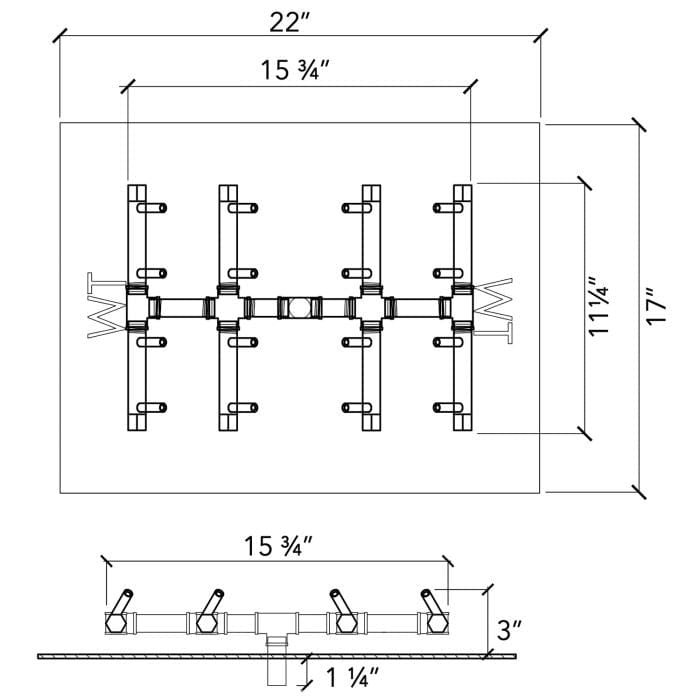

| CFBDT160 | 160,000 BTU; burner 15.5 x 10 in.; 1/2 in. inlet; plate 22 x 17 in.; WATERSTOP yes |
|---|---|

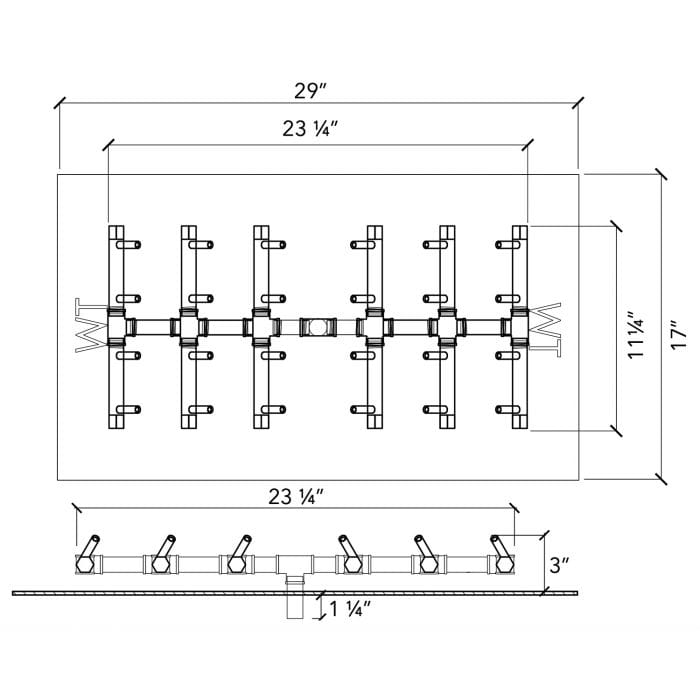

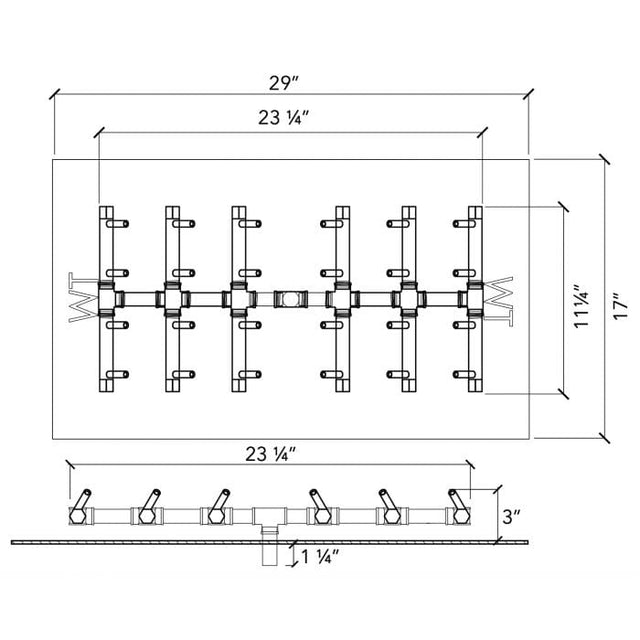

| CFBDT240 | 240,000 BTU; burner 25.5 x 10 in.; 1/2 in. inlet; plate 29 x 17 in.; WATERSTOP yes |

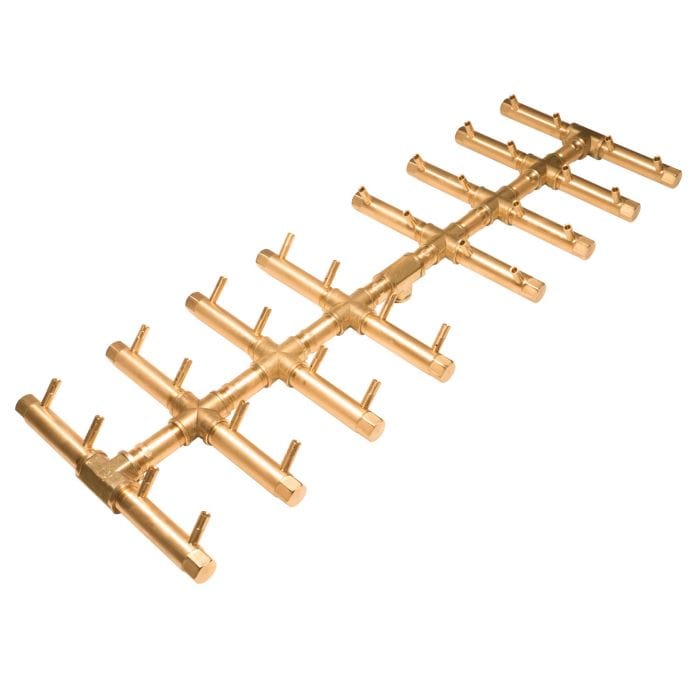

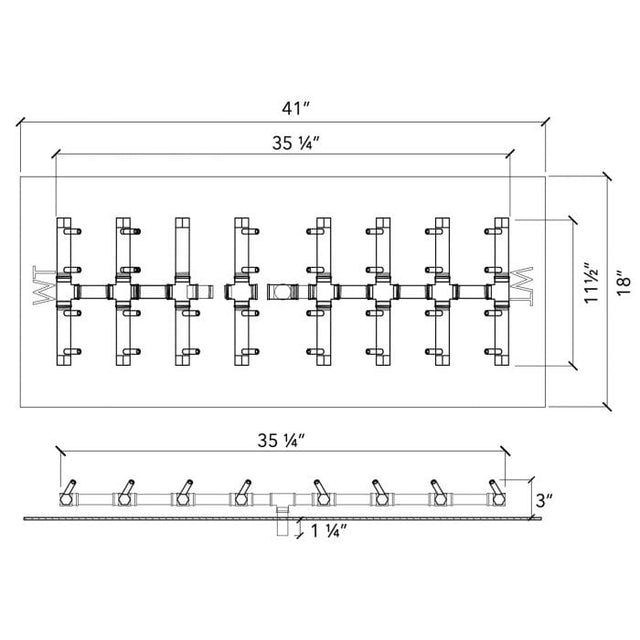

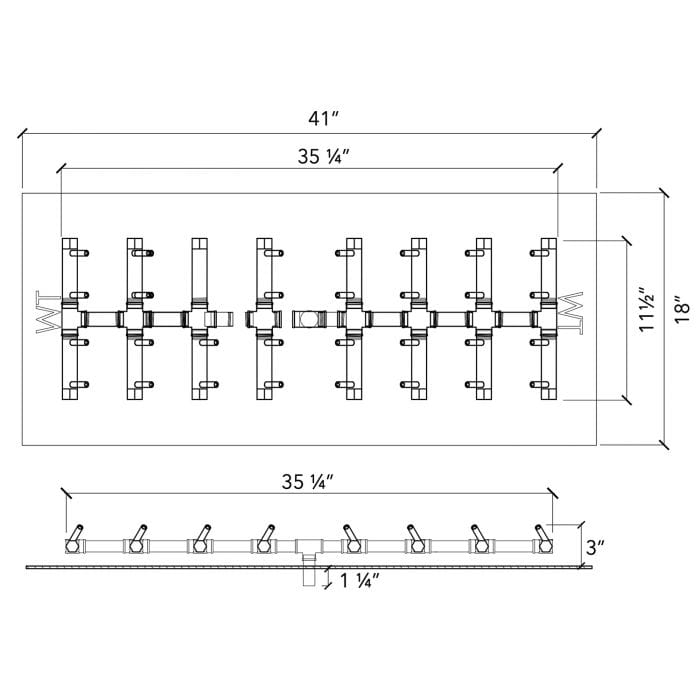

| CFBDT320 | 320,000 BTU; burner 35 x 10.125 in.; 3/4 in. inlet; plate 41 x 18 in.; WATERSTOP no |

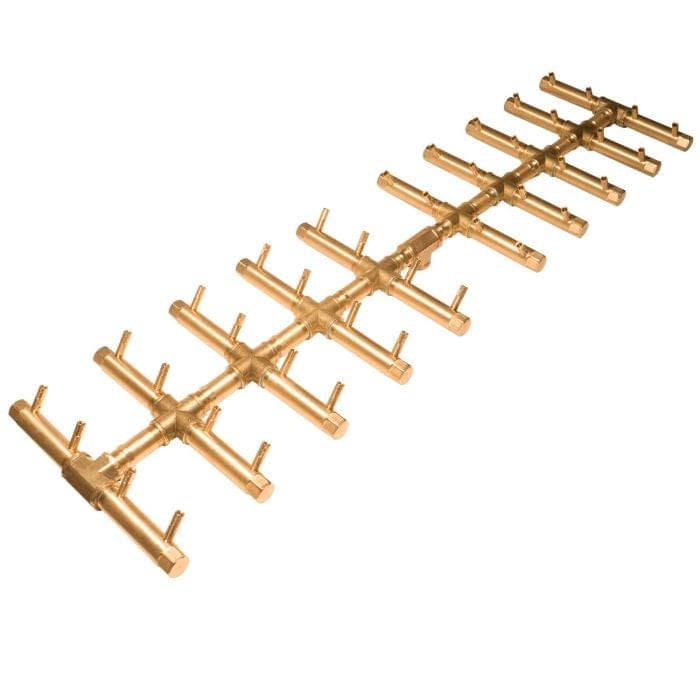

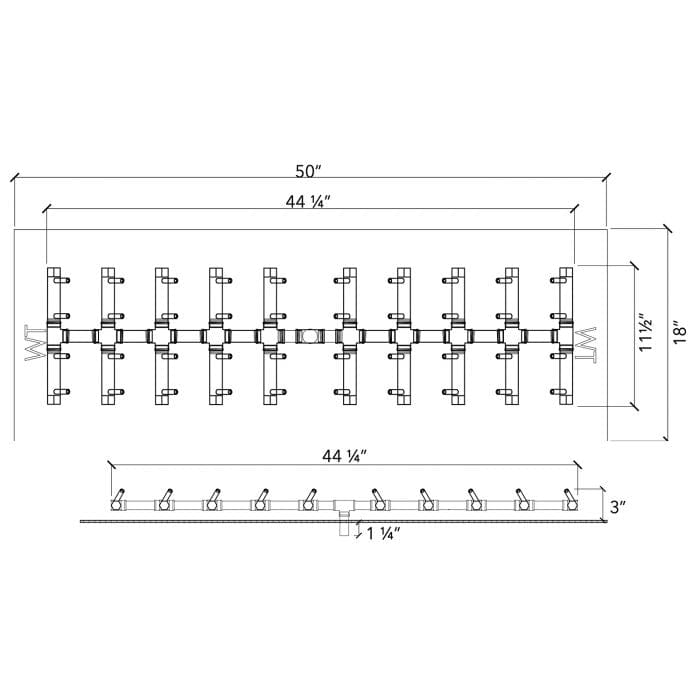

| CFBDT400 | 400,000 BTU; burner 43.875 x 10.125 in.; 3/4 in. inlet; plate 50 x 18 in.; WATERSTOP no |

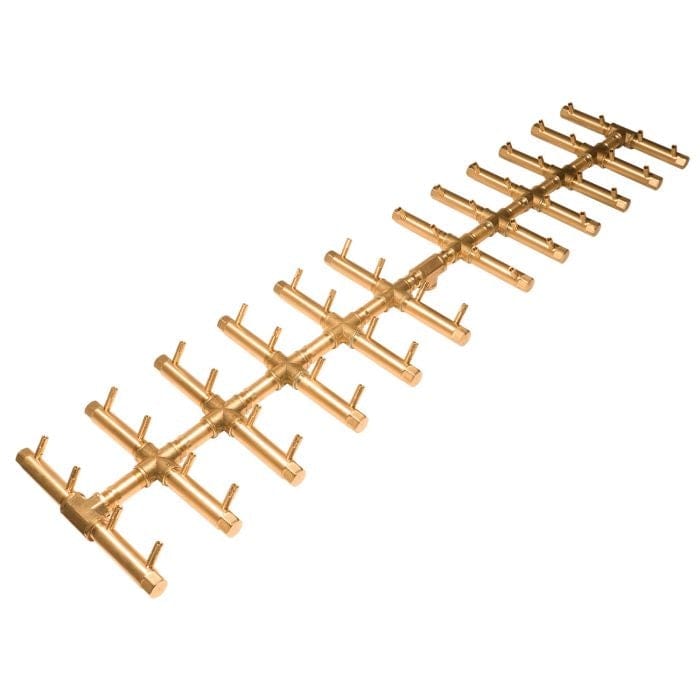

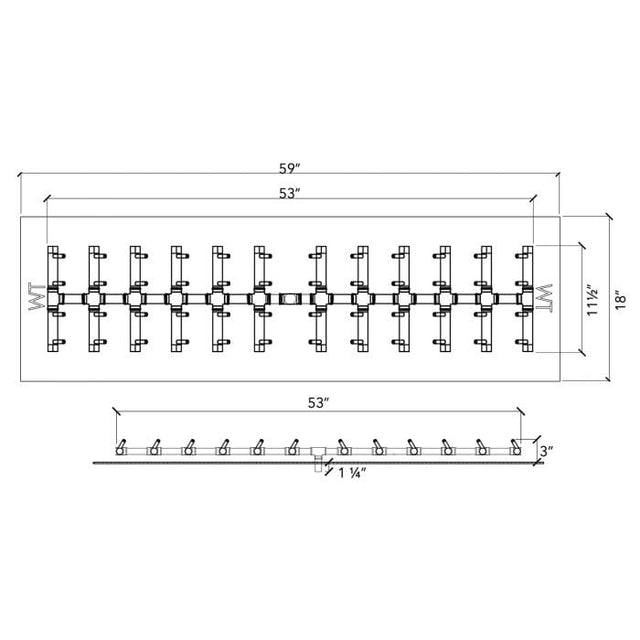

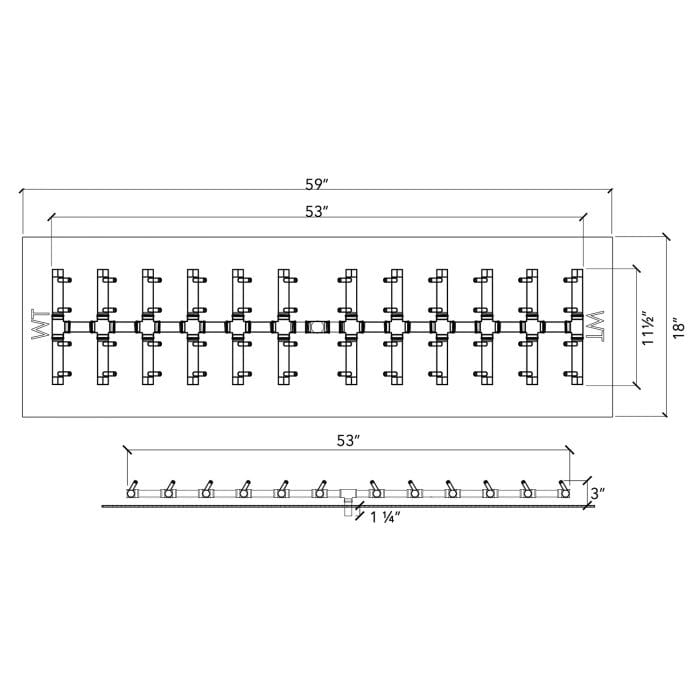

| CFBDT480 | 480,000 BTU; burner 52.75 x 10.125 in.; 3/4 in. inlet; plate 59 x 18 in.; WATERSTOP no |
| Sizes source | Burner sizes and inlets per listing; plate sizes match the Warming Trends burner size guide |
Features
- Double tree-style CROSSFIRE burner for rectangular fire pits
- 100% brass, will not rust
- 5 sizes from 160,000 to 480,000 BTU
- WATERSTOP fitting on the 160K and 240K sizes
- Natural gas or propane
- Full lifetime burner warranty
What Is Included and What You Will Need
- Included: CROSSFIRE CFBDT brass burner in the size and fuel selected
- Not included: plate, flex line kit, key valve or ignition system
- Required, sold separately: fire-rated media such as Warming Trends black lava rock (BLR) or rolled lava rock (LRR)
- Required: a non-combustible, vented enclosure and a gas line with an exterior shutoff, run by a licensed installer
Installation Notes
Warming Trends requires a non-combustible enclosure with venting on at least two opposing sides, 18 sq in. minimum each, placed mid to low; the cavity must never be filled with gravel, crushed rock or concrete, and the burner should sit 4 to 6 in. below the top to protect the flame from wind. Support the plate or pan on blocks, bricks or L-brackets, never on the valve. Keep 36 in. horizontally and at least 84 in. overhead from combustible materials (Version 6 manual), fit a gas shutoff outside the fire feature, and have a licensed gas professional make the connection and leak test. Cover the burner with fire-rated media no more than 1/2 in. above the jets; never use gravel, pebbles or river rock. Use an ignition and flex line system rated for the burner's BTU; Warming Trends uses its FK2 dual flex line kit on 250,000 BTU and larger burners. Certification: no CFBDT Double Tree size appears on the Warming Trends certified burner list in the Version 6 manual (6/26) or in ICC-ES listing PMG-1213 (effective March 2026), with match lit or electronic ignition. The certified CROSSFIRE tree-style burners are the single-row CFBT110 to CFBT470 sizes, listed match lit and with Warming Trends push button spark (PBIK), 3V battery (3VIK), 24V electronic (24VIK and P24VIK), Mercury and Platinum ignition systems. Because it is not a certified configuration, installation requires approval from your local code official (the authority having jurisdiction) before you buy and install it. For New York City addresses, outdoor gas fire features and their gas piping fall under the NYC Fuel Gas Code and Department of Buildings permitting, and propane at residences is restricted by the NYC Fire Code, so the approval path for a built-in fire pit must be confirmed before you buy. Book a design consultation and we will size the burner, plate and gas line.
Documentation
- Owner/Instruction Manual
- Manual De Instrucciones
- Burner Size Guide

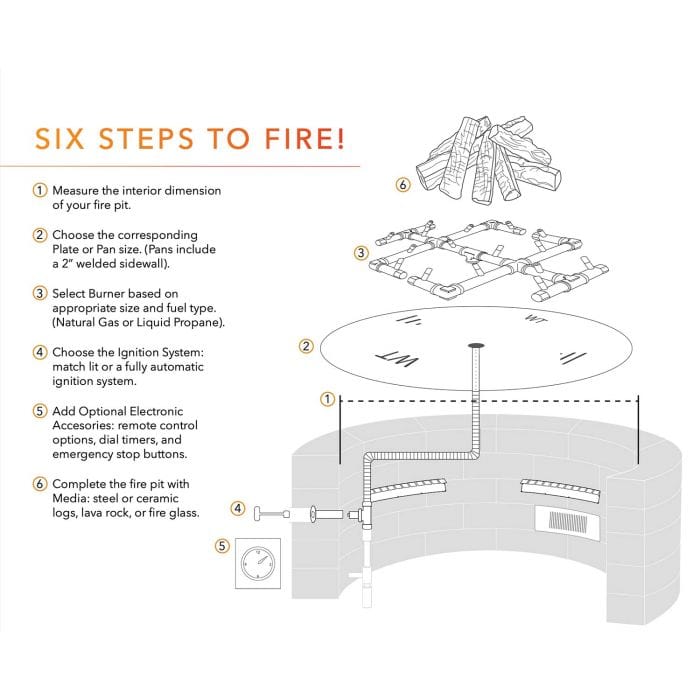

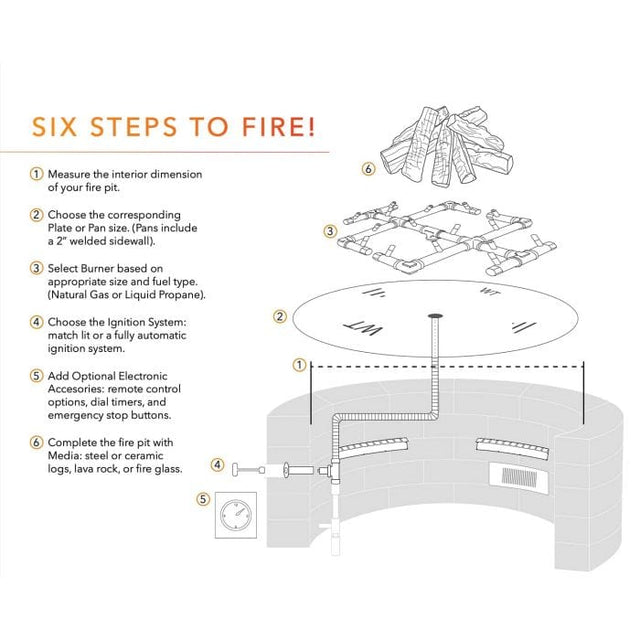

- 6 Steps To Fire
- Warming Trends Warranty
- Warming Trends Owner's Guide and Instruction Manual, Version 6 (6/26)
- ICC-ES Listing PMG-1213, Warming Trends Certified Burner Systems (effective March 2026)
Frequently Asked Questions
Which size do I need?
Match the plate to the inside of your fire pit: 22 x 17 in. for the CFBDT160 up to 59 x 18 in. for the CFBDT480, per the Warming Trends size guide, and confirm your gas supply can deliver the BTU.
Is a valve or flex line included?
No. This listing is the burner only. Add a Warming Trends flex line and valve or ignition kit rated for the size you choose.
Natural gas or propane?
Each burner is built for one fuel. Order the version that matches your supply.
What media can I use?
Fire-rated media made for fire features, such as lava rock or fire glass, placed on the plate rather than dumped over the burner and no more than 1/2 in. above the jets. Never use gravel, pebbles or river rock.
Related reading: Gas Fire Pit Buying Guide and Outdoor Fireplace Buying Guide.
Warranty
Warming Trends Full Lifetime Warranty on CROSSFIRE and other jetted brass burners, from the date of purchase and transferable with proof of ownership; Warming Trends repairs or exchanges a defective burner free during the warranty period. Misuse, installation defects, modification and indoor use are excluded, installation services are not covered, and electronics carry separate warranties. Burners and electronics must be covered when not in use or the warranty is void.
